Electrolux PLEF398C Manual de instrucciones

Product No. PLEF398CCD

Series 30" f/s elec

Color stainless

Market North America

Wiring Diagram 316255326

Owner's Guide 316257124

Installation Instructions 316259206

Service Data Sheet 316259183

PLEF398CC.eps L20G0028.eps L20V0126.eps L20T0037.eps L20D0021.eps

316255326d.eps 316255326s.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995401790

04/01/19

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

PLEF398C

Publication No: 5995401790 PLEF398CCD

01/04 2

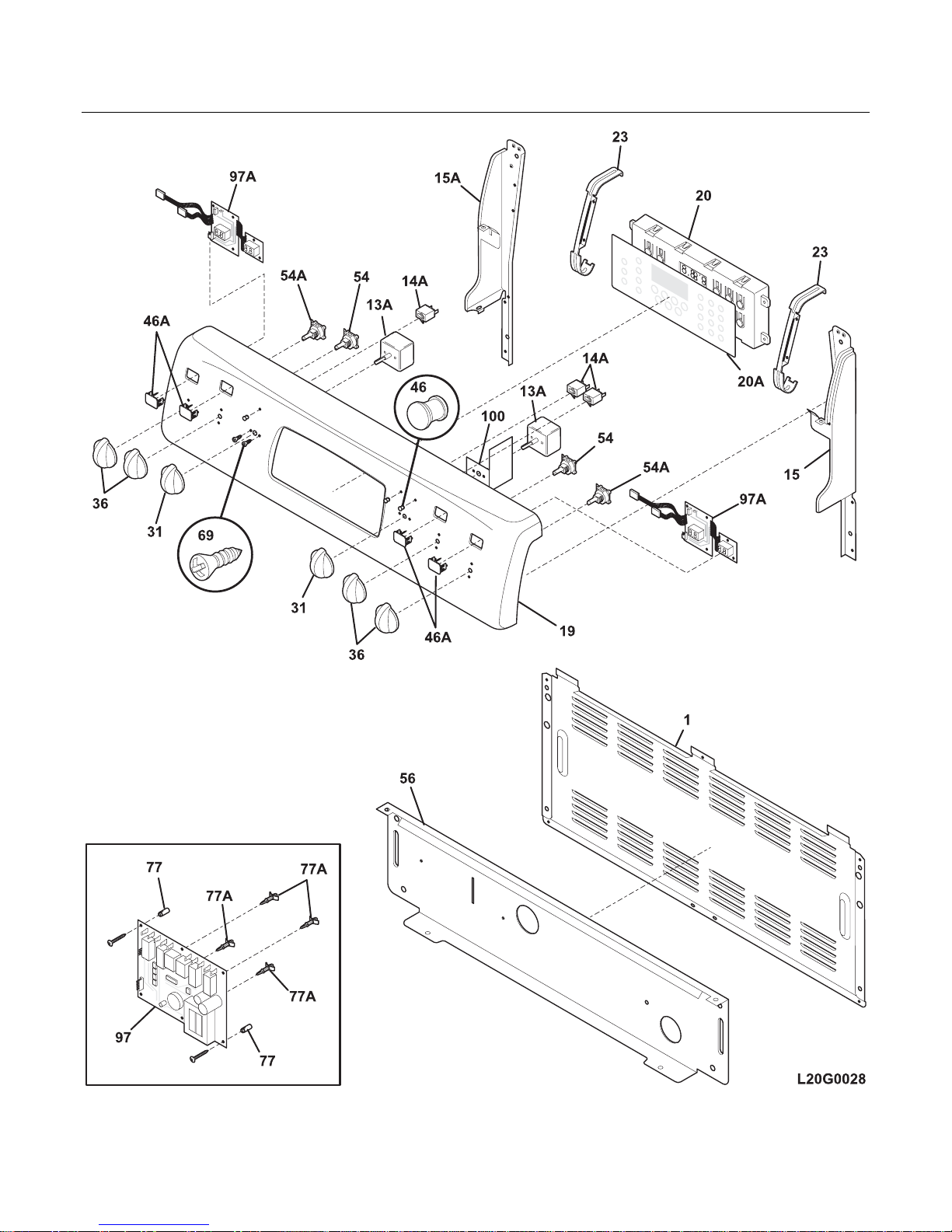

BACKGUARD

PLEF398CCD Publication No: 5995401790

# Functional Parts 3 01/04

* Non-Ilustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

1 316239900 Shield, backguard, rear wall

13A# 316095500 Switch, infinite, warmer

14A 316022500 Light/Lamp, indicator, 125 V

15 316220216 Support, backguard, black, RH

15A 316220217 Support, backguard, black, LH

19 316233836 Panel, backguard, stainless

20 # 316207620 Clock/Timer, EOC

20A 316243301 Overlay, clock, black

23 316220900 Bracket, clock mtg

31 316223002 Knob, black

36 316223019 Knob, control, black

46 316040201 Lens, indicator light, red

46A 316239000 Lens, LED display

54 316239600 Control, surface element, single, potentiometer

54A 316239601 Control, surface element, dual, potentiometer

* 316247700 Nut, hex control mtg, (4)

* 316247800 Washer, lock, control mtg

56 316234003 Shield, backguard, black, inner

69 5303288565 Screw, truss sqdr, 8-32 x 3/16, switch mtg

77 316247900 Spacer, power board, (2)

77A 316114100 Spacer, (2)

97 316239400 Board, power

97* 5303289910 Screw, 8A, 1", power board mtg

97A 316239500 Board, user interface

97A* 316247600 Spacer, foam, (16), user interface

100 316247400 Insulator, switch

* 316253601 Harness, backguard

* 218490900 Cleaner, stainless steel

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

Publication No: 5995401790 PLEF398CCD

01/04 4

BODY

ANTI-TIP

BRACKET

107

161

110

109

111

106

108

68 68

NOTE: Oven Liner N/A

Ass. du four N/A

58A 58B

41A

59B

59A

L20V0126

170

58C

33A

155

25A

89A

PLEF398CCD Publication No: 5995401790

# Functional Parts 5 01/04

* Non-Ilustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 316201300 Back, main

3 316216404 Panel, bodyside, black, RH

3 316216405 Panel, bodyside, black, LH

3* 316021132 Screw, bodyside, 8-18 X 11/16, black

5 316129200 Screw, leveling, plastic, with stop

6 316216000 Rack, oven

6A 316262901 Rack, oven sump

6B 318219500 Rack, broiler pan

7 316216500 Hinge, oven door, RH

7A 316216501 Hinge, oven door, LH

8 316201501 Panel, sump, oven bottom

9 316081900 Pan, broiler

10 316082000 Insert, broiler pan

12 # 316209903 Switch, oven light/door

14 316116400 Receptacle, oven light

15 5303013071 Bulb/Lamp, oven light

16 08011086 Lens, oven light, glass

17 316087500 Retainer, lens

18 # 316213900 Latch, oven door

21 3014099 Spacer, bodyside

25A 316092400 Shield, warmer drawer, upper

26 316211800 Shield, chassis filler, side lower, (2)

33A 316231600 Shield, rear wall, lower, warmer drawer

37 # 316233900 Probe, oven temp

41 316233400 Cover, hinge cutout, RH

41A 316233500 Cover, hinge cutout, LH

42 316206200 Shield, wool, lower

44 316246500 Spacer, oven door

45 316234100 Shield, wire, vent tube

57 316081100 Cover, access

58 316240300 Insulation, oven bottom

58A 316047708 Insulation, 2", oven wrapper

58B 316240102 Insulation, oven back

58C 316240400 Insulation, oven sump

59 316208200 Tube, oven vent, lower

59A 316208302 Tube, oven vent, upper

59B 316247300 Catalyst, oven vent, ceramic

62 5303935238 Terminal Block Kit, w/ground plate

62* 316085600 Insulator

62* 316205500 Nut, hex flange, 3/8 10-32

63 316278800 Plate, grounding strap

66 # 316203301 Element, broil

67 # 316202200 Element, bake

68 316203400 Support, broil element

71 316015810 Shield, rear wall, galv steel

77 316105500 Glide, warmer drawer, outer/RH & LH, (2)

87 316081200 Bracket, cable mtg

88 316203500 Rod, auto latch

89 # 316135201 Motor, latch/lock

89A 316245800 Bracket, latch, rear

106 316026600 Bracket, motor mtg

Publication No: 5995401790 PLEF398CCD

01/04 6

BODY

ANTI-TIP

BRACKET

107

161

110

109

111

106

108

68 68

NOTE: Oven Liner N/A

Ass. du four N/A

58A 58B

41A

59B

59A

L20V0126

170

58C

33A

155

25A

89A

PLEF398CCD Publication No: 5995401790

# Functional Parts 7 01/04

* Non-Ilustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

107 316026701 Cover, fan

108# 316136300 Motor, fan

109 316136400 Blade, fan

110 316136500 Washer, fan motor

111 316136600 Nut, fan retainer

155 316095201 Shield, warmer drawer, front

161# 316211603 Element, convection fan, 350 W

170 5303935180 Anti-tip Kit, w/bracket, screw

170* 316107200 Bracket, anti-tip

170* 316112500 Template, anti-tip

170* 316116000 Screw, concrete, 1.75", anti-tip brkt

* 316269508 Harness, wiring, main

* 5303305345 Paint, touch-up, black

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 5303271648 Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303280311 Screw, wafer hd sq dr, 10-32 x 0.312

* 5303285179 Screw, wafer head, 8-32T x 0.500, black

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995401790 PLEF398CCD

01/04 8

TOP/DRAWER

PLEF398CCD Publication No: 5995401790

# Functional Parts 9 01/04

* Non-Ilustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 316115901 Drawer, warmer

2 316231503 Liner, drawer

4 316248801 Panel, drawer, stainless

13 316231700 Glide, drawer, RH inner

13A 316231701 Glide, drawer, LH inner

15A# 316010205 Element, surface, 6", 1200 W, radiant

15B# 316224300 Element, dual, 6"/9", surface, 1000W/2500W, radiant

15C# 318198804 Element, surface, warmer, 100 W

15E# 316235301 Element, double 6", surface, 4400 W, w/bridge

16 316251917 Main Top Assy, glass/steel, black

18 316235900 Hinge, main top, RH

18A 316235901 Hinge, main top, LH

26 316230202 Channel, element support, (2)

26A 316099202 Bracket, chassis support, rear

26B 316214200 Bracket, chassis support, front

39 316246100 Handle, door/drawer, stainless

52 316099400 Clip, element mtg

81 # 316239201 Element, warmer drawer

82 316093200 Bracket, element mtg

83 316093300 Shield, terminal, warmer drawer

84 316093501 Thermo disc, warmer drawer

85 316093600 Rack, warmer drawer

86 316095800 Clip, hold down, warmer element

87 316091900 Base, warmer drawer

96 316122000 Clip, lock, warmer drawer

97 316003802 Screw, Hex HD 3/16", 6 x 3/8

* # 316253536 Wiring Harness, surface element

* 316001917 Harness, warmer drawer

* 316253603 Harness, warmer drawer, main

* 218490900 Cleaner, stainless steel

* 316264000 Cleaner, cooktop

* 316021108 Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 Screw, 8-18 x 0.5, chrome

* 316021110 Screw, 8-18 x 0.5, black

* 5303280311 Screw, wafer hd sq dr, 10-32 x 0.312

* 5308014215 Screw, 6-20 x 0.312

Publication No: 5995401790 PLEF398CCD

01/04 10

DOOR
