Electrolux E30GC70FSS1 Manual de usuario

E30GC70FSS.tif ME30GC70FSS1.eps BE30GC70FSS1.eps 318047111.eps

Product No. E30GC70FSS1

37766266760S1

Series 30" gas

Color stainless

Market North America

Wiring Diagram 318047111

Owner's Guide 318200676

Installation Instructions 318201468

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995468773

06/06/26

(EN/SERVICE/ECL)

377

GAS COOK-TOP

RANGE

Model No.

E30GC70F

Publication No: 5995468773 E30GC70FSS1

06/06 2

COOK TOP

E30GC70FSS1 Publication No: 5995468773

# Functional Parts 3 06/06

* Non-Illustrated Parts

COOK TOP

POS. NO PART NO. DESCRIPTION

16 318279352 Maintop, stainless

20 318358000 Grate, black, (2)

21 316264803 Skirt, 16/17K burner, black

21A 316241904 Skirt, 5K burner, black

21B 316241804 Skirt, 9.5K burner, black, (2)

22 316271904 Cap, 16/17K burner, black

22A 316206604 Cap, 5K burner, black

22B 316213505 Cap, 9.5K burner, black, (2)

31 316242004 Seal, 16/17K burner

31A 316242003 Seal, 5K burner

31B 316242002 Seal, 9.5K burner

39 318144006 Cord, service

43 318242220 Knob, control, (4)

46 318278903 Box, burner

64 5303304033 Bracket, retainer

* 5303307980 Screw, 8-32 x 0.437, (4)

65 5303304032 Seal, rubber

88 318280101 Gasket, cooktop, 21.48", sides, (2)

88A 318280100 Gasket, cooktop, 29.79", front/back, (2)

132 3201437 Strain relief

136 318264300 Support, box, (2)

137 5303285443 Screw, lock bracket, 10-24 x 2.00

* 318163602 Cleaner, stainless steel

Publication No: 5995468773 E30GC70FSS1

06/06 4

BURNER

E30GC70FSS1 Publication No: 5995468773

# Functional Parts 5 06/06

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 318177009 Manifold Pipe

* 08011955 Screw, 10-24 x 0.375, square drive

2 # 318233940 Valve, top burner, 16/17K

2A # 318233900 Valve, top burner, 5000 BTU

2B # 318233910 Valve, top burner, 9500 BTU

3 # 318232604 Wiring Harness, w/igntr switch

8 # 316135701 Module, spark

* 5303311532 Screw, 6-32 x 1/4", back

10 # 316223300 Burner, sealed, 16/17K

10A# 316206400 Burner, sealed, 5K

10B# 316212400 Burner, sealed, 9.5K

11 # 318306237 Ignitor/orifice assy., top burner, right front, 17K, w/holder, tube

11A# 318221332 Ignitor/orifice assy., top burner, right rear, 5K, w/holder, tube

11B# 318221334 Ignitor/orifice assy., top burner, left rear, 9.5K, w/holder, tube

11C# 318306236 Ignitor/orifice assy., top burner, left front, 16K, w/holder, tube

14 # 5308007974 Regulator, pressure

35 318146301 Bushing

37 316240600 Screw, assy mtg, ignitor/orifice

44 318362300 Orifice, top burner, 17K

44A 316237903 Orifice, top burner, 5K

44B 316237902 Orifice, top burner, 9.5K

44C 318362302 Orifice, top burner, 16K

72 316215600 Screw, valve mtg., 1/4 - 20

73 318024201 Bracket, spark module

* 5303305528 Screw, 8-32 x 1/4

77 318192606 Bracket, burner mtg, (4)

77* 5304403558 Screw, 10-16 x 0.250

* # 318127428 LP Conversion Kit

* 318199742 Wiring Harness, ignitor

Publication No: 5995468773 E30GC70FSS1

06/06 6

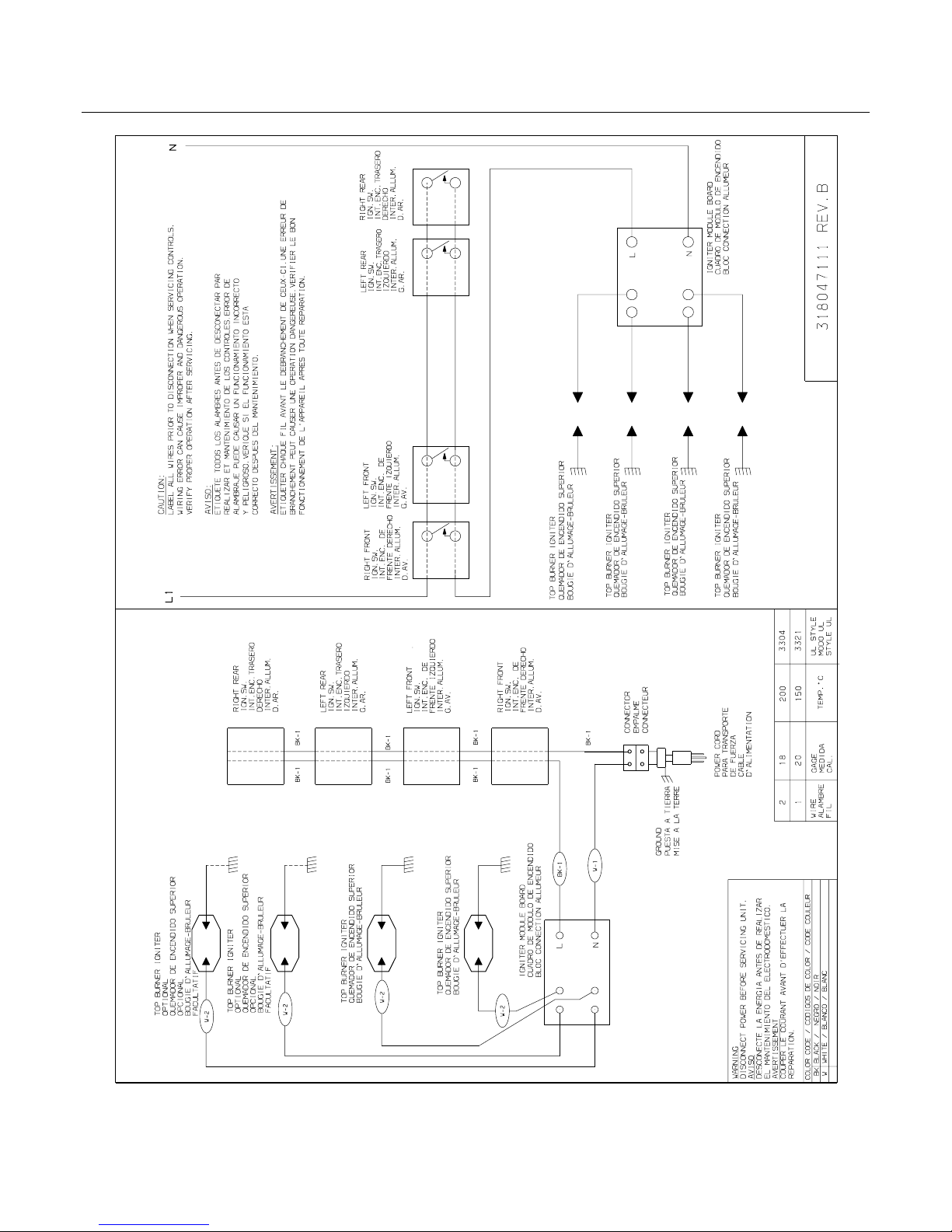

WIRING DIAGRAM
