Electrolux Frigidaire FES355E Manual de instrucciones

FES355E.eps CFED355ESD.eps BFES355ESF.eps LA20CT0045.eps D79046592501.eps

318550112-1.eps 318550112-2.eps

Product No. FES355ESF

37954335E5016

Series 30" slide-in

Color white

Market North America

Wiring Diagram 318550112

Owner's Guide 318203821

Installation Instructions 318201611

Service Data Sheet 318127060

Timer Guide 318200184

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995555942

09/11/16

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

FES355E

Publication No: 5995555942 FES355ESF

11/09 2

BACKGUARD

FES355ESF Publication No: 5995555942

# Functional Parts 3 11/09

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

14 # 318293901 Light, indicator, 125v, (2)

16 318299100 Console, assy., white

16* 5304447071 Clip, console, (2)

19 318235187 Panel, control, white

19A 318224401 Panel, control mtg.

20 # 318414214 Clock/Timer, electronic, white, ES300

20* 316419104 Overlay, clock, white, ES300

20* 5304453707 Screw, 8-18 X 1/2

24 # 316005607 Switch, rocker, white

35 318183100 Support, glass, black

36 316223028 Knob, control, white

42 318298011 Trim, vent, black, upper

46 318228301 Lens, indicator light

54 # 318293830 Switch, infinite, (2)

54A# 318293831 Switch, surface element, large

55 318402901 Bushing, switch

69 5303323134 Screw, 8-32 x 3/16, (8)

99A 318223900 Gasket, dark grey

* # 318228866 Harness, wiring, main, backguard

* # 318224859 Harness, wiring, timer

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303300265 Screw, 8-18 X 1/2, (4)

Publication No: 5995555942 FES355ESF

11/09 4

BODY

FES355ESF Publication No: 5995555942

# Functional Parts 5 11/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259220 Back, main

1A 318225110 Panel, main back, upper

2 318258902 Shield, insulation, upper

3 318225210 Panel, bodyside, upper RH

3A 318225211 Panel, bodyside, upper LH

4 318073906 Panel, subtop

5 318175508 Screw, leveling, w/tee nut

6 318345207 Rack, oven

9 316081900 Pan, broiler, OPTIONAL ACCESS0RY

10 316082000 Insert, broiler pan, OPTIONAL ACCESS0RY

12 # 318394801 Switch, light, door

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

16 318406100 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

54 318222400 Housing, oven light

58A 318386100 Insulation,oven wrapper

58B 318133791 Insulation, oven back, back/bottom

59 318549815 Tube, oven vent

62 5303935061 Terminal Block Kit

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

63 318264200 Plate, grounding strap

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, hanger, (4), broil element

70 318259105 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056292 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258765 Shield, insulation, lower

83 318261403 Liner, oven assy

86 318561100 Receptacle, hinge, (2)

86* 5304461333 Screw, 10-32 x 17/32

87 318260627 Bracket, cable mtg.

87A 318111806 Plate, cord set mtg

89 # 318261205 Motor, latch assy

90 318296902 Panel, filler, white, RH

90A 318296903 Panel, filler, white, LH

108# 318073028 Motor, blower

* 08016432 Screw, truss head,8-18 x 0.375

108A 318251300 Bracket, fan support

119# 318005202 Switch, thermal cutout

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272901 Box, vent

132 318003000 Plate, shield

162 318225810 Box, extension

165 318322600 Plate, shield

165A 318326501 Shield, heat

166 318298410 Bracket, base support, (2)

166A 318298403 Bracket, base support, lower, (2)

170 318335500 Anti-tip & accessories

185 318165800 Spacer

200 318335600 Frame & Wheel Assembly, black

201 318298230 Frame, drawer, black

* # 318384464 Wiring Harness, main

* 318235300 Connector assy., w/3 lugs, & instructions

* 5304400192 Retainer, wiring

* 318531701 Spacer, (2)

* 3051050 Screw, shoulder

* 3201861 Screw, 6 x 0.375, (4)

* 5303211311 Screw, 8-18 x 0.500

* 5304415832 Screw, 8-18 x 0.406

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995555942 FES355ESF

11/09 6

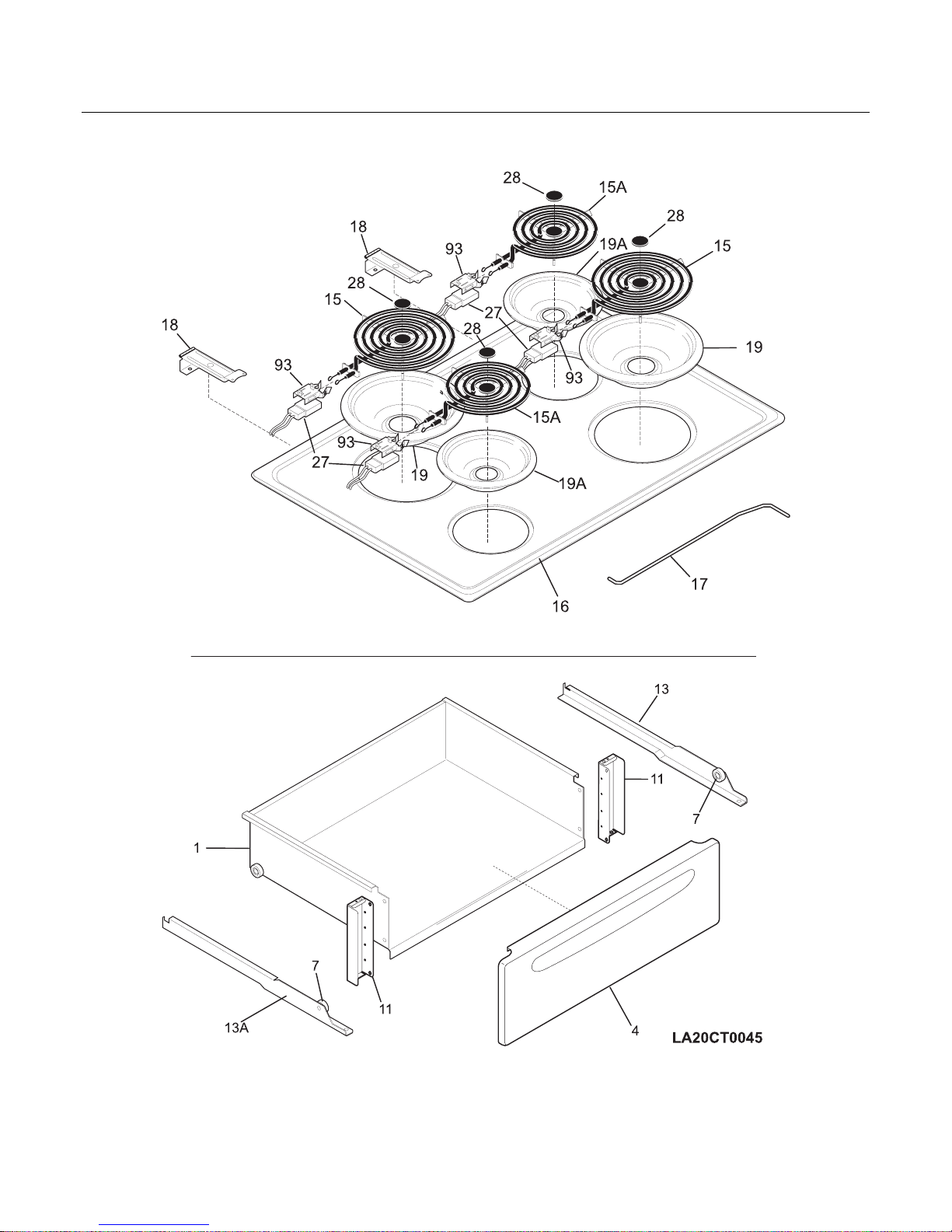

TOP/DRAWER

FES355ESF Publication No: 5995555942

# Functional Parts 7 11/09

* Non-Illustrated Parts

TOP/DRAWER

POS. NO PART NO. DESCRIPTION

1 318107105 Drawer

4 318298906 Panel, drawer, white, front

7 318332200 Roller, nylon

11 318298601 Bracket, drawer support, (2)

13 318018100 Channel, drawer, RH

13A 318018101 Channel, drawer, LH

15 # 318372214 Element, surface, 8", large

15A# 318372211 Element, surface, 6", small

16 318225607 Main Top, white

17 3051554 Rod, support, main top panel

18 318227710 Hinge, maintop, (2)

19 # 316048413 Pan-surface element, chrome, large/8 inch, (2)

19A# 316048414 Pan-surface element, chrome, small/6 inch, (2)

27 # 5303912666 Terminal Block Kit, surface element

28 5303017715 Medallion, 1 1/2"dia, black, surface element

93 318366410 Support, terminal block, (4)

* # 318301002 Wiring Harness, surface units

* 5303211311 Screw, 8-18 x 0.500

Publication No: 5995555942 FES355ESF

11/09 8

DOOR

D79046592501

FES355ESF Publication No: 5995555942

# Functional Parts 9 11/09

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3 318260201 Trim, oven door, black, upper

3A 318260401 Trim, oven door, side, (2)

4 318261301 Glass Assy., oven door, white, outer, w/trim

6 318260522 Baffle, door

7 318372000 Insulation, door, (2)

7A 318372002 Insulation, door, (2)

8 316117500 Glass, oven door, heat barrier

9 318360111 Liner, oven door, upper

10 5304453223 Screw, handle mtg, 10-14 x 1.82, (2)

12 318053130 Seal, oven door, lower

16 318212210 Glass, oven door, heat barrier, lower door

17 318264710 Spacer, glass, lower, (2)

23 318567101 Hinge, oven door, (2)

29 318014405 Spacer, door

39 316270201 Handle, door, white

42 318382301 Bracket, glass retainer, (4)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer

* 316221001 Label, anti-tip

* 5304415832 Screw, 8-18 x 0.406

Publication No: 5995555942 FES355ESF

11/09 10

WIRING DIAGRAM
