Electrolux 253.280528010 Manual

P08F0128.eps P08D0617.eps P08C1192.eps R08S0525.wmf

REPAIR

PARTS

LIST

253.280528010

For Parts or Service:

Call

1-800-4-MY-HOME®

(1-800-469-4663)

Or Visit

www.sears.com

UPRIGHT FREEZER

In all orders or correspondence, avoid delays and misunderstandings

by always giving the complete model number shown on the left side of

the access panel.

All repair parts listed are available for immediate purchase or special

order when you visit your nearest Sears Parts & Repair Center, or the

Service Department at most Sears stores. To order parts by phone, call

the toll-free number listed to the left or visit sears.com.

When requesting service or ordering parts, always provide the following

information:

• Product Type • Part Number

• Model Number • Part Description

Sears Brands Management Corporation, Hoffman Estates, IL 60179

Publication number 5995606315

253.280528010

01/12 2

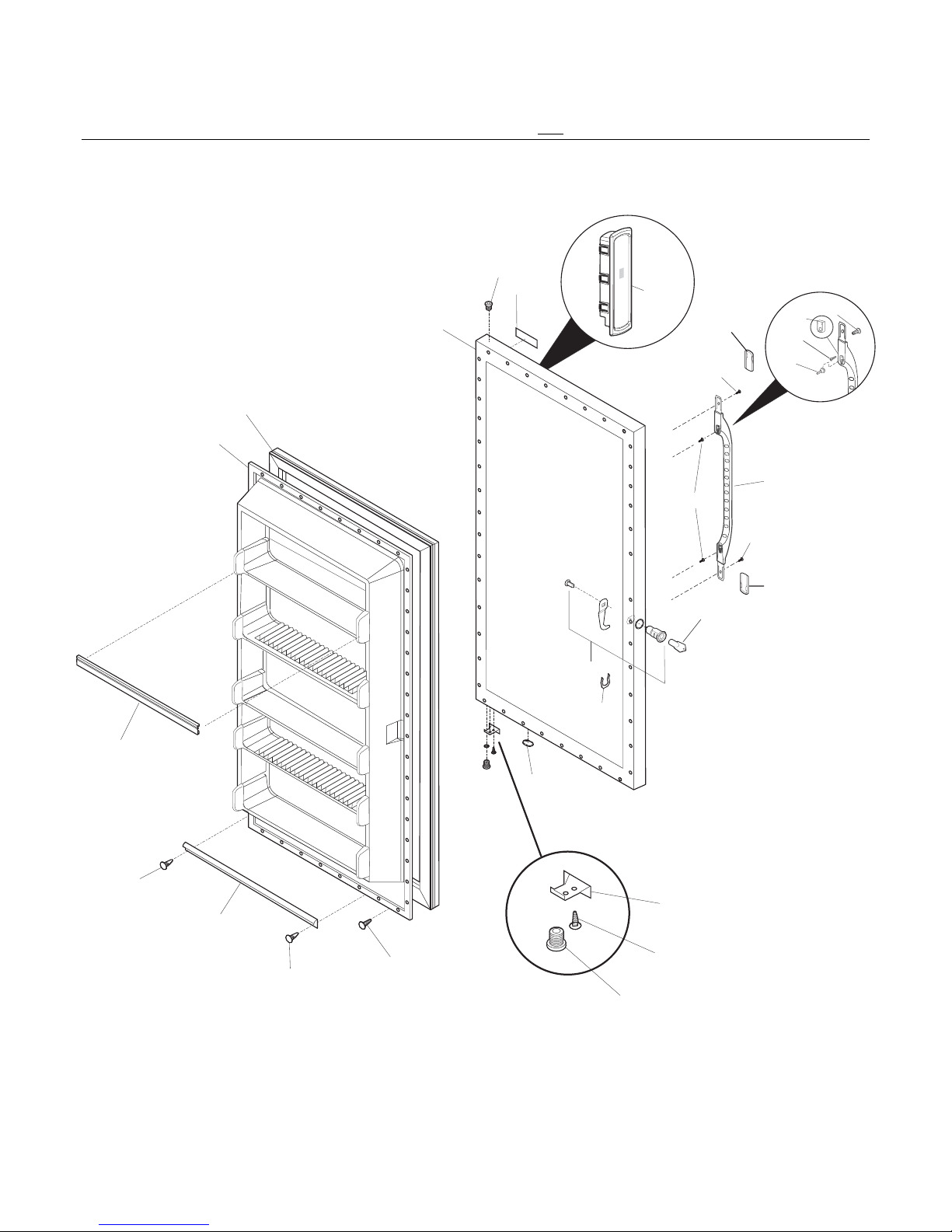

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

173 93

174A

174

174A

37A

21A

22A

P08D0617

151

12A

253.280528010

# Functional Parts 3 01/12

* Non-Illustrated Parts

DOOR

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

* 240537301 Nut-anchor, door hdl screw

* 297048000 Screw, anchor, #8, white

1 216522362 Gasket-door, white

2 # 297318600 Lock Assy

2A 297213300 Clip, spring

5 297147700 Key, lock

9 216528113 Panel-inner door, frzr

11 297316700 Panel-outer door, white

12A 297083900 Nameplate

13 297257000 Door Stop, chrome, RH

18 297272500 Handle-door, white

21A 240521303 Screw, #10-16 x 1/2

22 216970800 Bearing, hinge w/o'ring, top

22A 297006800 Bearing-hinge, btm, w/o'ring

26 216524201 Gasket, secondary

27 5304472186 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

28 216951600 Rack-door, (5)

37A 218771201 Trim-handle, 1.34", white

64 216403700 Plug-button, hole filler, door base

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

151# 297370602 Control-electronic, assy, white, 115V

173 218396700 Block-handle mtg, dovetail

174 297347800 Screw, #10-32 X .375

174A 215503201 Screw, cr pan hd, 10-16 x 0.500

253.280528010

01/12 4

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

71A

170

59A

42C

42A

P08C1192

41 28

93A

169

253.280528010

# Functional Parts 5 01/12

* Non-Illustrated Parts

CABINET

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 297200900 Breaker Kit w/corners

7 297201100 Breaker Kit w/corners, lock catch

9 297200100 Breaker Kit w/corners, 32", top and bottom

13 # 297250000 Motor, fan, 115 V

14 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 297139501 Socket, light/lamp, 25 W

19 216204902 Gasket-evap cover

25 297099251 Cover-evaporator

26 216503300 Ramp, door closer

28 297283900 Hinge-bottom, stepped pin

29 216313501 Hose-drain

32 5308005500 Drain

34 297184400 Shield-light

37 297273900 Trim-cabinet corner, white, (2)

38 297283800 Hinge-upper

40 297164400 Cover-hinge

41 297236200 Screw, tamper proof, 1/4-20 x 5/8

42 297119701 Shelf, wire, 16.69x27.88, white, (3)

42A 297119601 Shelf, 14.50x27.88

* 216502400 Grommet-shelf mtg

42C 297183701 Divider, blue, wire shelf

47 297192900 Baffle, air

50 216394050 Bracket, fan motor mount

59 297225300 Basket

59A 216486500 Stop-basket, (2)

63 216396900 Screw, leveling foot, plastic, adjustable

68 08009560 Glide-basket

69 5305878546 Bumper-basket

71A 297146820 Screw, 8-18AB x.470 QX

72 297198900 Grille/Kickplate, 32", white

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

93A 297174300 Screw, self pierce, #8, 18x.63

* 5303313703 Clip, wire

169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)

170 297280400 Valve, breather

* 5303305324 Paint, touch-up, white

* 5995606315 Repair Parts List

* 297245600 Use & Care Guide

* 297246001 Service Data Sheet

* 297241400 Label, EZ start guide

* 216982601 Energy Guide

* 297001704 Insulation, 24", drain tube

253.280528010

01/12 6

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

253.280528010

# Functional Parts 7 01/12

* Non-Illustrated Parts

SYSTEM

CAUTION: Use the Kenmore part number to order part, not the illustration number.

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 216987501 Dryer-filter

5 # 297237602 Harness-main

14 # 297348700 Defrost Heater, w/thermostat, termination swt

15 # 216997300 Evaporator

15A 297217900 Heat Exchanger, suct/cap tube

18 297078701 Insulator-evap, styrofoam, RH

19 297078801 Insulator-evap, styrofoam, LH

27 5304482545 Grommet

29 # 297223200 Compressor, w/o electricals

30 216954218 Controller

31A 297231901 Pan-drain

32 216954300 Clip, controller

35 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)

43B 297315800 Clip, wire

55 216985001 Capacitor-run, 15 MF

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

100# 297169904 Cord-power

130 297244700 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 297014500 Plug-suction line

* 297018400 Thermistor

* 240555002 Screw-#8-32 X 3/8

* 297174300 Screw, self pierce, #8, 18x.63
