Electrolux HD-Line

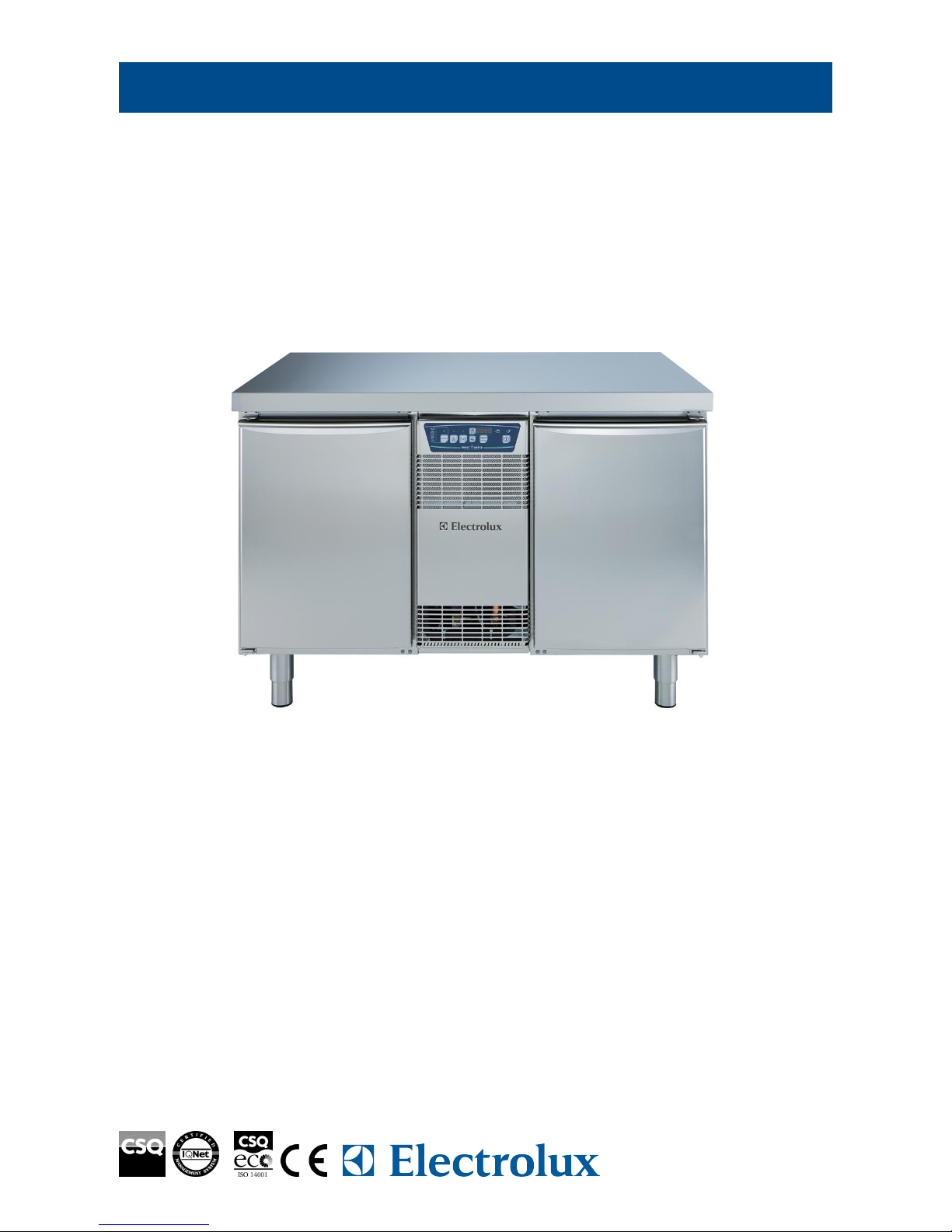

SMART freezer counters 290 lt

The Electrolux range of refrigerated counters combines the convenience of worktop space with cold storage

located below. This range of counters is manufactured throughout in AISI 304 stainless steel to meet the

highest hygiene standards.

The range comprises three sizes of counter, with built-in or remote compressor units, in various door and

drawer configurations and in refrigerator or freezer versions. The models detailed on this sheet benefit from the

advantages of smart electronic control. It has two full doors and operates over the temperature range of –18°C

to -24°C .

726586

EASY TO INSTALL

• Mounted on legs with height

adjustment.

• Built-in compressor to suit

operating conditions.

• Suitable for use in ambient

temperatures of up to 43°C.

• Touch pad selection for the five

most common food staffs the smart

electronic control sets the appropriate

temperature and humidity.



EASY TO CLEAN

• Constructed from AISI 304 stainless

steel throughout to meet the highest

hygiene standards.

• Rounded internal corners for ease

of cleaning.

• Mounted on stainless steel legs to

give 150 mm clearance for ease of

cleaning the floor.

• The SMART defrosting cycle only

starts if it is necessary (by checking

the intensity of ice on the evaporator).



EASY TO USE

• Adjustable temperature range from

–18°C to -24°C to suit meat, fish and

dairy storage requirements.

• Anti-tilt runners accept GN1/1

containers.

• Electronic microprocessor control

with external digital temperature

display.

• Forced air circulation for rapid

cooling and an even temperature

distribution.

• HACCP incorporated - all events

are recorded, displaying, date and

time.

• A memory function keeps the

information for working even when a

probe failed.

• Worktop in AISI 304 stainless steel

with a 50 mm thickness.



EASY TO MAINTAIN

• Access to all components from the

front.

• In compliance with H requirements.

• Fault code display.



EASY ON THE ENVIRONMENT

• CFC and HCFC free (ecological

refrigerant type: R404a, - gas in foam:

cyclopenthane).

• 60 mm insulation for energy saving.

• Less on energy consumption due to

smart defrosting cycles.

• Developed and produced in ISO

9001 and ISO 14001 certified factory.

Electrolux HD-LineSMART freezer counters 290 lt

Internet: http://www.electrolux.com/foodservice

HBBA0102010-05-28Subject to change without notice

PRINTER FOR HACCP BASIC VERSION 881532

PLASTIC CONTAINER GN 1/1 H=65 MM 881038

PLASTIC CONTAINER GN 1/1 H=150 MM 881040

PLASTIC CONTAINER GN 1/1 H=100 MM 811451

LOCK FOR REFRIGERATED COUNTERS 881499

KIT HACCP EKIS 922166

KIT 1 DOOR FOR REFRIGER.COUNTER 881517

2 WHEELS FOR REFRIGERATORS/REFRIG.TABLES 880539

1/1 GN GREY "RILSAN" GRID 881435

ACCESSORIES

1/1 GN GREY "RILSAN" GRID 2

INCLUDED ACCESSORIES

Net weight - kg. 129

installed-electric 0.75

Power - kW

at evaporation temperature - °C -31

Refrigerant power

Refrigeration power - W 925

Refrigerant quantity - g. 280

Refrigerant type R404a

N° defrost in 24 hrs. 4/16'

Compressor power - HP 3/4

N° and type of grids (included) 2, GN 1/1

Door hinges 1 Left+1 Right

N° and type of door 2

height 850

depth/with open doors 700, 1110

width 1274

External dimensions - mm

Cooling unit Built-In

Gross capacity (D.I.N. 8952) - l. 291

Operating mode Ventilated

Operating temperature - min/max °C -22/-15

TECHNICAL DATA

EI - Electrical connection 230 V, 1N, 50

D - Water drain 16mm

LEGEND

RCEF2M2

726586
