Electrolux EDE421E Manual de usuario

TUMBLE-DRYER

TORKTUMLARE

TØRRETUMBLER

TØRKETROMMEL

INSTRUCTION BOOKLET

BRUKSANVISNING

BRUGSANVISNING

BRUKSANVISNING

EDE 421 E

125 995 194

125995195.qxp 2005-03-16 10:33 Page 1

125 995 195

Dear customer,

Please read these operating instructions carefully and

pay particular attention to the safety notes indicated in

the first pages. We recommend that you keep this

instruction booklet for future reference and pass it on

to any future owners.

Transport damage

When unpacking the appliance, check that it is not

damaged. If in doubt, do not use it and contact the

retailer.

Guide to use the Instruction Book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions

Hints and tips

Environmental information

How do we help to protect the environment? We use recycled paper!

125995195.qxp 2005-03-16 10:33 Page 2

ENGLISH

Important Safety Information 4

Installation 4

Use 4

General Safety 4

Child Safety 5

Discarding 5

Energy saving tips 5

Your New Tumble Dryer 6

Description of the Appliance 6

The Control Panel 7

Programme Chart 9

Operating Sequence 10

Load the laundry 10

Switch the machine on 10

Select the drying programme 10

Select the required options 10

Start the machine 10

When drying is completed 11

At the end of the programme 11

Hints & Tips on Drying 12

Maintenance and Cleaning 13

External cleaning 13

Cleaning the door 13

Cleaning the filter 13

Something Not Working 14

Installation Instructions 15

Technical Specifications 15

Installation 16

Positioning 16

Fitting the vent hose 16-17

Electrical connection 17

Stacking kit (optional accessory) 17

Contents

125995195.qxp 2005-03-16 10:33 Page 3

Installation

• Any electrical work required to install this

appliance should be carried out by a qualified

electrician or competent person.

• Care must be taken to ensure that the appliance

does not stand on the electrical supply cable.

• If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

• If the tumble dryer is placed on top of a washing

machine, it is compulsory to use the stacking kit

(optional accessory).

• This tumble dryer is designed to be vented

through to the open air. It should have its own

ventilation system which should not be joined with

any other ventilation system connected to any

other appliance.

Use

• Do not overload the appliance (see programme

chart).

• Clothes which are dripping wet should not be

placed in the dryer.

• Please make sure that no gas lighters have

accidentally been left in pockets of garments to be

loaded into appliance.

•Danger of explosion: Never tumble dry items that

have been in contact with inflammable solvents

(petrol, methylated spirits, dry cleaning fluid and

the like). As these substance are volatile, they

could cause an explosion. Tumble dry only items

washed with water.

•Risk of fire: items that have been spotted or soaked

with vegetable or cooking oil constitute a fire hazard

and should not be placed in the tumble dryer.

• If you have washed your laundry with stain

remover you must execute an extra rinse cycle

before loading your tumble dryer.

• In order to avoid danger of fires caused by

excessive drying, do not use appliance to dry the

following items:

• Cushions, quilts and the like (these items

accumulate heat).

• Items containing rubber foam or materials similar

to rubber foam.

• Leave the door slightly ajar when the appliance is

not being used. This will allow the seal to be

preserved.

• Clean fluff filter after using tumble dryer. To

prevent fire risks, do not use the appliance if the

fluff filter is damaged.

General Safety

• It is dangerous to alter the specifications or

attempt to modify this product in any way.

• Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by

inexperienced persons may cause injury or serious

malfunctioning. Contact your local Electrolux

Service Centre. Always insist on genuine

Electrolux spare parts.

Important Safety

Information

These warnings have been provided in the interest of safety. You MUST read them carefully before installing

or using the appliance.

125995195.qxp 2005-03-16 10:33 Page 4

ENGLISH

Child Safety

• Children are often not aware of the dangers of

electrical appliances. When the machine is

working, children should be carefully supervised

and not be allowed to play with the appliance.

• The packaging components (e.g. plastic film,

polystyrene) can be dangerous to children -

suffocation! Keep them out of children’s reach.

,•Make sure that children or pets do not climb into

the drum.

• When the appliance is to be scrapped, pull the

plug out of the socket, cut off the electrical supply

cable and destroy the plug with the remaining

cable. Disable the door catch in order to prevent

children from becoming trapped inside while

playing.

Discarding

Packaging materials

The materials marked with the symbol are

recyclable.

>PE<=polyethylene

>PS<=polystyrene

>PP<=polypropylene

This means that they can be recycled by disposing

of them properly in appropriate collection

containers.

Machine

Use authorised disposal sites for your old appliance.

Help to keep your country tidy!

•Old appliance

The symbol on the product or on its packaging

indicates that this product may not be treated as

household waste. Instead it shall be handed over to

the applicable collection point for the recycling of electrical

and electronic equipment. By ensuring this product

is disposed of correctly, you will help prevent potential

negative consequences for the environment and human

health, which could otherwise be caused by in appropriate

waste handling of this product. For more detailed

information about recycling of this product, please

contact your local city office, your household waste

disposal service or the shop where you purchased

the product.

Energy saving tips

To save energy we recommend that you follow

these hints:

• Try to load the maximum capacity of the machine

as small loads are uneconomical.

• To utilize the maximum load, laundry which is to

be dried ready to put away (store dry) can be dried

together with laundry to be ironed. To do this,

select the programme “iron-dry”, remove the iron-

dry items at the end of the programme and then

finish-dry the rest of the laundry.

• Always load well spun laundry. The higher the spin

speed, the lower the electricity consumption and

the shorter the drying times.

• Do not over-dry laundry, this avoids creasing and

saves energy.

• Clean the filter regularly to avoid excessive drying

times and high electricity consumption.

• Ventilate the room well. The room temperature

should not exceed +35°C during drying.

125995195.qxp 2005-03-16 10:34 Page 5

This tumble dryer will give your wash that soft, relaxed

feel whatever the weather.

Extremely high quality standards both during

development and manufacturing guarantee a long

service life for your appliance.

Maximum economy in the operation of your dryer is

achieved through very frugal electricity consumption

and short drying times.

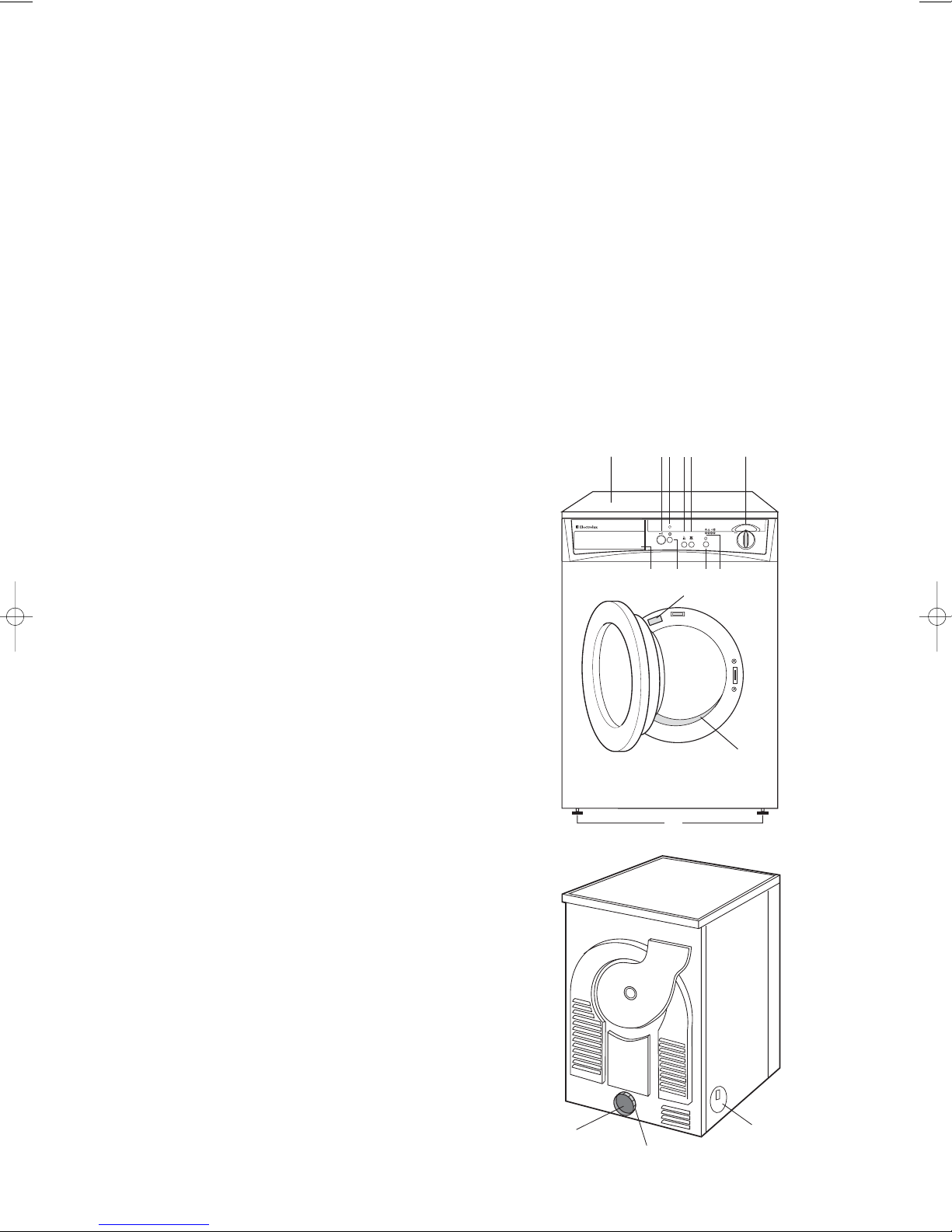

Your New Tumble Dryer

1 Top cover

2 Programme chart

3 Door opening button

4 Mains-On Light

5 ON/OFF Button

6 Low Temperature Button

7 Buzzer Off Button

8 Start Button

9 Control Lights

10 Programme Selector Dial

11 Rating Plate

12 Fluff filter

13 Adjustable feet

14 Side vent outlet

15 Ring nut

16 Rear vent outlet

Description of the Appliance

EDE 401 E

8 9

125995195.qxp 2005-03-16 10:34 Page 6

ENGLISH

1 Programme Chart

This will help you to select the correct programme

for drying.

2 Door Opening Button

Press this button to open the door.

3 ON/OFF Button

By depressing this button the machine switches on.

By depressing it again the machine switches off.

4 Mains-On Light

This lights up by depressing the ON/OFF button to

switch the machine on and goes out when the

machine is switched off.

5 Low Temperature Button

Press this button to reduce the temperature when

drying particularly delicate items. The corresponding

pilot light comes on.

6 Buzzer Off Button

During the anti-crease phase, the buzzer will sound

intermittently. Depress this button to switch off this

function. The corresponding pilot light illuminates.

7 Start Button

Press this button for about 2 seconds to start the

selected drying programme.

If the door is opened during drying programme, this

button has to be depressed after closing the door to

re-start the programme.

8 Programme phase indicator

The different lights indicate the following functions:

Drying Light

This light indicates that the machine is performing

the drying phase.

Cool Tumbling Light

This light will illuminate when the cooling phase is in

operation. This starts 10 minutes before the end of

drying to prevent any creasing or crumpling of

fabrics.

If light or flashes, the programme has to be

re-started.

End of programme & Anti-

Crease Lights

These lights flash alternatively at the end of the

drying programme: the laundry can be removed. If

you do not remove the laundry, the machine will

carry out automatically the anti-crease phase which

lasts approx. 30 minutes.

If only the light flashes this means that the anti-

crease phase has finished.

The Control Panel

123456 78 9

EDE 421 E

125995195.qxp 2005-03-16 10:34 Page 7

9 Programme Selector Dial

To set the machine to the selected programme, turn

the dial until the letter you want coincides exactly with

the pointer.

Electronic Controlled

Programmes (A…H)

These operate by means of dampness sensors.

All you have to do is to set the selector dial for the

programme required and the laundry will be dried to

the selected degree of dryness.

The degrees of final drying which can be obtained

with electronic control are illustrated in the

programme chart.

Timed Programmes (I-L)

For a personalized drying or additional drying of single

items.

The selector dial incorporates a drying cycle up to 60

minutes for cotton and up to 30 minutes for

synthetics.

The selected time can be extended when the original

programme is completed, by resetting the dial for a

further period of drying.

Remember that during the last 10 minutes of

programme, the heat is cut off in order to carry out a

fabric cooling phase, which prevents any creasing or

crumpling of the fabrics (position on the dial).

125995195.qxp 2005-03-16 10:34 Page 8

ENGLISH

Type of Max. load Degree of drying Selector dial

laundry kg required setting

White - coloured / cotton

garments of different thickness

and multilayer fabrics, 5 Extra dry A(*)

i.e. bathrobes, but no tricot

garments

Towelling

Tricot garments 5 Store dry B (*)

Baby garments

Bed linen

Table cloths 5 Slightly damp C(*)

Dishtowels

Bed linen

Table cloths 5 Iron dry D (*)

Dishtowels

Bed linen

Table cloths 5 Machine iron dry E(*)

Dishtowels

Synthetic and mixed fabrics (non-iron)

bed linen and table cloths 2,5 Extra dry F(*)

shirts, blouses

Synthetic and mixed fabrics,

i.e. bed linen and table cloths 2,5 Store dry G (*)

jumpers, baby garments

Delicates, sensitive to high temperatures 2,5 Slightly damp H(*)

Time-controlled drying for drying single 2,5 personal I(*)

cotton items 60 min

Synthetics and delicates 1.5 - 2,5 personal L(*)

30 min

(*) According to CEI 1121 standards.

Programme Chart

125995195.qxp 2005-03-16 10:34 Page 9

Before using your tumble dryer for the first time, we

recommend to place a few damp cloths inside the

appliance and dry for approximately 30 minutes

(programme L).

There may be dust inside a brand new tumble dryer.

1. Load the laundry

Open the door by depressing button .

Load the items one at a time, shaking them out

loosely and close the door.

Please check the laundry does not get caught

between the door and filter.

2. Switch the machine on

Depress the ON/OFF button . The mains-on light

comes on.

3. Select the drying programme

Turn the selector dial to the desired programme.

4. Select the required options

Depress Buzzer Off and/or Low Temp. Button ,

if required.

5. Start the machine

Depress START button for 2 seconds, the

machine starts operating.

To change a programme already in progress, turn

the selector dial to “0”, select the new programme

and then depress START button.

Operating Sequence

P0305

P0080

M0028

P0885

125995195.qxp 2005-03-16 10:34 Page 10

Tabla de contenidos

Otros manuales de Secadora de Electrolux

Electrolux

Electrolux EDC 5320 Manual de usuario

Electrolux

Electrolux Frigidaire CASE7074NW Manual del propietario

Electrolux

Electrolux EDH3786GDE Manual de usuario

Electrolux

Electrolux EW8H3864IB Manual de usuario

Electrolux

Electrolux TD6-14 Manual de usuario

Electrolux

Electrolux TWL4E300 Manual de usuario

Electrolux

Electrolux EFLS210TIW Manual de usuario

Electrolux

Electrolux TW SL6 E Manual de usuario

Electrolux

Electrolux EDH6370 Manual de operación

Electrolux

Electrolux TS-5121 Manual de usuario

Electrolux

Electrolux T5190LE Manual de usuario

Electrolux

Electrolux EDC67550W Manual de usuario

Electrolux

Electrolux T4900CR Manual de usuario

Electrolux

Electrolux FEQ332CES0 Manual de usuario

Electrolux

Electrolux EDC2086GDW Manual de usuario

Electrolux

Electrolux TWSL4E301 Manual de usuario

Electrolux

Electrolux TW SL5 E Manual de usuario

Electrolux

Electrolux 134066300 Manual de usuario

Electrolux

Electrolux Wave-Touch 137018100 A Manual de usuario

Electrolux

Electrolux EDH804U5WB Manual de usuario

Electrolux

Electrolux EW6C4824CB Manual de usuario

Electrolux

Electrolux W455H Manual de usuario

Electrolux

Electrolux EDE 425 M Guía rápida

Electrolux

Electrolux EW6C4824CB Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario

Bosch

Bosch WTX8HKM9SN Manual de usuario
