Electrolux EDV5552 Manual de usuario

EDV5552

EDV6552

User Manual

Tumble Dryer

2 www.electrolux.com

Visit our website to:

Warning / Caution-Safety information.

General information and tips

Environmental information.

Subject to change without notice.

WE’RE THINKING OF YOU

CUSTOMER CARE AND SERVICE

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings

with it decades of professional experience and innovation. Ingenious and stylish, it has

been designed with you in mind. So whenever you use it, you can be safe in the

knowledge that you’ll get great results every time. Welcome to Electrolux.

We recommend the use of original spare parts.When contacting Service, ensure that

you have the following data available. The information can be found on the rating plate.

Model, PNC, Serial Number.

Get usage advice, brochures, trouble shooter, service information, buy accessories

& spare parts, online product registration : www.electrolux.com

CONTENTS

1.1 Dryer Safety

1.2 Fire Hazards

1.3 Cleaning The Lint Filter

1.4 Drying Guide

1. IMPORTANT SAFETY INSTRUCTIONS

2. INSTALLATION INSTRUCTIONS

................................................................................................................. 3

................................................................................................................ 3

................................................................................................ 4

................................................................................................................ 4

3.1 The Control Panel

3.2 Operating Sequence

........................................................................................................ 6

.................................................................................................... 8

5.1 Troubleshooting

5.2 Accessories

........................................................................................................... 11

................................................................................................................. 11

...................................................................................... 5

3. USE

4. HINTS ................................................................................................................................ 9

5. TROUBLESHOOTING

IMPORTANT SAFETY INSTRUCTIONS1.

The final part of a tumble dryer cycle occurs without

heat (cooling cycle) to ensure that the items are left

at the temperature that ensures that the items will

not be damaged.

1.1 Dryer Safety 1.2 Fire Hazards

Lint must not be allowed to accumulate around

the tumble dryer.

Do not dry unwashed items in the tumble dryer.

These dryers are for drying clothes, towels and

linen at home. Do not use them for any other

purpose.

If the electrical cord of this appliance is

damaged, it must be replaced by the

Manufacturer, Authorised Service Agent or

similarly qualified person in order to avoid a

hazard.

IMPORTANT:

WARNING:

Never stop a tumble dryer before the end of the

drying cycle unless all items are quickly removed

and spread out so that the heat is dissipated.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

Children should be supervised to ensure that they do

not play with the appliance.

See the serial number sticker located on the bottom of

the door opening for voltage information.

www.electrolux.com

Never operate your dryer without the lint filter.

Do not allow lint to build around your dryer.

A torn or damaged lint filter must be replaced

immediately.

Overloading can increase lint build-up because the

airflow is reduced.

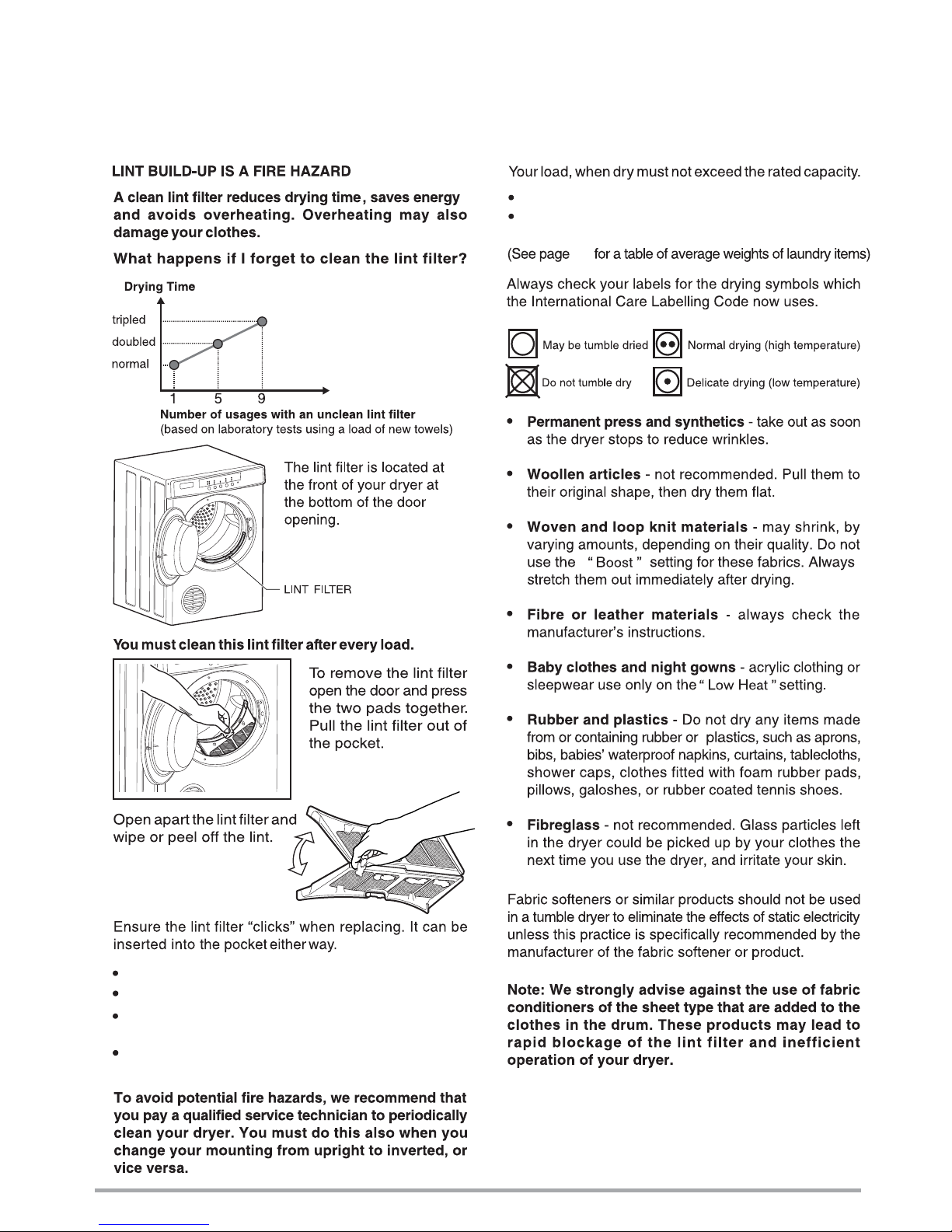

1.3 Cleaning The Lint Filter 1.4 Drying Guide

5.5 kg for the EDV5552 dryer

6.5 kg for the EDV6552 dryer

Mains Cable

Air Inlet Duct

Outlet Cover

Removable

Exhaust

Grille

(Optional Extra)

Control Panel

Door

Door Safety Switch

Button

Door Handle

Exhaust Grille

Name Badge

on top of a front load washing machine using a

stacking kit available as an optional extra (not

available for all washing machine models).

INSTALLATION INSTRUCTIONS2.

www.electrolux.com

USE3.

1 1

2 3

2 4 85 6 7

These two buttons used to select dryness program

or dry time as below:

Program Button (Up “ ”

and Down “ ”)

This button is a feature that permits you to start

the dryer after a defined number of hours, ranging

from 6 or 9 hours.

To abort Delayed start, press Start/Pause ( ) to

pause the machine then modify or cancel delay

time.

Delay Button

Is used to select one of the following options :

Boost: Higher temperature during drying cycle.

Low Heat: Lower Temperature during drying cycle.

Airing: No Heating.

Option Button

When a new program is selected while the dryer is

already running, the drying process will continue using

the setting from the new program.

NOTE: Make sure you have set the desired

program before setting the delay.

For best result we recommend to sort out your laundry

according to fabric type and spin dry at highest speed

available in your washing machine.

Extra Dry Ideal for towels or similar such as

cotton and linen.

5.5 kg/

6.5 kg

5.5 kg/

6.5 kg

4 kg

3-5 pcs

(dry items)

2 kg

Normal

Dry

Iron Dry

Program Textile Type Info Load Size

Info (Max.)*

Select this cycle to dry everyday

fabrics including cottons, linens

and sheets.

Suitable for ironing such as cotton

and linen.

Fast 40

Select this cycle to dry everyday

fabrics, cotton or blended fabrics

that need to be dried quickly.

Delicate For drying delicate clothing and

Synthetics.

Refresh

90 min.

Refreshing items that have been

in storage for long time (a short

cycle with warm temp).

For drying most fabrics, cotton. 3 kg60 min.

1.5 kg30 min.

Program

Press “ ” and “ ” buttons to select programs

as below:

Program Table Guides

If you wish to carry out a timed drying program,

pressing “ ” and “ ” buttons to select

desired time, time available are:

Corresponding LED for selected program will

turn on.

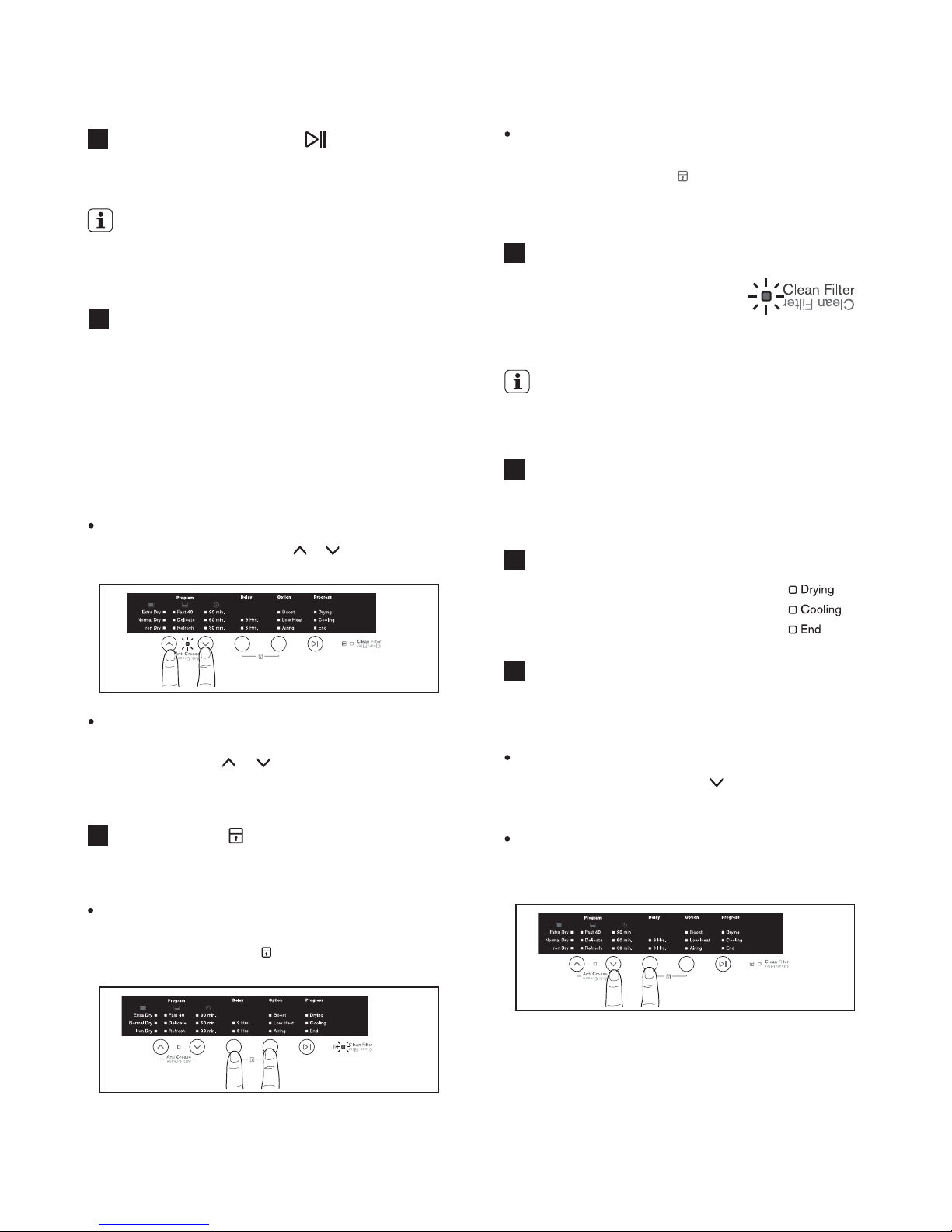

3.1 The Control Panel

: Extra Dry, Normal Dry, Iron Dry;

: 90 min, 60 min, 30 min

: Fast 40, Delicate, Refresh.

* Depend on model of Dryer (5.5 or 6.5 kg capacity)

Press and hold the Program “ ” “ ” buttons

simultaneously until Anti Crease LED turns on.

This button allows you to start or pause the dryer to

check the contents or perhaps add more clothes.

NOTE: The dryer will not start unless the

door safety button is pressed in. If the safety

button is not pressed in a door switch fault

will be indicated (“beeps” 6 times).

Start/Pause Button ( )

This feature helps prevent creases forming in the

clothes after normal drying cycle has ended.

When activated, after the normal drying cycle has

finished, the drum will rotate about 5 seconds every

minute. This cycle will continue for 3 hours.

Anti Crease is not activated by default. This option

must be activated manually for each cycle if desired.

Anti Crease Default Behavior

Activating Anti Crease

Anti Crease Feature

When activated, the options and start/pause buttons

are disabled.

Child Lock ( )

The Clean Filter LED turns on

and blinks at the end of each dry

cycle to serve as a reminder to

user to clean lint filter at the end

of each load.

Clean Filter Reminder

This button is used to switch the appliance ON or OFF.

On/Off Button

These indicators show at which phase the

drying cycle is.

Progress Indicator Lights

The Buzser feature is designed to remind user when

the dry cycle has ended, with a “beep” sound.

Buzzer

Note: If Child Lock is activated clean filter

reminder LED will turn on but will not blink.

It remains solid.

If Anti Crease LED is on, to deactivate press and

hold the Program “ ” “ ” buttons simultaneously

until Anti Crease LED turns off.

Deactivating Anti Crease

Press and hold the “Delay” and “Option” buttons

simultaneously until the “ ” & Clean Filter LED

turns on.

Activating Child Lock

Press and hold the Program “ ” and “Delay”

buttons simultaneously until a long beep is heard.

Activating Buzzer

Press and hold the same buttons until a short beep

is heard.

Deactivating Buzzer

Press and hold the “Delay” and “Option” buttons

simultaneously until the “ ” & Clean Filter LED

turns off.

Deactivating Child Lock

www.electrolux.com

Press door

safety switch

button.

For drying delicates and

synthetics at lower heat for

maximum care of the fabrics. The

Low Heat setting will cause the

heater to cycle on for shorter time

than the Boost setting.

This setting does not heat. ONLY

circulate the air in the dryer to

shake out dust and refresh

clothes.

To obtain the best drying results with

small loads it is recommended to use

“Time drying” program.

Press “ ” button or “ ” button

to select either “Extra Dry”,

“Normal Dry”, “Iron Dry” for full

load and “Fast 40”, “Delicate”,

“Refresh” for smaller load.

Press the “Option” button to select either

Boost or Low Heat from the option

program.

“Airing” is NOT available in Drying program.

Press then release the On/Off button on the control

panel. You are now ready to select your drying

Program.

This mode gives you the

option of selecting different

drying levels.

This option allows you to set

the program duration.

Do not load clothes or other articles which

are dripping wet or have sand and grit on

them into your dryer.

Auto sensing

Manual timing program

You can use your dryer 2 ways

1. Select Drying Program or Set Drying Time

2. Select Option

3. Now press Start/Pause button to start the

Dryer.

Step 1

Step 2

Step 3

Do not select the “Extra Dry” option for

delicates fabric such polyester as

shrinking may occur.

Press the “ ” button or

“ ” button to select either

90, 60 and 30 min.

Refer to the table below for option setting

recommendations.

See program table guides for load size info.

Boost

Low Heat

Airing

3.2 Operating Sequence

Drying Program

Time drying

Option

WARNING: Never stop a tumble dryer before

the end of the drying cycle unless all items

are quickly removed and spread out so that

the heat is dissipated.

both

Step 4

Switch Off

When you have finished using the dryer, press the

On/Off button, to turn off the power, then switch off at

the power point. It is recommended to power off the

appliance when not in use.

Step 5

Clean Lint Filter

After every load clean the lint filter to reduce

drying time and avoid overheating.

Checking the Load

Cooling

Hints4.

www.electrolux.com

Due to variations in dryer load fabric texture and

thickness it is possible that not all items will be

dried evenly. It you experience uneven dryness on

Normal Dry program please use either Extra Dry or

Timer Program but be mindful of the type of fabric

being dried to avoid overdrying certain types of

fabric. Always follow drying instructions attached to

the items intended to be dried in a clothes dryer.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Secadora de Electrolux

Electrolux

Electrolux EIMED60J RR Manual de usuario

Electrolux

Electrolux EDH804H3WB Manual de usuario

Electrolux

Electrolux EDC67550W Manual de usuario

Electrolux

Electrolux EDC 77570 W Manual de usuario

Electrolux

Electrolux EDE 425 M Guía rápida

Electrolux

Electrolux TWGL3E300 Manual de usuario

Electrolux

Electrolux LAVATHERM 56840L Manual de usuario

Electrolux

Electrolux IQ-TOUCH EIMED55I RR/MB/IW Manual de usuario

Electrolux

Electrolux EDE1074PDW Manual de usuario

Electrolux

Electrolux EWMED6CIRR0 Manual de usuario

Electrolux

Electrolux EWGD65H Manual de usuario

Electrolux

Electrolux EWMGD65H Manual de usuario

Electrolux

Electrolux EDE 67550W Manual de usuario

Electrolux

Electrolux TWL4E300 Manual de usuario

Electrolux

Electrolux EDE1072PDW Manual de usuario

Electrolux

Electrolux EDC 5366 Manual de operación

Electrolux

Electrolux EDV500 Manual de usuario

Electrolux

Electrolux EDC 77570 W Manual de usuario

Electrolux

Electrolux EDH3896GDW Manual de usuario

Electrolux

Electrolux EDI 96150 W Manual de usuario

Electrolux

Electrolux EDH903R9WB Manual de usuario

Electrolux

Electrolux EDC 5369 Manual de operación

Electrolux

Electrolux EDE1074PDW Manual de usuario

Electrolux

Electrolux QuickDry QDC Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario

Frigidaire

Frigidaire CAQE7077KW0 Manual del propietario

Bosch

Bosch WTX8HKM9SN Manual de usuario
