Pot & Pan Washers

WT830-WT850 specialistico ING 25-09-2006 10:01 Pagina 1

• Pot & Pan washers are ideal solutions

for demanding customers looking for high

performing machines. Perfect for cleaning

pots, pans, utensils, trays, gastronorm

containers as well as butchery and bakery

trays.

• Flexible and ergonomic to operate, and

offering the maximum in sanitation and

washing results, the Electrolux promise is

to provide a reliable warewashing

operation with low running costs.

The Intelligent generation…

WT830-WT850 specialistico ING 25-09-2006 10:01 Pagina 2

…sets the standards

Sanitisation and Hygiene

• Rinsing at a constant temperature of 82,5 °C

• 7 to 14 litres fresh hot water per rack

• Rinse water pressure optimized independent of mains network

• Boiler drain down facility

State-of-the art

Electronics

• HACCP digital display of precise wash & rinse water temperatures

• Soft-touch low voltage control panel

Flexibility

• On-site personalisation of washing & rinsing cycle times

• On-site personalisation of washing & rinsing cycle temperatures

• Pre-arrangement to accept internal and external dosing equipment

• Quick fit external connection box

• On-site conversion of electrical voltages

Performance

• Powerful wash pumps ensure clean pots, pans, containers

• Removable 3 sided wash arms for all round washing (front loading only)

• Top & bottom on-site adjustable wash water pressure

• Fast initial heat-up times

Ergonomics

• Front loading drop down doors split to counterbalance door

• Push-button automatic hood lifting door on pass-through versions

• Sound deadening insulation

• Audible and visual messages

Peace of mind reliability

• Main components in heavy duty 304 aisi stainless steel

• IPX5 water protection

• Auto-diagnostic electronic control

WT830-WT850 specialistico ING 25-09-2006 10:01 Pagina 3

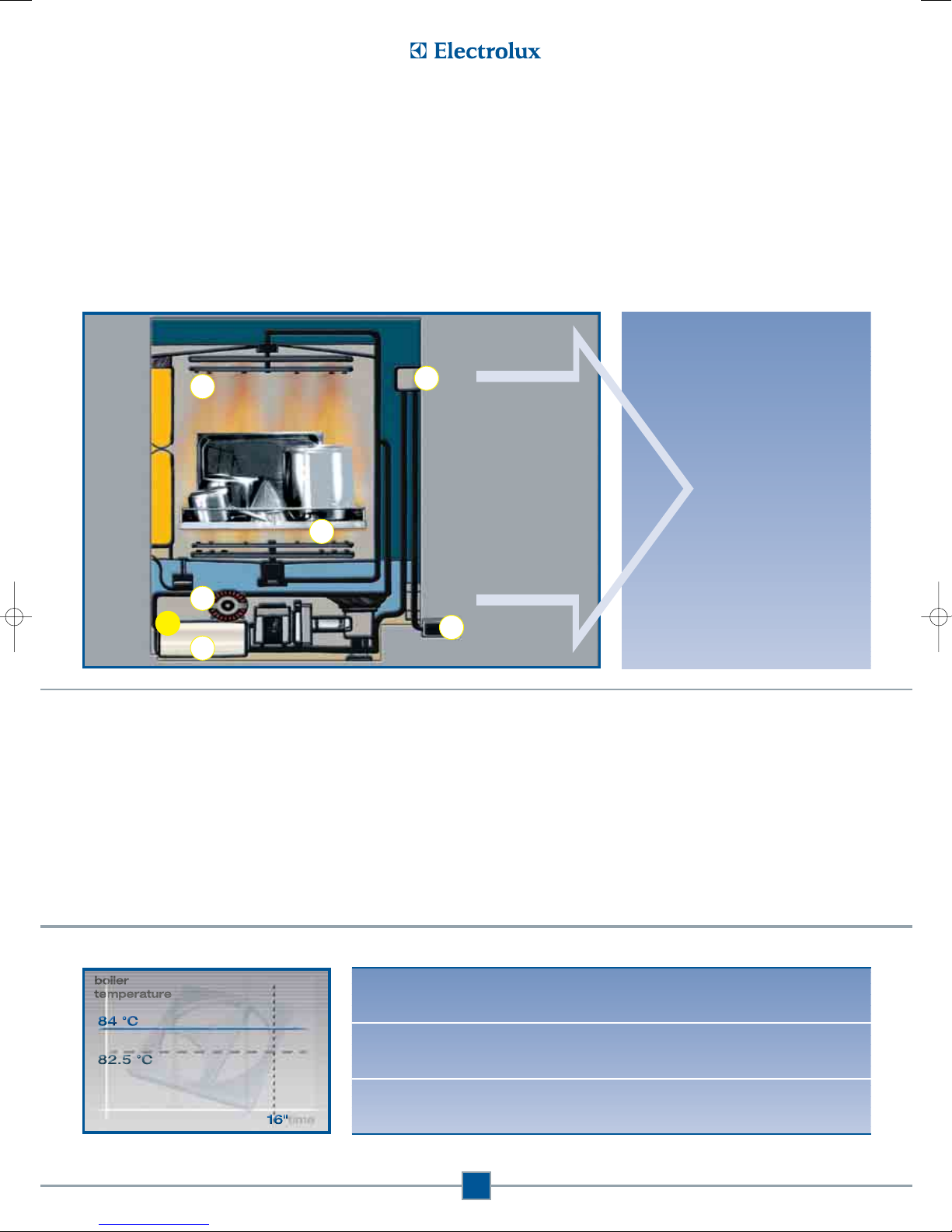

Safety and Hygiene

Rinsing

1. Solenoid valve allows water to

enter the machine and is closed during

rinsing

2. Air-break ensures protection of

mains water and compliance with

strictest hygiene regulations

3. 18 litre atmospheric boiler provides

a large quantity of hot water at a

constant temperature

4. Rinse Booster Pump pushes water at

constant high pressure, irrespective of

incoming water mains pressure

5. Rinsing arms spray water at all

angles to completely remove detergent

remains

6. Waiting device ensures rinsing

starts only when water is at the

correct temperature

Constant rinsing conditions:

84 °C at high pressure ensures excellent sanitization

Independent from the external water pressure:

strong pressure is created to completely remove detergent from every item

Energy savings: lower running cost

• Atmospheric boiler

• Internal wash area with round corners

& no pipes

• Fully automatic self-cleaning cycle sanitises

washing chamber with hot water after use

• Electronic control panel pre-arranged

for HACCP monitoring equipment such as

computers & printers

• Boiler drain down facility to evacuate

“dirty” water for added hygiene in periods

of non-use

• 200 mm height adjustable feet

• Rear of machine completely enclosed

• All pot & pan washers share the same

tried & tested atmospheric rinsing system

• Atmospheric boiler coupled with the

rinse booster pump ensures strong rinsing

water pressure even where water mains

pressure is low

• 20” rinse cycle that can be increased or

shortened on-site

• 7 litre fresh hot water per rack

• Rinsing circuit dimensioned to sanitise

all washed items at a constant

temperature above 82.5 °C

WT830-WT850 specialistico ING 25-09-2006 10:01 Pagina 4

Electronic Control Panel

State-of-the-art Electronics

• Electronics provides notable benefits,

whether for the operator, the owner, the

engineer and even the consumer

• In order to avoid time-loss for the

operator, the electronic control audibly &

visually signals on the display, messages

such as:

- “Close” – close the door

- “Fill” – machine filling with water

- “End” – washing cycle finished

- “Clean” – cleaning cycle being performed

• Electronic control panel pre-arranged

for HACCP monitoring equipment such as

computers & printers

• Large digital display for reading of wash

and rinse temperatures

• Self-cleaning cycle uses 8 litres of hot

water for sanitisation of wash chamber

after use

• All electronics are linked to soft touch

low voltage control panel

• Electronic display incorporates a number

of “wash cycles & “drainage cycles”

performed counter to provide a quick

check if dirty water is being changed often

enough to provide clean pots and pans

• Electronic control allows instant

component check-up before machine

leaves the factory

• Service “CALL” on display suggesting

regular maintenance be performed

• Wash cycle times and temperatures can

be easily personalised

• Auto diagnostic display provided in the

event of machine malfunction, with

codified indication of the problem.

• All wash cycle times can be easily

personalised, both wash and rinse times

and temperatures

• Boiler drain down facility to evacuate

“dirty” water for added hygiene in periods

of non-use

• Precise rinse aid and detergent

quantities can be set via the control

panel, offering excellent money saving

results

On/Off On/Off button

Clean Cycle and/or Drain

ON during washing

ON during rinsing

Actual wash tank temperature during

washing or actual boiler temperature

during rinsing

Short wash cycle

Drain

Temperature

indicator

Temperature

indicator

Temperature

display

P2 Medium wash cycle

Long wash cycle

Infinite wash cycle recommended for

soaking heavily soiled items

Automatic hood movement - up and

down

Pressing these two buttons together

empties the boiler

Infinite

Hood lift

Clean Cycle

and/or

Drain + P3

WT830-WT850 specialistico ING 25-09-2006 10:01 Pagina 5

Performance, flexibility,

reliability

All models have been engineered to offer

the maximum in washing performance and

have many features that make them a

safe long-term investment.

• 3 wash cycles: for light, medium and

heavy soiled items. Infinite cycle for

continuous washing

• External connection box allows rapid

on-site changing of voltage

• Electronic control panel allows on-site

personalisation of washing & rinsing cycle

times & temperatures depending on the

customers needs

• All models designed to accept internal

and external dosing equipment:

- Dosage quantities are programmable

via the electronic control panel.

- All machines are prearranged to

accept external dosing equipment.

• All main components made in heavy

duty anti-corrosive 304 AISI stainless

steel such as frame, doors, front, rear &

side panels, basket runners, anti-block

wash & rinse arms and nozzles

• IPX5 hoseproof water protection.

All machines are completely enclosed at

the rear to prevent filtration from insects,

dirt and water

• High level of components such as

Incoloy800 coated wash & rinse tank

elements with internal thermal protection

– if one branch of the element fails, the

other two will continue working

• Full tank coverage stainless steel wash

tank filters to prevent course debris

entering wash water system

WT830EA WT830EA WT830EM

WT830-WT850 specialistico ING 25-09-2006 10:01 Pagina 6

Ergonomics

Electrolux Pot & Pan washers excel in

their ergonomic design offering operators

a simplified working environment.

• Front loading models feature half doors

that are split and counterbalanced by two

telescopic arms that lighten the load

during opening and closing. The pass-

through models feature a push button

operation – 2 buttons located at a

comfortable height on the hood

• Front – loading model doors fold down

to facilitate cleaning

• Door handles are ergonomically

designed to be grabbed from any position

• Carefully designed runner’s assist

loading and unloading of heavy baskets

• Specific internal shape of hood prevents

“dirty” drops of water falling on the clean

items, once the wash cycle has finished.

Wash tank pressed with round corners &

no pipes in wash area

• Removable filters without taking out

the washing and rinsing arms.

- Insulated double walled door for low

noise levels

- Stainless steel slide-out basket with

rollers for easy handling

WT830EA WT830EA

WT830-WT850 specialistico ING 25-09-2006 10:01 Pagina 7

Front Loading

Pot & Pan Washers

Available in 3 different sizes

• Compact with standard door (700 w x 650 h

door opening) - WT830EM

• WT830EMM - Tall with high door (700 w x 850 h

door opening ideal for such as bakery trays)

• Wide with large door (1350 w x 650 h door

opening) - WT850EM

3 sided wash arms for all round cleaning of large

items with “click-in – click-out” device if not

required by the operator.

• Front loading models feature half doors that

are split and counterbalanced by two telescopic

arms that lighten the load during opening and

closing

WT830-WT850 specialistico ING 25-09-2006 10:01 Pagina 8

manual front loading

WT830EM WT830EMH WT850EM

External dimensions - mm

Width 876 876 1552

Depth 900 900 900

Height 1771 1971 1771

Loading hole - mm

Width 680 680 1350

Depth 710 710 710

Height 600 800 680

N. of cycles 444

Capacity (containers) 3 x 1/1 3 x Bakery 6 x 1/1

Washing Tank capacity - l 95 95 150

Tank heating elements - kW 7,5 7,5 7,5

Pump power - kW 2,5 2,5 5

Rinsing Boiler capacity - l 18 18 18

Boiler heating elements - kW 10,5 10,5 10,5

Total Power - kW 13,5 13,5 17

Voltage 230 / 400 V 3+N 230 / 400 V 3+N 230 / 400 V 3+N

50 Hz 50 Hz 50 Hz

Included accessories Rinse booster pump YES YES YES

Detergent connection YES YES YES

Baskets rack rack rack

for containers for containers for containers

and trays and trays and trays

s/s basket s/s basket s/s basket

WT830-WT850 specialistico ING 25-09-2006 10:01 Pagina 9

Pass-through

Pot & Pan Washers

• Available in 2 different sizes

- Compact

- Wide

• Pass-through models improve the efficiency and

ergonomics of the pot washing operation allowing

heavy items to slid out of the pot washer, avoiding

heavy lifting that is not accepted by many

countries or by unions

•Automatic hood-movement by 2 buttons

ergonomically positioned on the hood, enabling

the operator to work without having to continually

bend down

WT830-WT850 specialistico ING 25-09-2006 10:01 Pagina 10

Este manual sirve para los siguientes modelos

Otros manuales de Lavavajillas de Electrolux

Electrolux

Electrolux ESF2300OS Manual de usuario

Electrolux

Electrolux ESL 6114 Manual de usuario

Electrolux

Electrolux ESL 6380RO Manual de usuario

Electrolux

Electrolux FAVORIT 88421 VI Manual de usuario

Electrolux

Electrolux EES48400L Manual de usuario

Electrolux

Electrolux ESF5532LOW Manual de usuario

Electrolux

Electrolux ESF 6145 Manual de usuario

Electrolux

Electrolux ELAI3 Series Manual de usuario

Electrolux

Electrolux GA60GLISCN Manual de usuario

Electrolux

Electrolux GA930IFWE Manual de usuario

Electrolux

Electrolux ESF 640 Guía

Electrolux

Electrolux 534178 Manual de usuario

Electrolux

Electrolux ESL 5201LO Manual de usuario

Electrolux

Electrolux ESL 8330RO Manual de usuario

Electrolux

Electrolux ESA47300UW Manual de usuario

Electrolux

Electrolux ESL75440RA Manual de usuario

Electrolux

Electrolux Favorit 99000 Manual de usuario

Electrolux

Electrolux EIDW6105GS - Fully Integrated Dishwasher Manual de usuario

Electrolux

Electrolux ProClean RealLife EDW5xx Series Manual de usuario

Electrolux

Electrolux ESF 6250 Manual de usuario

Electrolux

Electrolux ESC67300SX Manual de usuario

Electrolux

Electrolux Diva EDW 2000 Manual de usuario

Electrolux

Electrolux 60 cm Series Manual de usuario

Electrolux

Electrolux EIDW1805KS0A Manual de usuario

Manuales populares de Lavavajillas de otras marcas

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario

Siemens

Siemens SN 56N591 Manual de usuario
