Electrolux ESF5206LOX Manual de usuario
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 6
4. CONTROL PANEL............................................................................................. 7
5. PROGRAMMES................................................................................................. 7
6. SETTINGS..........................................................................................................8
7. BEFORE FIRST USE....................................................................................... 10
8. DAILY USE.......................................................................................................12
9. HINTS AND TIPS............................................................................................. 13
10. CARE AND CLEANING..................................................................................14
11. TROUBLESHOOTING....................................................................................16
12. PRODUCT INFORMATION SHEET ..............................................................19
13. ADDITIONAL TECHNICAL INFORMATION...................................................20
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–farm houses; staff kitchen areas in shops, offices
and other working environments;
–by clients in hotels, motels, bed & breakfast and
other residential type environments.
•Do not change the specification of this appliance.
ENGLISH 3
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 8 (0.8) bar
(MPa)
•Follow the maximum number of 13 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•Put the cutlery in the cutlery basket with the sharp
ends pointing down or put them in the cutlery drawer
in a horizontal position with the sharp edges down.
•Do not leave the appliance with the open door
unattended to avoid stepping accidentally onto it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•If the appliance has ventilation openings in the base,
they must not be covered e.g. by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature is less than 0
°C.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
www.electrolux.com4
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance is fitted with a 13 A
mains plug. If it is necessary to
change the mains plug fuse, use only
a 13 A ASTA (BS 1362) fuse (UK and
Ireland only).
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Dishwasher detergents are
dangerous. Follow the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may
remain on the dishes.
• Do not sit or stand on the open door
of the appliance.
• The appliance can release hot steam
if you open the door while a
programme operates.
2.5 Service
• To repair the appliance contact the
Authorised Service Centre.
• Use original spare parts only.
2.6 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
ENGLISH 5
3. PRODUCT DESCRIPTION
54
8
10 9
11 67
12
23
1
1Worktop
2Upper spray arm
3Lower spray arm
4Filters
5Rating plate
6Salt container
7Air vent
8Rinse aid dispenser
9Detergent dispenser
10 Cutlery basket
11 Lower basket
12 Upper basket
www.electrolux.com6

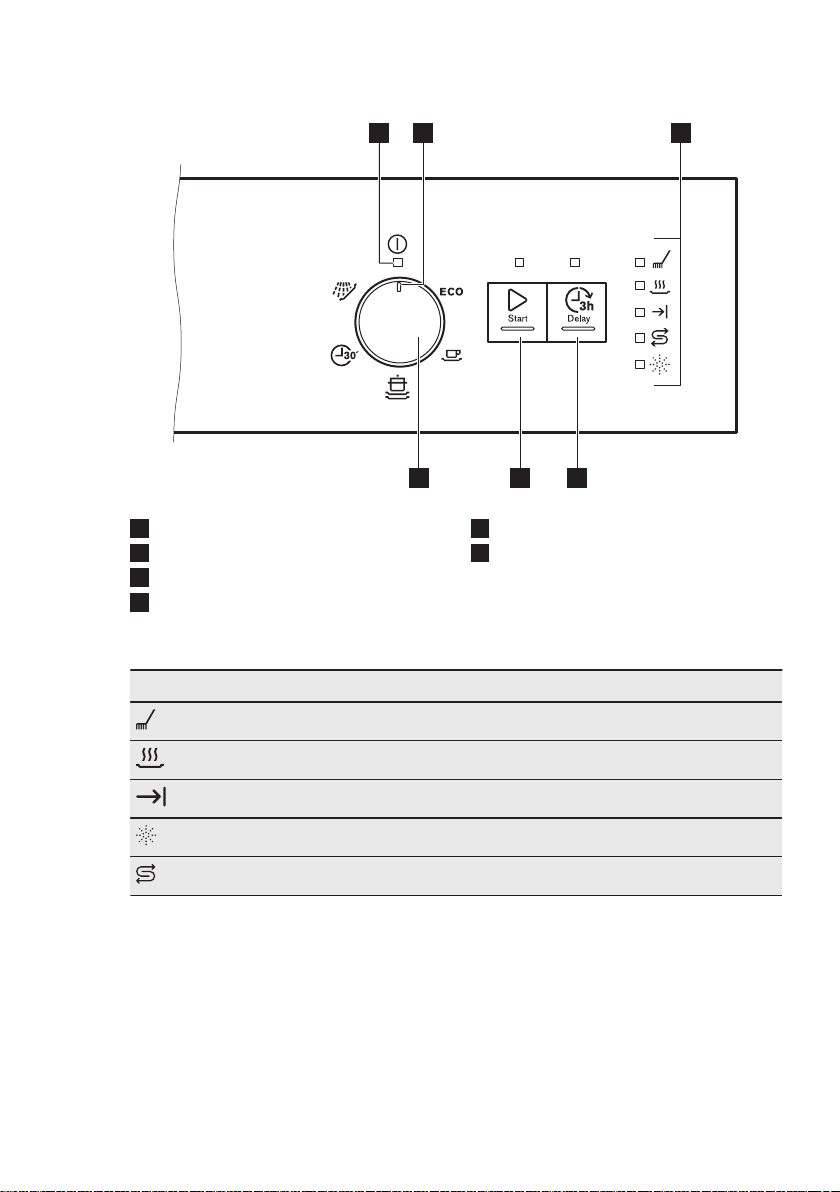

4. CONTROL PANEL
1 2 3
456
1On/off indicator
2Programme marker
3Indicators
4Delay button
5Start button
6Programme knob
4.1 Indicators
Indicator Description
Washing phase. It comes on when the washing phase operates.
Drying phase. It comes on when the drying phase operates.
End indicator.
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
5. PROGRAMMES
The order of the programmes in the table
may not reflect their sequence on the
control panel.
ENGLISH 7
Programme Degree of soil
Type of load Programme
phases Consumption values
1)
Duration
(min) Energy
(kWh) Water
(l)
2) Normal soil
Crockery and
cutlery
• Prewash
• Wash 50 °C
• Rinses
• Dry
227 1.039 11
Heavy soil
Crockery, cut‐
lery, pots and
pans
• Prewash
• Wash 70 °C
• Rinses
• Dry
155 - 170 1.5 - 1.7 14 - 15
Normal soil
Crockery and
cutlery
• Prewash
• Wash 65 °C
• Rinses
• Dry
130 - 140 1.4 - 1.6 15 - 17
3) Fresh soil
Crockery and
cutlery
• Wash 60 °C
or 65 °C
• Rinses
30 0.8 10
4) All • Prewash 14 0.1 5
1) The pressure and the temperature of the water, the variations of the mains supply, the
options and the quantity of dishes can change the values.
2) This programme offers the most efficient use of water and energy consumption for crock‐
ery and cutlery with normal soil. This is the standard programme for test institutes.
3) This programme is suitable for washing a load or a half load with fresh or light soil in a
short time.
4) With this programme, you can quickly rinse off food remains from dishes and prevent
odours forming in the appliance. Do not use detergent with this programme.
5.1 Information for test
institutes
To receive the necessary information for
conducting performance tests (e.g.
according to EN60436), send an email
to:
In your request please include the
product number code (PNC) found on
the rating plate.
For any other questions regarding your
dishwasher please refer to the service
book provided with your appliance.
6. SETTINGS
6.1 Programme selection mode
and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
Settings available in the user mode:
• The level of water softener according
to the water hardness.
• Activation or deactivation of AirDry.
As the appliance stores the saved
settings, there is no need to configure
it before every cycle.
www.electrolux.com8
How to set the programme
selection mode
The appliance is in programme selection
mode when the on/off indicator is on and
Start indicator flashes.
After activation, the appliance is in
programme selection mode by default. If
not, set the programme selection mode
the following way:
Press and hold simultaneously Start and
Delay until the appliance is in
programme selection mode.
6.2 The water softener
The water softener removes minerals
from the water supply, which would have
a negative effect on the washing results
and on the appliance.
The higher the content of these minerals,
the harder your water is. Water hardness
is measured in equivalent scales.
The water softener should be adjusted
according to the hardness of the water in
your area. Your local water authority can
advise you on the hardness of the water
in your area. It is important to set the
right level of the water softener to assure
good washing results.
Softening hard water
increases the consumption
of water and energy as well
as the programme duration.
The higher the level of water
softener, the higher the
consumption and the longer
the duration.
Water hardness
German de‐
grees (°dH) French de‐
grees (°fH) mmol / l Clarke de‐
grees Water softener
level
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5 1 2)
1) Factory setting.
2) Do not use salt at this level.
Regardless of the type of detergent
used, set the proper water hardness
level to keep the salt refill indicator
active.
Multi-tabs containing salt are
not effective enough to
soften hard water.
How to set the water softener
level
The appliance must be in programme
selection mode.
ENGLISH 9
1. Make sure that the programme
marker on the knob is in on/off
position.
2. To enter the user mode, press and
hold Delay. At the same time turn the
knob counterclockwise until the
programme marker indicates the first
programme. Release the Delay when
the indicators Start and on/off start
flashing.
• The intermittent flashing of
shows the current setting, e.g. 5
flashes + pause + 5 flashes =
level 5.
3. Press Delay repeatedly to change
the setting. Each pressing of Delay
increases the level number. After
reaching level 10, the count starts
again from level 1.
4. To confirm the setting, turn the
programme knob until the
programme marker is again in on/off
position

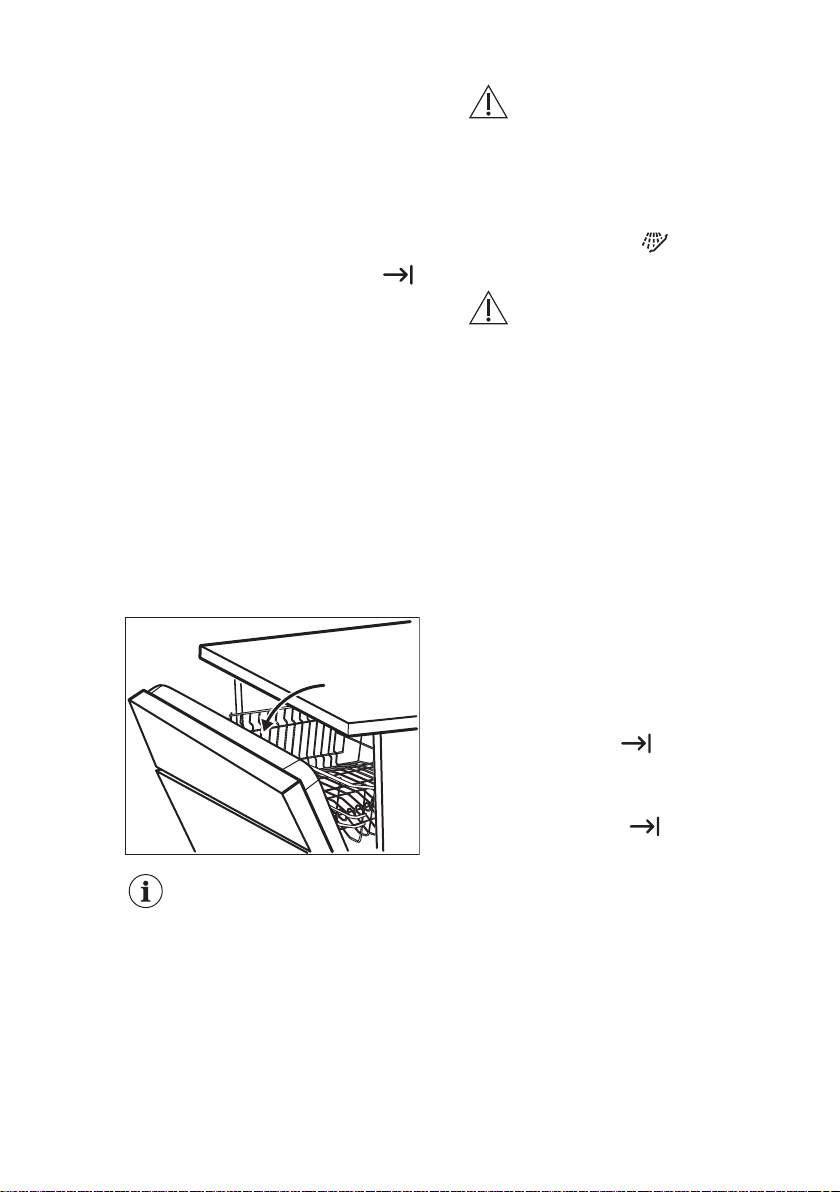

6.3 AirDry
AirDry improves the drying results with
less energy consumption.
During the drying phase, the
door opens automatically
and remains ajar.
CAUTION!
Do not try to close the
appliance door within 2
minutes after automatic
opening. This can cause
damage to the appliance.
AirDry is automatically activated with all
programmes excluding (if
applicable).
CAUTION!
If children have access to
the appliance, it is advised to
deactivate AirDry as opening
the door may pose a danger.
How to deactivate AirDry
The appliance must be in programme
selection mode.
Make sure that the programme marker
on the knob is set to on/off position.
1. To enter the user mode, press and
hold Delay. At the same time turn the
knob counterclockwise until the
programme marker indicates the first
programme. Release Delay when the
indicators Start and on/off start
flashing.
2. Turn the knob counterclockwise until
the programme marker indicates the
second programme.
• The indicator shows the
current setting: on = AirDry is
activated.
3. Press Delay to change the setting.
• If the indicator is off = AirDry
is deactivated.
4. To confirm the setting, keep turning
the programme knob until the
programme marker is back in the
on/off position.
7. BEFORE FIRST USE
1. Make sure that the current level of
the water softener agrees with the
hardness of the water supply. If
not, adjust the level of the water
softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any
processing residuals that can still be
inside the appliance. Do not use
www.electrolux.com10
Tabla de contenidos
Idiomas:
Otros manuales de Lavavajillas de Electrolux
Electrolux
Electrolux ESL 6260RA Manual de usuario
Electrolux
Electrolux EEM69300L Manual de usuario
Electrolux
Electrolux ESS47410SX Manual de usuario
Electrolux
Electrolux EW24ID70QT0A Manual de usuario
Electrolux
Electrolux TRICITY BENDIX DH 200 Manual de usuario
Electrolux
Electrolux ESF 6126 Manual de usuario
Electrolux
Electrolux 504288 (EHT8IELG6) Manual de usuario
Electrolux
Electrolux ESL 45015 Manual de usuario
Electrolux
Electrolux ESL 2435 Manual de usuario
Electrolux
Electrolux ESZ89301UW Manual de usuario
Electrolux
Electrolux ESL5340LO Manual de usuario
Electrolux
Electrolux ESL6123 Manual de usuario
Electrolux
Electrolux ESL 68071 Manual de usuario
Electrolux
Electrolux 534074 Manual de usuario
Electrolux
Electrolux ESF 6220 Manual de usuario
Electrolux
Electrolux GA60SLVSB Manual de usuario
Electrolux
Electrolux EIDW6105GS - Fully Integrated Dishwasher Guía del usuario
Electrolux
Electrolux ESL 65070R Manual de usuario
Electrolux
Electrolux EI24ID81SS0A Manual de usuario
Electrolux
Electrolux ESL 67040 Manual de usuario
