Electrolux GA55GL201 Manual de usuario

user manual

GA55GL201

dishwasher

117986 11/1en 16-06-2007 9:30 Pagina 1

We were thinking of you

when we made this product

117986 11/1en 16-06-2007 9:30 Pagina 2

welcome to the world of Electrolux electrolux 3

You’ve chosen a first class product from Electrolux, which

hopefully will provide you with lots of pleasure in the future.

Electrolux ambition is to offer a wide variety of quality products

that make your life more comfortable. You can look at some

examples on the cover in this manual. But now it’s time to study

this manual and start using and enjoying the benefits from your

new machine. We promise that it’ll make your life a little easier.

Good luck!

Welcome to the world of Electrolux

117986 11/1

117986 11/1en 16-06-2007 9:30 Pagina 3

Safety information 5

Product description 7

Control panel 8

First use 12

Daily use 16

Washing programmes 29

Care and cleaning 31

Something not working 34

Technical data 37

Hints for test institutes 39

Installation 41

Environment concerns 45

Warranty/Point of Service 46

Contents

The following symbols are used in this manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

General information and tips

Environmental information

4electrolux contents

117986 11/1en 16-06-2007 9:30 Pagina 4

safety information electrolux 5

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mistakes and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and

safety features. Save these

instructions and make sure that

they remain with the appliance if it

is moved or sold, so that everyone

using it through its life will be

properly informed on appliance use

and safety.

Correct use

●This dishwasher is only intended

for washing household utensils

suitable for machine washing.

●Do not put any solvents in the

dishwasher. This could cause an

explosion.

●Knives and other items with sharp

points must be loaded in the

cutlery basket with their points

down or placed in a horizontal

position in the upper basket.

●Only use products (detergent, salt

and rinse aid) suitable for

dishwashers.

●Avoid opening the door whilst the

appliance is in operation, hot

steam may escape.

●Do not take any dishes out of the

dishwasher before the end of the

dishwashing cycle.

Safety information

●After use, isolate the appliance

from the power supply and turn off

the water supply.

●This product should be serviced

only by an authorised service

engineer, and only genuine spare

parts should be used.

●Under no circumstances should

you attempt to repair the machine

yourself. Repairs carried out by

inexperienced persons will cause

injury or serious malfunctioning.

Contact your local Service Force

Centre. Always insist on genuine

spare parts.

General safety

●Dishwasher detergents can cause

chemical burns to eyes, mouth and

throat. Could endanger life!

Comply with the safety instructions

of the dishwasher detergent

manufacturer.

●The water in your dishwasher is

not for drinking. Detergent

residues may still be present in

your machine.

●Ensure that the door of the

dishwasher is always closed when

it is not being loaded or unloaded.

In this way you will avoid anybody

tripping over the open door and

hurting themselves.

●Do not sit or stand on the open

door.

Child safety

●This appliance is designed to be

operated by adults. Don’t allow

children to use the dishwasher

unsupervised.

117986 11/1en 16-06-2007 9:30 Pagina 5

6electrolux safety information

For electrical and water connection

carefully follow the instructions

given in specific paragraphs.

●Keep all packaging well away from

children. There is risk of

suffocation.

●Keep all detergents in a safe place

out of children’s reach.

●Keep children well away from the

dishwasher when the door is open.

Installation

●Check your dishwasher for any

transport damage. Never connect

a damaged machine. If your

dishwasher is damaged contact

your supplier.

●All packaging must be removed

before use.

●Any electrical and plumbing work

required to install this appliance

must be carried out by a qualified

and competent person.

●For safety reasons it is dangerous

to alter the specifications or

attempt to modify this product in

any way.

●Never use the dishwasher if the

electrical supply cable and water

hoses are damaged; or if the

control panel, work top or plinth

area are damaged such that the

inside of the appliance is freely

accessible. Contact your local

Service Force centre, in order to

avoid hazard.

●All sides of the dishwasher must

never be drilled to prevent damage

to hydraulic and electric

components.

117986 11/1en 16-06-2007 9:30 Pagina 6

product description electrolux 7

Product description

8 9

Ceiling spray arm

Upper basket

Upper basket spray arm

Filters

Lower spray arm

Detergent dispenser

Rinse aid dispenser

Rating plate

Salt container

This dishwasher has an internal

light; in case that this light has to

be replaced, please contact your

local Service Force Centre.

117986 11/1en 16-06-2007 9:30 Pagina 7

8electrolux control panel

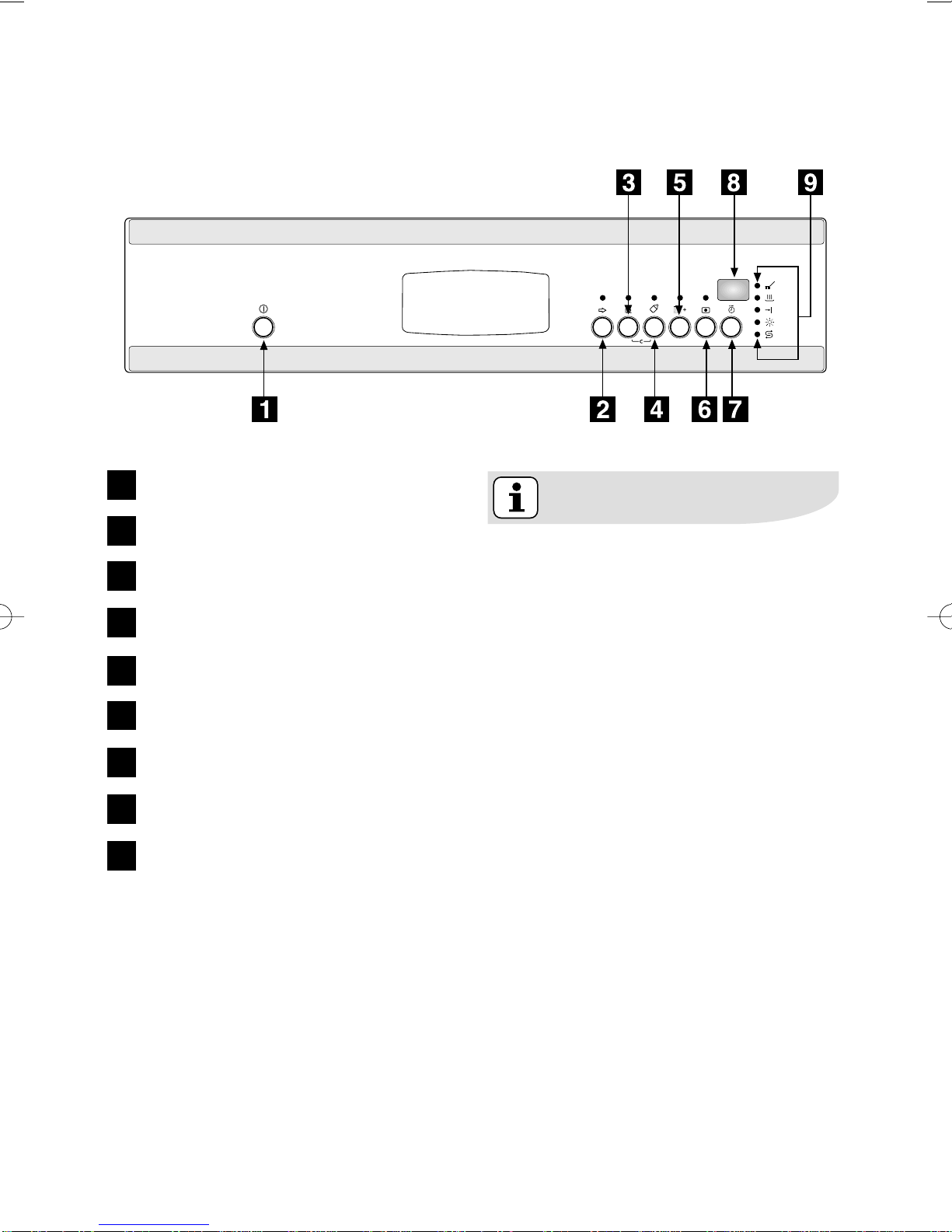

Control panel

On/Off button

Programme selection button

Half load button

Sanitize button

Extra rinse button

Multi-tab button

Delay start button

Digital display

Indicator lights

The digital display indicates:

- the level of hardness to which the

water softener is set,

- the number corresponding to the

washing programme,

- the approximate remaining time of

the running programme,

- activation/deactivation of the rinse

aid dispenser (ONLY with Multi-tab

function active),

- the end of a washing programme

(a zero will appear in the digital

display),

- the countdown of the delay start,

- fault codes concerning malfunction

of the dishwasher,

- if the audible signals are

activated/deactivated.

117986 11/1en 16-06-2007 9:30 Pagina 8

control panel electrolux 9

Half load button

This option is useful and economical

when baskets are not fully loaded. It

reduces the consumption of water and

energy.

Remember to load both baskets.

When using this option we

recommend to reduce the dose of

detergent that is normally used for a

complete load.

Sanitize button

During the last rinse, this option

allows to increase the temperature to

68°C and be held at over 65°C for at

least 10 minutes. This gives a greater

degree of hygiene to dishes and

glasses.

Extra rinse button

This option allows to add another

rinse before the last hot rinsing

phase.

This function will increase the

consumption of water and prolong the

duration of the programme that will be

automatically updated in the digital

display.

These options are available only with

some programmes (see “Washing

programmes” chart).

End of

programme Illuminates when a washing programme has

ended.

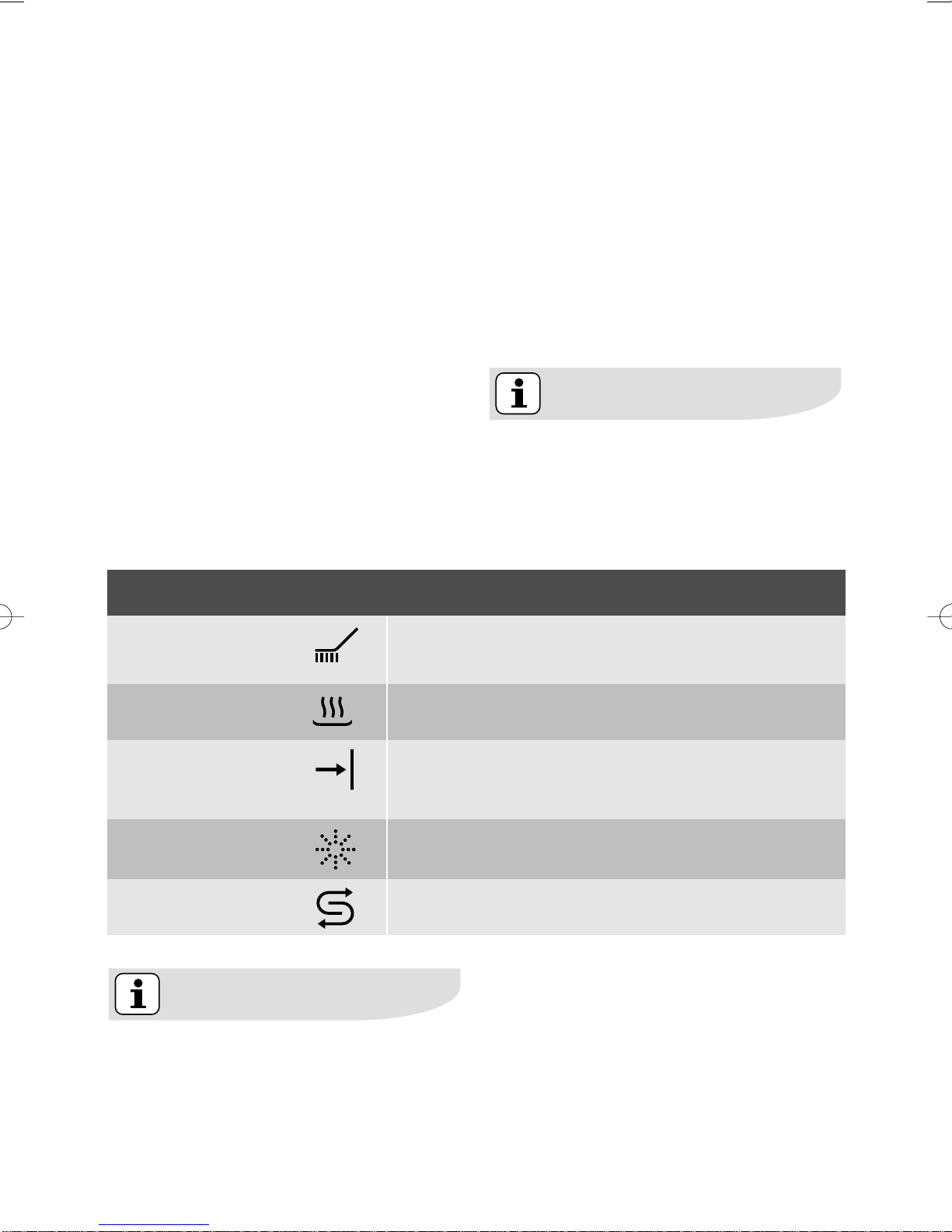

Wash

Indicator lights

Dry

Illuminates when the washing and rinsing

phases are running.

Illuminates when the drying phase is running.

Salt Illuminates when the special salt has run out.

Rinse aid Illuminates when the rinse aid has run out.

The salt and rinse aid indicator

lights are never illuminated while a

washing programme is running

even if filling with salt and/or rinse

aid is necessary.

117986 11/1en 16-06-2007 9:30 Pagina 9

10 electrolux control panel

Setting mode

●Press On/Off button, programme

selection button light is illuminated

and 2 horizontal lines (--) are

visible in the digital display =

appliance in setting mode.

●Press On/Off button, programme

selection button light is illuminated

and the time duration (in minutes)

of a programme is visible in the

digital display = last performed or

selected programme still set.

In this case, to return to setting

mode, the programme has to be

cancelled.

To cancel a set programme or a

programme in progress

Simultaneously press and hold the

two buttons positioned over the letter

C, until 2 horizontal lines will appear

in the digital display.

The programme has been cancelled

and the machine is now in setting

mode.

Always remember that when:

- setting a washing programme,

- setting the water softener,

- activating/deactivating the rinse aid

dispenser,

- activating/deactivating the audible

signals,

the appliance MUST be in setting

mode.

117986 11/1en 16-06-2007 9:30 Pagina 10
