Electrolux ESI6180X Manual de usuario

ELECTROLUX HOME PRODUCTS PTY LTD

ABN 51 004 762 341

ELECTROLUX

ELECTRONIC

DISHWASHERS

MODELS:

ESI6180X

PNC 911 896 071

ESI6180U

PNC 911 896 072

RELEASE DATE:- 10/02

Issue: 1

Technical Publication Nº DW107 Book WD 6 Date: 08/03

SECTION PAGE Nº

OUTER PANEL & LINER ASSEMBLY 2 - 3

ELECTRICAL ASSEMBLY 4 - 5

WATER CIRCUIT ASSEMBLY 6 - 7

WATER SOFTENER ASSEMBLY 8 - 9

DOOR PANEL ASSEMBLY 10 - 11

BASKET ASSEMBLY 12 - 13

PROGRAMME CHART 14

WIRING DIAGRAM 15

CIRCUIT DIAGRAM 16

COMPONENT TESTING (SERVICE) 17

REGENERATION CYCLE 17 – 18

SAFETY FEATURES – CONTROLS/ALARMS 18 – 20

OPTIONS FOR IMPROVING WASH PERFORMANCE 21

COMPONENT DIAGNOSTICS TEST 21 – 23

FUNCTION DIAGNOSTICS CYCLE 23 – 24

TEST CYCLE (ABBREVIATED WASH PROGRAMME) 25 – 26

TABLE OF ALARM CODES 27

GENERAL DATA 28

WEB SITE ADDRESS: www.partnship.com.au

Page 2DW 107

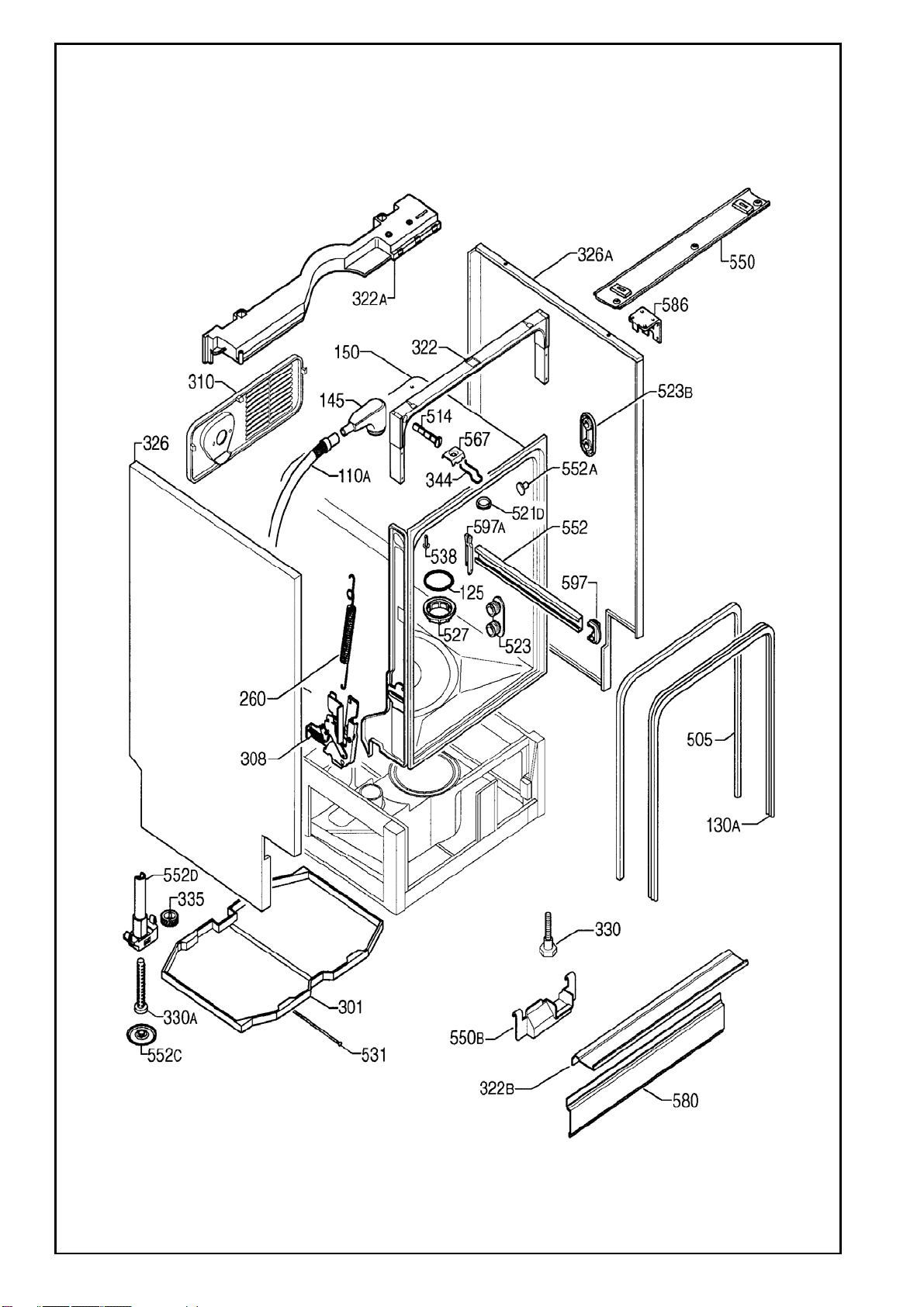

MODELS: ESI6180X EX. VIEW DRAWING 3927

ESI6180U OUTER PANEL & LINER

ASSEMBLY

Page 3 DW 107

ITEM PART Nº DESCRIPTION Ex. 3927 QTY

110A 1525390-00/9 Tube, Manifold to Base 1

125 50249145-00/9 "O" Ring, Ferrule, Manifold 1

130A 1524445-01/0 Sealing Sleeve, Outer 1

145 1523599-01/5 Manifold, Drying 1

150 N.P.N. Liner Assembly 1

260 1524312-00/4 Spring, Hinge 2

301 1523673-01/8 Tray, Drip 1

308 50251714-00/7 Hinge Kit, Door (LH/RH. ) 2

310 1526379-00/1 Flap, Support, Solenoid 1

322 1525280-16/8 Crossbar, Front, Upper 1

322A 1523519-15/3 Crossbar, Back, Upper, 1

322B 1523512-04/2 Crossbar, Front, Bottom 1

326 1526790-00/9 Panel, Side, LH. (White) 1

326A 1526790-10/8 Panel, Side, RH. (White) 1

330 1522017019 Foot 2

330A 1523477-01/4 Leg, Central 1

335 1523261-00/4 Gear Wheel 1

344 1522344-05/8 Latch 1

505 1522337-02/9 Trimming, Tub/Cabinet 1

514 1522520-03/8 Socket, Adjustable 1

521D 1526576-00/2 Cover, Latch Hole 1

523 1522029-12/1 Bracket and Roller Assembly (Grey) 4

523B 1521220-03/6 Bracket, Re-Enforcement, Roller 4

527 1523520-10/2 Ferrule (Grey) 1

531 1523262-11/9 Screw Adjusting, Central Foot 1

538 1522335-01/5 Piece, Distance, Crosspiece, Rear 1

550 50252394-00/7 Guard, Front, Top 1

550B 1522345-03/0 Protection, Wiring 1

552 1520512-05/2 Rail, Basket, Upper 2

552A 1525272-21/5 Guidance, Inner Door (Grey) 2

552C 1523242-00/4 Pad, Slide, Leg 1

552D 1523777-01/7 Guide Rail, Central Foot 1

567 1523236-02/2 Clamp, Door Latch (Plaque) 1

580 1523513-04/0 Panel, Front, Bottom 1

586 1523160-13/1 Bracket, Fixing (Top) 2

597 1520479-10/4 Cap, Rail End (Grey) 2

597A 1525376-20/6 Stop, Rail End (Grey) 2

Page 4DW 107

MODELS: ESI6180X EX. VIEW DRAWING 3926

ESI6180U ELECTRICAL ASSEMBLY

Page 5 DW 107

ITEM PART Nº DESCRIPTION Ex. 3926 QTY

005 1520233-00/6 Valve, Anti-Overflow 1

006 50267491-00/4 Pump Assy. Kit (Inc. Items 130, 130A and 251) 1

007A 1520393115 Switch, Micro, Anti-Overflow 1

010 1115773-00/2 Element, Heater (230V - 2100W) 1

011 1522966-10/8 Capacitor (4 μF) 1

011A 1521029-10/6 Capacitor, Anti-Interference 1

012 1529790-70/9 Switch, Pressure (Inc. Item 110) 1

013 1524481-01/5 Switch, Push Button (1 Button) 1

014 1525801-20/3 Power Board 1

014A 1524368-20/4 Electronic Control Board (Display) 1

019 50226589-00/5 Lamp, Indicator 1

037 1521594000 Box, Junction 1

048 50261253-00/4 Sensor, Temperature, Element 1

110 0055 250 455 Tube, Pressure Switch 1

118 1525531-30/5 Dispenser, Detergent (Grey) 1

119 50267511-00/9 Impellors Assembly (Inc. Items 130 & 130A) 1

130 1520292002 Gasket, Pump, Front, 50/39 mm. Dia. 1

130A 1520292101 Gasket, Pump, Front, 63/09 mm. Dia. 1

137 1520170-03/4 Float 1

251 1522489-02/8 Buffer, Back, Motor 1

309 1522164001 Cover, Box, Junction 1

523 1520169051 Housing, Float 1

523B 1523700-00/1 Bracket, Support, Motor 1

523C 1520645019 Bracket, Support, Push Button 1

N.I. 1523902-00/3 Wiring, Anti-Interference 1

N.I. 1525447-05/6 Harness 1

N.I. 1525448-00/5 Harness, Wiring, Bottom 1

Page 6DW 107

MODELS: ESI6180X EX. VIEW DRAWING 3890

ESI6180U WATER CIRCUIT ASSEMBLY

Page 7 DW 107

ITEM PART Nº DESCRIPTION Ex. 3890 QTY

110 1529849-31/5 Hose, Connecting, Stand 1

110C 1520464-31/2 Tube, Water Balance 1

111 1522221-12/4 Hose, Inlet, Safety (1500 mm) 1

112 0571 400 142 Hose, Drain 1

116 1522410-20/6 Scroll, Wash 1

120 1524505-10/2 Filter, Drain Pump (Grey) 1

120B 1525490-12/2 Filter, Column (Grey) 1

125 1522342-02/9 Retainer, Sump 1

125A 50248856-00/2 "O"-Ring, Manifold, Outer 1

125B 50227938-00/3 "O"-Ring, Manifold, Inner 1

127 1524422-03/5 Connector, Water Sump to Heater 1

127B 1523118-10/5 Connector, Manifold, (Grey) 1

130A 1523119-01/2 Seal, Channel, Drainage 1

130B 1522414-02/6 Gasket, Sump 1

130D 1520772003 Gasket, Column 1

130E 1522802-00/6 Sealing Strip 1

130F 1240151009 Gasket, Hose 1

132A 1529841-80/9 Column and Gasket Assembly 1

135A 1524902-40/8 Channel, Drainage (Grey) 1

139 1524786-30/6 Arm, Bottom Spray (Grey) 1

139A 1524744-10/7 Arm, Upper Spray (Grey) 1

145 1524421-02/9 Manifold, Heater Element 1

145A 1529844-40/7 Manifold Assy., Horizontal (Grey) 1

303 N.P.N. Stand Assembly 1

338 N.P.N. NOT USED IN THIS MODEL 0

527E 50239993-00/4 Nut, Water Distributor 1

550 1524982-00/4 Tube, Protection, Water Balance Tube 1

Page 8DW 107

MODELS: ESI6180X EX. VIEW DRAWING 3924

ESI6180U WATER SOFTENER ASSEMBLY

Page 9 DW 107

ITEM PART Nº DESCRIPTION Ex. 3924 QTY

005A 1529746-70/1 Valve, Electric 2

016 1523184-00/8 Sensor, Salt 1

110 1529902-10/6 Hose, Valve 1

110A 1529902-20/5 Hose 1

110E 1520465103 Tube, Regeneration Tank Drain (250 mm) 1

117 1524624-20/0 Softener, Water (Inc. Items 5A, 110, 110A, 110E, 130C & 514) 1

127A 1522340-03/1 Connector, Outlet Valve 1

130 1525274-00/5 Seal, Decalcifier 1

130A 1522338-00/1 Gasket, Regen. Tank 1

130C 50659231-00/0 Seal, Round 1

137 1522447-00/0 Float 1

138 1522418-03/5 Membrane, Outlet Valve 1

514 2239010050 Bushing 1

521 1520251-60/2 Bung, Decalcifier, (Grey) 1

523 1522346-02/0 Support, Float 1

527 1520250-10/9 Ferrule, Decalcifier, (Grey) 1

527A 1524050-40/6 Ferrule, Active Dry (Grey) 1

589 1520328-40/0 Funnel, (Grey) 1

600 1523692-02/6 Sponge 1

Page 10 DW 107

MODELS: ESI6180X EX. VIEW DRAWING 3928

ESI6180U DOOR PANEL ASSEMBLY
