ESL5205LO

EN Dishwasher User Manual 2

FR Lave-vaisselle Notice d'utilisation 20

PL Zmywarka Instrukcja obsługi 41

CONTENTS

1. SAFETY INFORMATION....................................................................................2

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 5

4. CONTROL PANEL............................................................................................. 6

5. PROGRAMMES................................................................................................. 6

6. SETTINGS..........................................................................................................7

7. BEFORE FIRST USE....................................................................................... 10

8. DAILY USE.......................................................................................................11

9. HINTS AND TIPS............................................................................................. 12

10. CARE AND CLEANING..................................................................................14

11. TROUBLESHOOTING....................................................................................15

12. TECHNICAL INFORMATION......................................................................... 19

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

www.electrolux.com2

responsible for any injuries or damages that are the

result of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Do not let children play with the appliance.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

•The operating water pressure (minimum and

maximum) must be between 0.5 (0.05) / 8 (0.8) bar

(MPa)

•Obey the maximum number of 13 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

•Put the cutlery in the cutlery basket with the sharp

ends pointing down or put them in the cutlery drawer

in a horizontal position with the sharp edges down.

ENGLISH 3

•Do not leave the appliance with the open door

unattended to avoid stepping accidentally onto it.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•If the appliance has ventilation openings in the base,

they must not be covered e.g. by a carpet.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must

install this appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Follow the installation instruction

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Make sure that the appliance is

installed below and adjacent to safe

structures.

2.2 Electrical connection

WARNING!

Risk of fire and electrical

shock.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• This appliance complies with the

E.E.C. Directives.

• UK and Ireland only. This appliance is

fitted with a 13 A mains plug. If it is

necessary to change the mains plug

fuse, use only a 13 A ASTA (BS

1362) fuse.

2.3 Water connection

• Do not cause damage to the water

hoses.

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

www.electrolux.com4

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

• The water inlet hose has a safety

valve and a sheath with an inner

mains cable.

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged,

immediately close the water tap and

disconnect the mains plug from the

mains socket. Contact the Authorised

Service Centre to replace the water

inlet hose.

2.4 Use

• Do not sit or stand on the open door.

• Dishwasher detergents are

dangerous. Obey the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

complete. Some detergent may

remain on the dishes.

• The appliance can release hot steam

if you open the door while a

programme operates.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

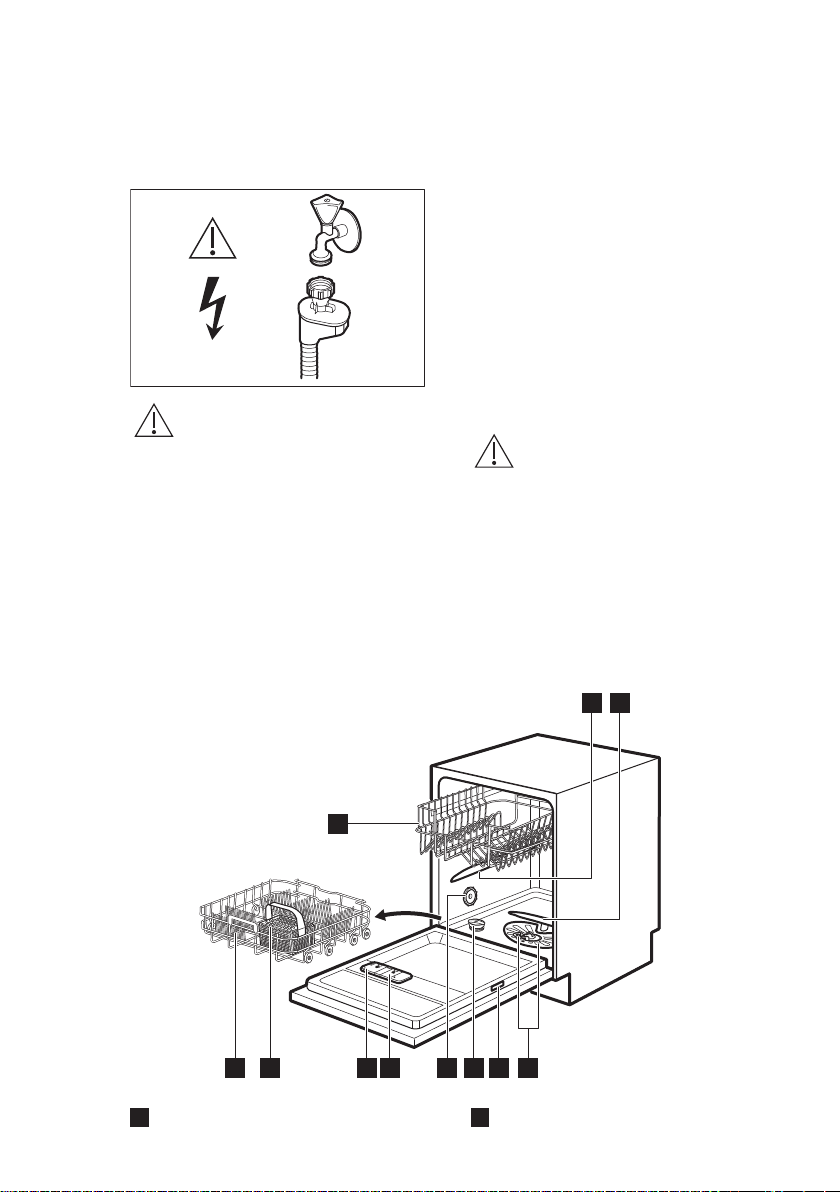

3. PRODUCT DESCRIPTION

9 8

10 56

1Upper spray arm 2Lower spray arm

ENGLISH 5

3Filters

4Rating plate

5Salt container

6Air vent

7Rinse aid dispenser

8Detergent dispenser

9Cutlery basket

10 Lower basket

11 Upper basket

4. CONTROL PANEL

1On/off button

2Programme indicators

3Indicators

4Programme button

5Delay button

4.1 Indicators

Indicator Description

End indicator.

Rinse aid indicator. It is always off while the programme operates.

Salt indicator. It is always off while the programme operates.

5. PROGRAMMES

Programme Degree of soil

Type of load

Programme

phases

Consumption values

Duration

(min)

Energy

(kWh)

Water

(l)

2) Normal soil

Crockery and

cutlery

• Pre-wash

• Wash 50 °C

• Rinses

• Dry

227 1.039 11

Heavy soil

Crockery, cut‐

lery, pots and

pans

• Pre-wash

• Wash 70 °C

• Rinses

• Dry

155 - 170 1.5 - 1.7 14-15

www.electrolux.com6

Programme Degree of soil

Type of load

Programme

phases

Consumption values

Duration

(min)

Energy

(kWh)

Water

(l)

Normal soil

Crockery and

cutlery

• Pre-wash

• Wash 65 °C

• Rinses

• Dry

130 - 140 1.4 - 1.6 15-17

3) Fresh soil

Crockery and

cutlery

• Wash 60 °C

or 65 °C

• Rinses

30 0.8 10

4) All • Pre-wash 14 0.1 5

1) The pressure and the temperature of the water, the variations of the mains supply, the

options and the quantity of dishes can change the values.

2) With this programme you have the most efficient use of water and energy consumption

for crockery and cutlery with normal soil. (Also, it is a standard programme for test insti‐

tutes).

3) With this programme you can wash a load with fresh soil. It gives good washing results in

a short period of time.

4) Use this programme to quickly rinse the dishes and to prevent the food remains from dry‐

ing out on the dishes and to reduce bad odour coming out from the appliance. Do not use

detergent with this programme.

5.1 Information for test

institutes

For all the necessary information for test

performance, send an email to:

[email protected]

Write down the product number (PNC)

that is on the rating plate.

6. SETTINGS

6.1 Programme selection mode

and user mode

When the appliance is in programme

selection mode it is possible to set a

programme and to enter the user mode.

Settings available in the user mode:

• The level of water softener according

to the water hardness.

• Activation or deactivation of the

acoustic signal for the end of a

programme.

• Activation or deactivation of AirDry.

As the appliance stores the saved

settings, there is no need to configure

it before every cycle.

How to set the programme

selection mode

The appliance is in programme selection

mode when the programme indicator

flashes.

After activation, the appliance is in

programme selection mode by default. If

not, set the programme selection mode

the following way:

Press and hold the programme button

until the appliance is in programme

selection mode.

ENGLISH 7

How to enter user mode

Make sure the appliance is in

programme selection mode.

To enter the user mode, press and hold

the programme button until the indicator

flashes and the indicator is

on.

6.2 The water softener

The water softener removes minerals

from the water supply, which would have

a detrimental effect on the washing

results and on the appliance.

The higher the content of these minerals,

the harder your water is. Water hardness

is measured in equivalent scales.

The water softener should be adjusted

according to the hardness of the water in

your area. Your local water authority can

advise you on the hardness of the water

in your area. It is important to set the

right level of the water softener to assure

good washing results.

Water hardness

German de‐

grees (°dH)

French de‐

grees (°fH)

mmol/l Clarke de‐

grees

Water softener

level

47 - 50 84 - 90 8.4 - 9.0 58 - 63 10

43 - 46 76 - 83 7.6 - 8.3 53 - 57 9

37 - 42 65 - 75 6.5 - 7.5 46 - 52 8

29 - 36 51 - 64 5.1 - 6.4 36 - 45 7

23 - 28 40 - 50 4.0 - 5.0 28 - 35 6

19 - 22 33 - 39 3.3 - 3.9 23 - 27 5 1)

15 - 18 26 - 32 2.6 - 3.2 18 - 22 4

11 - 14 19 - 25 1.9 - 2.5 13 - 17 3

4 - 10 7 - 18 0.7 - 1.8 5 - 12 2

<4 <7 <0.7 < 5 1 2)

1) Factory setting.

2) Do not use salt at this level.

Whether you use a standard detergent

or multi-tabs (with or without salt), set

the proper water hardness level to

keep the salt refill indicator active.

Multi-tabs containing salt are

not effective enough to

soften hard water.

How to set the water softener

level

Make sure the appliance is in user mode.

1. Wait until the indicators and

are off and the indicator flashes.

The indicator still flashes.

The intermittent flashing of the

indicator shows the current

setting.

• e.g. 5 flashes + pause + 5 flashes

= level 5.

2. Press the programme button

repeatedly to change the setting.

Each pressing of the programme

button increases the level number.

After reaching level 10, the count

starts again from level 1.

www.electrolux.com8

3. Press on/off to confirm the setting.

6.3 Acoustic signals

Acoustic signals sound when a

malfunction of the appliance occurs. It is

not possible to deactivate these acoustic

signals.

There is also an acoustic signal that

sounds when the programme is

completed. By default this acoustic signal

is deactivated but it is possible to

activate it.

How to activate the acoustic

signal for the end of

programme

Make sure the appliance is in user mode.

1. Press the programme button

immediately.

• The indicator and are

on.

• The indicator flashes.

2. Wait until the indicator and

are off. The indicator still

flashes.

• The indicator shows the

current setting: indicator off =

Acoustic signal off.

3. Press the programme button to

change the setting.

• indicator on = Acoustic signal

on.

4. Press on/off confirm the setting.

6.4 AirDry

AirDry improves the drying results with

less energy consumption.

During the drying phase, the

door opens automatically

and remains ajar.

CAUTION!

Do not try to close the

appliance door within 2

minutes after automatic

opening. This can cause

damage to the appliance.

AirDry is automatically activated with all

programmes excluding .

CAUTION!

If children have access to

the appliance, it is advised to

deactivate AirDry as opening

the door may pose a danger.

How to deactivate AirDry

Make sure the appliance is in user mode.

1. Press the programme button twice.

• The indicators and

are on.

• The indicator flashes.

2. Wait until the indicators and

are off. The indicator still

flashes.

• The indicator shows the

current setting: off = AirDry is

deactivated.

3. Press the programme button to

change the setting.

• on = AirDry is activated.

4. Press on/off to confirm the setting.

ENGLISH 9

7. BEFORE FIRST USE

1. Make sure that the current level of

the water softener agrees with the

hardness of the water supply. If

not, adjust the level of the water

softener.

2. Fill the salt container.

3. Fill the rinse aid dispenser.

4. Open the water tap.

5. Start a programme to remove any

processing residuals that can still be

inside the appliance. Do not use

detergent and do not load the

baskets.

After starting a programme, it may take

up to 5 minutes for the appliance to

recharge the resin in the water softener.

It seems that the appliance is not

working. The washing phase starts only

after this procedure is completed. The

procedure is repeated periodically.

7.1 The salt container

CAUTION!

Use rough salt designed for

dishwashers only. Fine salt

increases the risk of

corrosion.

The salt is used to recharge the resin in

the water softener and to assure good

washing results in daily use.

How to fill the salt container

1. Turn the cap of the salt container

counterclockwise and remove it.

2. Put 1 litre of water in the salt

container (only for the first time).

3. Fill the salt container with 1 kg of salt

(until it is full).

4. Carefully shake the funnel by its

handle to get the last granules inside.

5. Remove the salt around the opening

of the salt container.

6. Turn the cap of the salt container

clockwise to close the salt container.

CAUTION!

Water and salt can come out

of the salt container when

you fill it. After you fill the

salt container, immediately

start a programme to

prevent corrosion.

7.2 How to fill the rinse aid

dispenser

www.electrolux.com10

Otros manuales para ESL5205LO

Tabla de contenidos

Idiomas:

Otros manuales de Lavavajillas de Electrolux

Electrolux

Electrolux ESF 641 Manual de usuario

Electrolux

Electrolux ESF2300DW Manual de usuario

Electrolux

Electrolux ESL5340LO Manual de usuario

Electrolux

Electrolux ESF 605 Manual de usuario

Electrolux

Electrolux ESI 6150 Manual de usuario

Electrolux

Electrolux FAVORIT 98010 I Manual de usuario

Electrolux

Electrolux BW3200FD Manual de instrucciones

Electrolux

Electrolux ESI5211LOX Manual de usuario

Electrolux

Electrolux ei24id50qs0b Manual de usuario

Electrolux

Electrolux GA60PLVC Manual de usuario

Electrolux

Electrolux ESF 66814 Manual de usuario

Electrolux

Electrolux ESF675 Manual de usuario

Electrolux

Electrolux FAVORIT 35090 i Manual de usuario

Electrolux

Electrolux BW320 Manual de instrucciones

Electrolux

Electrolux GA55LIWE Manual de usuario

Electrolux

Electrolux GA55SLVCN Manual de usuario

Electrolux

Electrolux ESF 235 Manual de usuario

Electrolux

Electrolux DFB09JFCWD Manual de usuario

Electrolux

Electrolux EDW5505EPS - ICON - Dishwasher Manual de usuario

Electrolux

Electrolux ESF6800ROX Manual de usuario

Electrolux

Electrolux ESF5533LOW Manual de usuario

Electrolux

Electrolux FAVORIT 40760 Manual de usuario

Electrolux

Electrolux GA55LV Manual de usuario

Electrolux

Electrolux 503025 Manual de usuario

Manuales populares de Lavavajillas de otras marcas

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario

Siemens

Siemens SN 56N591 Manual de usuario
