CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................4

3. PRODUCT DESCRIPTION................................................................................ 6

4. CONTROL PANEL............................................................................................. 7

5. PROGRAMMES................................................................................................. 8

6. SETTINGS........................................................................................................10

7. OPTIONS..........................................................................................................12

8. BEFORE FIRST USE....................................................................................... 13

9. DAILY USE....................................................................................................... 13

10. HINTS AND TIPS........................................................................................... 15

11. CARE AND CLEANING..................................................................................16

12. TROUBLESHOOTING....................................................................................18

13. TECHNICAL INFORMATION......................................................................... 22

14. INSTALLATION.............................................................................................. 22

15. WARRANTY .................................................................................................. 24

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully

read the supplied instructions. The manufacturer is not

responsible for any injuries or damages that are the

result of incorrect installation or usage. Always keep the

instructions in a safe and accessible location for future

reference.

1.1 Children and vulnerable people safety

•This appliance can be used by children aged 8 years

and above and by persons with reduced capabilities

provided that they have been given instruction and/or

supervision regarding the safe use of the appliance

and understand the potential hazards involved.

•Do not let children play with the appliance.

•Keep detergents away from children.

•Keep children and pets away from the appliance door

when it is open.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

1.2 General Safety

•This appliance is intended to be used in household

and similar applications such as:

–farm houses; staff kitchen areas in shops, offices

and other working environments;

–by clients in hotels, motels, bed & breakfast and

other residential type environments.

•Do not change the specification of this appliance.

•The operating water pressure (minimum and

maximum) must be between 0.5 (50) / 8 (800) bar

(kPa)

•Obey the maximum number of 14 place settings.

•If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or a

similarly qualified persons in order to avoid a hazard.

ENGLISH 3

•Put knives and cutlery with sharp points in the cutlery

basket with the points down or in a horizontal position.

•Do not keep the appliance door open without

supervision to prevent to fall on it.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

•Do not use high pressure water sprays and/or steam

to clean the appliance.

•The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

not be reused.

•The ventilation openings in the base (if applicable)

must not be obstructed by a carpet.

•Some dishwasher detergents are strongly alkaline.

They can be extremely dangerous if swallowed. Avoid

contact with the skin and eyes and keep children away

from the dishwasher when the door is open.

•Check that the detergent receptacle is empty after

completion of the wash cycle.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging and the

transit bolts.

• Do not install or use a damaged

appliance.

• Do not install or use the appliance

where the temperature is less than 0

°C.

• Follow the installation instruction

supplied with the appliance.

2.2 Electrical connection

WARNING!

Risk of fire and electrical

shock.

• The appliance must be earthed.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not, contact

an electrician.

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need to

be replaced, this must be carried out

by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

2.3 Water connection

• Do not cause damage to the water

hoses.

www.electrolux.com4

• Before connection to new pipes, pipes

not used for a long time, where repair

work has been carried out or new

devices fitted (water meters, etc.), let

the water flow until it is clean and

clear.

• Ensure that there are no visible water

leaks during and after the first use of

the appliance.

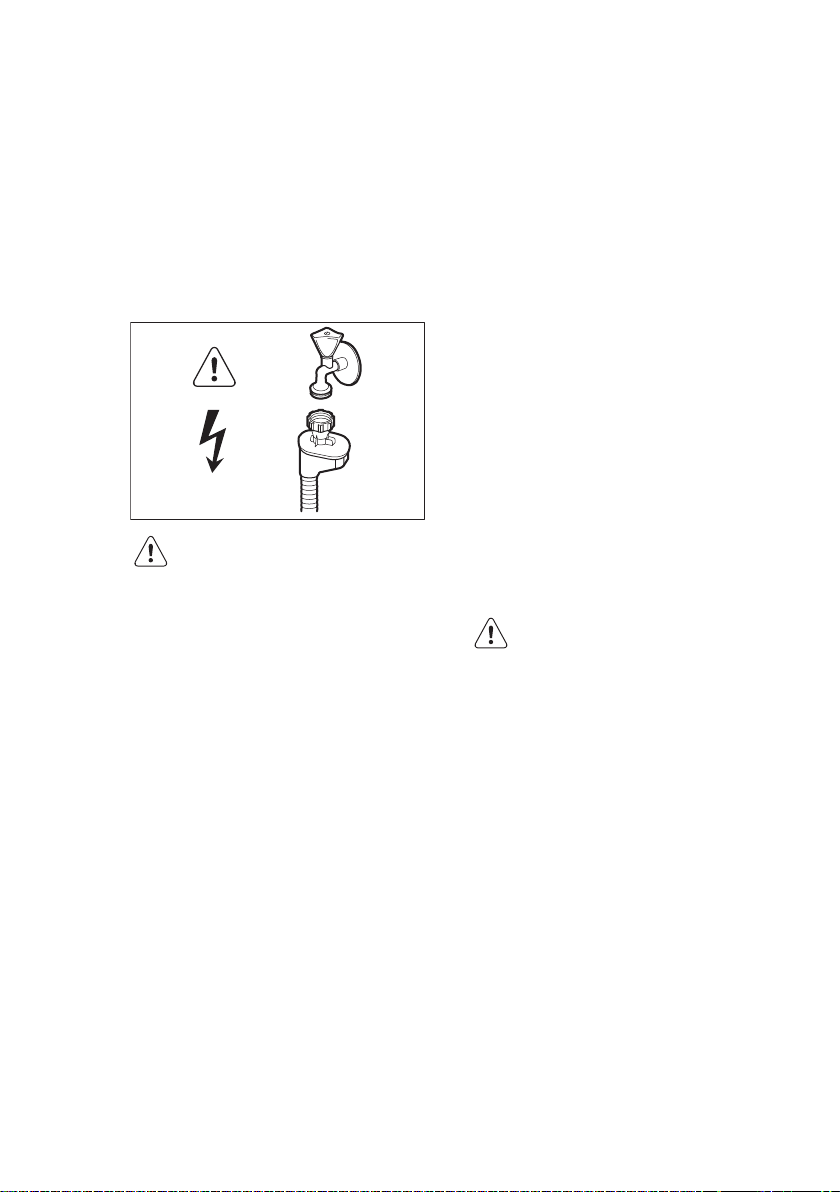

• The water inlet hose has a safety

valve and a sheath with an inner

mains cable.

WARNING!

Dangerous voltage.

• If the water inlet hose is damaged,

immediately disconnect the mains

plug from the mains socket. Contact

the Authorised Service Centre to

replace the water inlet hose.

2.4 Use

• Do not sit or stand on the open door.

• Dishwasher detergents are

dangerous. Obey the safety

instructions on the detergent

packaging.

• Do not drink and play with the water in

the appliance.

• Do not remove the dishes from the

appliance until the programme is

completed. There can be detergent on

the dishes.

• The appliance can release hot steam

if you open the door while a

programme operates.

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

2.5 Service

• Contact the Authorised Service

Centre to repair the appliance. We

recommend only the use of original

spare parts.

• When you contact the Authorised

Service Centre, ensure that you have

the following information that is

available on the rating plate.

Model :

PNC :

Serial Number :

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

appliance.

ENGLISH 5

3. PRODUCT DESCRIPTION

10 711

1Work-top

2Top spray arm

3Upper spray arm

4Lower spray arm

5Filters

6Rating plate

7Air vent

8Rinse aid dispenser

9Detergent dispenser

10 Cutlery basket

11 Lower basket

12 Upper basket

www.electrolux.com6

4. CONTROL PANEL

2 3 6 7

9813 1214

4 5

11 10

2 3 6 7

9 813 1214

4 5

11 10

1On/off button

2Program touchpad

3MyFavourite touchpad

4Programme indicators

5Indicators

6Delay touchpad

7Option touchpad

8Start touchpad

9XtraDry touchpad

10 Display

11 Programme bar

12 Indicators

13 TimeManager touchpad

14 Reset touchpad

4.1 Indicators

Indicator Description

XtraDry indicator.

Rinse aid indicator. It is always off while the programme operates.

TimeManager indicator.

Delay indicator.

XtraPower indicator.

Door indicator. It comes on when the appliance door is open or is not

correctly closed.

Turbidity Sensor indicator. It comes on when the sensor for the

programme operates. When the sensor operates, only this

indicator is on. All the other indicators, the display and the programme

bar go off. They come on again when the Turbidity Sensor indicator

goes off.

ENGLISH 7

4.2 Programme bar

The programme bar shows information

related to the programme and to the

option TimeManager.

Start and progress of the programme

When the programme starts, the 2 lateral

segments of the programme bar flash.

As the programme is in progress, the

middle segments come on with fixed

light , while the 2 lateral segments contin‐

ue to flash.

When the programme is completed, all

the segments come on with fixed light.

Programme bar and TimeManager option

When you set a programme, that is appli‐

cable to the TimeManager option, all the

segments of the programme bar come on

with fixed light.

When you set the TimeManager option,

only the middle segment stays on with

fixed light.

5. PROGRAMMES

Programme Degree of soil

Type of load

Programme pha‐

ses

Options

1) • Normal soil

• Crockery and

cutlery

• Prewash

• Wash 50 °C

• Rinses

• Dry

• TimeManager

• XtraDry

2) • All

• Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash from 45 °C

to 70 °C

• Rinses

• Dry

• XtraDry

3) • Mixed soil

• Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash 50 °C and

65 °C

• Rinses

• Dry

• TimeManager

• XtraDry

www.electrolux.com8

Programme Degree of soil

Type of load

Programme pha‐

ses

Options

4) • Heavy soil

• Crockery, cut‐

lery, pots and

pans

• Prewash

• Wash 70 °C

• Rinses

• Dry

• XtraPower

• TimeManager

• XtraDry

• Normal or light

soil

• Delicate crock‐

ery and glass‐

ware

• Wash 45 °C

• Rinses

• Dry

• XtraDry

• Light soil

• Crockery and

cutlery

• Wash 55 °C

• Rinses

• XtraDry

5) • Fresh soil

• Crockery and

cutlery

• Wash 60 °C

• Rinses

• XtraDry

1) With this programme you have the most efficient use of water and energy consumption

for crockery and cutlery with normal soil. (This is the standard programme for test institutes).

2) The appliance senses the degree of soil and the quantity of items in the baskets . It auto‐

matically adjusts the temperature and the quantity of water, the energy consumption and the

programme duration.

3) With this programme you can wash a load with mixed soil. Very heavy soil in the lower

basket and normal soil in the upper basket. The pressure and the temperature of the water

in the lower basket are higher than in the upper basket.

4) This programme has a high temperature rinsing phase for better hygiene results. During

the rinsing phase, the temperature stays at 70 °C for at least 10 minutes.

5) With this programme you can wash a load with fresh soil. It gives good washing results in

a short time.

5.1 Consumption values

Programme 1) Water

(l)

Energy

(kWh)

Duration

(min)

11.5 0.86 160

7.0 - 14 0.6 - 1.4 40 - 150

13.5 - 15 1.2 - 1.5 139 - 149

13.5 - 14.5 1.4 - 1.6 150 - 164

13 - 13.5 0.7 - 0.9 60 - 70

9.5 - 10 0.9 - 1.0 55 - 65

ENGLISH 9

Programme 1) Water

(l)

Energy

(kWh)

Duration

(min)

9 0.8 30

1) The pressure and the temperature of the water, the variations of the mains supply, the

options and the quantity of dishes can change the values.

5.2 Information for test

institutes

For all the necessary information for test

performance, send an email to:

[email protected]

Write down the product number (PNC)

that is on the rating plate.

6. SETTINGS

6.1 Programme selection mode

and user mode

When the appliance is in programme

selection mode it is possible to set a

programme and to enter the user mode.

In user mode, the following settings

can be changed:

• The activation or the deactivation of

the acoustic signal for end of

programme.

• The activation or deactivation of the

rinse aid empty notification.

• The level of rinse aid according to the

required dosage.

These settings will be saved until you

change them again.

How to set the programme

selection mode

The appliance is in programme selection

mode when the programme indicator

is on and the display shows the

programme duration.

When you activate the appliance, usually

it is in programme selection mode.

However, if this does not happen, you

can set the programme selection mode

in the following way:

Press and hold Reset until the appliance

is in programme selection mode.

6.2 The rinse aid dispenser

The rinse aid helps to dry the dishes

without streaks and stains.

The rinse aid is automatically released

during the hot rinse phase.

You can set the released quantity of

rinse aid between level 1 (minimum

quantity) and level 6 (maximum quantity).

Level 0 will deactivate the rinse aid

dispenser and no rinse aid will be

released.

Factory setting: level 4.

How to set the rinse aid level

The appliance must be in programme

selection mode.

1. To enter the user mode, press and

hold simultaneously Delay and

XtraDry until the indicators ,

and start to flash and

the display is blank.

2. Press TimeManager.

• The indicators and go

off.

• The indicator

continues to flash.

• The display shows the current

setting: e.g. = level 4.

– The levels of rinse aid are

from 0A to 6A.

www.electrolux.com10

Tabla de contenidos

Otros manuales de Lavavajillas de Electrolux

Electrolux

Electrolux EEC87300L Manual de usuario

Electrolux

Electrolux ESL 68070 Manual de usuario

Electrolux

Electrolux EW24ID80QS Manual de usuario

Electrolux

Electrolux EEM48300IX Manual de usuario

Electrolux

Electrolux GA55GLV220 Manual de usuario

Electrolux

Electrolux ESI 6601ROX Manual de usuario

Electrolux

Electrolux ESF 475 Guía rápida

Electrolux

Electrolux GA55LV101 Manual de usuario

Electrolux

Electrolux ESL 7220RO Manual de usuario

Electrolux

Electrolux ESL 63010 Manual de usuario

Electrolux

Electrolux EI24ID30QS Manual de usuario

Electrolux

Electrolux EUC1G 400063 Manual de instrucciones

Electrolux

Electrolux ESF 7530ROW Manual de usuario

Electrolux

Electrolux EI24ID81SS0A Manual de usuario

Electrolux

Electrolux ESL 624 Manual de usuario

Electrolux

Electrolux ESF5542LOX Manual de usuario

Electrolux

Electrolux ESL7325RO Manual de usuario

Electrolux

Electrolux ESL 67070 Manual de usuario

Electrolux

Electrolux ESL 68040 Manual de usuario

Electrolux

Electrolux ESF8635ROW Manual de usuario

Electrolux

Electrolux 154743901 Manual de usuario

Electrolux

Electrolux GA45GLVCN Manual de usuario

Electrolux

Electrolux EDW7505HPS - Semi-Integrated Dishwasher With 5 Wash... Manual de usuario

Electrolux

Electrolux ESF5513LOX Manual de usuario

Manuales populares de Lavavajillas de otras marcas

KitchenAid

KitchenAid KUDB230B Manual de usuario

Brandt

Brandt BDJ424DB Manual de usuario

Asko

Asko DSD767UXXL.AU Manual de usuario

Beko

Beko DFN26210W Manual de usuario

NEFF

NEFF S153ITX00E Hoja de especificaciones

Midea

Midea SV 4.45 wi Manual de usuario

LG LDF7932 Manual de usuario

Gorenje

Gorenje GV63214 Manual de usuario

Hotpoint

Hotpoint HDA1100ZWH Manual de servicio

Blomberg

Blomberg LDFN2240W Manual de usuario

AEG

AEG FFB83836PM Manual de usuario

Cylinda

Cylinda DM3220RFD Manual de usuario

Atag

Atag DW8214MB Manual de usuario

GE GLD8000 Series Manual de usuario

Siemens

Siemens SN23HI02KE Hoja de especificaciones

Omega

Omega ODW717X Manual de usuario

BORETTI

BORETTI BVW-683 Manual de usuario

Siemens

Siemens SN 56N591 Manual de usuario
