WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.electrolux.com/support
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
www.electrolux.com2
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do
not play with the appliance.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•This appliance is for cleaning household-type dishes
and tableware only.
•This appliance is designed for single household
domestic use in an indoor environment.
•This appliance may be used in, offices, hotel guest
rooms, bed & breakfast guest rooms, farm guest
houses and other similar accommodation where such
use does not exceed (average) domestic usage levels.
•Do not change the specification of this appliance.
ENGLISH 3
•The operating water pressure (minimum and
maximum) must be between 0.5 (0.05) / 10 (1.0) bar
(MPa)
•Follow the maximum number of 14 place settings.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
•WARNING: Knives and other utensils with sharp
points must be loaded in the basket with their points
down or placed in a horizontal position.
•Do not leave the appliance with the open door
unattended to avoid stepping accidentally onto it.
•Before any maintenance operation, deactivate the
appliance and disconnect the mains plug from the
socket.
•Do not use high pressure water sprays and/or steam
to clean the appliance.
•If the appliance has ventilation openings in the base,
they must not be covered e.g. by a carpet.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not install or use the appliance
where the temperature is less than
0 °C.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• Do not use the appliance before
installing it in the built-in structure due
to safety manner.
www.youtube.com/electrolux
www.youtube.com/aeg
How to install your AEG/Electrolux
60 cm Sliding Door Dishwasher
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• Warning: this appliance is designed to
be installed / connected to a
grounding connection in the building.
www.electrolux.com4
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• This appliance is fitted with a 13 A
mains plug. If it is necessary to
change the mains plug fuse, use only
a 13 A ASTA (BS 1362) fuse (UK and
Ireland only).
2.3 Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let
the water flow until it is clean and
clear.
• Ensure that there are no visible water
leaks during and after the first use of
the appliance.
• Without electrical power, the water
protection system is not active. In this
case there is a risk of flooding.
• The water inlet hose has a safety
valve and a sheath with an inner
mains cable.
WARNING!
Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the
mains socket. Contact the Authorised
Service Centre to replace the water
inlet hose.
2.4 Use
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Dishwasher detergents are
dangerous. Follow the safety
instructions on the detergent
packaging.
• Do not drink and play with the water in
the appliance.
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may
remain on the dishes.
• Do not store items or apply pressure
on the open door of the appliance.
• The appliance can release hot steam
if you open the door while a
programme operates.
2.5 Internal lighting
WARNING!
Risk of injury.
• This appliance has an internal lamp
that comes on when you open the
door and goes off when the door is
closed.
• To replace the internal lighting,
contact the Authorised Service
Centre.
ENGLISH 5
2.6 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be
available for 7 years after the model
has been discontinued: motor,
circulation and drain pump, heaters
and heating elements, including heat
pumps, piping and related equipment
including hoses, valves, filters and
aquastops, structural and interior
parts related to door assemblies,
printed circuit boards, electronic
displays, pressure switches,
thermostats and sensors, software
and firmware including reset software.
Please note that some of these spare
parts are only available to
professional repairers, and that not all
spare parts are relevant for all
models.
• The following spare parts will be
available for 10 years after the model
has been discontinued: door hinge
and seals, other seals, spray arms,
drain filters, interior racks and plastic
peripherals such as baskets and lids.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
3. PRODUCT DESCRIPTION

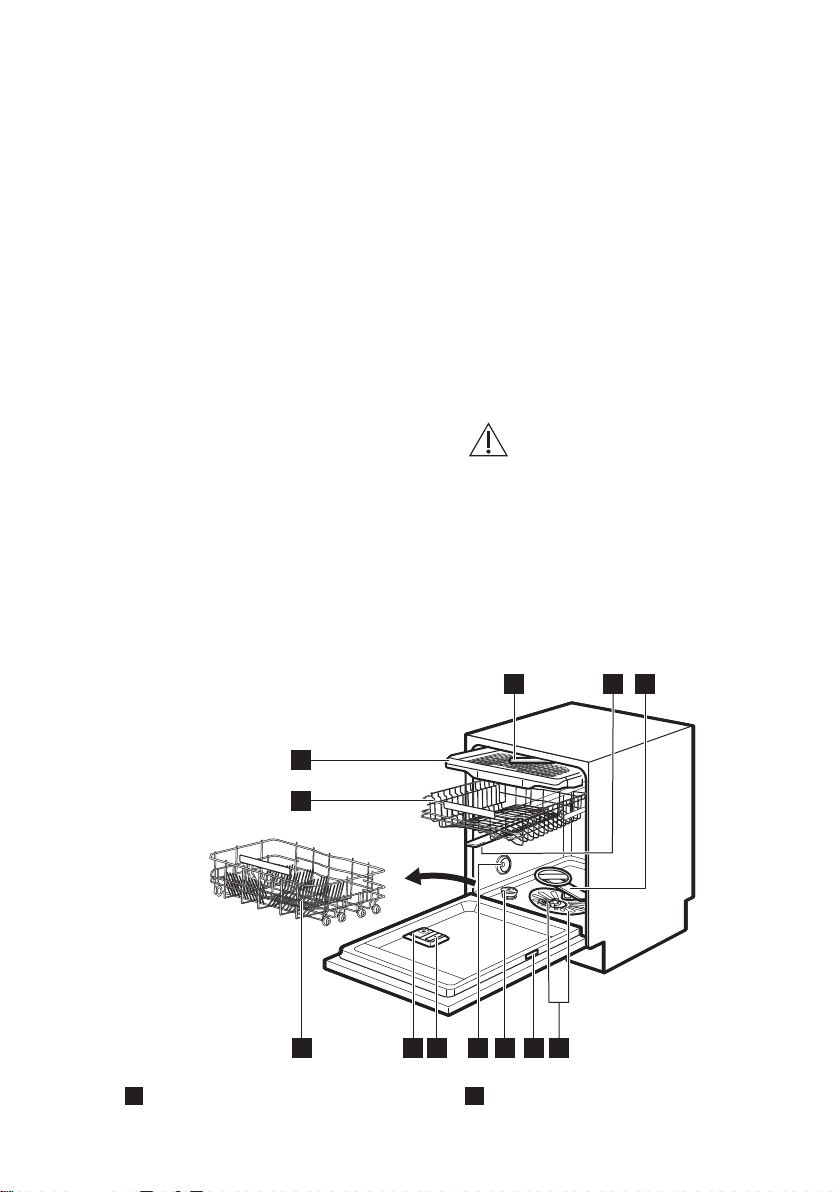

54
10 9 67
11
12
23
1
8
1Ceiling spray arm 2Upper spray arm
www.electrolux.com6
3Lower spray arm
4Filters
5Rating plate
6Salt container
7Air vent
8Rinse aid dispenser
9Detergent dispenser
10 Lower basket
11 Upper basket
12 Cutlery drawer
3.1 Beam-on-Floor
The Beam-on-Floor is a light that is
displayed on the floor below the
appliance door.
• A red light comes on when a
programme starts. It remains on for
the duration of the programme.
• A green light comes on when the
programme is complete.
• The red light flashes when the
appliance has a malfunction.
The Beam-on-Floor is off
when the appliance is
deactivated.
3.2 Internal light
The appliance has an internal lamp. It
comes on when you open the door or
switch the appliance on while the door is
open.
The lamp goes off when you close the
door or switch the appliance off.
Otherwise, it goes off automatically after
some time to save energy.
4. CONTROL PANEL

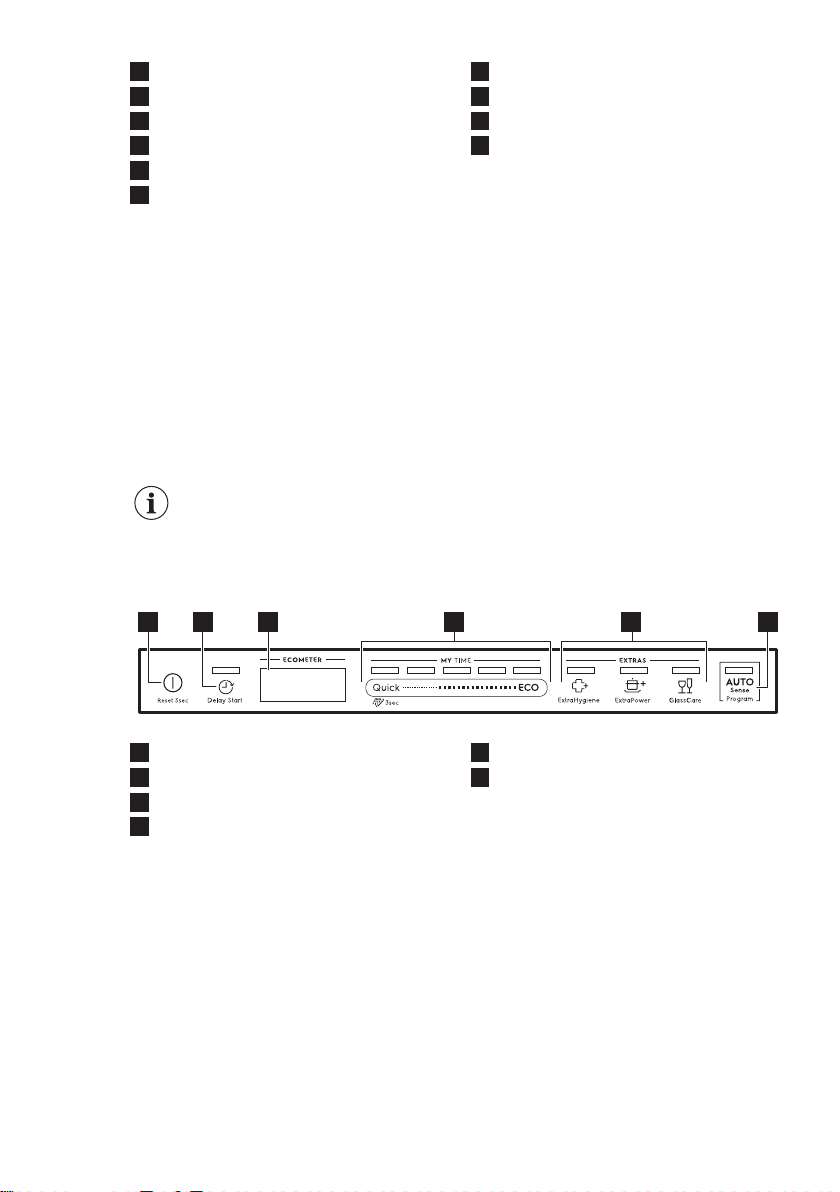

1 2 3 4 5 6
1On/Off button / Reset button
2Delay start button
3Display
4MY TIME program selection bar
5Option buttons (EXTRAS)
6AUTO Sense program button
ENGLISH 7
4.1 Display
A
CB B
A. ECOMETER
B. Indicators
C. Time indicator
4.2 ECOMETER
The ECOMETER indicates how the
programme selection impacts energy
and water consumption. The more bars
are on, the lower the consumption is.
indicates the most
environmentally friendly programme
selection for a normally soiled
dishwashing load.
4.3 Indicators
Indicator Description
Rinse aid indicator. It is on when the rinse aid dispenser needs refill‐
ing. Refer to "Before first use".
Salt indicator. It is on when the salt container needs refilling. Refer to
"Before first use".
Machine Care indicator. It is on when the appliance needs internal
cleaning with the Machine Care programme. Refer to "Care and
cleaning".
Drying phase indicator. It is on when you select a programme with the
drying phase. It flashes when the drying phase operates. Refer to
"Programme selection".
5. PROGRAMME SELECTION
5.1 MY TIME
MY TIME selection bar allows to select a
suitable dishwashing cycle based on
programme duration.
CA B D E
A. •Quick is the shortest programme
(30min) suitable for dishwashing
a load with fresh and light soil.
• Pre-rinse (15min) is a
programme for rinsing off food
remains from the dishes. It
prevents odours forming in the
appliance. Do not use detergent
with this programme.
B. 1h is a programme suitable for
dishwashing a load with fresh and
lightly dried-on soil.
C. 1h 30min is a programme suitable
for dishwashing and drying normally
soiled items.
D. 2h 40min is a programme suitable
for dishwashing and drying heavily
soiled items.
E. ECO is the longest programme
offering the most efficient use of
energy and water consumption for
www.electrolux.com8
crockery and cutlery with normal soil.
This is the standard programme for
test institutes. 1)
5.2 AUTO Sense
The AUTO Sense programme
automatically adjusts the dishwashing
cycle to the type of load.
The appliance senses the degree of soil
and the amount of dishes in the baskets.
It adjusts the temperature and quantity of
water as well as the wash duration.
5.3 EXTRAS
You can adjust the programme selection
to your needs by activating EXTRAS.
ExtraHygiene
ExtraHygiene provides better
hygiene results by keeping the
temperature between 65 and 70 °C for at
least 10 minutes during the last rinsing
phase.
ExtraPower
ExtraPower improves the
dishwashing results of the selected
programme. The option increases the
wash temperature and duration.
GlassCare
GlassCare prevents delicate load,
glassware in particular, from damaging.
The option prevents rapid changes in the
dishwashing temperature of the selected
programme and reduces it to 45 °C.
5.4 Programmes overview
Programme Dishwasher
load
Degree of
soil
Programme phases EXTRAS
Quick Crockery,
cutlery
Fresh • Dishwashing 50 °C
• Intermediate rinse
• Final rinse 45 °C
• AirDry 1)
• ExtraPower
• GlassCare
• ExtraHy‐
giene
Pre-rinse
All All • Prewash Not applicable
1h Crockery,
cutlery
Fresh, lightly
dried-on
• Dishwashing 60 °C
• Intermediate rinse
• Final rinse 50 °C
• AirDry 1)
• ExtraPower
• GlassCare
• ExtraHy‐
giene
1h 30min Crockery,
cutlery, pots,
pans
Normal, lightly
dried-on
• Dishwashing 60 °C
• Intermediate rinse
• Final rinse 55 °C
• Drying
• AirDry 1)
• ExtraPower
• GlassCare
• ExtraHy‐
giene
1) This programme is used to assess compliance with the Ecodesign Comission Regulation
(EU) 2019/2022.
ENGLISH 9
Programme Dishwasher
load
Degree of
soil
Programme phases EXTRAS
2h 40min Crockery,
cutlery, pots,
pans
Normal to
heavy, dried-
on
• Prewash
• Dishwashing 60 °C
• Intermediate rinse
• Final rinse 60 °C
• Drying
• AirDry 1)
• ExtraPower
• GlassCare
• ExtraHy‐
giene
ECO Crockery,
cutlery, pots,
pans
Normal, lightly
dried-on
• Prewash
• Dishwashing 50 °C
• Intermediate rinse
• Final rinse 55 °C
• Drying
• AirDry 1)
• ExtraPower
• GlassCare
• ExtraHy‐
giene
AUTO
Sense
Crockery,
cutlery, pots,
pans
All • Prewash
• Dishwashing 50 -
60 °C
• Intermediate rinse
• Final rinse 60 °C
• Drying
• AirDry 1)
Not applicable
Machine
Care
For cleaning the appliance
interior. Refer to "Care and
Cleaning".
• Cleaning 70 °C
• Intermediate rinse
• Final rinse
• AirDry 1)
Not applicable
1) Automatic door opening during the drying phase. Refer to "Basic settings".
Consumption values
Programme 1)2) Water (l) Energy (kWh) Duration (min)
Quick 11.0 0.620 30
Pre-rinse 5.0 0.010 15
1h 11.8 0.970 60
1h 30min 11.9 1.110 90
2h 40min 11.9 1.210 160
ECO 9.9 0.644 240
AUTO Sense 12.1 1.220 170
Machine Care 10.6 0.710 60
1) The pressure and the temperature of the water, the variations of the mains supply, the
options, the quantity of dishes and the degree of soil can change the values.
2) The values for programmes other than ECO are indicative only.
www.electrolux.com10
Tabla de contenidos
Otros manuales de Lavavajillas de Electrolux
Electrolux
Electrolux ESF6550 Manual de usuario
Electrolux
Electrolux ESL 4131 Manual de usuario
Electrolux
Electrolux ESI 6160 Manual de usuario
Electrolux
Electrolux ESL64010 Manual de usuario
Electrolux
Electrolux ESL 6185 Manual de usuario
Electrolux
Electrolux ESL7540RO Manual de usuario
Electrolux
Electrolux ESL4161 Manual de usuario
Electrolux
Electrolux GA55LIWE Manual de usuario
Electrolux
Electrolux WT830EAG Manual de usuario
Electrolux
Electrolux ESL 65070R Manual de usuario
Electrolux
Electrolux ESL7325RO Manual de usuario
Electrolux
Electrolux ESC67300SX Manual de usuario
Electrolux
Electrolux EEQ47200L Manual de usuario
Electrolux
Electrolux EDW7505HSS - Semi-Integrated Dishwasher With 5 Wash... Manual de usuario
Electrolux
Electrolux EDW 1600 Manual de usuario
Electrolux
Electrolux 911 436 397 Manual de usuario
Electrolux
Electrolux EIDW6305GS - 24-in Built in Dishwasher Manual de usuario
Electrolux
Electrolux ESF3621LOX Manual de usuario
Electrolux
Electrolux ESF5206LOW Manual de usuario
Electrolux
Electrolux ESF65053 Manual de usuario
