User Manual
Washing Machine
WE 170 P
Original Instructions.
CONTENTS
1. SAFETY INFORMATION.......................................................................................3
2. PRODUCT DESCRIPTION................................................................................... 8
3. TECHNICAL DATA............................................................................................. 10
4. CONTROL PANEL............................................................................................. 11
5. BEFORE FIRST USE..........................................................................................13
6. PROGRAMS.................................................................................................13
7. OPTIONS...........................................................................................................16
8. SETTINGS......................................................................................................... 16
9. DAILY USE.........................................................................................................17
10. HINTS AND TIPS............................................................................................. 21
11. CARE AND CLEANING....................................................................................22
12. TROUBLESHOOTING......................................................................................27
13. EMERGENCY DOOR OPENING...................................................................... 29
14. WARRANTY.....................................................................................................30
15. ENVIRONMENTAL CONCERNS...................................................................... 32
IMPORTANT INFORMATION THAT MAY IMPACT YOUR
MANUFACTURER'S WARRANTY
Adherence to the directions for use in this manual is extremely important for health
and safety. Failure to strictly adhere to the requirements in this manual may result in
personal injury, property damage and affect your ability to make a claim under the
Electrolux manufacturer’s warranty provided with your product. Products must be
used, installed and operated in accordance with this manual. You may not be able
to claim on the Electrolux manufacturer’s warranty in the event that your product
fault is due to failure to adhere to this manual.
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can be
safe in the knowledge that you’ll get great results every time. Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
2
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning the use of the appliance in a safe
way and understand the hazards involved.
•Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away from the appliance unless continuously
supervised.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Do not let children play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•Keep detergents away from children.
•Keep children and pets away from the appliance when
the door is open.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
ENGLISH 3
1.2 Installation
•This appliance is for household and commercial use.
•Follow the installation instructions supplied with the
appliance.
•Remove all the packaging and the transit bolts.
•Keep the transit bolts in a safe place. If the appliance is
to be moved in the future they must be reattached to
lock the drum to prevent an internal damage.
•Always take care when moving the appliance as it is
heavy. Always use safety gloves and enclosed footwear.
•Do not install or use a damaged appliance.
•Make sure that the appliance is stable during
transportation.
•Make sure that the appliance is disconnected from the
electricity supply during installation, maintenance and
repairs and cannot be reconnected until all work has
been carried out.
•Do not install or use the appliance where the
temperature can be less than 0°C or where it is
exposed to the weather.
•Make sure that all health and safety regulations are
obeyed when the appliance is installed in a commercial/
public environment.
•Do not install the appliance in a moving platform (e.g. on
a ship).
•The oor area on which the appliance is to be installed
must be at, stable, heat resistant and clean.
•Make sure that there is air circulation between the
appliance and the oor.
•The ventilation openings in the base (if applicable) must
not be obstructed by a carpet.
•Adjust the feet to have the necessary space between
the appliance and the carpet.
•Do not install the appliance where the appliance door
can not be fully opened.
4
•Do not put a container to collect possible water leakage
under the appliance. Contact the Authorised Service
Centre to ensure which accessories can be used.
1.3 Electrical Connection
•The appliance must be correctly earthed. The
manufacturer is not responsible for the consequences
of an inadequate earthing system.
•Always use a correctly installed shockproof socket.
•Make sure that the parameters on the rating plate are
compatible with the electrical ratings of the mains power
supply.
•Do not use multi-plug adapters and extension cables.
•Make sure not to cause damage to the mains plug and
to the mains cable.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualied persons in order to avoid a hazard.
•Connect the mains plug to the mains socket only at the
end of the installation. Make sure that there is access to
the mains plug after the installation.
•Do not touch the mains cable or the mains plug with
wet hands.
•Do not pull the mains cable to disconnect the appliance.
Always pull the mains plug.
1.4 Water connection
•Do not cause damage to the water hoses.
•The appliance is to be connected to the water mains
using the new supplied hose-sets. Old hose sets must
not be reused.
•Before connection to new pipes, pipes not used for a
long time, where repair work has been carried out or
new devices tted (water meters, etc.), let the water ow
until it is clean and clear.
ENGLISH 5
•The operating water pressure (minimum and maximum)
must be between 0.5 bar (0.05 MPa) and 10 bar (1.0
MPa).
•Ensure that there are no visible water leaks during and
after the rst use of the appliance.
1.5 Use
•Do not change the speci ication of this appliance.
•Obey the safety instructions on the detergent
packaging.
•Obey the maximum load volume of 8 kg (refer to the
“Program chart” chapter).
•Do not put lammable products or items that are wet
with lammable products in, near or on the appliance.
•Make sure that you remove all metal objects from the
laundry.
•Do not touch the glass of the door while a program
operates. The glass can be hot.
1.6 Care and cleaning
•Before maintenance, deactivate the appliance and
disconnect the mains plug from the mains socket.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Use only
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
1.7 Internal lighting
WARNING!
Risk of injury.
•Visible LED radiation, do not look directly into the beam.
•To replace the internal lighting, contact the Authorised
Service Centre.
6
1.8 Service
•To repair the appliance contact the Authorised Service
Centre. Use original spare parts only.
•Please note that self-repair or non-professional repair
can have safety consequences and might void the
guarantee.
•Concerning the lamp(s) inside this product and spare
part lamps sold separately: These lamps are intended to
withstand extreme physical conditions in household
appliances, such as temperature, vibration, humidity, or
are intended to signal information about the operational
status of the appliance. They are not intended to be
used in other applications and are not suitable for
household room illumination.
1.9 Disposal
•Disconnect the appliance from the mains electrical and
water supplies.
•Cut off the mains electrical cable close to the appliance
and dispose of it.
•Remove the door catch to prevent children or pets from
becoming trapped in the drum.
ENGLISH 7
2. PRODUCT DESCRIPTION
2.1 Appliance overview
3
1 2
5
6
7
8
4
1Worktop
2Detergent dispenser
3Control panel
4Door handle
5Internal light
6Rating plate
7Drain pump lter and emergency door
opening
8Feet for levelling the appliance
00000000
00A
Mod. xxxxxxxxx
000V ~ 00Hz 0000 W
910000000 00
A
B
C
Prod.No.
D
The rating plate reports the model name (A) ,
product number (B), electrical ratings (C) and
serial number (D).
2.2 Accessories
1
45
2 3
1 Spanner
To remove the transit bolts.
2Plastic hose guide
To connect the drain hose on the edge of a
sink.
3Plastic caps
To close the holes on the rear side of the
cabinet after the removal of the transit
bolts.
4Inlet hoses
To connect the appliance to the cold and
hot water tap: blue cap hose for cold water
and red cap hose for hot water.
5Flap for liquid detergent
To slow down the liquid detergent ow.
8
2.3 Available from your
authorized vendor
Only appropriate accessories
approved by Electrolux
ensure the safety standards
of the appliance. If
unapproved parts are used,
any claims will be invalidated.

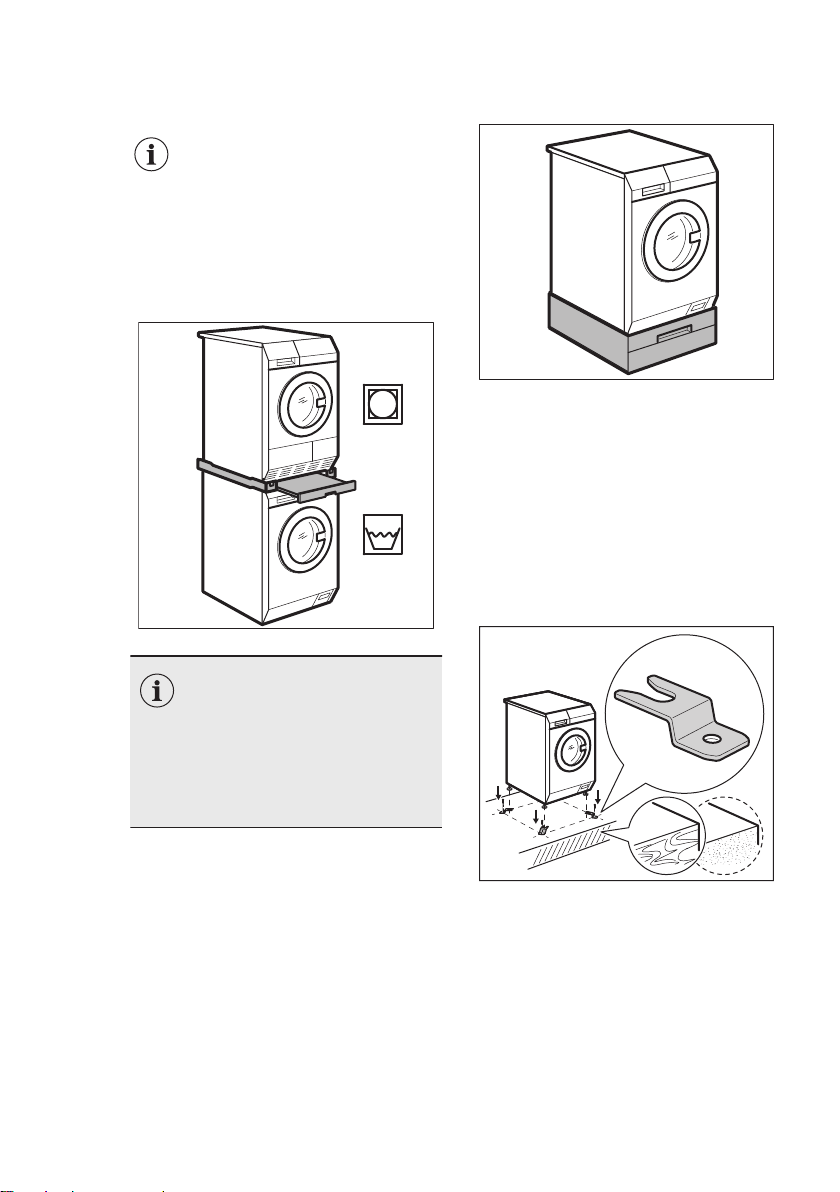

Stacking kit
Stacking kit can be used
only with the tumble dryers
specied in the leaet. See
the leaet attached.
Read carefully the instruc-
tions supplied with the ac-
cessory.
Pedestal with the drawer
To put the appliance higher at the level
what helps to easy load and remove the
laundry.
The drawer can be used for laundry
storage e.g.: towels, cleaning products
and more.
Read carefully the instructions supplied
with the accessory.
Anchoring kit
4x
If you install the appliance on a concrete
base, please make sure to order the
correct anchoring kit.
Read carefully the instructions supplied
with the accessory.
ENGLISH 9
External detergent dispenser The liquid detergent can be loaded
automatically from an external dispenser.
Read carefully the instructions supplied
with the accessory.
3. TECHNICAL DATA
Dimension Width/ Height/ Total depth 59.7 cm /84.7 cm /64.6 cm
Electrical connection Voltage
Overall power
Fuse
Frequency
220 - 240 V
2200 W
10 A
50 Hz
Level of protection against ingress of solid particles and
moisture ensured by the protective cover, except where
the low voltage equipment has no protection against
moisture
IPX4
Water supply pressure Minimum
Maximum
0.5 bar (0.05 MPa)
10 bar (1.0 MPa)
Water supply 1) Cold water
Hot water 2)
Maximum Load Cotton 8 kg
Spin Speed Maximum spin speed 1351 rpm
1) Connect the water intel hoses to a water tap with a 3/4" thread.
2) Make sure that the hot water temperature of your domestic system is not higher than 60 °C.
The appliance also works by connecting the only cold water pipe. Refer to 'Hot
and cold" in Options chapter.
3.1 Electrical connection
At the end of installation you can connect
the mains plug to the mains socket.
The rating plate and the 'Technical Data'
chapter indicate the necessary electrical
ratings. Make sure that they are
compatible with the mains power supply.
Check that your domestic electrical
installation can take the maximum load
required, also taking into account any
other appliances in use.
10
Otros manuales para WE 170 P
1
Tabla de contenidos
Otros manuales de Arandela de Electrolux Professional
Electrolux Professional
Electrolux Professional Compass Pro WN6-8 Manual de usuario
Electrolux Professional
Electrolux Professional Clarus Vibe WH6-7 Manual de usuario
Electrolux Professional
Electrolux Professional Wascator FOM71 CLS Manual de usuario
Electrolux Professional
Electrolux Professional Compass Pro WS6-9 Manual de usuario
Electrolux Professional
Electrolux Professional WH5 Manual de usuario
Electrolux Professional
Electrolux Professional WB6-20 Manual de usuario
Electrolux Professional
Electrolux Professional WP4700H Guía
Electrolux Professional
Electrolux Professional WH6-14LAG Manual de usuario
Electrolux Professional
Electrolux Professional Lagoon WH6-6 Manual de usuario
Electrolux Professional
Electrolux Professional WB6-20 Manual de usuario
Electrolux Professional
Electrolux Professional WE170V Manual de usuario
Electrolux Professional
Electrolux Professional WE170P Manual de usuario
Electrolux Professional
Electrolux Professional WB6-20 Manual de usuario
Electrolux Professional
Electrolux Professional ZPPWES Manual de usuario
Electrolux Professional
Electrolux Professional WE 170 V Manual de usuario
Electrolux Professional
Electrolux Professional Wascator FOM71 CLS Manual de usuario
Electrolux Professional
Electrolux Professional Compass Pro WB6-18 Manual de usuario
Electrolux Professional
Electrolux Professional QuickWash QWC Manual de usuario
Electrolux Professional
Electrolux Professional Compass Pro WN6-9 Manual de usuario
Electrolux Professional
Electrolux Professional DOUBLE SKIN XL Manual de usuario
