Eldes ET082 Manual de usuario

GSM/GPRS COMMUNICATOR

ET082

It is strictly forbidden to copy and distribute information in this document or pass to a third party without an advanced written authorization from

“ELDES UAB”. “ELDES UAB” reserves the right to update or modify this document and/or related products without a warning. Hereby,„ELDES UAB“

declares that this GSM/GPRS communicator ET082 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/

EC. The declaration of conformity may be consulted at www.eldes.lt

User Manual v1.2

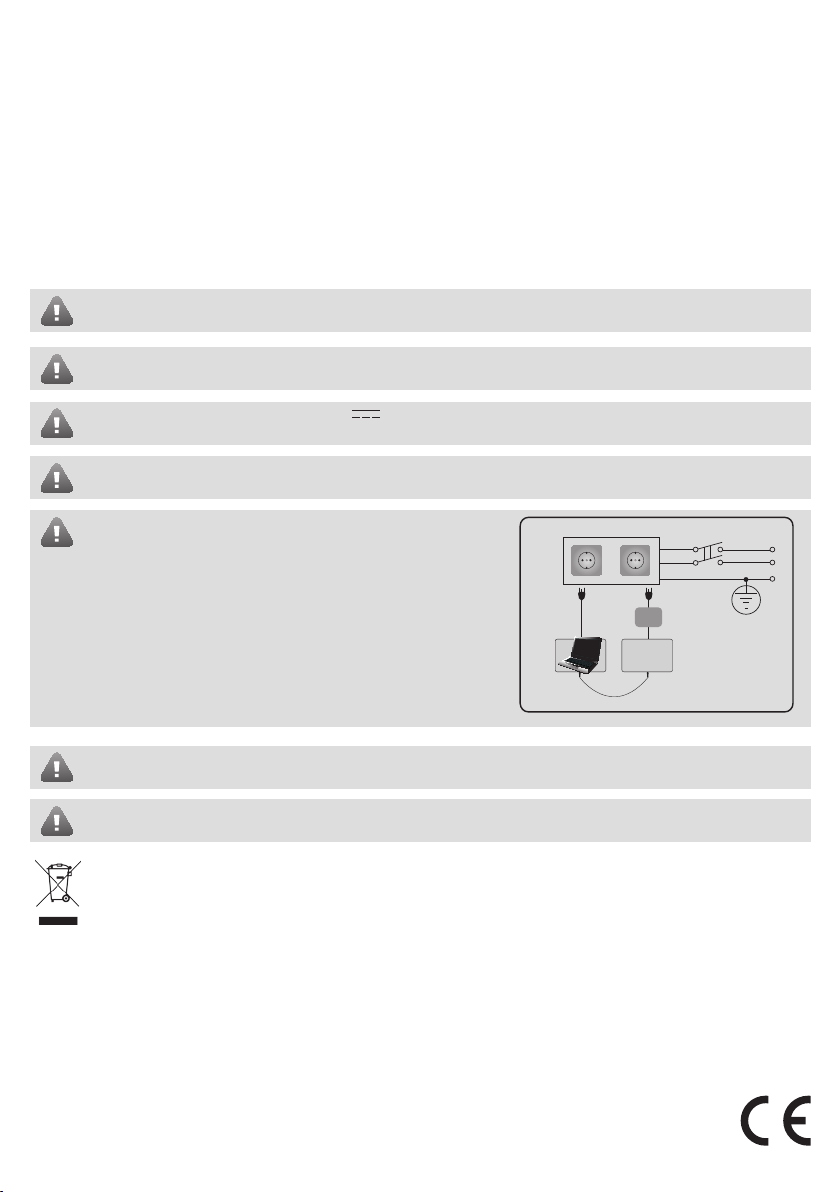

Safety instructions

Please read and follow these safety guidelines in order to maintain safety of operators and people around:

• GSM/GPRS communicator ET082 (further referenced as system, device or communicator) contains a radio transceiver operating

in GSM850/900/1800/1900 bands.

• DO NOT use the system where it can interfere with other devices and cause any potential danger.

• DO NOT use the system with medical devices if this is required in the manual of the medical device.

• DO NOT use the system in hazardous environment.

• DO NOT expose the system to high humidity, chemical environment or mechanical impacts.

• DO NOT attempt to personally repair the system.

• System labelling sticker is at the bottom of the device.

System ET082 is a device mounted in limited access areas. Any system repairs must be done only by qualied, safety aware

personnel.

Mains power must be disconnected before any installation or tuning work starts. The system installation or maintenance

must not be done during stormy conditions.

The system must be powered by main 10-24V 300mA power supply which must be approved by LST EN 60950-1 stan-

dard and be easily accessible.

Any additional devices linked to the system ET082 (computer, sensors, relays etc.) must be approved by LST EN 60950-1

standard.

External power supply can be connected to AC mains only inside ins-

tallation room with automatic 2-pole circuit breaker capable of discon-

necting circuit in the event of short circuit or over-current condition.

Open circuit breaker must have a gap between connections of more

than 3mm and the disconnection current is 5A.

Fuse F1 model - miniSMDC 500mA. Blown fuse cannot be replaced by the user and the replacement fuses have to be exactly

the same as indicated by the manufacturer.

The device is fully turned o by disconnecting 2-pole switch o device of the external power supply or any other linked

device that the system ET082 is powered from.

The WEEE (Waste Electrical and Electronic Equipment) marking on this product (see left) or its documentation indicates that the pro-

duct must not be disposed of together with household waste. To prevent possible harm to human health and/or the environment, the

product must be disposed on in an approved and environmentally safe recycling process. For further information on how to dispose

of this product correctly, contact the system supplier, or the local authority responsible for waste disposal in your area.

Phase

AC 230V

50 Hz/DC 24V

USB cable

Null

ET082

Limited Liability

The buyer must agree that the system will redu-

ce the risk of re, theft, burglary or other dangers

but does not guarantee against such events. “EL-

DES UAB” will not take any responsibility regarding

personal, property or revenue loss while using the

system. “ELDES UAB” responsibility according to

local laws does not exceed value of the purchased

system.“ELDES UAB”is not aliated with GSM ope-

rators providing cellular services, therefore is not

responsible for network services, coverage or its

operation.

Manufacturer Warranty

The system carries a 24-month warranty by the

manufacturer “ELDES UAB”.

Warranty period starts from the day the system

has been purchased by the end user. The warranty

is valid only if the system has been used as inten-

ded, following all guidelines listed in the manual

and within specied operating conditions. Receipt

with purchase date must be kept as a proof.

The warranty is voided if the system has been

exposed to mechanical impacts, chemicals, high

humidity, uids, corrosive and hazardous environ-

ment or other force majeure factors.

Package Content

1. ET082.......................................................................qty. 1

2. User manual..........................................................qty. 1

3. GSM antenna........................................................qty. 1

4. Jumpers..................................................................qty. 4

5. Plastic standos...................................................qty. 7

About User Manual

This document describes only basic operation

and installation of ET082 device. It is very impor-

tant to read the user manual before starting to use

the system.

Contents

1. General Information..................................................................... 4

1.1 Operation Description ..............................................................................4

2. Technical Specications............................................................... 6

2.1 Electrical & Mechanical Specications ..............................................6

2.2 Main Unit, Connector, Pin & LED Functionality .............................7

2.2.1 Main Unit Functionality................................................................7

2.2.2 Connector Functionality ..............................................................7

2.2.3 Pin Functionality .............................................................................7

2.2.4 LED Functionality............................................................................7

2.3 Connection Circuit ......................................................................................8

3. Installation.................................................................................... 9

4. Skyrelio pavadinimas................................................................. 10

4.1 PSTN Line and GSM Connection Status Monitoring.................... 10

4.2 Inputs & Оutputs.......................................................................................10

4.3 Remote Conguration of the Alarm System via DTMF ............... 10

5. Communication Modes & Methods...........................................11

5.1 Wiring Diagrams.....................................................................................11

5.1.1 No PSTN Connection..................................................................12

5.1.2 With PSTN Connection...............................................................12

5.1.3 With PSTN Connection through PBX.................................... 13

5.2 Basic Mode ............................................................................................... 13

5.2.1 Voice Calls Method...................................................................... 14

5.2.2 SMS Method ..................................................................................14

5.2.3 Voice Calls + SMS Method ........................................................ 15

5.2.4 GPRS Method ................................................................................16

5.3 Advanced Mode ..................................................................................... 17

5.3.1 Voice Calls Method...................................................................... 17

5.3.2 SMS Method ..................................................................................18

5.3.3 GPRS Method ................................................................................19

5.3.4 CSD Method ................................................................................. 20

6. Conguration & Control............................................................. 21

6.1 Ways of System Conguration ..........................................................21

6.2 Remote System Conguration via GPRS Connection ...............21

6.2.1 Establishing Remote Connection Between

ET082 System and Conguration Server........................22

6.2.2 Connecting to ELDES Conguration Server

using ELDES Conguration Tool Software..................... 22

6.2.3 Ending the Conguration Process.................................... 23

6.3 Conguration Parameter Set (SMS).................................................... 23

7. Technical Support.......................................................................27

7.1 Restoring Default Conguration .....................................................27

7.2 Upgrading Firmware............................................................................. 27

7.3 Technical Support.................................................................................. 27

8. Related products ..........................................................................28

1. General Information

Communicator ET082 is a device for transmitting data from alarm system to monitoring station via:

• PSTN (telephone landline);

• Voice Calls (GSM audio channel);

• Voice Calls (GSM audio channel) and/or to users via SMS message;

• GPRS network;

• CSD (fax line).

ET082 main applications & features:

• Property security;

• Data re-transmission to monitoring station via GSM/GPRS/CSD and/or to preset user via SMS;

• Backup connection for PSTN;

• PSTN status monitoring in case it is cut-o or disconnected;

• Alarm system remote conguration via DTMF.

User manUal elDes eT082 v1.2 5

2. Technical Specications

2.1 Electrical & Mechanical Specications

Power Supply 10-24V 300mA max

Peak Current Consumption 700 mA max.

Current Used in Standby Mode 120mA max

GSM Modem Frequency 850/900/1800/1900 MHz

Communications Voice Calls, SMS, GPRS, CSD

Supported Protocols Ademco Contact ID®, 4+2, Scancom, EGR100, Kronos, SIA IP

Maximum Number of Users Receiving

Alarm System Events by SMS Message

Maximum Number of Users for Input/Output Control 3

Number of “Low” Level (Negative) Digital Inputs 3

Allowable Input Values Voltage 0... 1.45V; current: 0.8... 0.6mA

Input Type NO (normally open)

Number of Outputs 3

Output C1 - C3 Circuit

Maximum Commuting Output Values Voltage: 30V ; current: 50 mA

Dimensions 130 x 73 mm

Operating temperature range -20...+55oC

Generated Phone Line Values Voltage: 18V; current: 25mA; impedance: 600Ω

Dial Tone Frequency of Generated Phone line 350 Hz

GSM

MODEM

INFO

STATUS

GSM

USB

DEF

L1 L2 L3 L4 RING TIP Z1

C1 DC+ COM C2 Z2 COMC3 Z3

MODE

SET

JP9

UART

JP8

For conﬁgurations

SIM CARD

ANT

Fig. No 2

1 R OUT Open collector output.

Output is pulled to COM when

turned on.

6USER MANUAL ELDES ET082 V1.0 6

2.2 Main Unit, Connector, Pin & LED Functionality

2.2.1 Main Unit Functionality

GSM MODEM GSM network 850/900/1800/1900 MHz modem

SIM CARD SIM card slot / holder

ANT GSM antenna SMA type connector

F1 Fuse model – miniSMDC 500mA

USB Mini USB port

2.2.2 Connector Functionality

Labelling Description

L1 - L4 Landline or PBX contacts (according to backup mode)

RING RING contact

TIP TIP contact

C1 - C3 Outputs

DC+ Positive power supply contact

COM Negative power supply contact / Common contact

Z1 - Z3 Inputs

2.2.3 Pin Functionality

Labelling Description

DEF For restoring factory default settings

SET For communication method of Basic mode set up

MODE For communication method of Basic mode set up

JP8, JP9 For direct data transmission via PSTN with status monitoring

UART For retreiving debug log

2.2.4 LED Functionality

Labelling Description

INFO Operation activity status

STATUS Device status

GSM GSM network strength

GSM Signal Strength Indication

GSM signal strength is indicated by GSM LED. To ensure the best quality of the network adjust the position of GSM antenna and

nd the strongest possible signal by observing the GSM LED indications.

GSM LED Indication GSM Signal Strength

O No connection

Flashing every 3 seconds The connection is not reliable

Flashing every 1 second Satisfactory

Flashing several times per second Good

On Excellent

Device Activity Indication

STATUS LED Indication Description

O No power supply or some fault is present

Flashing several times per second SIM card is not inserted / insterted improperly

On Device is operating and ready for use

Working Mode Indication

INFO LED Indication Description

O Device is in standby mode

Flashing several times

per second

Device retransmits the data sent from alarm system to the monitoring station (this

indication is possible when device is operating in communication mode 1)

On Device is decoding data to user-understandable text format.

2.3 Connection Circuit

COM connectors of ET082 and alarm system unit must be connected.

ET082 inputs Z1 - Z3 are connected to PGM outputs of alarm system unit if PGM output is

implemented as open collector circuit or any other circuit and if it commutes with COM. It is

also possible to connect motion sensor or any other sensor to ET082 Z1 - Z3 inputs.

ET082 C1 - C3 outputs can be connected to the input of electrical appliances if it commutes

with COM. This connection allows to control heating, lighting, gates, blinds, water pump etc.

ET082

Alarm system

or other appliance

+12V

PGM

CxDC+ COM

ATTENTION: Before connecting ET082 power supply to alarm system's auxiliary

output (AUX), please, make sure that the output is able to maintain peak curent

consumption of up to 700mA max. Otherwise, please, use an external power sup-

ply for ET082.

Fig. No 3

3. Installation

The system can be installed in a metal or non-ammable plastic enclosure together with alarm system unti. When the metal en-

closure is used it is necessary to ground the enclosure using yellow/green colour cable. For the connection use 0.50 mm21 thread

cable. For the device connection to input/output connectors use 0.50 mm21 thread cable of up to 100 meters length.

1. Place the SIM card into the card holder and make sure that PIN code request is disabled. The PIN code can be disabled by

inserting the SIM card into a mobile phone and following proper menu steps. There must be no SMS messages stored in

the memory.

ATTENTION: The system is NOT compatible with pure 3G SIM cards. Only 2G SIM cards and 3G SIM cards with 2G prole

enabled are supported. For more details, please, contact your GSM operator.

2. Connect the GSM antenna to SMA connector. It is not recommended to turn on the device without GSM antenna connec-

ted.

NOTE: It is recommended to install the GSM antenna away from the alarm system to ensure better quality of the audio

signal. It is not recommend to install the antenna inside the metal enclosure.

3. Connect the circuit according to desired communication method. For more details, please, refer to chapters 2.3 Con-

nection Circuit & 5.1 Wiring Diagrams

4. The system should start in less than a minute. GSM LED indicator should be blinking or be ON indicating successful con-

nection to GSM network.

NOTE: It is highly recommended to choose the same GSM cellular provider both for users and for ET082 communicator in

order to assure fast and reliable SMS message delivery and phone call connection.

NOTE: To ensure maximum system operation reliability we recommend not to use pay-as-you-go SIM cards. If the balance is

insucient the system will not be able to inform users by SMS or send data messages.

IMPORTANT: Power supply at alarm system must be disconnected before any installation or tuning work.

User manUal elDes eT082 v1.2 9

For more details, please refer to chapter 5. Communication Methods & Modes.

4. Operation Description

ET082 communicator is a GSM/GPRS device transmitting data from alarm system to monitoring station and/or preset user phone

number. The following diagram indicates communication modes & methods supported by the device:

USING PSTN?

YES

Basic Advanced

NO / PSTN is cut-o

Voice CallsContact ID

Contact ID

Scancom

Kronos

EGR100

SIA IP

Primary

Voice Calls

SMS

GPRS 1... 3

CSD

N/A

Backup 1

Backup 2

SMS

Voice Calls + SMS

GPRSGPRS 1

Direct data transmission to monitoring station

Set by PCB jumper

combination

Direct channel

Converted to user-

understandable text

Converted to

user-understandable text

Converted to

user-understandable text

Converted to

user-understandable text

By SMS: converted to

user-understandable text

Direct channel

Data buering

Set by ELDES Conguration Tool

Communication method?

PSTN line is being monitored by ET082 in

case it is cut-o

4.1 PSTN Line and GSM Connection Status Monitoring

The device can also be used for direct data transmission from alarm system to monitoring station via PSTN. This feature allows to

monitor the PSTN status and notitify monitoring station and/or preset user in case of PSTN loss/restore events. Depending on the

set up communication method and conguration, ET082 can notify by:

• sending an SMS message to a preset user (SMS method);

• transmitting a data message to monitoring station via GSM audio channel (Voice Calls method);

• transmitting a data message to monitoring station via GPRS netowrk (GPRS method);

• transmitting a data message to monitoring station via fax line (CSD method).

In case of PSTN failures, the communicator switches to the set up communication method and backs up PSTN until it is restored.

In addition, the PSTN loss/restore event can also be indicated by SMS message sent to up to 3 preset users or by any output of

ET082 device.

In case of PSTN or GSM connection failure, the device can turn the output (-s) ON and turn it OFF after the PSTN or GSM is restored.

For more details, please refer to ELDES Conguration Tool software‘s HELP section.

ET082 can also detect temporary service suspension by the service provider for technical or billing reasons even if a dial tone is still

present as“busy” tone. This feature requires an additional audio module which must be requested in advance.

4.2 Inputs & Оutputs

ET082 communicator has 3 built-in digital inputs (NO - normally open) for connection to PGM outputs of alarm system or any

sensor connection, In case of input alarm/restore event, the communicator sends an SMS message to up to 3 preset user (-s).

Built-in open collector outputs allow to connect and control up to 3 electrical appliances. The outputs can be controlled either

by SMS message from user who knows the correct SMS password, either automatically in case of PSTN or GSM connection loss/

restore event. The outputs can provide control over heating, lighting, gates, blinds etc.

For more details, please, refer to ELDES Conguration Tool software‘s HELP section.

4.3 Remote Conguration of the Alarm System via DTMF

ET082 supports a two-way communication providing a possibility for alarm system remote conguration via DTMF. DTMF dialing

mode must be supported and enabled in alarm system.

Otros manuales para ET082

Tabla de contenidos

Otros manuales de Teléfono móvil de Eldes

Eldes

Eldes ET083 Manual de usuario

Eldes

Eldes ET08 Manual de usuario

Eldes

Eldes ET07P Manual de usuario

Eldes

Eldes ET082 Manual de usuario

Manuales populares de Teléfono móvil de otras marcas

Zte

Zte BLADE A520 Manual de usuario

Nokia

Nokia Lumia 620 Manual de usuario

Blackbe;rry

Blackbe;rry KEYone Manual de usuario

Bea-fon

Bea-fon X5 Premium Manual de usuario

Blackbe;rry

Blackbe;rry 8707 Series Manual de usuario

Blackbe;rry

Blackbe;rry Storm Instrucciones de funcionamiento

LG LM-X420QN Manual de usuario

LifeWatch

LifeWatch V Manual de usuario

Bea-fon

Bea-fon SILVER LINE SL860 Manual de usuario

IKI Mobile

IKI Mobile KF4.5i Manual de usuario

Hitech

Hitech HT-850 Manual de usuario

Yezz

Yezz Fashion F10 Manual de usuario

Point Mobile

Point Mobile PM60 Manual de usuario

Blackbe;rry

Blackbe;rry Q10 Manual de usuario

Blackbe;rry

Blackbe;rry Bold 9900 Manual de usuario

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manual de usuario

LG LM-K420EMW Manual de usuario

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manual de usuario
