Elcometer 3000 Series Manual de usuario
User Guide
Elcometer 3000
Motorised and Manual
Clemen Unit
www.elcometer.com
R
Section
Page
1
Overview
en-2
2
Box Contents
en-3
3
Working Safely
en-3
4
Getting Started
en-4
5
Testing a Sample - Manual Clemen Unit
en-4
6
Testing a Sample - Motorised Clemen Unit
en-6
7
Spares & Accessories
en-9
8
Care & Maintenance
en-9
9
Warranty Statement
en-10
10
Technical Specification
en-10
11
Legal Notices & Regulatory Information
en-11
www.elcometer.com
For the avoidance of doubt, please refer to the original English language version.
Dimensions: Manual Clemen Unit: 410 x 200 x 155mm (16.1 x 7.9 x 6.1")
Motorised Clemen Unit: 460 x 280 x 330mm (18 x 11 x 13")
Weight: Manual Clemen Unit: 6kg (13.2lb)
Motorised Clemen Unit: 20kg (44lb)
© Elcometer Limited 2008 - 2018. All rights reserved. No part of this document may be reproduced, transmitted,
transcribed, stored (in a retrieval system or otherwise) or translated into any language, in any form or by any
means (electronic, mechanical, magnetic, optical, manual or otherwise) without the prior written permission of
Elcometer Limited.
CONTENTS
R
en-1
1 OVERVIEW
www.elcometer.com en-2
R
Available in two versions; Manual and Motorised, the Elcometer 3000
Clemen Unit is a robust and simple-to-use instrument for evaluation of
the resistance to scratching of a coated surface. The sample can be
metal, wood, glass, plastic or other hard materials.
A tool fitted with a hemispherical ball is lowered gradually onto the
surface of the sample and moved in a straight line a distance of 60mm
(2.4"). The downward force exerted by the tool onto the surface is
adjustable by means of a sliding weight.
Depending on the purpose of the test and the force applied, varying
degrees of penetration of the tool into the coating are observed, from a
superficial trace to total destruction.
Elcometer 3000 Manual Clemen Unit: The sample is clamped
to a sliding platform which is moved manually.
Elcometer 3000 Motorised Clemen Unit: The sample is
clamped to a fixed platform. At the press of a button, the tool is
moved across the sample and stops automatically at the end of
its travel. Contact between the tool and a metallic sample is
indicated by a lamp and voltmeter.
1.1 MANUAL CLEMEN UNIT
1 Weight
2 Clamp
3 Load Beam
4 Tool
5 Sample Platform
1
2
3
4
5

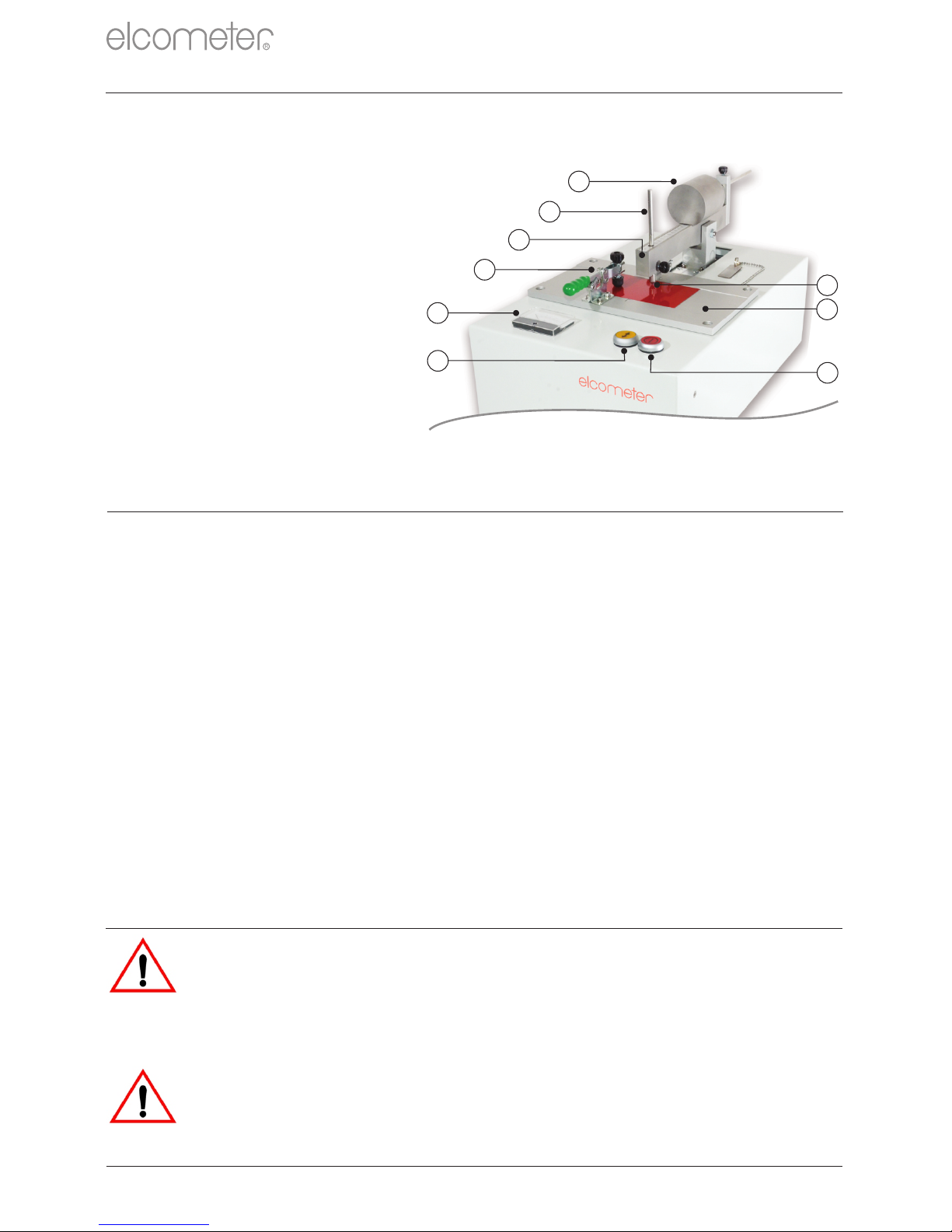

1 Weight
2 Support for additional 1kg
(2.2lb) weights
3 Load Beam
4 Clamp
5 Voltmeter
6 Start Button
7 Power On/Off Button
8 Sample Platform
9 Tool
1 OVERVIEW (continued)
R
www.elcometer.com
en-3
Elcometer 3000 Clemen Unit
Tungsten Carbide Ball Tool; 1mm (0.04")
Calibration Certificate - if ordered
User Guide
Additional items supplied with the Elcometer 3000 Motorised
Clemen Unit
1kg Weight (x4)
Mains Leads: UK, EUR & US
The Elcometer 3000 Clemen Unit is packed in a plywood and / or heavy duty cardboard and foam
package. It is recommended that this packaging is retained and reused in the event that the
instrument needs to be transported. If the packaging is disposed of, please ensure that this is done in
an environmentally sensitive manner. Consult your local Environmental Authority for further guidance.
2 BOX CONTENTS
1.2 MOTORISED CLEMEN UNIT
3 WORKING SAFELY
To reduce the risk of electric shock, do not open the housing of
the Elcometer 3000 Motorised Clemen Unit. There are no
user-servicable parts inside. The warranty will be invalidated if
the instrument has been opened.
To reduce the risk of fire or electric shock, do not expose the
Elcometer 3000 Motorised Clemen Unit to rain or excess
moisture.
5
1
3
4
67
8
9
2
3 WORKING SAFELY (continued)
4.1 INSTALLATION
The Elcometer 3000 Motorised Clemen Unit is heavy; manual
lifting of the tester must be carried out by at least two people.
Place the Elcometer 3000 on a flat level surface suitable for the load
imposed by the tester. The Elcometer 3000 Motorised Clemen Unit
has adjustable feet which can be used to level the tester.
4.2 SWITCHING ON / OFF - MOTORISED CLEMEN UNIT ONLY
Press the On/Off button to switch the unit on. The button will
illuminate when the unit is switched on. Press the On/Off button again
to switch the unit off.
The IEC inlet is protected by one fuse - see Section 10 ‘Technical
Specification’ on page en-10 for fuse rating.
The UK mains plug is fitted with a fuse. When replacing this fuse,
ensure a fuse of the correct rating is used - see Section 10 ‘Technical
Specification’ on page en-10 for details.
Elcometer recommends using mains leads approved by a recognised
testing authority. Examples of suitable mains leads are UK, EUR
H05RN-F 3G 0.75mm 2 cable, US SJT 18AWG/3C cable.
4 GETTING STARTED
5 TESTING A SAMPLE - MANUAL CLEMEN UNIT
Before a sample can be tested, the height of the tool must be adjusted.
5.1 ADJUSTING THE TOOL HEIGHT
1 Place the sample onto the sample platform and fix into position by
rotating the clamp handle.
2 Lift and hold the load beam in its raised position and slide the
sample platform until the centre of the sample is underneath the
tool.
www.elcometer.com en-4
R
5 TESTING A SAMPLE - MANUAL CLEMEN UNIT (continued)
3 Insert the metal shim (a) between the nylon wheel (b) and the
load beam (c) and then lower the load beam.
4 Adjust the height of the tool (d) until it is touching the surface of
the sample then tighten the knurled wheel (e), turning clockwise,
to lock the tool into position.
5 Raise the load beam, remove the metal shim and slide the
sample platform back to its starting position.
6 Slide the weight along the load beam to the required load and
lock in place by tightening the knurled wheel. The load can be
set from 0 to 2kg (0 to 4.4lb).
The instrument and sample are now ready for the test to be carried
out.
5.2 TEST PROCEDURE
1 Pull the sample platform towards you in a single smooth action;
the standard speed of movement is approximately 30mm/s
(1.2"/s).
2 The tool will lower down onto the sample at the start of the test
and raise up at the end of the test.
3 Inspect the sample for damage in accordance with the
requirements of the test standard. Repeat the test as necessary,
increase the loading between test.
(a)
(b)
(c )
(d)
(e)
R
www.elcometer.com
en-5
6 TESTING A SAMPLE - MOTORISED CLEMEN UNIT
Before a sample can be tested, the height of the tool must be adjusted.
6.1 ADJUSTING THE TOOL HEIGHT
1 Connect the unit to the mains power supply and press the Power
On/Off button to switch on the instrument.
2 Place the sample onto the sample platform and fix in position by
rotating the clamp handle.
3 Adjust the height of the tool to its upper position to clear the
sample.
4 With the tool positioned at either end, press the Start button then
immediately press the Power On/Off button. This will stop the
load beam near the centre.
5 Insert the metal shim (a) between the nylon wheel (b) and the
load beam (c) and then lower the load beam.
6 Adjust the height of the tool (d) until it is touching the surface of
the sample then tighten the knurled wheel (e), turning clockwise,
to lock the tool into position.
(a)
(b)
(c )
(d)
(e)
7 Raise the load beam, remove the metal shim and whilst
supporting the load beam, press the Power On/Off button
followed by the Start button to return the tool to its starting
position.
Supporting the load beam whilst the tool is moving to its starting position
prevents damage to the sample surface, the tool or the sample platform.
8 Slide the weight along the load beam to the required load and
lock in place by tightening the knurled wheel. The load can be
set from 0 to 1.5kg (0 to 3.3lb) using the sliding weight.
www.elcometer.com en-6
R
6 TESTING A SAMPLE - MOTORISED CLEMEN UNIT (continued)
For loads between 1.5 and 5kg (3.3 and 11lb) use the additional 1kg
(2.2lb) supplied. Place the required number of weights on the vertical
rod on the load beam to obtain the correct load. For example, if a load
of 3.5kg (7.7lb) is required, place three of the 1kg (2.2lb) weights on to
the vertical rod and slide the weight to the 0.5kg (1.1lb) mark on the
scale.
The instrument and sample are now ready for the test to be carried
out.
6.2 TEST PROCEDURE
Keep fingers clear of the mechanism during use.
1 Press the Start button. The tool will start to move and will lower
down onto the sample at the start of the test, raise up at the end
of the test and then stop automatically.
2 Inspect the sample for damage in accordance with the
requirements of the test standard. Repeat the test as necessary,
increase the loading between test.
The complete destruction of a paint film on a metallic sample is
observed when the voltmeter needle indicates 10 V to 12 V and when
the Start button flashes (the electrical detection device operates only
on metallic samples which are uncoated on the reverse side).
6.3 TESTING THICK SAMPLES
The Elcometer 3000 Motorised Clemen Unit as supplied can be used
to test samples with a maximum thickness of 3mm (0.12"). An
Adjustment Kit is available to purchase as an optional accessory which
allows testing of samples up to 20mm (0.8") thick.
The Adjustment Kit consists of the items listed below. Refer to Figure 1
on page en-8 for the location of the parts.
Part
Description
Qty
A
Load Beam Spacer; 55 x 39 x 5mm
3
B
Sample Clamp Spacer; 35 x 30 x 12mm
1
C
Height Gauge for Wheel; 5 & 15mm
1
Height Gauge for Wheel; 10 & 20mm
1
www.elcometer.com
en-7
R
6 TESTING A SAMPLE - MOTORISED CLEMEN UNIT (continued)
Part
Description
Qty
D
Hexagonal Wrench; 3mm
1
E
M4 x 20 Screw for Load Beam
4 sets
F
M4 x 25 Screw for Sample Clamp
2 sets
G
Height Adjustable Wheel
1
A + E
G + C
B + F
Fit the parts in accordance with the recommendations given in the
table below.
Sample Thickness
5mm Spacers for
Load Beam Base (Qty)
12mm Spacer for
Sample Clamp
Height Gauge
for Wheel
mm
inches
0.5 - 5
0.02 - 0.2
0
Not Required
5mm
5 - 10
0.2 - 0.4
1
Not Required
10mm
10 - 15
0.4 - 0.6
2
Required
15mm
15 - 20
0.6 - 0.8
3
Required
20mm
Note:
1) Fit the load beam base and sample clamp to the spacers using screws of an appropriate length
(Parts E & F above).
2) Use the height gauge (Part C above) to adjust the height of the nylon wheel and then tighten the
knurled wheel to lock in place.
www.elcometer.com en-8
R
7.1 BALL TOOL
Each Elcometer 3000 is supplied with a 1mm (0.04") tungsten carbide
ball tool as standard.
Due to the nature of the test, the ball tool will wear with use. Spare /
replacement tools are available to purchase from Elcometer or your
local Elcometer supplier.
Description Part Number
Tungsten Carbide Ball Tool; 1mm (0.04") KT003000P021
7.2 CUTTING TOOL FOR SCRATCH TESTING
Available to purchase as an optional accessory, the cutting tool gives a
much more aggressive scratch than the standard ball tool supplied
with each instrument. When using the cutting tool, follow the same
adjustment procedure and test procedure as given for the standard ball
tool.
Description Part Number
Tungsten Carbide Cutting Tool; 2mm (0.08") KT003000N001
7.3 ADJUSTMENT KIT
Available to purchase as an optional accessory for the Elcometer 3000
Motorised Clemen Unit, the adjustment kit allows testing of samples up
to 20mm (0.8") thick - see Section 6.3 ‘Testing Thick Samples’ on page
en-7 for further details.
Description Part Number
Adjustment Kit from 5 - 20mm/0.02 - 0.8" KT003000N015
www.elcometer.com
en-9
7 SPARES & ACCESSORIES
8 CARE & MAINTENANCE
The top of the instrument around the test sample area should be
regularly wiped clean using a dry cloth.
The Elcometer 3000 does not contain any user-serviceable
components. In the unlikely event of a fault, the instrument should be
returned to your local Elcometer supplier or directly to Elcometer.
The warranty will be invalidated if the instrument has been opened.
R
Otros manuales para 3000 Series
1
Tabla de contenidos
Otros manuales de Instrumento de medición de Elcometer
Elcometer
Elcometer 331 H Manual de usuario
Elcometer
Elcometer 106 Manual de usuario
Elcometer
Elcometer 456 Manual de usuario
Elcometer
Elcometer Novo-Gloss 402 Manual de usuario
Elcometer
Elcometer 320 Manual de usuario
Elcometer
Elcometer 138 Manual de usuario
Elcometer
Elcometer 407L Manual de usuario
Elcometer
Elcometer 456 Manual de usuario
Elcometer
Elcometer 207 Manual de usuario
Elcometer
Elcometer Protovale 331 Manual de usuario
Elcometer
Elcometer 456 Manual de usuario
Elcometer
Elcometer 148 Manual de usuario
Elcometer
Elcometer CG60DL Manual de usuario
Elcometer
Elcometer 119 Manual de usuario
Elcometer
Elcometer 139 Manual de usuario
Elcometer
Elcometer 456 Manual de usuario
Elcometer
Elcometer Elcomotor 312 Manual de usuario
Elcometer
Elcometer 138 Manual de usuario
Elcometer
Elcometer 456 IPC Manual de usuario
Elcometer
Elcometer 116c Manual de usuario
Manuales populares de Instrumento de medición de otras marcas
Endress+Hauser
Endress+Hauser Proline Promag 50 Especificaciones técnicas
Siemens
Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas
KLINGER
KLINGER CMF V Series Manual de usuario
EXFO
EXFO FTB-2 Manual de operación y mantenimiento
Keysight
Keysight M8290A Manual de usuario
ADTEK
ADTEK MW-5 Manual de usuario
