Elavon iCT250 Manual de usuario
Thank you for choosing talech and Elavon
This guide shows you how to setup and connect your iCT 250 device to the talech Register.
If you have any questions, contact talech support at support@talech.com or 888.995.1998.
Your iCT device supports the following payment methods
***** *e.g. Apple Pay™
Chip & PIN Contactless
*Apple Pay™ is a registered trademark in the United States and other countries - 01 -
iCT 250 Setup Guide
All manuals and user guides at all-guides.com
all-guides.com
Installation
Remove Box Contents
Insert Paper Roll & Connect Ethernet Cable
1
2
iCT 250 Terminal
Magic Box
Power Supply
Phone Cable
Paper Roll
Your iCT box should have the
following contents:
Li flap ontop of the terminal and
insert the paper roll
Connect an ethernet cable from
the magic box to your router.
- 02 -
(side view)
All manuals and user guides at all-guides.com
Configuration
1
3
2
4
To Begin, press the “Up” button
from the home screen to enter the
Admin Menu (highlighted below)
Select “Communications” (#2)
Select “Setup Menu” (#3)
To select an option press the green button
or corresponding # on the keypad
Select “Ethernet” (#3)
- 03 -
ADMIN MENU
ADMIN MENU COMMUNICATIONS
1 - Clerk Menu
2 - Batch Menu
3 - Setup Menu
4 - Maintenance
1 - Merchant
2 - Communications
3 - Receipts
4 - Trans Options
1 - ComsPriority
2 - Dial
3 - Ethernet
4 - RS232
All manuals and user guides at all-guides.com
Configuration
7
5
8
6
Press yellow button to go back
to the home screen
Select “Ethernet Setup” (#2)
Press the “Up” button from the
home screen to enter the Admin
Menu (highlighted below)
Select “Dynamic IP” (#1):
NOTE: Write down IP address displayed
- 04 -
ETHERNET MENU ETHERNET SETUP
1 - Current Setup
2 - Ethernet Setup
3 - Timers Setup
1 - Dynamic IP
2 - Static IP
ADMIN MENU
1 - Merchant
2 - Communications
3 - Receipts
4 - Trans Options
All manuals and user guides at all-guides.com
Configuration
7
5
8
6
Select “Enable SemiInteg” (#1)
Select “Misc. Options” (#9) Select Semi-Integrated (#1):
Select the “On” option (F1)
- 05 -
SEMI-INTEGRATED
ETHERNET MENU MISC. OPTIONS
SEMI-INTEGRATED
1 - Enable SemiInteg
2 - Communication Type
3 - Receipts Options
6 - Security
7 - Terminal Info
8 - Host Managment
9 - Misc. Options
1 - Semi-Integrated
Enable SemiIntegrated
On O
All manuals and user guides at all-guides.com
Configuration
11
9
12
10
Select “Receipts Options” (#3)
Enter 6556 as the
Communications Port
Select the “ECR” option (#1)
- 06 -
Press yellow button to go back
to the Semi-Integrated menu
SEMI-INTEGRATED RECEIPT OPTIONS
ETHERNET MENU
1 - Enable SemiInteg
2 - Communication Type
3 - Receipts Options
1 - ECR
2 - Terminal
192.1668.2.2
Enter Terminal
Port
6556
All manuals and user guides at all-guides.com
all-guides.com

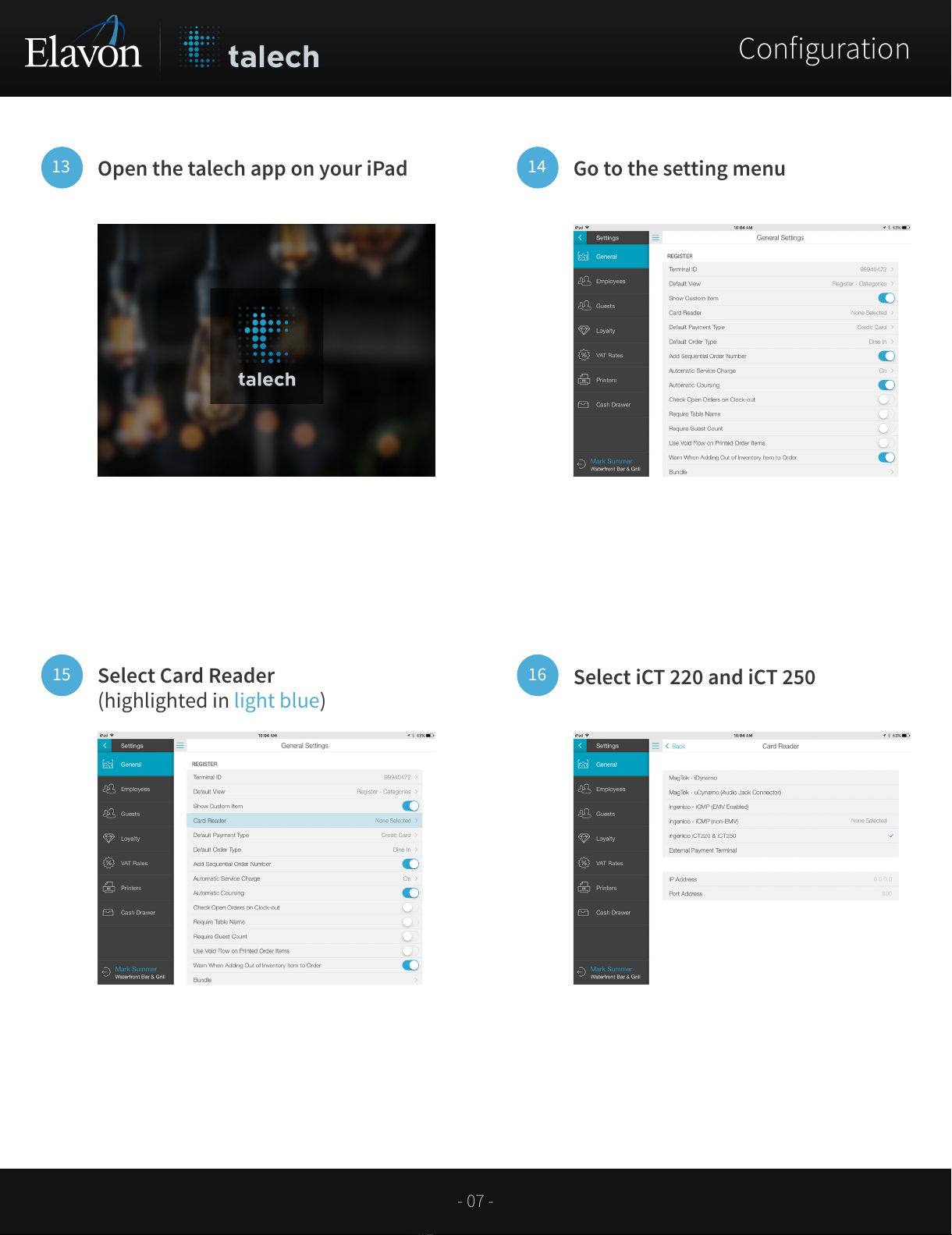

Configuration
15
13
16
14
Select Card Reader
(highlighted in light blue)
Open the talech app on your iPad
Select iCT 220 and iCT 250
- 07 -
Go to the setting menu
All manuals and user guides at all-guides.com
Configuration
13 14
Enter the IP address & port
address obtained by the terminal
(highlighted in light blue)
- 08 -
Go back to the register
Settings are now saved
Your iCT terminal should now be connected to your
talech app and ready to accept payments
email: support@talech.com | phone: 888.995.1998
Thank you again for choosing talech and Elavon to be part of your business experience.
If you have further questions on how to set up your iCT 250 device, or questions relating to anything
else, please dont hesitate to contact us. We are here 24/7 to help you run your business better today.
