Elation Uni-Pack II Manual de usuario

4295 Charter Street

Los Angeles CA. 90058

www.elationlighting.com

Elation Professional R

Uni-Pack II

User's Manual

Contents

Features..................................1

General Instructions..............2

1. Overview.............................3

2. Operation Guide.................5

Technical Specifications.......10

2.1 DMX Address Mode ..................5

2.2 Switch Pack Mode .....................6

2.3 Dimmer Pack Mode ...................7

Improvement and changes to

this manual, specifications

and design, may be made at

any time without prior notice.

Features

Thank you for purchasing this product by Elation Professional.

Included features are as follows:

Every effort has been made to design dependability, reliability and

comfort into each unit. New products are being designed constantly

to meet the needs of both entertainment and the lighting industry.

We welcome your comments about our product and services.

It is both a privilege and a pleasure serving you.

3-pin standard DMX IN/OUT ports providing dimmer information

Serves as a Switch Pack or Dimmer Pack, depending upon

the current operating mode.

Allows DMX Addressing, Dimmer Preset and Dimmer Limit.

Power failure memory.

4 digits Segment Display shows current activity

and function state.

Contents

Features..................................1

General Instructions..............2

1. Overview.............................3

2. Operation Guide.................5

Technical Specifications.......10

2.1 DMX Address Mode ..................5

2.2 Switch Pack Mode .....................6

2.3 Dimmer Pack Mode ...................7

Improvement and changes to

this manual, specifications

and design, may be made at

any time without prior notice.

Features

Thank you for purchasing this product by Elation Professional.

Included features are as follows:

Every effort has been made to design dependability, reliability and

comfort into each unit. New products are being designed constantly

to meet the needs of both entertainment and the lighting industry.

We welcome your comments about our product and services.

It is both a privilege and a pleasure serving you.

3-pin standard DMX IN/OUT ports providing dimmer information

Serves as a Switch Pack or Dimmer Pack, depending upon

the current operating mode.

Allows DMX Addressing, Dimmer Preset and Dimmer Limit.

Power failure memory.

4 digits Segment Display shows current activity

and function state.

General Instructions

Warning !!!

Cautions

To prevent fire or shock hazard, do not expose this product to

rain or moisture.

In the event of a malfunction(burning smell, etc.), immediately

stop operation, disconnect the power supply plug, and consult

authorized service personnel.

No user serviceable parts inside, always consult authorized

personnel for repairs.

Take care not to damage the power cord.

Do not make any inflammable liquids, water or metal objects

enter the unit.

This product must be earthed.

Do not dismantle or modify the unit.

Place this unit in a stable location.

Do not use the unit in places subject to excessive humidity,

vibration or bumps.

Unplug the power plug from the sockets when not using the

unit for extended period.

Provide occasional ventilation during use.

This product is intended for indoor use only.

To optimize the performance of this product , please read this instruction manual

carefully to familiarize yourself with the basic operations of this unit. This manual

contains important information for user, please keep it well for future reference.

DMX

DMX IN DMX OUT

OUTPUT: 10A MAX.

POWER INPUT :

AC 120V~60HZ

10A MAX.

1=Ground

2=Data -

3=Data +

FUSE :

F10A 250V

5X20MM.

Uni-Pack II

FUSE

PUSH

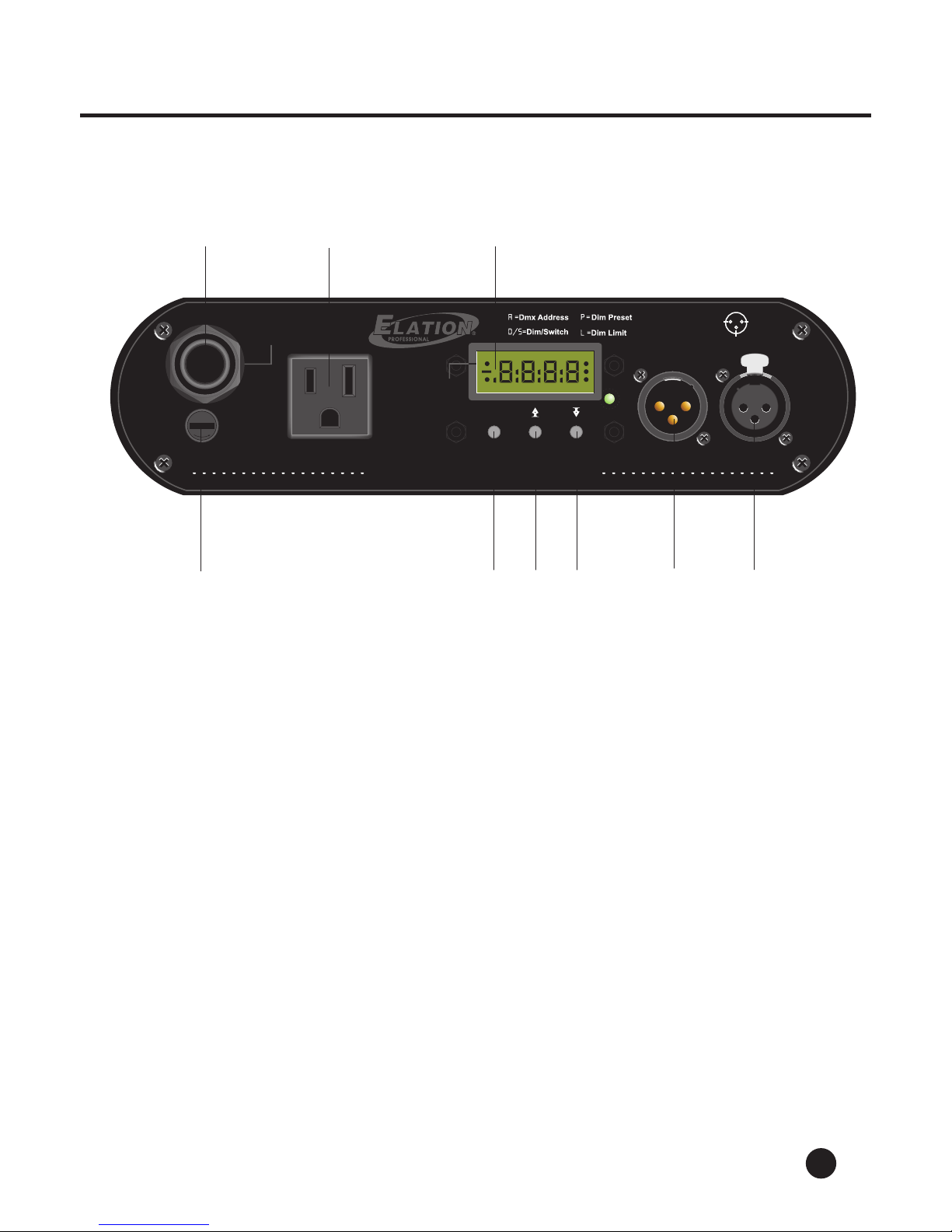

1. Overview

1. Power Input port: AC 120V~60Hz, 10A Max.

2. Output: 10A max.

3. Segment Display: Shows current activity or function state.

5. Menu button: Use this button to select desired function mode.

6. Up button: Each tap will increase the current value once. Pressing and

holding down this button will increase the value quickly.

Fuse: F10A 250V 5x20mm

7. Down button: Each tap will decrease the current value once. Pressing and

holding down this button will decrease the value quickly.

8. DMX In 3-pin XLR male socket, used to receive DMX data.

DMX Out 3-pin XLR female socket, used to send DMX data.

123

4567 8 9

General Instructions

Warning !!!

Cautions

To prevent fire or shock hazard, do not expose this product to

rain or moisture.

In the event of a malfunction(burning smell, etc.), immediately

stop operation, disconnect the power supply plug, and consult

authorized service personnel.

No user serviceable parts inside, always consult authorized

personnel for repairs.

Take care not to damage the power cord.

Do not make any inflammable liquids, water or metal objects

enter the unit.

This product must be earthed.

Do not dismantle or modify the unit.

Place this unit in a stable location.

Do not use the unit in places subject to excessive humidity,

vibration or bumps.

Unplug the power plug from the sockets when not using the

unit for extended period.

Provide occasional ventilation during use.

This product is intended for indoor use only.

To optimize the performance of this product , please read this instruction manual

carefully to familiarize yourself with the basic operations of this unit. This manual

contains important information for user, please keep it well for future reference.

DMX

DMX IN DMX OUT

OUTPUT: 10A MAX.

POWER INPUT :

AC 120V~60HZ

10A MAX.

1=Ground

2=Data -

3=Data +

FUSE :

F10A 250V

5X20MM.

Uni-Pack II

FUSE

PUSH

1. Overview

1. Power Input port: AC 120V~60Hz, 10A Max.

2. Output: 10A max.

3. Segment Display: Shows current activity or function state.

5. Menu button: Use this button to select desired function mode.

6. Up button: Each tap will increase the current value once. Pressing and

holding down this button will increase the value quickly.

Fuse: F10A 250V 5x20mm

7. Down button: Each tap will decrease the current value once. Pressing and

holding down this button will decrease the value quickly.

8. DMX In 3-pin XLR male socket, used to receive DMX data.

DMX Out 3-pin XLR female socket, used to send DMX data.

123

4567 8 9

2. Operation Guide

2.1 DMX Address Mode

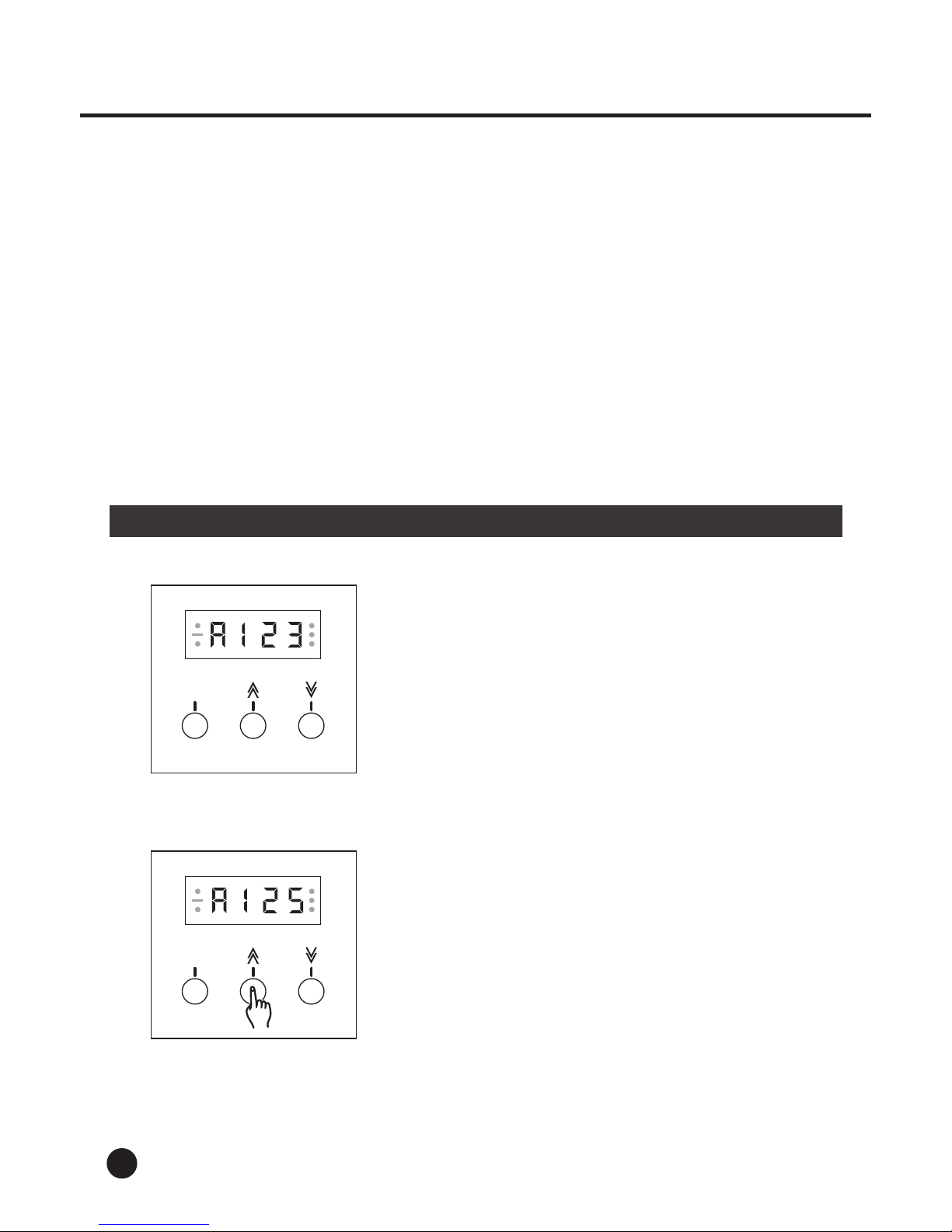

1. The Segment Display shows the DMX address

of last change when powered this unit.

If you've selected DMX address 123 for the last

time, then the Segment Display will read 123.

2. Each tap of the Up or Down button will change

the DMX address once. Pressing and holding

down will change the DMX address quickly.

Once the DMX address is selected, it will be

stored into memory automatically.

General

Plug in the appropriate power outlet, this unit recovers to the function state of

last time automatically by reasons of power failure memory, and the Segment

Display shows the DMX address of last change.

If the frequency of power is not stable, the Segment Display will show "AC-0",

wait until the power is stable.

The product serves as a dimmer pack or a switch pack, depending on operating

mode you've selected.

During DMX addressing, output is disabled.

NOTE:

NOTE: A=DMX Address, D=Dim, S=Switch, P=Dim Preset, L=Dim Limit

2. Operation Guide

2.2 Switch Pack Mode

1. When DMX address is complete, Press Menu

button to enter next level.

2. Tap the Up or Down button causing the Segment

Display shows "s---".

3. Press Menu button to enter Switch Pack mode.

Switch Pack mode consists of Switch On(S-on)

and Switch Off(S-of).

In the Switch On mode, output is turned on and

the fixture lights regardless of DMX signal.

In the Switch Off mode, output is turned off and

the fixture is controlled by DMX signal. When

DMX level is less than 40%, the fixture goes out;

when DMX level exceeds 40%, the fixture lights.

s ---

---

2. Operation Guide

2.1 DMX Address Mode

1. The Segment Display shows the DMX address

of last change when powered this unit.

If you've selected DMX address 123 for the last

time, then the Segment Display will read 123.

2. Each tap of the Up or Down button will change

the DMX address once. Pressing and holding

down will change the DMX address quickly.

Once the DMX address is selected, it will be

stored into memory automatically.

General

Plug in the appropriate power outlet, this unit recovers to the function state of

last time automatically by reasons of power failure memory, and the Segment

Display shows the DMX address of last change.

If the frequency of power is not stable, the Segment Display will show "AC-0",

wait until the power is stable.

The product serves as a dimmer pack or a switch pack, depending on operating

mode you've selected.

During DMX addressing, output is disabled.

NOTE:

NOTE: A=DMX Address, D=Dim, S=Switch, P=Dim Preset, L=Dim Limit

2. Operation Guide

2.2 Switch Pack Mode

1. When DMX address is complete, Press Menu

button to enter next level.

2. Tap the Up or Down button causing the Segment

Display shows "s---".

3. Press Menu button to enter Switch Pack mode.

Switch Pack mode consists of Switch On(S-on)

and Switch Off(S-of).

In the Switch On mode, output is turned on and

the fixture lights regardless of DMX signal.

In the Switch Off mode, output is turned off and

the fixture is controlled by DMX signal. When

DMX level is less than 40%, the fixture goes out;

when DMX level exceeds 40%, the fixture lights.

s ---

---

2. Operation Guide

2.2 Switch Pack Mode

2.3 Dimmer Pack Mode

4. Tap the Up or Down button to change between

"Switch On" and "Switch Off".

If there is no timely operation on any of the fun-

ction button, the unit will automatically return to

the DMX Address function mode.)

5. Once the Switch Pack is selected, press Menu

button to return to DMX Address mode.

1. Press Menu button to enter next item.

2. Operation Guide

2.3 Dimmer Pack

2. Tap the Up or Down button causing the Segment

Display shows "d---".

3. Then press Menu button to enter Dimmer Limit

mode.

5. Press Menu button to enter Dimmer Preset mode.

4. Tap the Up or Down button to change the value

within the range of 10-100. Each tap will change

the value once, pressing and holding down will

change the value quickly. The Dimmer Limit level

will be stored into memory automatically.

---

( If there is no timely operation on the button for

more than 20 seconds, the unit will return to DMX

Address function mode again.)

2. Operation Guide

2.2 Switch Pack Mode

2.3 Dimmer Pack Mode

4. Tap the Up or Down button to change between

"Switch On" and "Switch Off".

If there is no timely operation on any of the fun-

ction button, the unit will automatically return to

the DMX Address function mode.)

5. Once the Switch Pack is selected, press Menu

button to return to DMX Address mode.

1. Press Menu button to enter next item.

2. Operation Guide

2.3 Dimmer Pack

2. Tap the Up or Down button causing the Segment

Display shows "d---".

3. Then press Menu button to enter Dimmer Limit

mode.

5. Press Menu button to enter Dimmer Preset mode.

4. Tap the Up or Down button to change the value

within the range of 10-100. Each tap will change

the value once, pressing and holding down will

change the value quickly. The Dimmer Limit level

will be stored into memory automatically.

---

( If there is no timely operation on the button for

more than 20 seconds, the unit will return to DMX

Address function mode again.)

2. Operation Guide

2.3 Dimmer Pack Mode

4. Tap the Up or Down button to change the value

within the range of 00-100. Each tap will change

the value once, pressing and holding down will

change the value quickly.

Once the Dimmer Preset is selected, it will be

stored automatically.

5. Press Menu button to return to DMX Address mode.

Technical Specifications

Power Input ........................................................... .AC 120V~60Hz, 10 A max.

Channel Output ..................................................................................10 A max.

DMX OUT ................................................................ .3-pin XLR female socket

DMX IN ....................................................................... .3-pin XLR male socket

Fuse ...................................................................................F10A 250V 5x20mm

Dimensions ............................................................................. 235x106x64mm

Weight ................................................................................................... 1.6 Kg

Tabla de contenidos

Otros manuales de Equipo de iluminación de Elation

Elation

Elation PLATINUM BEAM 5R XM485-V1.0-NR Manual de usuario

Elation

Elation Opti Tri 30 Manual de usuario

Elation

Elation SIXPAR 100IP Manual de usuario

Elation

Elation KL FRESNEL 8 CW Manual de usuario

Elation

Elation ELAR EXTQW FLOOD HP Manual de usuario

Elation

Elation DMX Branch 419 Manual de usuario

Elation

Elation KL SPOT IP Manual de usuario

Elation

Elation PLATINUM BEAM 15R Manual de usuario

Elation

Elation Design LED 60 TriStrip Manual de usuario

Elation

Elation SIXPAR 300WMG Manual de usuario

Elation

Elation 700 II Manual de usuario

Elation

Elation LED White Light Fresnel ELED Fresnel Manual de usuario

Elation

Elation Design LED 36UV Manual de usuario

Elation

Elation Design Spot 300E Manual de usuario

Elation

Elation ELED STRIP 50RGB Manual de usuario

Elation

Elation Design Spot 1200C Manual de usuario

Elation

Elation Elation DMX OPERATOR PRO Manual de usuario

Elation

Elation fixtures Manual de usuario

Elation

Elation Opti Tri White Par Manual de usuario

Elation

Elation SPOTLIGHT PRO FS Manual de usuario

Elation

Elation Waterfall 250 Manual de usuario

Elation

Elation SNIPER 2R Manual de usuario

Elation

Elation OPTI TRI WHITE II Manual de usuario

Elation

Elation PLATINUM WASH ZFX PRO Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
