Elation PLATINUM BEAM 15R Manual de usuario

4/18/2012 ~ Visage Version 1.0

PLATINUM BEAM 15R

Elation Professional

6122 S Eastern Ave

Los Angeles, Ca 90040

www.elationlighting.com

Platinum Beam 15R™

©Elation Professional® Los Angeles Ca. 90040 www.ElationLighting.com

CONTENTS

1. General Information………………………………………………………..………………...…… 3

a. Introduction……………..………………………………………………………………… 3

b. Unpacking………………………..………………………………………..……………… 3

c. Customer Support………………………..……………………………….……………… 3

d. Warranty Registration…………….……………….……………………………….…… 4

e. Discharge Lamp Warning………………………...............…………………………….4

2. Safety Instructions……………………………………………………………..….......………….6

3. Features………………………………………………………………..………………..………… 8

4. General Guidelines…………..…………………………………………………...……………….9

5. Fixture Overview………………………..…………………………………………...…………….10

6. Lamp Installation…………………………………..…………………………………...………….13

a. Lamp Protection Circuitry.………………………..……………………….…..………… 13

b. Lamp installation……………………………………………..…………….……..……… 14

c. Lamp optimization……………………………………………………..……..……..…… 15

7. Mounting and Installation………………………………………………………………...……….16

a. Mounting Positions…………..…………………………………………………………... 16

b. Mounting Points……...………………..………………………………………………….17

c. Securing………………...………………………..……………………………………….. 18

8. Understanding DMX……………..………………………………..……………………………... 19

a. DMX Cable Requirements…....…………………………………..…………………….19

b. DMX Terminator………………..…………………………………………..…………….20

c. 3-Pin to 5-Pin Conversion……….……………………………………………………….20

d. DMX Addressing…………………………….…………………………………………… 21

9. Fixture Menu…………………………………..………………..………………………………… 23

10. DMX Addressing..……………………………..………………………..……………..………….35

11. Operation………………………………………..………………………………..……………….. 37

12. Working with Built-In Programs..………………..………………………………………..…….. 39

13. DMX Channel Traits………….....….…………………………………………………………..…42

a. DMX Channel Values…………..…………………..…………………………………… 42

14. Error Codes……………………………………….…………..…………………………….…….48

15. Cleaning and Maintenance………………………………..…..………………………………… 51

16. Photometric Data………………………………………..…………...………..………………….52

17. Gobo Patterns……………………………………………..…………………..…..……………... 53

18. Dimensional Drawings…………...…………………………………..………….……………….. 54

19. Circuit Schematic………...………………..…………………………..………………………….55

20. Technical Specifications……………………………..………………..…...………….……….…56

21. Warranty………………………………………………………..………..………………………… 58

Platinum Beam 15R™

©Elation Professional® Los Angeles Ca. 90040 www.ElationLighting.com

1. GENERAL INFORMATION

INTRODUCTION: Congratulations, you have just purchased one of the most innovative

and reliable lighting fixtures on the market today! The Platinum Beam 15R™ has been

designed to perform reliably for years when the guidelines in this booklet are followed.

Please read and understand the instructions in this manual carefully and thoroughly

before attempting to operate this unit, this fixtures uses a unique lamp that has very

specific guidelines that must be strictly followed. This manual contains important

information regarding safety protocol that must be strictly adhered to at all times.

UNPACKING: Thank you for purchasing the Platinum Beam 15R™ by Elation

Professional®. Every Platinum Beam 15R™ has been thoroughly tested and has been

shipped in perfect operating condition. Carefully check the shipping carton for damage

that may have occurred during shipping. If the carton appears to be damaged, carefully

inspect your unit for damage and be sure all accessories necessary to operate the unit

have arrived intact. In the event damage has been found or parts are missing, please

contact our customer support team for further instructions. Please do not return this unit

to your dealer without first contacting customer support at the number listed below.

CUSTOMER SUPPORT: Elation Professional® provides a customer support line, to

provide set up help and to answer any question should you encounter problems during

your set up or initial operation. You may also visit us on the web at

www.elationlighting.com for any comments or suggestions. For service related issue

please contact Elation Professional®. Service Hours are Monday through Friday 8:00

a.m. to 5:00 p.m. Pacific Standard Time.

Voice: (323) 582-3322

Fax: (323) 832-9142

E-mail: [email protected]

Forum: www.ElationLighting.com/forum

Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit

to rain or moisture.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

yourself, doing so will void your manufactures warranty.

Platinum Beam 15R™

©Elation Professional® Los Angeles Ca. 90040 www.ElationLighting.com

Please do not discard the shipping carton in the trash. Please recycle whenever possible.

WARRANTY REGISTRATION: The Platinum Beam 15R™ carries a two-year (730 days)

limited warranty. Please fill out the enclosed warranty card to validate your purchase. All

returned service items whether under warranty or not, must be freight pre-paid and

accompany a return authorization (R.A.) number. The R.A. number must be clearly

written on the outside of the return package. A brief description of the problem as well as

the R.A. number must also be written down on a piece of paper and included in the

shipping container. If the unit is under warranty, you must provide a copy of your proof of

purchase invoice. Items returned without a R.A. number clearly marked on the outside of

the package will be refused and returned at customer’s expense. You may obtain a R.A.

number by contacting customer support at (323) 582-3322.

Important: Damages caused by the disregard of the instructions in this

user manual are not subject to warranty.

DISCHARGE LAMP WARNING:This fixture is fitted with a

discharge lamp, which is highly susceptible to damage if

improperly handled. Never touch the lamp with your bare hands,

as the oil from your hands will shorten lamp life. Also, never move

the fixture until the lamps have had ample time to cool. Remember,

lamps are not covered under warranty conditions.

Lamp Replacement: Please note that due to the nature of the Platinum 15RLamp

and the optical path of the Platinum Beam 15R it is imperative to replace the lamp

at the rated 2000 hour lamp life!

UV RADIATION: This fixture emits intense UV radiation, which is harmful to the eyes and

skin. The intense luminance of the lamp can cause severe damage to the retina. Never

operate this fixture with the protective covers removed, these covers have been specially

designed to shield against UV radiation.

Epileptic Warning: Those suffering from epilepsy should avoid looking directly into the

lamp at all times.

Avoid switching the fixture on and off repeatedly in short intervals, as this will reduce

Platinum Beam 15R™

©Elation Professional® Los Angeles Ca. 90040 www.ElationLighting.com

lamp life and intensity.

To achieve the intensity associated with discharge lamps, these lamps use gas sealed in

a high-pressure environment to emit a brilliant output. Due to the high pressure involved

with the construction of the lamp, the lamp may explode during prolonged extensive use.

This risk is increased with age; added care is encouraged when dealing with older lamps.

Thus, lamp must always be replaced at the end of their recommended duty cycle.

Extreme caution should be used when operated this or any fixture fitted with a gas

discharge lamp.

Never open this fixture while in use!

During the initial operation of this fixture, a light smoke or smell may emit from the interior

of the fixture. This is a normal process and is caused by excess paint in the interior of the

casing burning off from the heat associated with the lamp and will decrease gradually

over time.

This device falls under protection-class 1. Therefore it is essential that the device be

grounded properly.

All electrical connections should be performed by a qualified electrician.

Be sure the available voltage matches the voltage requirements of the unit.

Be sure the power cord is never crimped or damaged. If the power cord is damaged,

replace it immediately with a new one of similar power rating.

Always disconnect from main power before performing any type of service or any

cleaning procedure.

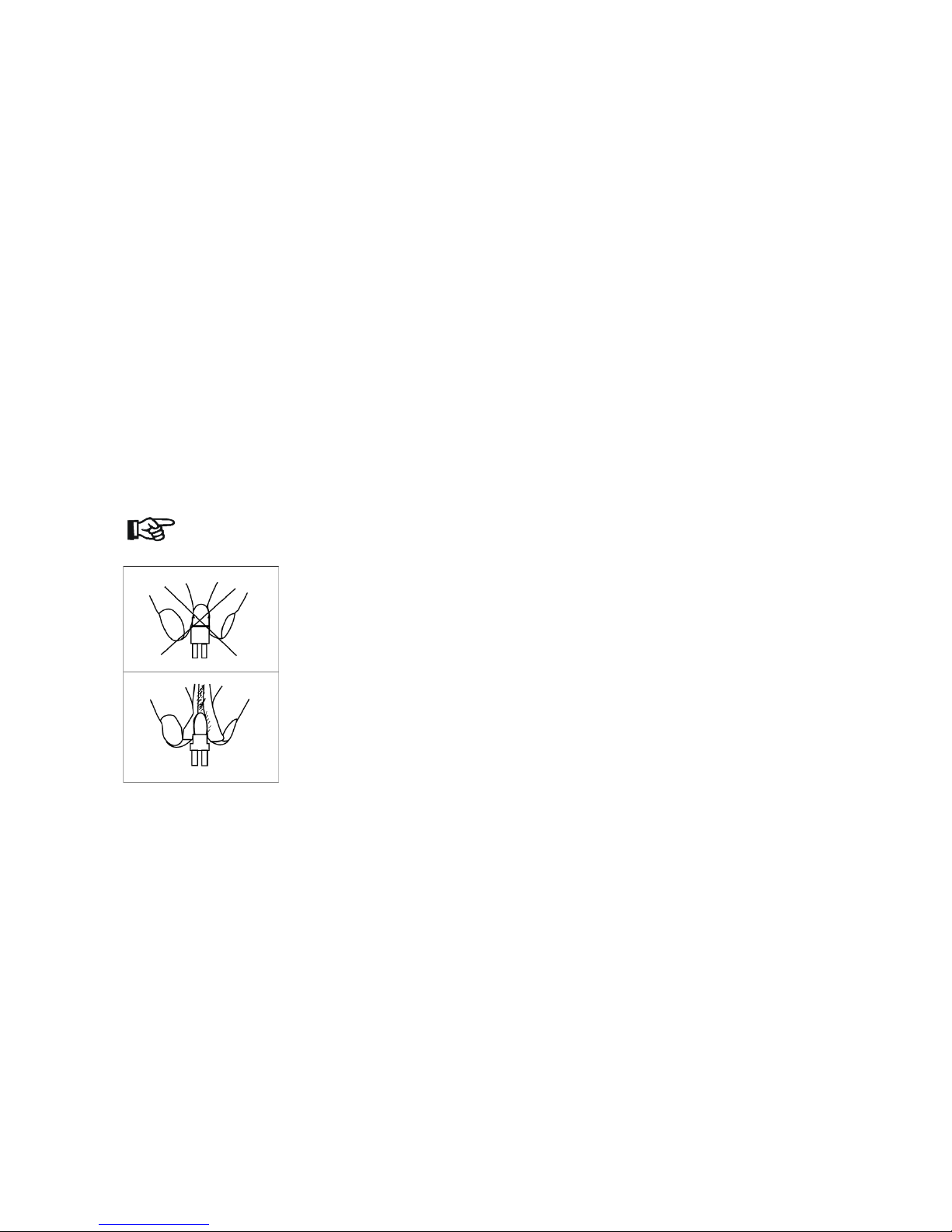

Only handle the power cord by the plug. Never pull out the plug by tugging the wire

portion of the cord.

This fixture is designed for use indoors. Use of this fixture outdoors will void the

manufactures warranty.

Please be aware that damages caused by manual modifications to the device are not

subject to warranty.

Platinum Beam 15R™

©Elation Professional® Los Angeles Ca. 90040 www.ElationLighting.com

2. SAFETY INSTRUCTIONS

The Platinum Beam 15R™ is an extremely sophisticated piece of

electronic equipment. To guarantee a smooth operation, it is

important to follow the guidelines in this manual. Elation will not

accept responsibility for damages resulting from the misuse of

this fixture due to the disregard of the information printed in this

manual.

1. Always be sure that the fan and the air inlets remain clean and are never

blocked. Allow about 6” (15cm) between this fixture and other devices or a wall

to allow for proper cooling.

2. Never touch the fixture during normal operation. This can cause severe

personnel injuries and/or damage to the fixture.

3. Be sure to unplug the Platinum Beam 15R™ from the power outlet before

performing any service related issues.

4. Lamp Replacement; Allow at least 15 minutes after disconnecting main power

before you open the Platinum Beam 15R™. To prevent personal injury, never

touch the lamp if you are not absolutely sure it has cooled.

5. Never look directly into the lamp beam. You risk injury to your retina, which may

induce blindness.

6. Be sure to track and record the lamp running time. The lamp should be changed

at the end of the specified lamp life, regardless of lamp output. You may also

have to change the lamp if it shows any deformations or damage. The same is

with all glass components, color filters, lenses and mirrors.

7. For safe operation, follow the Installation guide described in chapter two of this

manual. Operating the Platinum Beam 15R™ without suited safety aids such as

safety cables or clamps can increase the risk of damage and/or personal injury.

8. Only qualified and certified personnel should perform installation.

9. When mounting this fixture, use only the original rigging parts included with this

fixture. Any structural modification will void the original manufactures warranty

and may increase the risk of damage and/or personal injury.

10. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.

Platinum Beam 15R™

©Elation Professional® Los Angeles Ca. 90040 www.ElationLighting.com

11. Do not attempt to operate this fixture if the power cord has become damaged or

frayed.

Important Notice: Damages resulting from the disregard of safety and general

user instructions found in this user manual are not subject to any warranty claims.

Never look directly into the light source,

as sensitive persons may suffer an epileptic shock.

Never touch the device during operation!

The housing may heat up

Platinum Beam 15R™

©Elation Professional® Los Angeles Ca. 90040 www.ElationLighting.com

3. FEATURES

•Pan 540° or 630˚ (User selectable) / Tilt 270°

•3 operation mode: DMX controlled, stand alone, or sound activated

•3 DMX Modes:

o16 Channel – Standard

o14 Channel – Basic

o22 Channel - Extended

•8 user colors plus white (including CTO Filter)

•User selectable color change modes (mode 1: full colors, mode 2: split-colors)

•Two Gobos Wheels:

oWheel 1: Rotating gobo wheel with 8 gobos plus open, all gobos can be

easily replaceable and gobo indexing

oWheel 2: Static/Fixed gobo wheel with 13 gobos plus open

•Strobe effect: 0~13 (13 HZ) flashes per second or random strobe

•Prism and prism rotation, with 16 prism macros

•Frost Filter for Soft and Hard Edge Spot

•Bright Phillips Platinum 15R Lamp (189W / 8000K / 2000Hrs / 7950Lm)

•Built-in EWDMX Wireless DMX Receiver

•Electronic Power Supply (AC 100V-240V~, 50Hz/60Hz)

•Control board with full color LCD graphic display and foil touch keyboard

•RDMX (Remote DMX addressing from any DMX console)

•Auto test for all functions

•Automatic Pan/Tilt Correction

•Glass Dichroic Reflector for Even Lamp Output

•Anti-Reflective Coated Lenses

•USITT DMX-512 Complaint (3-pin and 5-pin DMX Connections)

•Electronic Focus via DMX

•Upgradable Firmware via Elation “E-Loader”

•7 User Assignable Program Presets - Internal Program: Edit and save programs to

the incorporated EEPROM. Maximum of 64 scenes.

Platinum Beam 15R™

©Elation Professional® Los Angeles Ca. 90040 www.ElationLighting.com

4. GENERAL GUIDELINES

This fixture is a professional lighting effect designed for use on stage, in nightclubs, in

theatres, etc. Do not attempt operation or installation without a proper knowledge on how

to do so.

This fixture was designed for indoor use only.

Consistent operational breaks may ensure that the fixture will function properly for many

years to come.

Do not shake the fixture around. Avoid brute force when installing or operating the

device.

While choosing an installation location, please be sure that the fixture will not be exposed

to extreme heat, moisture or dust. The minimum distance between the fixture and a wall

or flat surface should be at least 1 meter (about 3.5ft).

Always install the fixture with an appropriate safety cable. When installing the fixture in a

suspended environment always be sure to use mounting hardware no less than M10 x 25

mm, also be sure the hardware is insert in the pre-arranged screw holes in the base of

the fixture.

When using the quick release “Omega” cam-lock system, be sure the four quick lock

fasteners are locked in the quick lock holes correctly.

Do not attempt to operate this fixture until you have familiarized yourself with its

functions.

Do not permit operation by persons not qualified for operating this type of theatrical

fixture; most damages are the result of operations by nonprofessionals.

Please use the original packaging to transport the fixture in for service.

Platinum Beam 15R™

©Elation Professional® Los Angeles Ca. 90040 www.ElationLighting.com

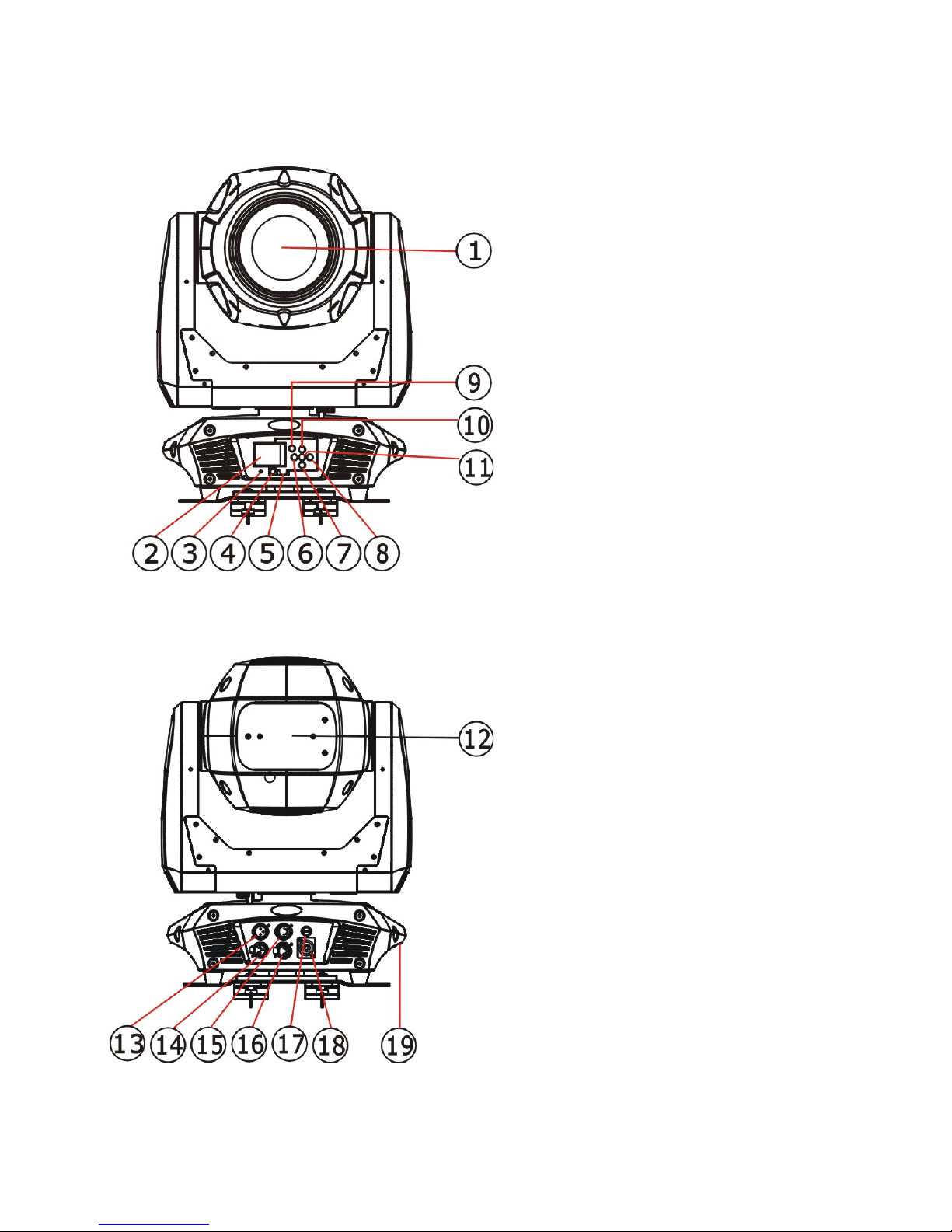

5. FIXTURE OVERVIEW

1: Lens

2: Display

3: Wireless indicator

4:DC Switch

5: Microphone

6: Left Button

7: Down Button

8: Right Button

9: Mode/Esc Button

10:Up Button

11:Enter Button

12: Lamp Access Panel

13: 3-Pin DMX in

14: 3-Pin DMX out

15: 5-Pin DMX in

16: 5-Pin DMX out

17: Fuse

18: Power Supply

19: Carrying Handle

Otros manuales para PLATINUM BEAM 15R

Tabla de contenidos

Otros manuales de Equipo de iluminación de Elation

Elation

Elation PROMETEUS MAXIMUS Manual de usuario

Elation

Elation JOY 300 Manual de usuario

Elation

Elation WW PROFILE HP IP Manual de usuario

Elation

Elation COLOR SPOT 150 Manual de usuario

Elation

Elation Midicon 2 Manual de usuario

Elation

Elation KL PANEL XL IP Manual de usuario

Elation

Elation PROTEUS HYBRID Manual de usuario

Elation

Elation TVL3000WW Manual de usuario

Elation

Elation Design Spot 1200C Manual de usuario

Elation

Elation Design LED 36UV Manual de usuario

Elation

Elation ELED PAR RGB ZOOM Manual de usuario

Elation

Elation Focus Spot 250R Manual de usuario

Elation

Elation Design LED 36 Tri-Brick Manual de usuario

Elation

Elation Opti Tri 30 Manual de usuario

Elation

Elation Event Cylinder RF Manual de usuario

Elation

Elation COLOUR 5 PROFILE Manual de usuario

Elation

Elation CUEPIX BLINDER WW2 Manual de usuario

Elation

Elation PLATINUM FLX Manual de usuario

Elation

Elation Design LED 12 Brick II Manual de usuario

Elation

Elation CMY Zoom 575E Manual de usuario

Elation

Elation Power Spot 700 CMY II Manual de usuario

Elation

Elation EPAR TRI Manual de usuario

Elation

Elation Color Spot 575 Manual de usuario

Elation

Elation Waterfall 250 Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
