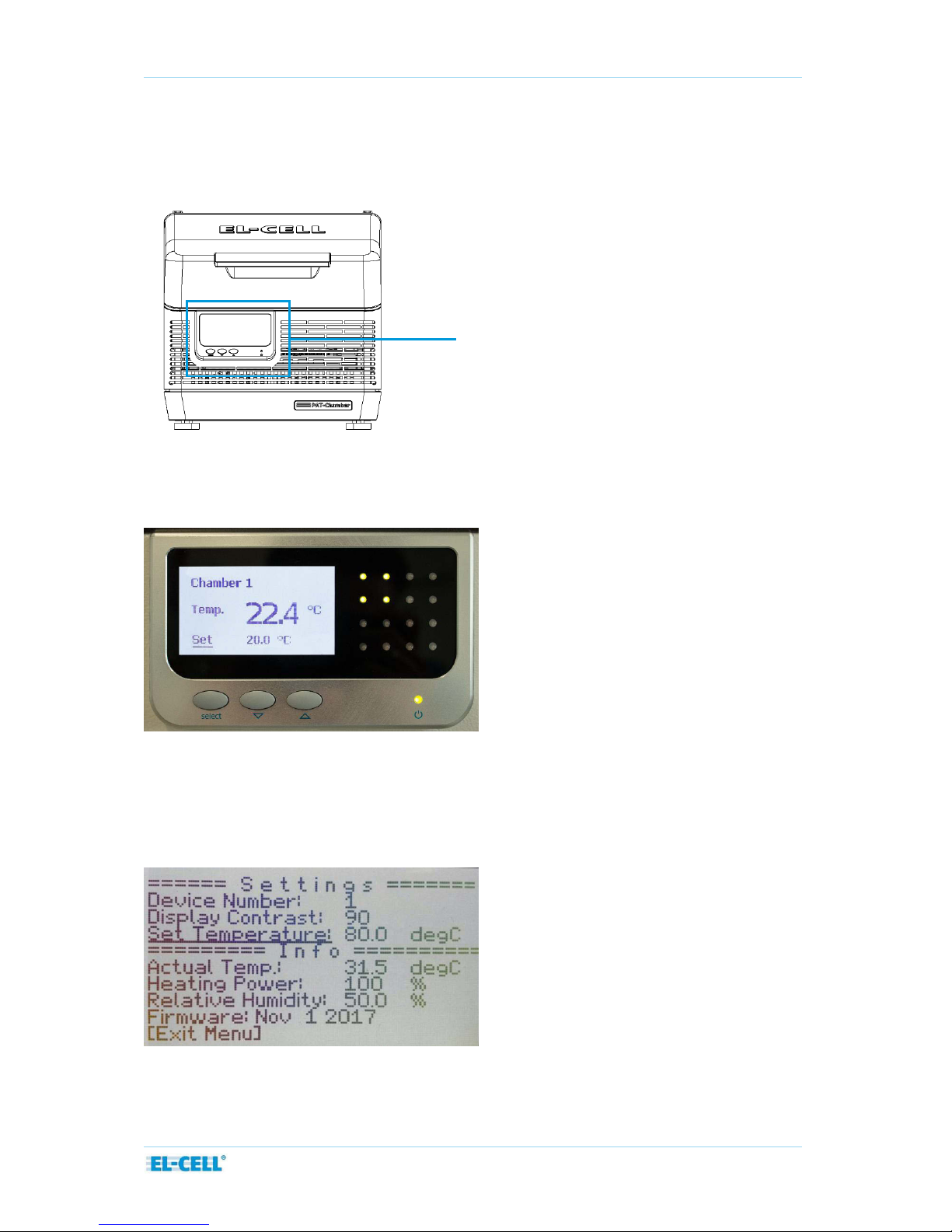

1Product description
The PAT-Chamber-16 is a temperature controlled docking station / cell chamber for up to 16
test cells of the PAT series. The temperature of the chamber can be precisely controlled by
means of a Peltier device between 5 and 80°C. The PAT-Chamber-16 is the first high
throughput docking station supporting the PAT-Cell-Press for in-situ pressure monitoring of
up to 16 test cells at the same time.

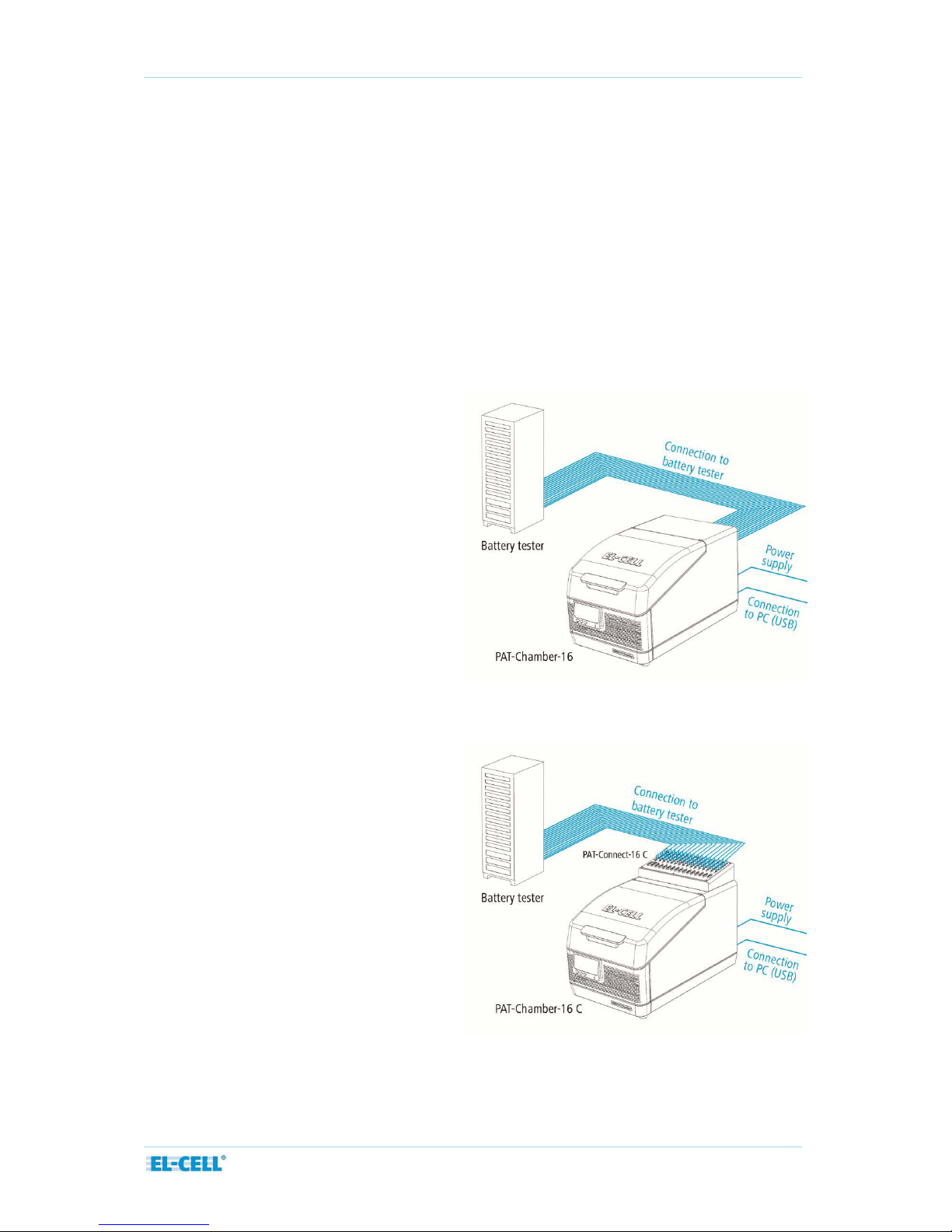

The PAT-Chamber-16 is to be connected to a multi-channel potentiostat (like the Biologic
MPG-2) or battery tester (like the Maccor 4000). Mixed connection of the 16 cell positions to
different potentiostats / battery testers is possible as well.
The PAT-Chamber-16 features a built-in data logger for recording all cell signals –cell current,
cell voltage and the two half cell voltages of each cell –along with the chamber temperature
and the individual pressure signals, if used with the PAT-Cell-Press.
The PAT-Cell, the PAT-Core, and the EC-Link data logger software are covered in detail by
other manuals (http://el-cell.com/downloads/downloads-manuals).

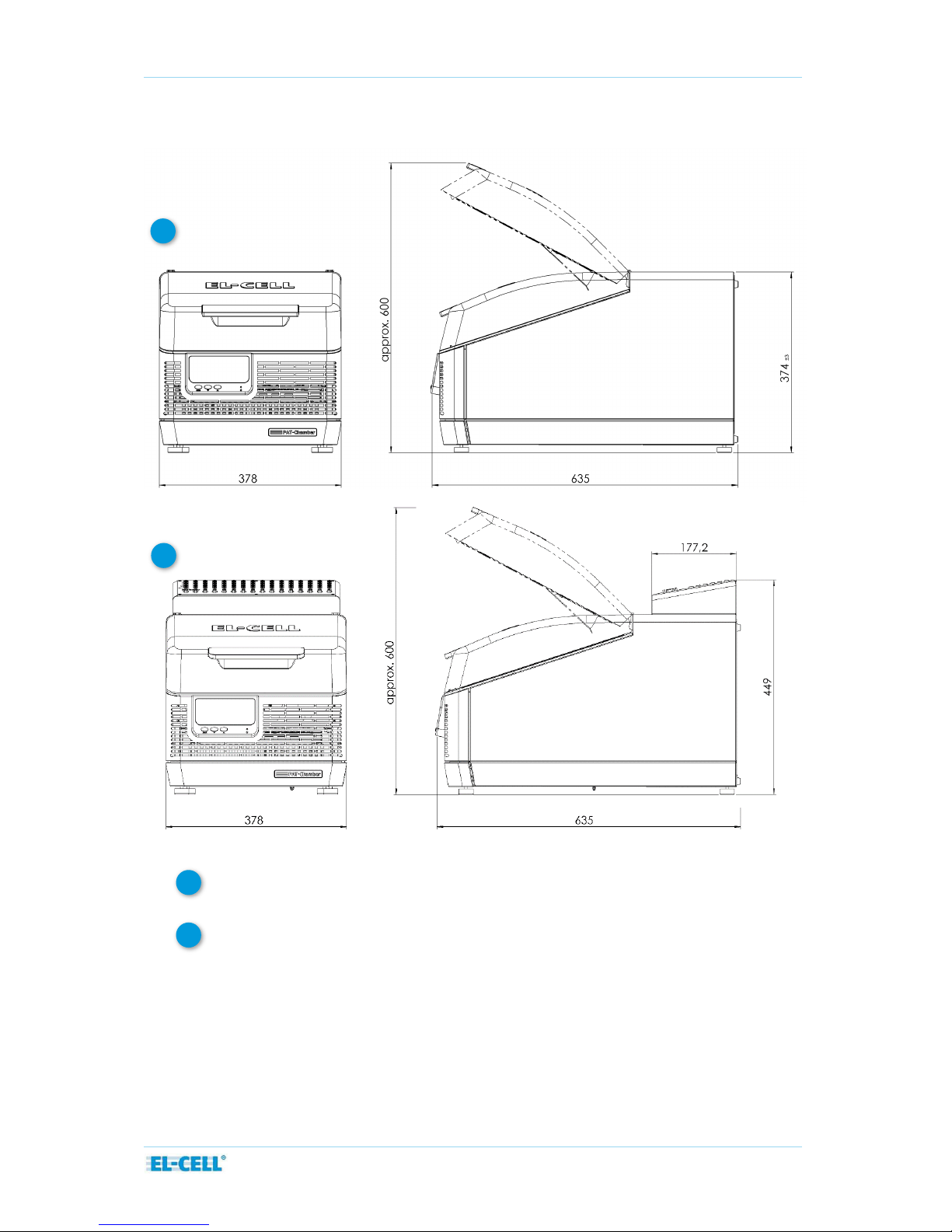

PAT-Chamber-16 and PAT-Chamber-16 C (with integrated PAT-Connect adapter box)
Features
Peltier temperature-controlled docking station, ready for connection to any potentiostat
or battery tester.
Temperature range 10 –80°C
Holds up to 16 PAT series test cells for 2- and 3-electrode measurements.
Charge/discharge/EIS compatible with any PAT series test cell
Supports up to 16 PAT-Cell-Press for additional pressure monitoring
Compatible with all of today's multi-channel potentiostats and battery testers. Mixed
operation of the 16 cell positions with different potentiostats and/or battery testers
possible.
Integrated data logger hard- and software for recording of cell current, cell voltage, half
cell voltages, global temperature, and individual cell pressure.
Analog outputs available of the buffered half cell voltages (16 x V2R), sensor signals
(16 x AOUT) and chamber temperature (VT). The analog outputs allow for easy
interfacing with the external inputs of the connected battery tester / potentiostat.
