Velocity CPU WATER BLOCK USER MANUAL - 3rd Revision, July 27th 2021

Velocity – Intel

CPU WATER BLOCK

This product is intended for installation only by expert users. Please

consult with a qualiﬁed technician for installation. Improper installation may

result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their

installation. The following instructions are subject to change without

notice. Please visit our website at www.ekwb.com for updates. Before

installation of this product, please read important notice, disclosure, and

warranty conditions that are printed on the back of the box.

Before you start using this product, please follow these basic guidelines:

Please carefully read the manual before beginning the installation

process.

Please remove your graphics card from the computer to assure the

safest mounting process and prevent any possible damage to your

GPU and/or graphics card circuit board (PCB).

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the rubber

O-ring gaskets.

The use of corrosion inhibiting coolants is always recommended

for liquid cooling systems, and mandatory for nickel plated

water blocks!

Do not use pure distilled water! For best results EK rrecommends

the use of EK-CryoFuel coolants.

Make sure to thoroughly bleed air out of your water block, or you will

not reach optimal performance.

QUICK INSTALLATION GUIDE

- 3 -

REPLACING THE JET PLATE PROCEDURE 10

INSTALLING THE WATER BLOCK 11

LGA20113 / 2066 SOCKET MOTHERBOARDS 11

LGA115XSOCKET MOTHERBOARDS 13

CONNECTING THE RGB LED STRIP (Optional) 14

CONNECTING THE RGB LED STRIP 15

CONNECTING THE DRGB LED STRIP 15

TABLE OF CONTENT

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY 4

BOX CONTENTS 5

WATER BLOCK DIMENSIONS 6

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 7

SUPPORT AND SERVICE 17

SOCIAL MEDIA 17

- 4 -

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY

This CPU liquid cooling unit is pre-assembled for use with modern Intel

desktop socket type motherboards. By default (out of the box) this water

block supports the following CPU sockets:

- Intel LGA-1150/1151/1155/1156

- Intel LGA-1200

- Intel LGA-2011(-3)

- Intel LGA-2066

- 5 -

Washer (5 pcs)

Spring (4 pcs) Standoff - LGA 115x / AMD (4 pcs)

BOX CONTENTS

Standoff - 20xx (4 pcs)EK-Velocity universal CPU water block with the Intel bracket (1 pc)

Allen Key 2.5 mm (1 pc)

Thumb Nut (4 pcs)

Metal Backplate LGA-115x / LGA-1200 (1 pc)

Additional Jet Plate – 0.8 mm (1 pc)

Backplate Rubber Gasket (1 pc)

Thermal grease (1 pc)

Universal Mounting Mechanism – You may not need every

screw from this package. EAN: 3831109813065

EAN: 3831109828618

- 6 -

WATER BLOCK DIMENSIONS

90.7 mm

68.3 mm

22 mm

- 7 -

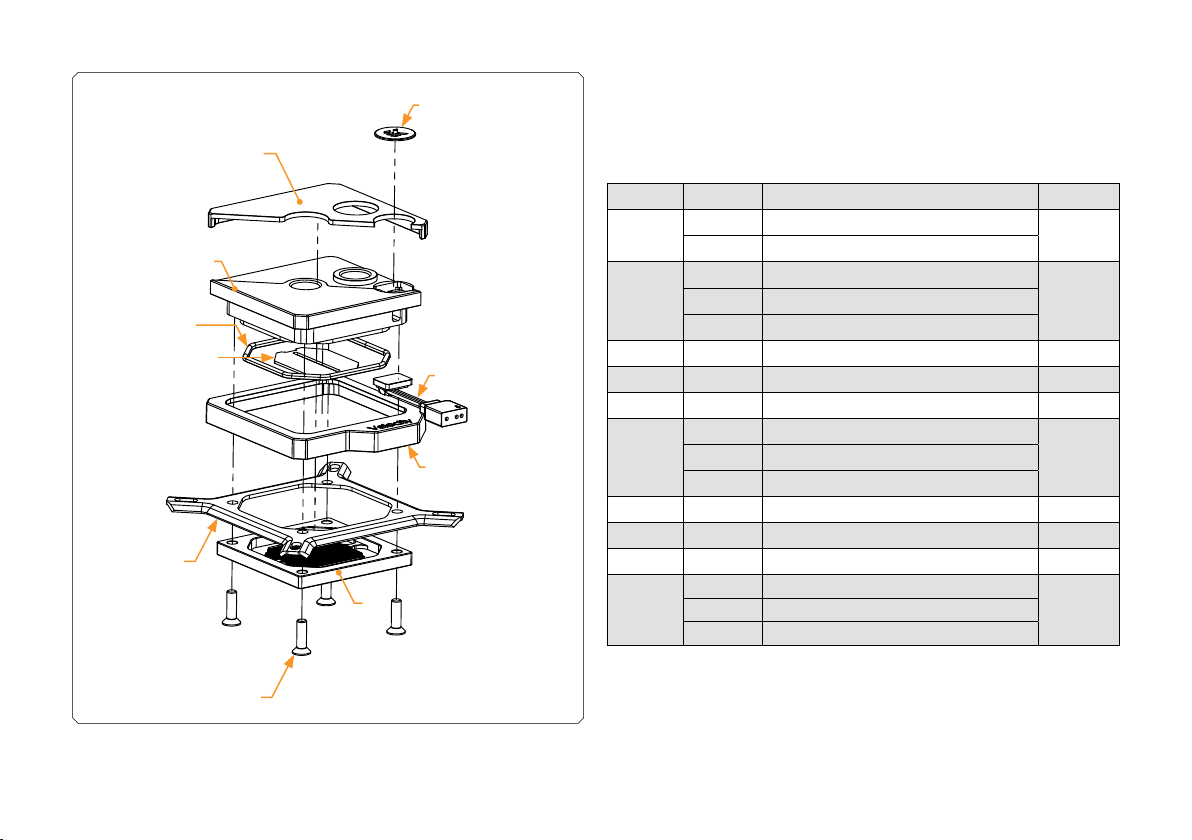

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

Technical Speciﬁcation:

- Dimensions (L x H x W): 91 x 91 x 22 mm

- D-RGB cable length: 500 mm

- D-RGB LED count: 20

- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Position EAN Description Quantity

1100668 COLDPLATE - Copper 1

100669 COLDPLATE - Nickel

100830 VELOCITY FRAME - Black

1100831 VELOCITY FRAME - Nickel

100832 VELOCITY FRAME - White

38207 SCREW M4x14 DIN7991 4

4100663 EK-BADGE 1

5100849 Intel Mounting Plate + LED D-RGB 1

100526 TOP PLATE - Acetal

1100525 TOP PLATE - Plexi

1012044 TOP PLATE - Frosted Plexi

7100629 J ET PL ATE 1

8100728 SEALING GASKET 1

LED light is not included in all versions.

- 8 -

Technical Speciﬁcation:

- Dimensions (L x H x W): 91 x 91 x 22 mm

- D-RGB cable length: 500 mm

- D-RGB LED count: 1

- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Position EAN Description Quantity

1100668 COLDPLATE - Copper 1

100669 COLDPLATE - Nickel

100830 VELOCITY FRAME - Black

1100831 VELOCITY FRAME - Nickel

100832 VELOCITY FRAME - White

38207 SCREW M4 x 14 DIN7991 4

4100663 EK-BADGE 1

5100575 INTEL MOUNTING PLATE 1

101691 TOP PLATE - Strike Black Nickel

1101692 TOP PLATE - Strike Matte Black

100528 TOP PLATE - Full Nickel

7100629 J ET PL ATE 1

8100728 SEALING GASKET 1

9102213 LED D-RGB PANEL 1

101693 STRIKE COVER - Black Elox

1101694 STRIKE COVER - Natural Elox

102500 HONOR COVER - Stars & Stripes

- 9 -

Technical Speciﬁcation:

- Dimensions (L x H x W): 91 x 91 x 22 mm

- D-RGB cable length: 500 mm

- D-RGB LED count: 1

- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Position EAN Description Quantity

1100668 COLDPLATE - Copper 1

100669 COLDPLATE - Nickel

100830 VELOCITY FRAME - Black

1100831 VELOCITY FRAME - Nickel

100832 VELOCITY FRAME - White

38207 SCREW M4 x 14 DIN7991 4

4100663 EK-BADGE 1

5100575 INTEL MOUNTING PLATE 1

6100528 TOP PLATE - Full Nickel 1

7100629 J ET PL ATE 1

8100728 SEALING GASKET 1

9102213 LED D-RGB PANEL 1

- 10 -

REPLACING THE JET PLATE PROCEDURE

STEP 1

Please reference the table below to determine the optimal insert and

jet plate needed for your type of socket.

Socket Optimal Jet

LGA-115x / LGA-1200 J1

LGA-2011(-3) J2

LGA-2066 J2

d= 1 mm

d= 0.8 mm

STEP 2

Unscrew the four M4 screws in counter-clock-wise direction from the

bottom of the water block using the enclosed 2.5 mm Allen key to release

the assembly, which consists of the water block top and jet plate. Upon

replacing the jet plate, please reassemble the water block as shown in

STEP 1 and STEP 2. Pay special attention to the insert orientation relative

to the copper base and the water block top.

Before reassembly of the water block it is crucial that the

preformed gasket (o-ring) is placed into the gap between

the mounting plate and the water block top.

Screw the four screws back in ﬁrmly, but not forcefully.

JE T PL AT E

WATER BLOCK TOP

STEP 2
