Ekwb Velocity - AMD Manual de usuario

Velocity CPU WATER BLOCK USER MANUAL - 3rd Revision, July 27th 2021

Velocity - AMD

CPU WATER BLOCK

This product is intended for installation only by expert users. Please

consult with a qualiﬁed technician for installation. Improper installation may

result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their

installation. The following instructions are subject to change without

notice. Please visit our website at www.ekwb.com for updates. Before

installation of this product, please read important notice, disclosure, and

warranty conditions that are printed on the back of the box.

Before you start using this product, please follow these basic guidelines:

Please carefully read the manual before beginning the installation

process.

Please remove your graphics card from the computer to assure the

safest mounting process and prevent any possible damage to your

GPU and/or graphics card circuit board (PCB).

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the rubber

O-ring gaskets.

The use of corrosion inhibiting coolants is always recommended

for liquid cooling systems, and mandatory for nickel plated

water blocks!

Do not use pure distilled water! For best results recommends the

use of EK-CryoFuel coolants.

Make sure to thoroughly bleed air out of your water block, or you will

not reach optimal performance.

QUICK INSTALLATION GUIDE

- 3 -

INSTALLING THE WATER BLOCK 10

AMX AND FMX SOCKET MOTHERBOARDS 10

CONNECTING THE RGB LED STRIP (Optional) 13

CONNECTING THE RGB LED STRIP 14

CONNECTING THE DRGB LED STRIP 14

TABLE OF CONTENT

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY 4

BOX CONTENTS 5

WATER BLOCK DIMENSIONS 6

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 7

SUPPORT AND SERVICE 16

SOCIAL MEDIA 16

- 4 -

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY

This CPU liquid cooling unit is pre-assembled for use with modern AMD

desktop socket type motherboards. By default (out of the box) this water

block supports the following CPU sockets:

- AMD® socket AMx and FMx

- 5 -

Washer (5 pcs)

Spring (4 pcs) Standoff - AMD / LGA 115x (4 pcs)

BOX CONTENTS

Standoff - 20xx (4 pcs)EK-Velocity universal CPU water block with the AMD bracket (1 pc)

Allen Key 2.5 mm (1 pc)Metal Backplate AMD (1 pc)

Additional Jet Plate – 0.8 mm (1 pc)

Backplate Rubber Gasket (1 pc)

Thermal grease (1 pc)

Universal Mounting Mechanism – You may not need every

screw from this package. EAN: 3831109813065

Thumb Nut (4 pcs)

EAN: 3831109828618

- 6 -

WATER BLOCK DIMENSIONS

68.3 mm

73.8 mm

110 mm

21.9 mm

- 7 -

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

Technical Speciﬁcation:

- Dimensions (L x H x W): 110 x 74 x 22 mm

- D-RGB cable length: 500 mm

- D-RGB LED count: 20

- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Position EAN Description Quantity

1100668 COLDPLATE - Copper 1

100669 COLDPLATE - Nickel

100830 VELOCITY FRAME - Black

1100831 VELOCITY FRAME - Nickel

100832 VELOCITY FRAME - White

38207 SCREW M4x14 DIN7991 4

4100663 EK-BADGE 1

5100850 AMD Mounting Plate + LED D-RGB 1

100526 TOP PLATE - Acetal

1100525 TOP PLATE - Plexi

1012044

TOP PLATE - Frosted Plexi

7100629 J ET PL AT E 1

8100728 SEALING GASKET 1

LED light is not included in all versions.

- 8 -

Technical Speciﬁcation:

- Dimensions (L x H x W): 110 x 74 x 22 mm

- D-RGB cable length: 500 mm

- D-RGB LED count: 1

- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Position EAN Description Quantity

1100668 COLDPLATE - Copper 1

100669 COLDPLATE - Nickel

100830 VELOCITY FRAME - Black

1100831 VELOCITY FRAME - Nickel

100832 VELOCITY FRAME - White

38207 SCREW M4x14 DIN7991 4

4100663 EK-BADGE 1

5100576 AMD Mounting Plate 1

101691 TOP PLATE - Strike Black Nickel

1101692 TOP PLATE - Strike Matte Black

100528 TOP PLATE - Full Nickel

7100629 J ET PL AT E 1

8100728 SEALING GASKET 1

9102213 LED D-RGB PANEL 1

101693 STRIKE COVER - Black Elox

1101694 STRIKE COVER - Natural Elox

102500 HONOR COVER - Stars & Stripes

- 9 -

Technical Speciﬁcation:

- Dimensions (L x H x W): 110 x 74 x 22 mm

- D-RGB cable length: 500 mm

- D-RGB LED count: 1

- D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Position EAN Description Quantity

1100668 COLDPLATE - Copper 1

100669 COLDPLATE - Nickel

100830 VELOCITY FRAME - Black

1100831 VELOCITY FRAME - Nickel

100832 VELOCITY FRAME - White

38207 SCREW M4x14 DIN7991 4

4100663 EK-BADGE 1

5100576 AMD Mounting Plate 1

˝6 100528 TOP PLATE - Full Nickel 1

7100629 J ET PL AT E 1

8100728 SEALING GASKET 1

9102213 LED D-RGB PANEL 1

- 10 -

AMx AND FMxSOCKET MOTHERBOARDS

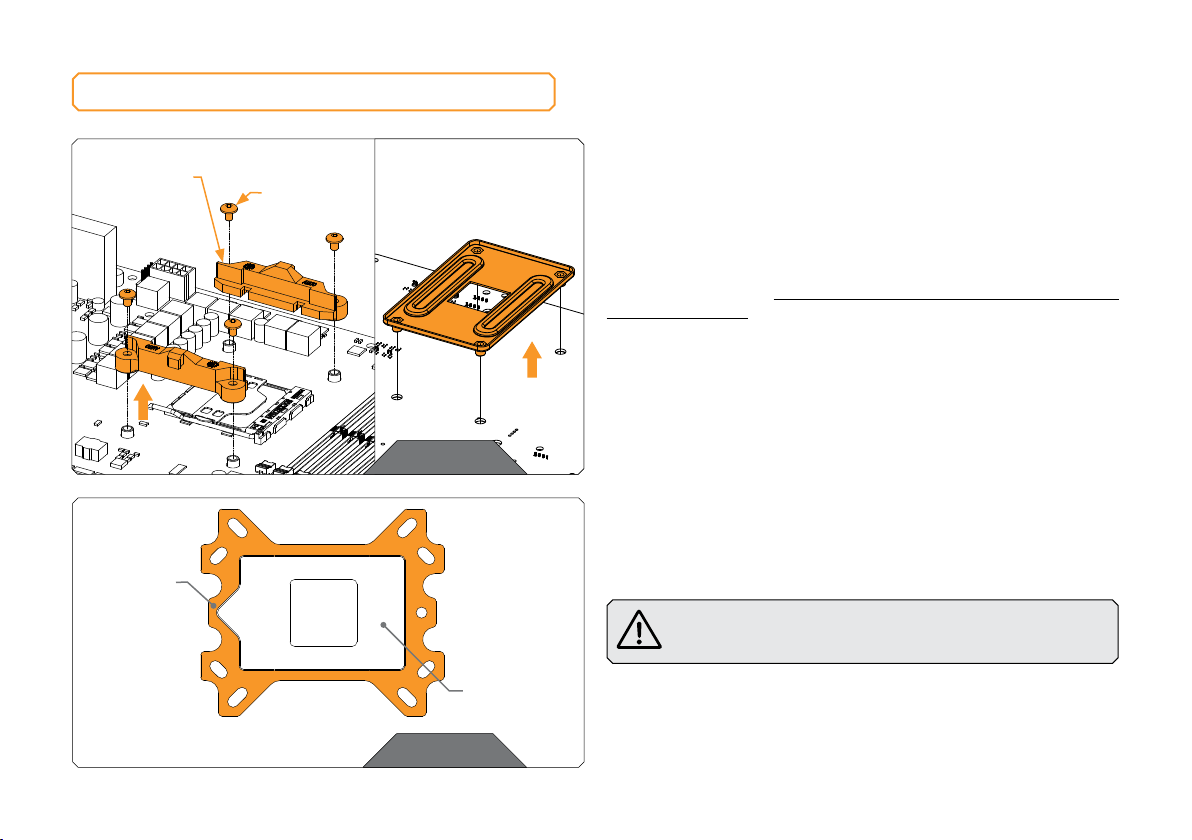

STEP 1

Removing of the original plastic hold-down clamps and the

factory backplate:

Using Philips-head screwdriver remove the four UNC 6-32 screws

securing the original plastic hold-down clamps around the socket as

shown on the sketch. Remove the original AMD® backplate and the

hold-down clamps and store them away. See sketch for further part

identiﬁcation.

STEP 2

Preparing backplate rubber gasket

The enclosed rubber gasket is an essential part of the backplate and

mounting system and must be used every time you install this water

block on your motherboards.

With AMD® Sockets you should use whole rubber

backplate including the inner core.

STEP 2

INSTALLING THE WATER BLOCK

OUTER

PART

(REMOVABLE)

INNER CORE

AMD® FACTORY

BACKPLATE

UNC 6-32

SCREWS

HOLD-DOWN

CLAMPS

STEP 1
