EK Vector TRIO RTX 3080 Manual de usuario

USER GUIDE

EK-Quantum

Vector TRIO RTX 3080/3090 Active Backplate

This product is intended for installation by expert users only. Please

consult with a qualiﬁed technician. Improper installation may result

in damage to your equipment. EK assumes no liability whatsoever,

expressed or implied, for the use of this product or its installation. The

following instructions are subject to change without notice. Please, read

the manual carefully before beginning with the installation process. For

updates, you can visit our ofﬁcial website www.ekwb.com.

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning with the

installation process.

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured with the

rubber O-ring gaskets.

The use of quality market-proven corrosion-inhibiting

coolants is always strongly recommended for any liquid

cooling system.

Do not use pure distilled water as a cooling liquid! For best

results, EK recommends the use of EK-CryoFuel Coolants.

Make sure to bleed air out of your water block thoroughly in

order to reach optimal performance.

EK only guarantees compatibility with included EK-brand

thermal pads. Installation process, cooling performance and

block contacts are tested exclusively with EK-brand thermal

pads. Listed thermal pad thicknesses apply only to thermal

pads included in the package.

EK does not guarantee compatibility with aftermarket

alternatives for thermal interface material.

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

ACTIVE BACKPLATE DIMENSIONS 5

REQUIRED TOOLS 5

TECHNICAL SPECIFICATIONS AND PRODUCT PARTS 6

INSTALLING THE ACTIVE BACKPLATE 7

PREPARING THE GRAPHICS CARD 7

CUTTING AND PLACING THERMAL PADS 9

REMOVING THE TERMINAL METAL PLATE 10

ATTACHING THE ACTIVE BACKPLATE 10

INSTALLING FITTINGS AND TUBING 12

CONNECTING THE D-RGB LED STRIP 12

TESTING THE LOOP 13

SUPPORT AND SERVICE 14

SOCIAL MEDIA 14

- 4 -

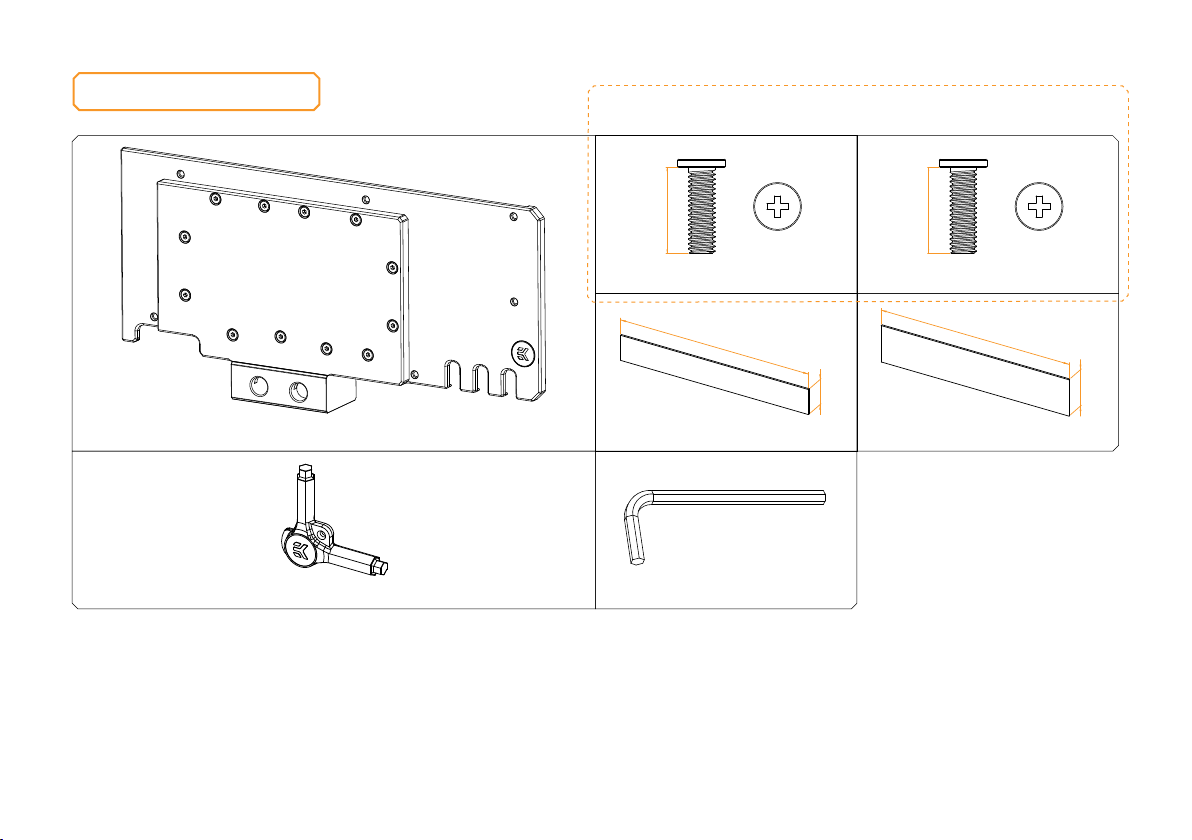

3830046996213 EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) (1 pc)

M2.5x8 AX1 Screw (8 pcs) M2.5x8 AX1 Screw - Nickel (8 pcs)

8 mm

BOX CONTENTS

Allen Key 2.5 mm (1 pc)

EK-Quantum Vector TRIO RTX 3080/3090 Active Backplate

Mounting Mechanism – You may not need all the screws,

mounting mechanism is universal!

120 mm

16 mm

Thermal PAD F 1.0 mm - (120x16mm) (3 pcs) Thermal PAD G 2.0 mm - (120x24mm) (3 pcs)

120 mm

24 mm

- 5 -

ACTIVE BACKPLATE DIMENSIONS

38 mm

7 mm

308 mm

106.5 mm

128 mm

153 mm

141.5 mm

135.5 mm

Phillips Head Screwdriver Scissors

REQUIRED TOOLS

- 6 -

TECHNICAL SPECIFICATIONS AND PRODUCT PARTS

Technical Speciﬁcation:

Dimensions (L x H x W): 308 x 153 x 38 mm

D-RGB (Addressable RGB) Cable Length: 500 mm

D-RGB LED Count: 5 (Plexi Version)

D-RGB Connector: Standard 3-Pin (+5V, Data, Blocked, Ground)

Position EAN Description Quantity

1104230 Alu cover (Ni) 1

104231 Alu cover (Bl. elox)

2104233 Coldplate (Ni) 1

3104236 Top plate (Plexi) 1

104237 Top plate (Acetal)

4104238 Standout (only for plexi version) 1

5104235 Plexi Terminal 1

104234

Acetal Terminal

64720 Terminal metal blank 1

75155 O-ring 15x1 4

8100006 M4 x 27 DIN7984 Screw 6

99013 M4 x 8 DIN7984 Screw 12

10 100663 EK RGB Badge 1

11 104316 Main O-ring 1

12 100199

LED D-RGB Strip (only for plexi version)

13 9058 M2.5 x 6 AX1 Screw 3

14 102639 Plug G1/4 1

- 7 -

INSTALLING THE ACTIVE BACKPLATE

STEP 1

PREPARING THE GRAPHICS CARD

First, complete the installation of your EK-Quantum Vector TRIO

RTX 3080/3090 water block according to its installation manual.

In case the water block is already installed, remove the six (6) AX1

screws and their PVC washers, as shown in the image.

STEP 1

Phillips Head Screwdriver

For this Step, you will need:

- 8 -

Allen Key 2.5 mm

For this Step, you will need:

EK-Quantum Vector TRIO RTX 3080/3090 Active Backplate comes

with its own terminal, meaning the original terminal, along with two

(2) 15x1 O-rings, on the EK-Quantum Vector FTW3 3080/3090

water block has to be removed.

Unscrew the three (3) M4 x 20 DIN7984 screws and detach the

terminal from the water block.

The procedure of the terminal detachment is shown below.

Attention!

Attention! In case the EK-Quantum Vector TRIO

3080/3090 water block is already ﬁlled with coolant,

empty the content of the water block before continuing

with this step. Be careful that the coolant that remained in

the water block does not come in contact with the GPU!

M4 x 20 DIN7984

TERMINAL COVER

STEP 1

FC TERMINAL

TERMINAL O-RING

15 x 1 mm

- 9 -

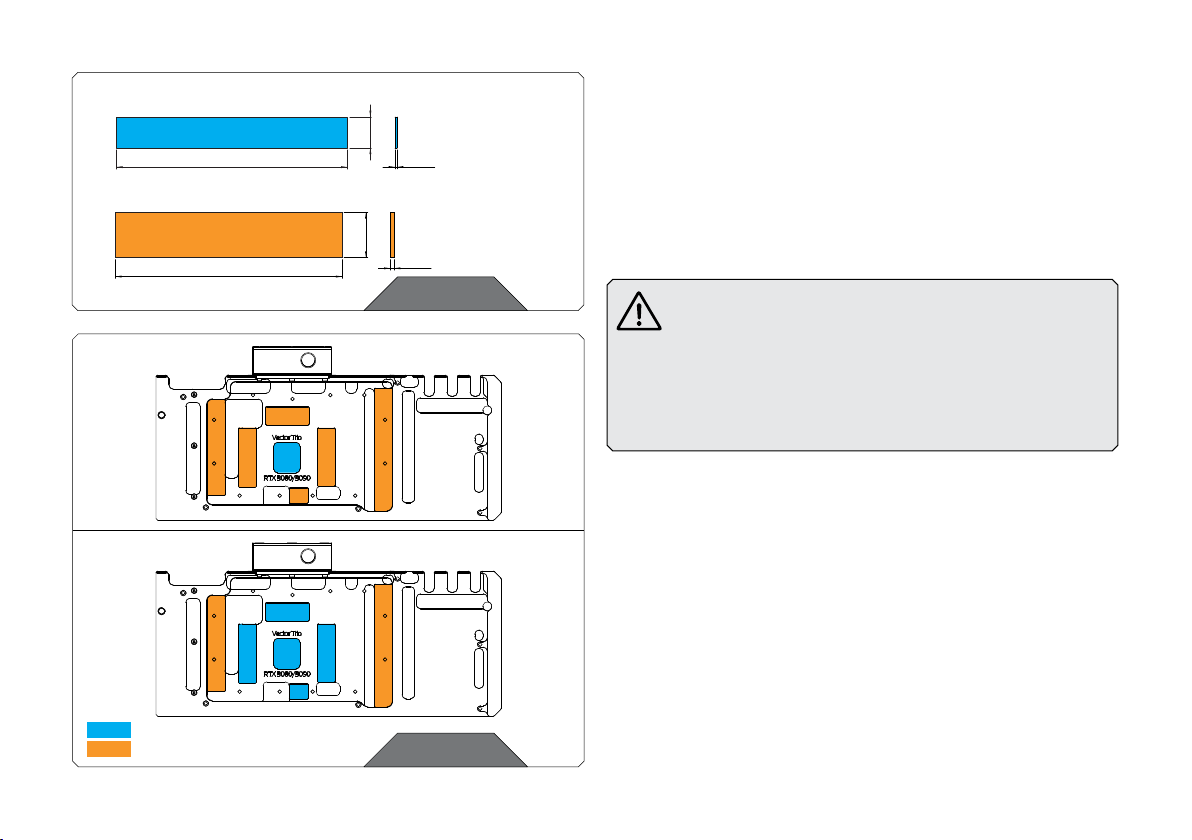

STEP 2

120 mm

24 mm

2 mm

Thermal PAD G 2.0 mm (120 x 24 mm)

1 mm

120 mm

16 mm

Thermal PAD F 1.0 mm (120 x 16 mm) STEP 2

CUTTING AND PLACING THERMAL PADS

Your backplate comes with thermal pads that have to be cut into

smaller pieces to cover all the VRM components. EK made sure to

provide you with more than an adequate quantity of thermal pads to

complete these steps.

Replacement thermal pads:

Thermal PAD F 1.0 mm – (120 x 16 mm) – EAN: 3830046996732

Thermal PAD G 2.0 mm – (120 x 24 mm) – EAN: 3830046996794

EK only guarantees compatibility with included EK-brand

thermal pads. Installation process, cooling performance

and block contacts are tested exclusively with EK-brand

thermal pads. Listed thermal pad thicknesses apply only

to thermal pads included in the package.

EK does not guarantee compatibility with aftermarket

alternatives for thermal interface material.

STEP 3

Once cut to size, thermal pads should be placed on the backplate/

PCB, as illustrated below.

STEP 3

Thermal Pad F 1 mm

Thermal Pad G 2 mm

3090

3080

- 10 -

STEP 4

REMOVING THE TERMINAL METAL PLATE

The Metal plate attached on the Terminal is meant as a precaution,

to secure the two O-rings to prevent them from falling out of their

sockets during transport and handling. Before the installation of

the Active Backplate, this metal plate has to be removed. Unscrew

the three (3) M4 x 27 DIN7984 screws with the provided 2.5 mm

Allen Key shown on the picture. Keep the screws as they will be

needed in the upcoming step, unlike the metal plate which will not

be needed anymore.

STEP 4

M4 x 27 7984DIN SCREW

TERMINAL METAL PLATE

Allen Key 2.5 mm

For this Step, you will need:

STEP 5

ATTACHING THE ACTIVE BACKPLATE

First, make sure the two (2) 15 x 1 O-rings are IN terminal

slots, as shown in the image.

STEP 5
