Eizo L985 EX Manual de usuario

User’s Manual

Color LCD Monitor

English

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read them

carefully.

WARNING

Failure to abide b

the information in a WARNING ma

result in serious in

and

can be life threatening.

Indicates a prohibited action.

Indicates to ground for safety.

manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any

means, electronic, mechanical, or otherwise, without the prior written permission of EIZO

NANAO CORPORATION.

EIZO NANAO CORPORATION is under no obligation to hold any submitted material or

information confidential unless prior arrangements are made pursuant to EIZO NANAO

CORPORATION's receipt of said information. Although every effort has been made to ensure

that this manual provides up-to-date information, please note that EIZO monitor specifications

are subject to change without notice.

As an ENERGY STAR®Partner, EIZO NANAO CORPORATION has determined

that this product meets the ENERGY STAR guidelines for energy efficiency.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury

and/or property or product damage.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards

Association.

Windows is a registered trademark of Microsoft Corporation.

PowerManager is a trademark of EIZO NANAO CORPORATION.

ScreenManager, FlexScan and EIZO are registered trademarks of EIZO NANAO

CORPORATION.

English

TABLE OF CONTENTS

PRECAUTIONS ................................................................................ 4

1. INTRODUCTION ..................................................................................... 9

1-1. Features ........................................................................................................9

1-2. Package Contents..........................................................................................9

1-3. Controls & Connectors ..............................................................................10

3. ScreenManager .................................................................................... 18

3-1. How to use the ScreenManager ..................................................................18

3-2. ScreenManager Adjustments and Settings...................................................19

3-3. FineContrast ...............................................................................................20

3-4. Useful Functions .........................................................................................22

4. ADJUSTMENT ...................................................................................... 24

5. ATTACHING AN ARM STAND .............................................................. 34

6. TROUBLESHOOTING........................................................................... 36

7. CLEANING ............................................................................................ 40

8. SPECIFICATIONS ................................................................................. 41

9. GLOSSARY........................................................................................... 44

APPENDIX/ .................................................................................................. i

2. CABLE CONNECTION ......................................................................... 12

2-1. Before connecting .......................................................................................12

2-2. Connecting the signal cable ........................................................................13

2-3. Connecting two PCs to the monitor............................................................16

4-1. Screen Adjustment ......................................................................................24

4-2. Displaying a low resolutions.......................................................................28

4-3. Color Adjustment .......................................................................................30

4-4. Power-save Setup ........................................................................................32

TABLE OF CONTENTS

English

PRECAUTIONS

IMPORTANT!

• This product has been adjusted specifically for use in the region to which it was

originally shipped. If operated outside the region to which it was originally shipped,

the product may not perform as stated in the specifications.

• To ensure personal safety and proper maintenance, please read this section and the

caution statements on the unit (refer to the figure below).

[Location of the Caution Statements]

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing covers

may result in fire, electric shock, or equipment damage.

WARNING

If the unit begins to emit smoke, smells like something is burning, or

makes strange noises, disconnect all power connections immediately

and contact your dealer for advice.

Attempting to use a malfunctioning unit may result in fire, electric shock, or

equipment damage.

Do not open the cabinet or modify the unit.

Opening the cabinet or modifying the unit may result in fire, electric shock, or

burn.

4PRECAUTIONS

English

If an object or liquid falls/spills into the cabinet, unplug the unit immediately.

Have the unit checked by a qualified service engineer before using it again.

If the unit falls, disconnect the power immediately and ask your dealer for

advice. Do not continue using a damaged unit. Using a damaged unit may

result in fire or electric shock.

Set the unit in an appropriate location.

Not doing so may result in fire, electric shock, or equipment damage.

* Do not place outdoors.

* Do not

lace in the trans

ortation s

stem (shi

, aircraft, trains, automobiles,

etc.)

* Do not place in a dusty or humid environment.

* Do not place in a location where the steam comes directly on the screen.

* Do not place near heat generating devices or a humidifier.

Use the enclosed power cord and connect to the standard power outlet

of your country.

Be sure to remain within the rated voltage of the power cord.

Not doing so may result in fire or electric shock.

To disconnect the power cord, grasp the plug firmly and pull.

Tugging on the cord may damage and result in fire or electric shock.

PRECAUTIONS

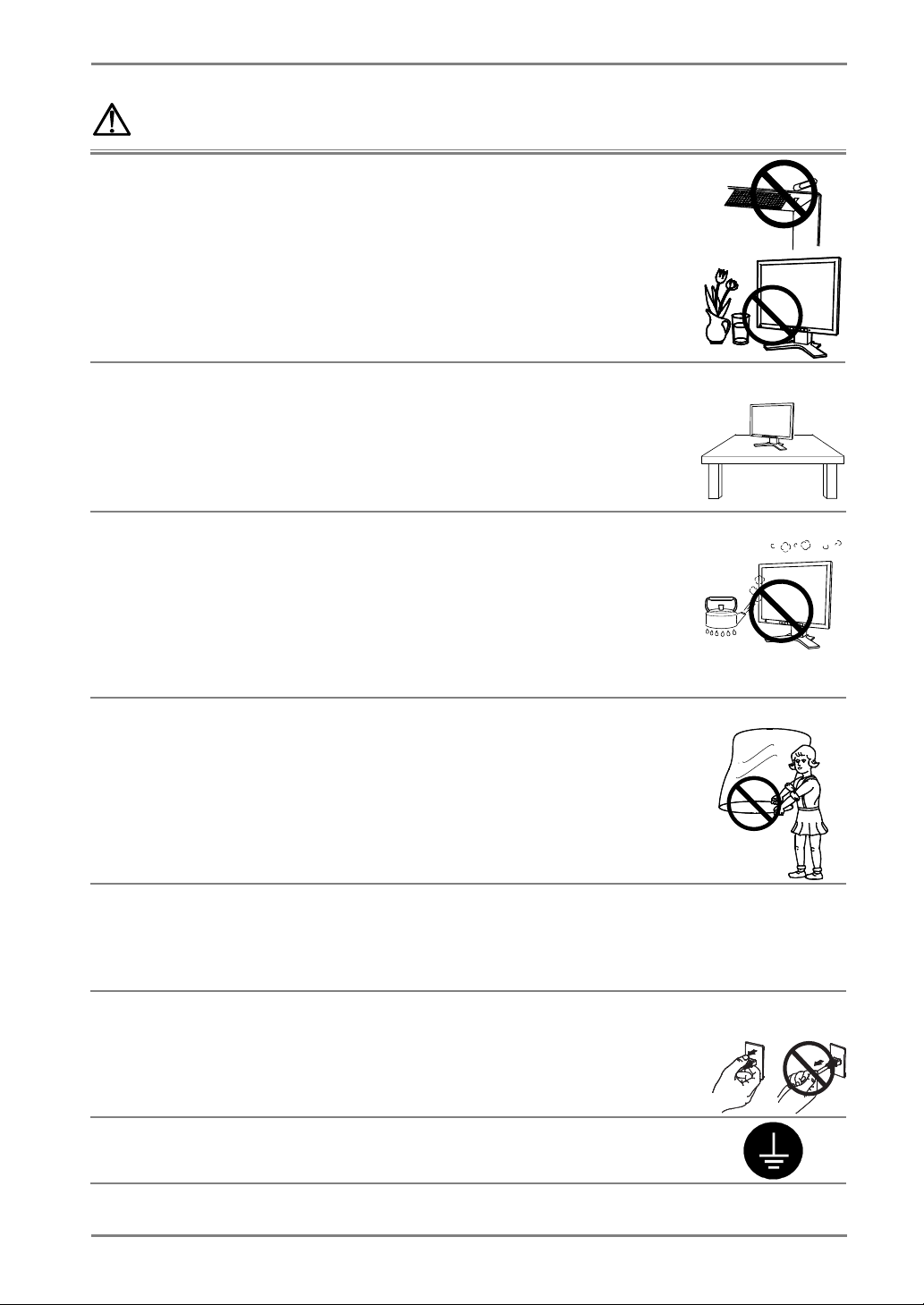

WARNING

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into the cabinet

or spillage into the cabinet may result in fire, electric shock, or equipment

damage.

Place the unit at the strong and stable place.

A unit placed on an inadequate surface may fall and result in injury or

equipment damage.

To avoid danger of suffocation, keep the plastic packing bags away

from babies and children.

The equipment must be connected to a grounded main outlet.

Not doing so may cause in fire or electric shock.

English

Follow local regulation or laws for safe disposal.

The backlight of the LCD panel contains mercury.

6PRECAUTIONS

WARNING

* The unit is designed for use with a specific voltage only. Connection to

another voltage than specified in this User’s Manual may cause fire, electric

shock, or equipment damage.

* Do not overload your power circuit, as this may result in fire or electric

shock.

Use the correct voltage.

Handle the power cord with care.

* Do not place the cord underneath the unit or other heavy objects.

* Do not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a damaged cord

may result in fire or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

When attaching an arm stand, please refer to the user’s manual of the

arm stand and install the unit securely with the enclosed screws.

Not doing so may cause the unit to come unattached, which may result in

injuryor equipment damage. When the unit is dropped, please ask your dealer

for advice. Do not continue usinga damaged unit. Usinga damaged unit may

result in fire or electric shock. When reattaching the tilt stand, please use the

same screws and tighten them securely.

Do not touch a damaged LCD panel directly with bare hands.

The liquid crystal which leaks from the panel is poisonous if it enters the eyes

or mouth.

If any part of the skin or body comes in direct contact with the panel, please

wash thoroughly. If some physical symptoms result, please consult your

doctor.

English

PRECAUTIONS

CAUTION

When handling the unit, grip the bottom of the unit firmly with both

hands ensuring the panel faces outward before lifting.

Dropping the unit may result in injury or equipment damage.

Do not block the ventilation slots on the cabinet.

* Do not place any objects on the ventilation slots.

* Do not install the unit in a closed space.

* Do not use the unit laid down or upside down.

Blocking the ventilation slots prevents proper airflow and may result in fire,

electric shock, or equipment damage.

Handle with care when carrying the unit.

Disconnect the

ower cord and cables when movin

the unit. Movin

the unit

with the cord attached is dangerous. It may result in injury.

Do not touch the plug with wet hands.

Doing so may result in electrical shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case of a

problem.

Periodically clean the area around the plug.

Dust, water, or oil on the plug may result in fire.

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result in electric

shock.

If you plan to leave the unit unused for an extended period, disconnect

the power cord from the wall socket after turning off the power switch

for the safety and the power conservation.

English

8PRECAUTIONS

LCD Panel

In order to suppress the luminosity change by long-term use and to maintain

the stable luminosity, use of a monitor in lower brightness is recommended.

The screen may have defective pixels. These pixels may appear as slightly light

or dark area on the screen. This is due to the characteristics of the panel itself,

and not the product.

The backli

ht of the LCD

anel has a fixed life s

an. When the screen becomes

dark or begins to flicker, please contact your dealer.

Do not press on the panel or edge of the frame strongly, as this may result in

damage to the screen. There will be prints left on the screen if the pressed

image is dark or black. If pressure is repeatedly applied to the screen, it may

deteriorate or damage your LCD panel. Leave the screen white to decrease the

prints.

Do not scratch or

ress on the

anel with an

shar

ects, such as a

encil or

pen as this may result in damage to the panel. Do not attempt to brush with

tissues as this may scratch the LCD panel.

English

1. INTRODUCTION 9

1. INTRODUCTION

Thank you very much for choosing an EIZO Color Monitor.

1-1. Features

• Dual inputs compliant (DVI-I and D-Sub mini 15 pin connecters)

• DVI (p. 44) Digital input (TMDS (p. 45)) compliant

• [Horizontal scanning frequency] Analog:24 - 94 kHz

Digital: 31 - 76 kHz

[Vertical scanning frequency] Analog: 49 - 86 Hz (1600 x 1200: 49 - 76 Hz)

Digital: 59 ~ 61 Hz (VGA text: 69 - 71 Hz)

[Resolution] 1600 x 1200

• Smoothing function incorporated for the adjustment of an enlarged image. (p.28)

• FineContrast modes, to select the most suitable mode for screen display (p.20)

• The utility software “ScreenManager Pro for LCD” (for Windows) which can control

the monitor from a PC with a mouse or keyboard, is included (refer to the EIZO LCD

Utility Disk).

• The height adjustable stand incorporated

• Ultra slim bezel incorporated

• The Portrait/Landscape display capability

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or

damaged.

•LCD Monitor •EIZO USB Cable (MD-C93)

•Power Cord •EIZO LCD Utility Disk

•Signal Cable (FD-C16) •User’s Manual

•Signal Cable (FD-C35) •ScreenManager Quick Reference

•Signal Cable (MD-C87/100) •LIMITED WARRANTY

NOTE

• Please retain the packing materials for future transference.

English

Yellow Power saving

Control Panel

FineContrast Menu

1-3. Controls & Connectors

Front

(1) ScreenManager Main Menu

ENTERAUTO

SIGNAL

1 - 2

(4)

(2)

(5) (6)

(3) (7) (8)

(1)

(2) Main Power Switch

(3) Input signal selection button

(4) Auto Adjustment Button

(5) Enter Button

(6) Control Buttons

(7) Power Button

(8) Power Indicator*2

Blue Operation

Flashing yellow

(2 times for

each)

Power save mode Digital only

Flashing yellow

slowly

Power is off (Main power is on)

Off Power off

Directly pushing the left or right button allows you to select a FineContrast mode, see

page 20. The ScreenManager Main Menu and the FineContrast Menu cannot be

displayed at the same time.

*2 Blue lighting, when the screen is displayed (Operation mode), is made to non-light,

see page 19. Regarding the power indicator for the “Off Timer”, see page 22.

10 1. INTRODUCTION

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Eizo

Eizo

Eizo FLEXSCAN L551 - Manual de usuario

Eizo

Eizo FlexScan EV2785-BK Manual de usuario

Eizo

Eizo Foris FS2332-BK Manual de usuario

Eizo

Eizo RadiForce MX243W Manual de usuario

Eizo

Eizo FlexScan SX2462W Manual de usuario

Eizo

Eizo FlexScan L 352T L352T-C L352T-C Manual de usuario

Eizo

Eizo ColorEdge CS2400S Manual de usuario

Eizo

Eizo DuraVision FDS1921T-GY Manual de usuario

Eizo

Eizo ColorEdge CG232W Manual de usuario

Eizo

Eizo FLEXSCAN L551 - Manual de usuario

Eizo

Eizo DURAVISION FDS1901 Manual de usuario

Eizo

Eizo ColorEdge CS2420 Manual de usuario

Eizo

Eizo FlexScan S2411W-M Manual de usuario

Eizo

Eizo FlexScan S1932 Guía del usuario

Eizo

Eizo FlexScan L675 Manual de usuario

Eizo

Eizo FLEXSCAN T561 - Manual de usuario

Eizo

Eizo FlexScan EV2450-BK Manual de usuario

Eizo

Eizo ColorEdge CS270 Manual de usuario

Eizo

Eizo FlexScan L578 Manual de usuario

Eizo

Eizo FlexScan S2433WH Manual de usuario

Eizo

Eizo FlexScan EV2216WFS3 Manual de usuario

Eizo

Eizo FlexScan EV2313W Manual de usuario

Eizo

Eizo FLEXSCAN T962 - Manual de usuario

Eizo

Eizo FlexScan S1501 Guía del usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
