User’s Manual

Color LCD Monitor

English

SAFETY SYMBOLS

This manual uses the safety symbols below. They denote critical information. Please read them

carefully.

WARNING

Failure to abide b

the information in a WARNING ma

result in serious in

and

can be life threatening.

CAUTION

Failure to abide by the information in a CAUTION may result in moderate injury

and/or property or product damage.

Indicates a prohibited action.

Indicates to ground for safety.

manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any

means, electronic, mechanical, or otherwise, without the prior written permission of Eizo Nanao

Corporation.

Eizo Nanao Corporation is under no obligation to hold any submitted material or information

confidential unless

rior arran

ements are made

ursuant to Eizo Nanao Cor

oration's recei

t of

said information. Although every effort has been made to ensure that this manual provides up-

to-date information, please note that EIZO monitor specifications are subject to change without

notice.

ENERGY STAR is a U.S. registered mark.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

VGA is a registered trademark of International Business Machines Corporation.

DPMS is a trademark and VESA is a registered trademark of Video Electronics Standards

Association.

Windows is a registered trademark of Microsoft Corporation.

ScreenManager and PowerManager are trademarks of Eizo Nanao Corporation.

FlexScan and EIZO are registered trademarks of Eizo Nanao Corporation.

As an ENERGY STAR®Partner, Eizo Nanao Corporation has determined that this

product meets the ENERGY STAR guidelines for energy efficiency.

English

TABLE OF CONTENTS

PRECAUTIONS ................................................................................... 4

1. INTRODUCTION ..................................................................................... 9

1-1. Features ........................................................................................................9

1-2. Package Contents..........................................................................................9

1-3. Controls & Connectors ..............................................................................10

2. CABLE CONNECTION ......................................................................... 12

2-1. Before connecting .......................................................................................12

2-2. Connecting the signal cable ........................................................................13

2-3. Sound Connections.....................................................................................15

3. ScreenManager .................................................................................... 16

3-1. How to use the ScreenManager ..................................................................16

3-2. Adjustments and Settings............................................................................17

3-3. Useful Functions .........................................................................................18

4. ADJUSTMENT ...................................................................................... 20

4-1. Screen Adjustment ......................................................................................20

4-2. Color Adjustment .......................................................................................24

4-3. Power-save Setup ........................................................................................25

5. ATTACHING AN ARM STAND .............................................................. 27

6. TROUBLESHOOTING........................................................................... 28

7. CLEANING ............................................................................................ 31

8. SPECIFICATIONS ................................................................................. 32

9. GLOSSARY........................................................................................... 34

APPENDIX/ANHANG/ANNEXE .................................................................. i

English

4PRECAUTIONS

PRECAUTIONS

IMPORTANT!

• This product has been adjusted specifically for use in the region to which it was

originally shipped. If operated outside the region to which it was originally shipped,

the product may not perform as stated in the specifications.

• To ensure personal safety and proper maintenance, please read this section and the

caution statements on the unit (refer to the figure below).

[Location of the Caution Statements]

WARNING

If the unit begins to emit smoke, smells like something is burning, or

makes strange noises, disconnect all power connections immediately

and contact your dealer for advice.

Attempting to use a malfunctioning unit can be dangerous.

Do not dismantle the cabinet or modify the unit.

Dismantling the cabinet or modifying the unit may result in electric shock or

burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing covers

may expose you to dangerous voltage or other hazards.

English

PRECAUTIONS

WARNING

Keep small objects or liquids away from the unit.

Small objects accidentally falling through the ventilation slots into the cabinet

or spillage into the cabinet may result in fire, electric shock, or equipment

damage.

If an object or liquid falls/spills into the cabinet, unplug the unit immediately.

Have the unit checked by a qualified service engineer before using it again.

Place the unit on a strong, stable surface.

A unit placed on an inadequate surface may fall, resulting in injury or

equipment damage.

When the unit is dropped, please ask your dealer for advice. Do not continue

using a damaged unit. Using a damaged unit may result in fire or electric

shock.

SIG.SIG . AUTOAUTO ENT.ENT.

Set the unit in an appropriate location.

Not doing so may cause damage and could result in fire or electric shock.

* Do not place in outdoors.

* Do not

lace in the trans

ortation s

stem (shi

, aircraft, trains, automobiles,

etc.)

* Do not install in a dusty or humid environment.

* Do not place in a location where the steam comes directly on the screen.

* Do not place near heat generating devices or a humidifier.

To avoid danger of suffocation, keep the plastic packing bags away

from babies and children.

Use the enclosed power cord and connect to the standard power outlet

of your country. Be sure to remain within the rated voltage of the

power cord.

Not doing so may cause in fire or electric shock.

To disconnect the power cord, grasp the plug firmly and pull.

Never tug on the cord, doing so may cause damage and could result in fire or

electric shock.

English

6PRECAUTIONS

WARNING

The equipment must be connected to a grounded main outlet.

Not doing so may cause in fire or electric shock.

Use the correct voltage.

* Do not overload your power circuit, as this may result in fire or electric

shock.

* The unit is designed for use with a specific voltage only. Connection to

another voltage than specified in this User’s Manual may cause fire, electric

shock, or other damage.

* Do not overload your power circuit, as this may result in fire or electric

shock.

Handle the power cord with care.

* Do not place the cord underneath the unit or other heavy objects.

* Do not pull on or tie the cord.

If the power cord becomes damaged, stop using it. Use of a damaged cord

may result in fire or electric shock.

Never touch the plug and power cord if it begins to thunder.

Touching them may result in electric shock.

When attaching an arm stand, please refer to the user’s manual of the

arm stand and install the unit securely with the enclosed screws.

Not doing so may cause the unit to come unattached, which may result in

or e

ment dama

e. When the unit is dro

ed,

lease ask

our dealer

for advice. Do not continue using a damaged unit. Usin

a dama

ed unit ma

result in fire or electric shock. When reattaching the tilt stand, please use the

same screws and tighten them securely.

Do not touch a damaged LCD panel directly with bare hands.

The liquid crystal which leaks from the panel is poisonous if it enters the eyes

or mouth.

If any part of the skin or body comes in direct contact with the panel, please

wash thoroughly. If some physical symptoms result, please consult your

doctor.

Follow local regulation or laws for safe disposal.

The backlight of the LCD panel contains mercury.

English

PRECAUTIONS

CAUTION

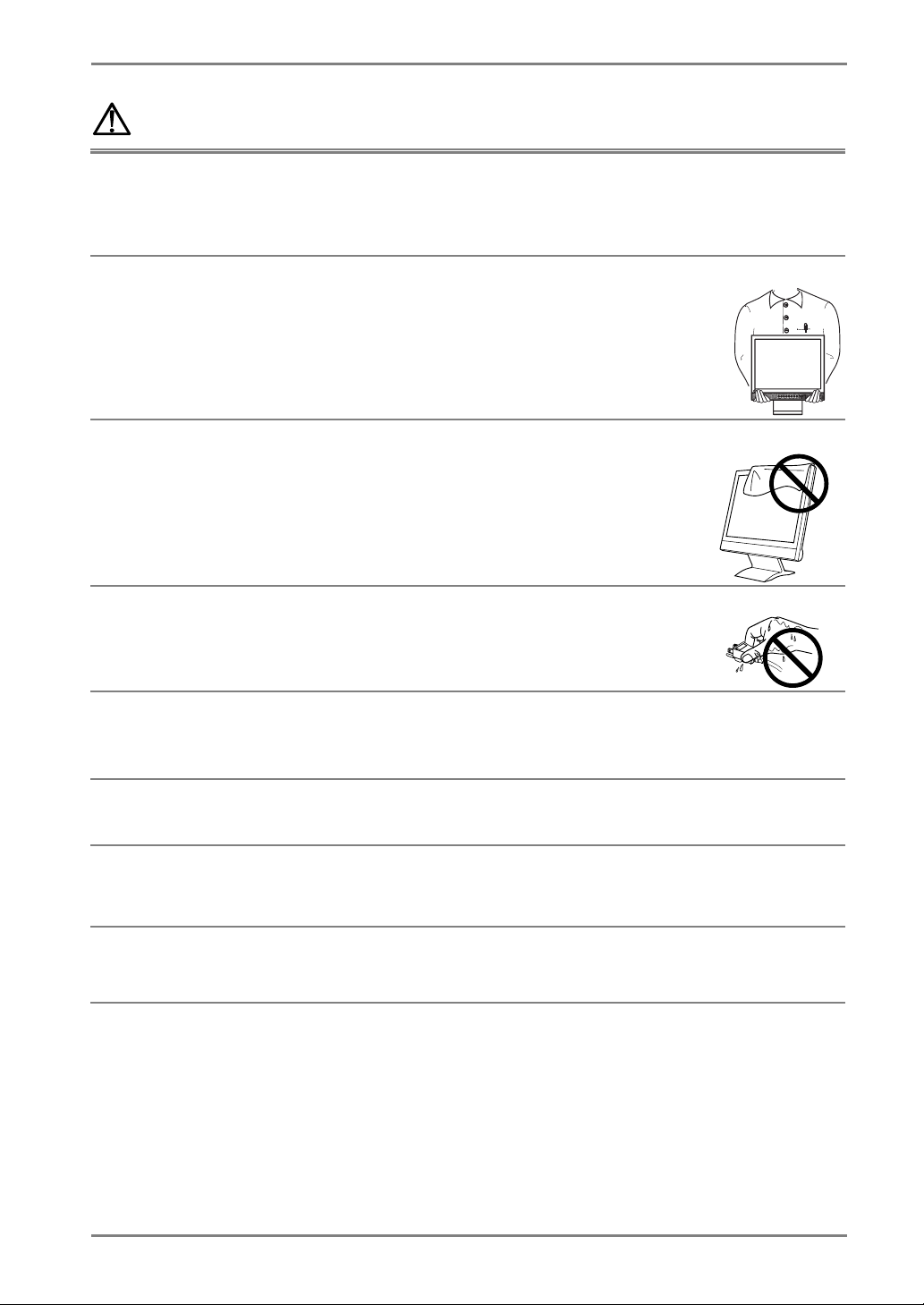

Handle with care when carrying the unit.

Disconnect the

ower cord and cables when movin

the unit. Movin

the unit

with the cord attached is dangerous. It may result in injury or equipment

damage.

When handling the unit, grip the bottom of the unit firmly with both

hands ensuring the panel faces outward before lifting.

Dropping the unit may result in injury or equipment damage.

SIG.SIG. AUTOAUTO ENT.ENT.

Do not block the ventilation slots on the cabinet.

* Do not place books or any other papers on the ventilation slots.

* Do not install the unit in a closed space.

* Do not use the unit lying down or upside down.

Using the unit in these ways blocks the ventilation slots and prevents proper

airflow, leading to fire or other damage.

Do not touch the plug with wet hands.

Touching them may result in electric shock.

Use an easily accessible power outlet.

This will ensure that you can disconnect the power quickly in case of a

problem.

Periodically clean the area around the plug.

Buildup of dust, water, or oil on the plug may result in fire.

Unplug the unit before cleaning it.

Cleaning the unit while it is plugged into a power outlet may result in electric

shock.

If you plan to leave the unit unused for an extended period, disconnect

the power cord from the wall socket after turning off the power switch

for the safety and the power conservation.

English

8PRECAUTIONS

LCD Panel

The screen may have defective pixels. These pixels may appear as slightly light

or dark area on the screen. This is due to the characteristics of the panel itself,

and not the product.

The backli

ht of the LCD

anel has a fixed life s

an. When the screen becomes

dark or begins to flicker, please contact your dealer.

Do not press on the panel or edge of the frame strongly, as this will result in

damage to the screen. There will be prints left on the screen if the pressed

image is dark or black. If pressure is repeatedly applied to the screen, it may

deteriorate or damage your LCD panel. Leave the screen white to decrease the

prints.

Do not scratch or press on the

anel with an

shar

ects, such as a

encil or

pen as this may result in damage to the panel. Do not attempt to brush with

tissues as this may scratch the LCD panel.

English

1. INTRODUCTION

Thank you very much for choosing an EIZO Color Monitor.

1-1. Features

• Dual inputs compliant

• DVI (p.34) Digital input (TMDS (p.35)) compliant.

• Horizontal scanning frequency: 24.8 - 80 kHz (Digital input: 31.5 - 64 kHz)

Vertical scanning frequency: 55 - 75 Hz Vertical (Digital: 60 Hz (VGA text: 70 Hz))

Resolution: 1280 dots x 1024 lines

• Auto Adjustment compliant

• ColorManagement function incorporated

• Support to sRGB (p.35) standard

• Built-in speaker system

1-2. Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or

damaged.

•LCD Monitor

•Power Cord (1)

•Signal cable (MD-C87 or MD-C100) (1)

•Stereo mini-jack cable (1)

•User’s Manual

•ScreenManager Quick Reference

•LIMITED WARRANTY

•Mounting Screws: M4 x 12 (mm) (4)

NOTE

• Please retain the packing materials for future transference.

English

10 1. INTRODUCTION

1-3. Controls & Connectors

Front

S I G .S I G . AUTOAUTO ENT.ENT.

(4) (5) (6) (7) (8) (9)

(3)

(1)

(2)

SIG. AUTO ENT.

(1) ScreenManager

(2) Speaker*1

Volume Control Press the right and left buttons.

Mute Press the up or down button for a while after

pressing the right or left button to display the

volume control bar.

Press the right or left button to mute off.

(3) Headphone jack (stereo mini-jack)

(4) Input signal selection button

(5) Auto Adjustment Button

(6) Enter Button

(7) Control Buttons (Up, Down, Left, Right)

(8) Power Button

(9) Power Indicator*2

Blue Operation

Yellow Power saving

Flashing yellow (2

times for each)

Power save mode Digital only

Off Power off

*1 Regarding the sound connection, see page 15.

*2 Regarding the power indicator for the “Off Timer”, see page 18.

Control Panel

Otros manuales para FlexScan L565

Tabla de contenidos

Otros manuales de Monitor de Eizo

Eizo

Eizo FLEXSCAN F520 - Manual de usuario

Eizo

Eizo FlexScan EV2495-WT Manual de usuario

Eizo

Eizo DuraVision FDS1903-A Manual de usuario

Eizo

Eizo FlexScan S1932 Manual de instalación y operación

Eizo

Eizo FlexScan S1934 Manual de usuario

Eizo

Eizo FlexScan L461 Manual de usuario

Eizo

Eizo FlexScan L560T-CB Manual de usuario

Eizo

Eizo FlexScan EV2795 Manual de usuario

Eizo

Eizo RadiForce RX240 Manual de usuario

Eizo

Eizo ColorEdge CS270 Manual de usuario

Eizo

Eizo FlexScan EV2730Q Manual de usuario

Eizo

Eizo coloredge prominence CG3145 Manual de usuario

Eizo

Eizo DuraVision FDS1721T Manual de usuario

Eizo

Eizo FlexScan L360 Manual de usuario

Eizo

Eizo FlexScan EV2023W Manual de usuario

Eizo

Eizo DuraVision FDF2382WT-BK Manual de usuario

Eizo

Eizo FLEXSCAN L887 Manual de usuario

Eizo

Eizo FlexScan S2001W Manual de usuario

Eizo

Eizo FlexScan S2000 Guía del usuario

Eizo

Eizo RadiForce MX215 Manual de usuario

Eizo

Eizo DURAVISION FDX1001 Manual de usuario

Eizo

Eizo DuraVision FDX1003 Guía del usuario

Eizo

Eizo 23" Full-HD monitor EIZO Foris FS2333 Manual del propietario

Eizo

Eizo Foris FX2431 Guía del usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
