Model Ei161RC Ionisation

Remote Control capability

Easi-fit base

Tamper-proof rechargeable Lithium battery back-up

High performance ionisation chamber

Test/Hush button

Advanced suppression and calibration technology

Interconnectable to other Ei mains powered alarms

Low power cell warning

Kitemarked to BS EN 14604:2005

5 year guarantee

Product Description

The Ei161RC is an Ionisation Smoke Alarm that runs on

230V AC mains power, and has built in tamper-proof

rechargeable Lithium cells that act as a battery back-up in

the event of mains failure. These rechargeable Lithium cells

are designed to have a ten-year life and outlast the life of the

smoke alarm itself. They provide up to six months of smoke

alarm operation without mains power.

The Ei161RC also has Remote Control capability - allowing

the detector to be controlled remotely from a Control Switch

(Ei1529RC). This then allows remote Test, Locate and Hush

functions to be performed. If the Ei161RC is also

interconnected to other Ei „RC‟ mains powered alarms, then

the whole system can be controlled remotely. Up to twelve

alarms can be interconnected which will cause all alarms to

sound when one unit senses smoke/heat. A Manual Call

Point (MCP401RC) is also available.

The Ei161RC is supplied with the Easi-fit base that allows

very quick and simple installation of the smoke alarm,

combined with simple detector head removal and

replacement. The Easi-fit base automatically connects both

mains power and battery as the detector head slides on.

The Ei161RC has other advanced features such as built in

circuitry to aid suppression of both voltage transients and

radio-frequency interference to further reduce the chances of

false alarms.

Operation

The green indicator will illuminate to show mains power is

present

The red indicator will flash every 40 seconds to show that

the detector has performed an automatic self test

The red indicator will flash rapidly to showan alarm

condition for the smoke detector

The “Test/Hush” button will either silence false alarms (if

briefly pressed) or perform a smoke chamber test (if

pressed and held)

In “Test” mode the alarm will perform a smoke chamber

test and sound the horn

In “Hush” mode the alarm enters a ten-minute period of

reduced sensitivity to overcome false alarm conditions. It

will then automatically reset

When interconnected to other Ei mains powered alarms, an

alarm on one detector will trigger all other interconnected

alarms (only the triggered alarm will flash a red indicator)

The smoke alarm will emit a beep every 40 seconds to

indicate that the battery back up is depleted and needs

recharging

MAINS POWERED 230V~

Remote System Control Capability

& Rechargeable Battery Back-Up

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053

Email. [email protected]

Web: www.eielectronics.com

E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior notice. Ei161RC DataSht RevB

Model Ei161RC Ionisation

System Wiring

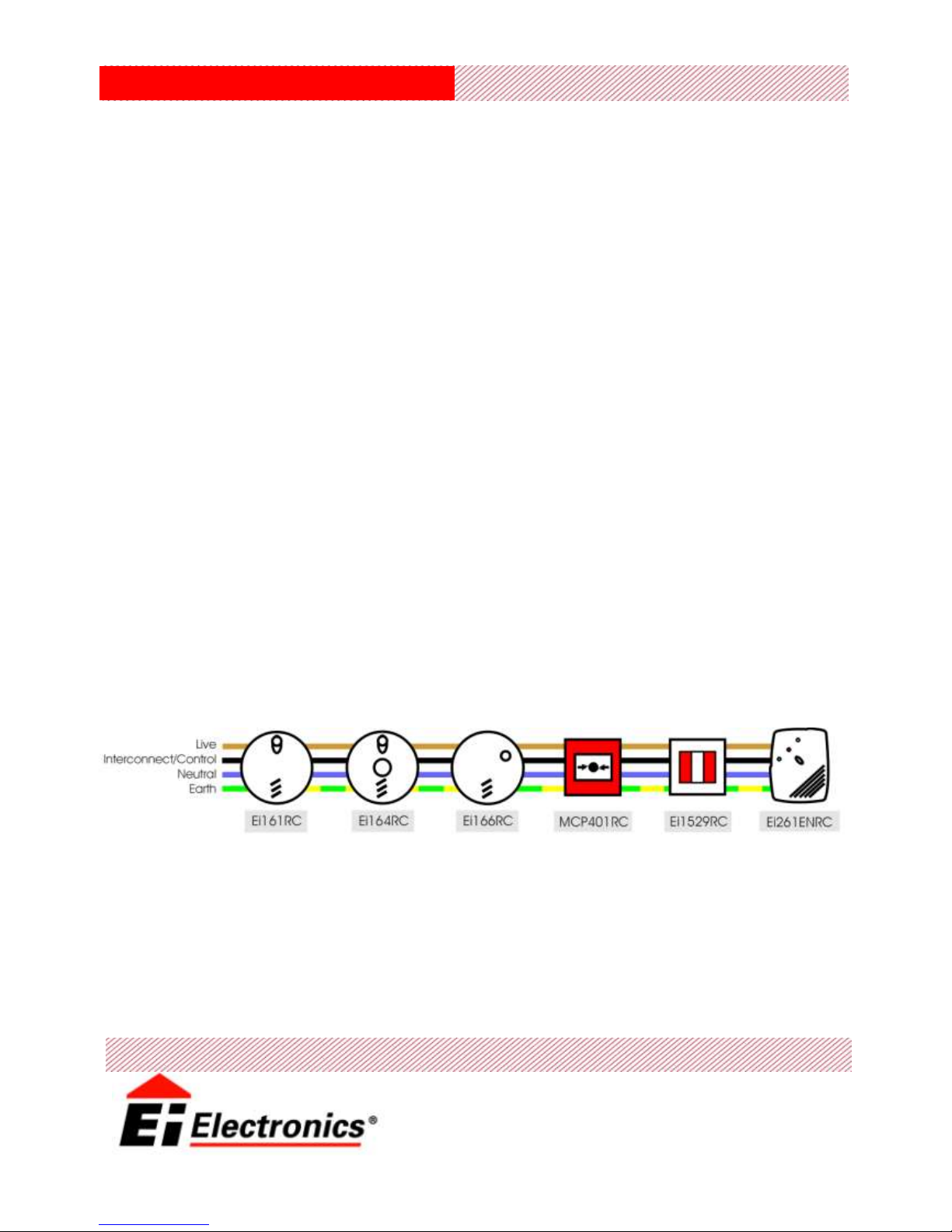

Wiring for Interconnected Alarms with optional Remote System Control Switch & Manual Call Point

Ensure correct wiring of the alarms and switches as mixing Live and Neutral will blow / damage interconnected units.

Technical Specification

Sensor Ionisation

Sensitivity: Complies with BS 5446 Part 1:

2000

Source: Americium 241 (33kBq)

Button Test: Simulates the effect of smoke and

checks electronics and horn

Automatic Self-Test: Circuitry is tested every 40

seconds and unit beeps if fault is

detected

Supply Voltage: 230V AC, 50Hz

Battery back up: Rechargeable Lithium cells

Power-On Indicator: Continuous green LED

Alarm: Electronic Piezoelectric horn

Alarm Sound Output: 85dB(A) (minimum) at 3m

Alarm Status: Red LED flashes every second on

unit sensing fire

Normal Operating

Temperature Range: 0 to 40°C

Humidity Range: 15% to 95% Relative Humidity

Interconnect: Up to 12 of these units can be

interconnected:

-Ei161RC/164RC/166RC smoke or

heat alarms

- Ei261ENRC/261DENRC CO alarm

- Ei128RBU relay base

Use with optional control (see below)

Optional Controls: - Ei1529RC Control Switch

- MCP401RC Manual Call Point

Fixing: Easi-fit mounting base

Plastic material: UL94VO flame retardant

Dimensions: 145mm diameter x 40mm depth

Weight: 281g

Guarantee: 5 year (limited)

Approvals: Kitemarked to BS EN 14604:2005

(License no. KM07862) and CE

certified

Specifications are subject to change
