Ei Electronics EI 100C Interconnect Manual de usuario

E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior notice. Ei100C DataSht RevB

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053

Email. eielectronics@eiltd.ie

Web: www.eielectronics.com

Model Ei 100C Ionisation

High sensitivity –responds to all standard fires

Dual Ionization chamber - quick response fast

flaming fires

Battery powered –9V supplied)

Interconnect up to 12 other alarms

Needs no wiring

Missing battery indicator

Low battery warning

Built in sounder

Test button

Kitemarked to BS EN 14604:2005

5 year guarantee

Product Description

The Ei100C is an Ionisation Smoke Alarm that runs on a

9V alkaline battery (supplied with the alarm).

Ionisation smoke alarms operate on the principle that

electrical current flowing between electrodes in an

ionization chamber is reduced when smoke particles

enter.

Ionisation technology gives a rapid response to fast

flaming fires

The Ei100C is easily installed and comes supplied with

all necessary screw fixings.

The Ei100C is fitted with a warning flag that pops up

when the battery is removed. This prevents the cover

from closing when there is no battery fitted to the unit.

When the battery is being installed or changed, this flag

must be held down while gently pushing the battery into

the battery holder.

When the battery is first connected, the alarm may sound

for 2-3 seconds –this is normal and means that the

battery is connected correctly

Operation

Interconnect up to 12 other alarms (9V ionisation,

optical or heat) when one senses smoke, all alarm.

Helps ensure warning will be heard throughout the

house

The smoke detector will activate the built in sounder

upon sensing smoke particles

The smoke detector will automatically reset itself

and silence the sounder when smoke particles are

no longer present in the sensing chamber

The built in sounder will provide a minimum sound

output of 85dB at 3m

The smoke detector has a built in warning flag to

prevent installation of the detector without a battery

fitted

The “Test” button will perform a self test and sound

the horn (it may take up to 10 seconds)

The smoke detector will emit a beep every 40

seconds to indicate that the battery back up is

depleted and needs replacing

9V BATTERY POWERED

E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior notice. Ei100C DataSht RevB

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053

Email. eielectronics@eiltd.ie

Web: www.eielectronics.com

Model Ei100C Ionisation

Installation & Placement

Alarms should be placed in accordance with the general guidelines shown in

the diagram above. These recommendations are based on the problem of

areas of “dead air” close to corners of rooms and apexes of ceilings, which

could result in the prevention of smoke reaching the smoke detector

Please consult the Instruction Leaflet supplied with the Ei100C for detailed

instructions as to how to correctly install and position the smoke detector

Important Precaution:

Do not install the actual smoke/heat

alarm itself in new or renovated

buildings until all work is completed

(including floor coverings) and the

building has been fully cleaned.

(Excessive dust and debris from

building work can contaminate the

smoke chamber and cause

problems, and it will also invalidate

the guarantee). If it must be

installed, cover it completely,

particularly around the edges, with

a dust cover (eg. a plastic bag),

until all cleaning is finished..

Technical Specification

Sensor Ionisation, uses electrically

charged ions that will react

to smoke particles

Sensitivity: Complies with BS 5446 Part 1:

2000

Source: Americium 241

Airspeed: Essentially immune to the effect

of airspeed.

Button Test: Simulates the effect of smoke and

checks chamber, electronics and

horn.

Supply Voltage: 9V battery

Alarm: Piezoelectric-horn

in unit

Alarm Sound Output: 85dB (minimum) at 3m

Temperature Range: 0 to 40°C

Humidity Range: 0% to 90% Relative Humidity

Fixing: Screw fixings supplied

Plastic material: UL94HB flame retardant

Dimensions: 140x120x45 mm

Weight: 174 gram

Warranty: 5 year (limited) warranty

Approvals: Kitemarked to BS EN 14604:2005,

CE Approved

Specifications are subject to change

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Detector de humo de Ei Electronics

Ei Electronics

Ei Electronics Ei141EK Manual de usuario

Ei Electronics

Ei Electronics RadioLINK Ei170RF Manual de usuario

Ei Electronics

Ei Electronics EI 159 Manual de usuario

Ei Electronics

Ei Electronics Ei 156TLR Optical Manual de usuario

Ei Electronics

Ei Electronics Ei100TY Manual de usuario

Ei Electronics

Ei Electronics Ei175 Ionisation Manual de usuario

Ei Electronics

Ei Electronics Ei 405C Manual

Ei Electronics

Ei Electronics Ei160e Series Manual de usuario

Ei Electronics

Ei Electronics EiA600 Series Manual de usuario

Ei Electronics

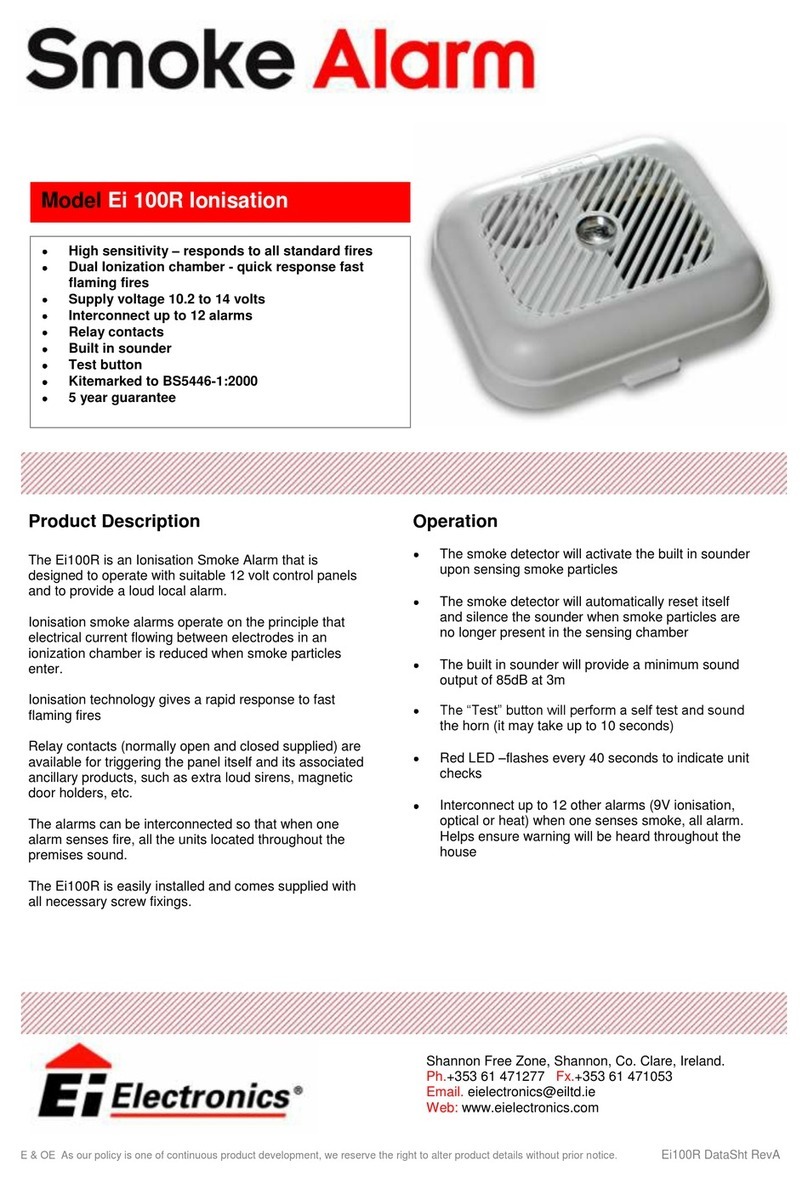

Ei Electronics Ei 100R Ionisation Manual de usuario
