EGO CS1400E Manual de usuario

REPAIR GUIDELINE

CHAIN SAW_CS1400E

Version: 1

Issue Date: 2015/2/15

Table of Contents

2

NO. Contents Page

1 Troubleshooting 3-4

2 Tool list 5

3 Disassemble the product 6-9

4 Replace the PCBA 10-13

5 Replace the motor 14-15

6 Replace the oil tank assembly/Plastic gear 16

7 Assemble the product 17-31

Troubleshooting

3

Problem Possible Cause Fault Position Test & Solution

Fail to start/stops in

running

Weak connection of the

white cable

Battery

connection

terminals (base)

Open the housing, check if the white

cable that connects to the battery

connection terminal was insufficiently

soldered (weak connection), re-solder

the cable and check the function.

PCBA is broken PCBA Open the housing, replace the PCBA

Big deviation of the speed

sensor Motor assembly Open the housing, replace the motor

assembly

No oil lubrication

when cutting

Oiling hole in housing was

blocked by debris

Oil hole in

housing

Open the housing, clear the oil hole in

housing.

Oil pumper was blocked

by oil residue Oil tank assembly Open the housing, replace the oil tank

assembly

Plastic gear was worn out Plastic gear

Open the housing, replace the plastic

gear; check and clear the oil hole in the

housing.

Saw chain cannot or

hard to move in guide

bar

Guide bar was worn out Guide bar Replace the guide bar

Troubleshooting

4

Problem Possible Cause Fault Position Test & Solution

Saw chains slides on

the sprocket/big

noise

The sprocket was worn

out Sprocket Replace the sprocket

Noise Motor bearing was worn

out Motor Open the housing, replace the motor

assembly

Tool List For Repair

5

NO. Tool List SPEC Remark

1 Magnetic bits

2 Electric soldering iron

3 Heat gun

4 Heat shrinkable sleeves

5 Silicon glue Assist fixing the plug

6 Scissors To remove the shrinkable sleeve

7 Snap ring pliers To remove the E-ring

1. Remove the side cover, saw chain and guide bar from the chain saw;

Description Part Number SPEC

Side cover assembly 2823860000 ---

Saw Chain 3810637000 90PX052X (Oregon)

Guide Bar 3705657000 144MLEA041 (Oregon) 350mm (14”)

Disassemble the Product

6

2. Remove the E-ring, Gasket and Sprocket from the motor shaft.

Description Part Number SPEC

E-Ring 5660028000

Gasket 5660208000

Sprocket 3421564000

Disassemble the Product

7

3. Loose the four screws to remove the front handle from the housing.

Description Part Number Quantity

Tapping screw 5610042000 4 pcs

Front Handle 3127504000

Disassemble the Product

8

4. Remove the oil tank and loosen the screws in housing, total 12 pcs.

5. Open the housing.

Description Part Number Quantity

Tapping screw 5610042000 12 pcs

Disassemble the Product

9

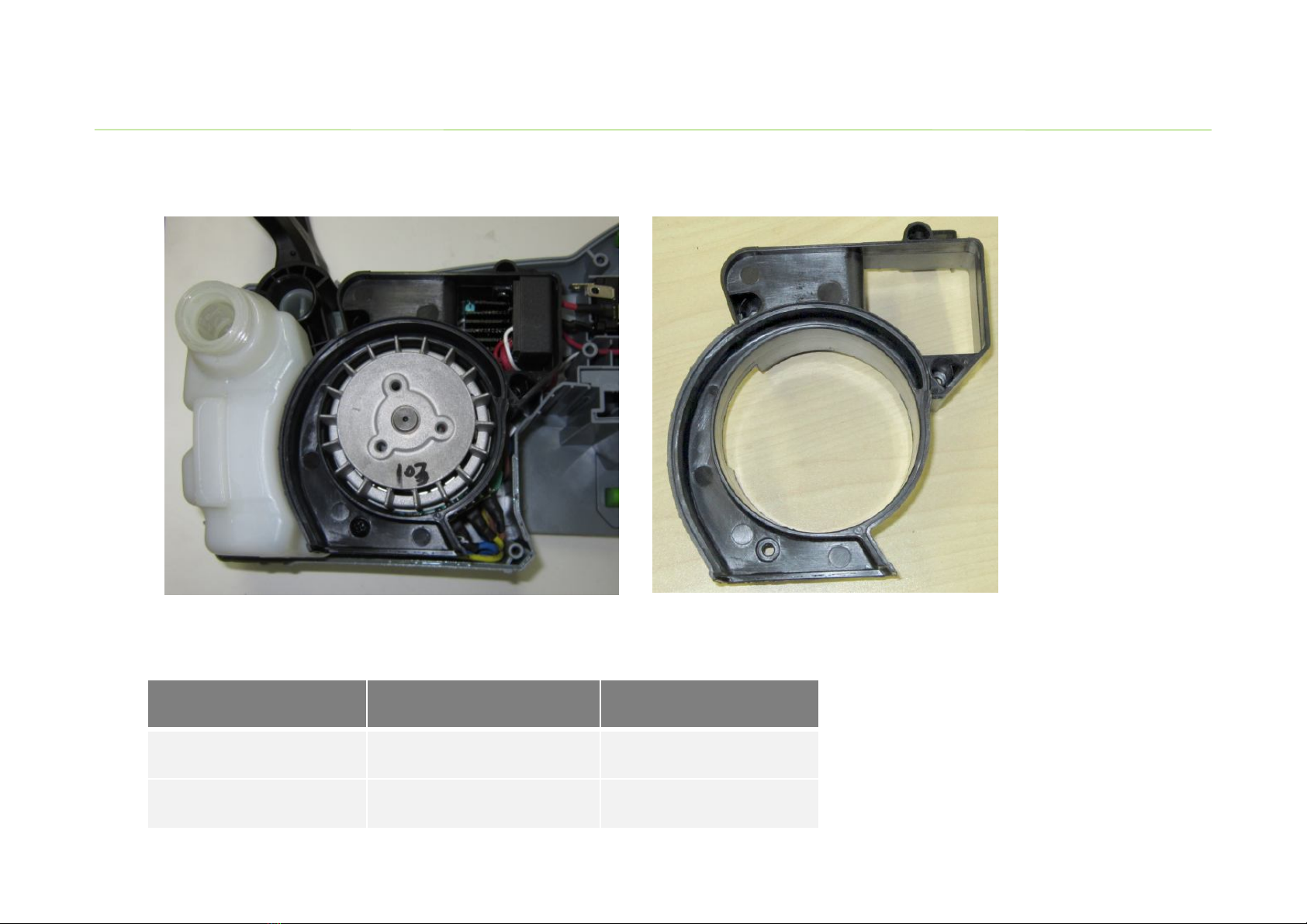

1. Loosen the screws in fan baffle and remove the fan baffle from the motor.

Description Part Number Quantity

Tapping screw 5610042000 4 pcs

Fan baffle 3127502000

Replace the PCBA

10
