1 General

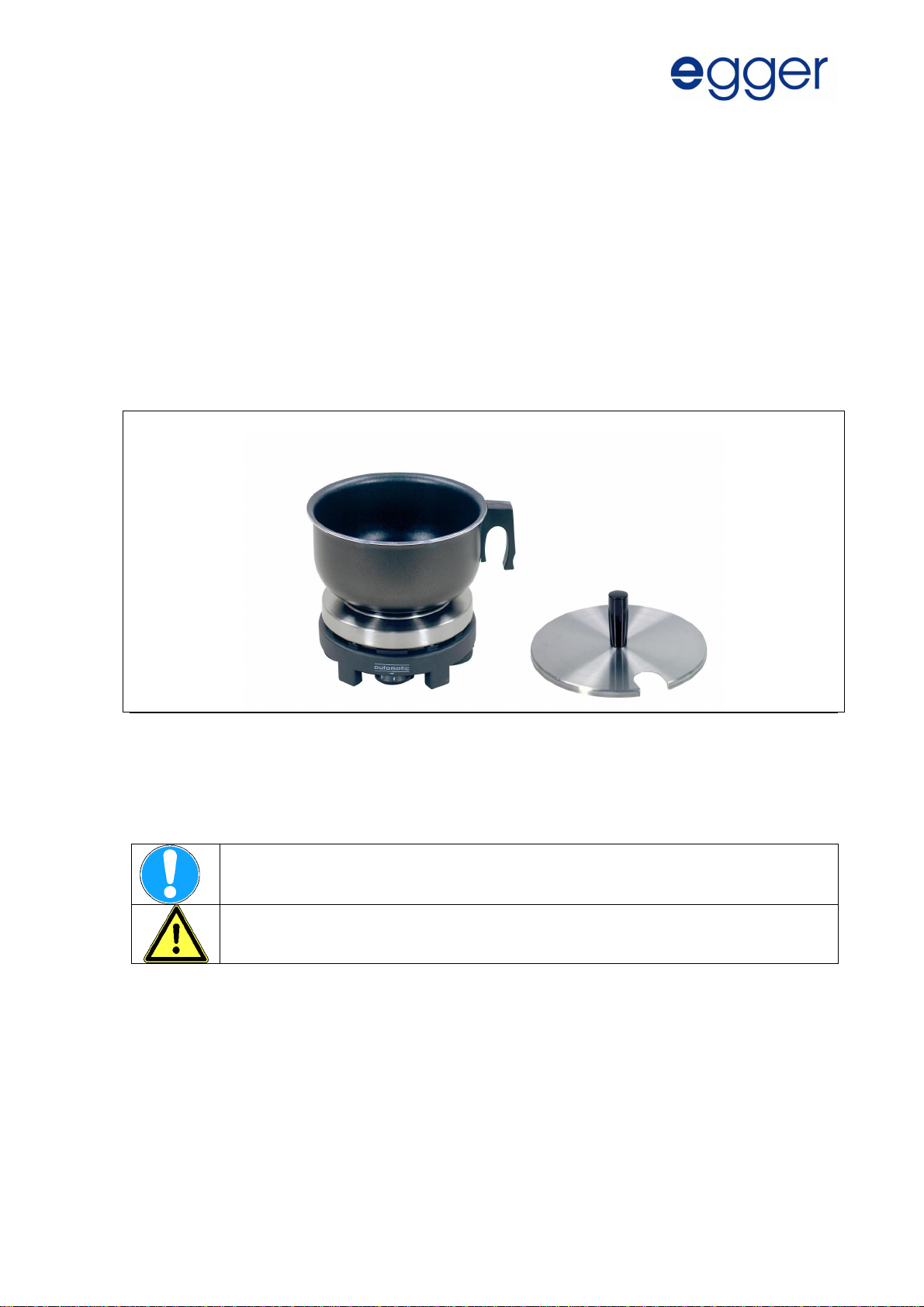

The wax immersion unit and duplicating device/ electrical wax heating unit can be used for
different kinds of manufacturing otoplastics and ITE shells:
a) for the waxing of ear impressions (molds) with high-quality immersion wax (REF 41201)
b) for the melting of duplicating gel (REF 40900) for the manufacturing of negative molds
c) for the melting of adhesive wax (4110ff) to fix the impressions in investment forms or on the
investment kit
The unit is equipped with a heating plate as well as a material container including a lid to
protect the device against contaminates.
The device is designed according to state-of-the-art technology and is easy to use.
To control the temperature of the immersion wax, the duplicating gel or adhesive wax, we
recommend the digital thermometer (REF 65002) as well as the matching holder (REF 65007).
In addition, we also recommend the dipping sieve (REF 65004) to immerse and remove the
impressions in and from the liquified wax.
2 Safety regulations
The wax immersion unit and duplicating device/ electrical wax heating unit is
used to heat up dipping wax, duplicating gel, or adhesive wax. A use other
than described in the operating instructions may lead to injuries of the op-
erator or of third persons. Furthermore, the device or other material assets
may be damaged. Therefore, the device must be used in technically perfect
condition only and the safety regulations must be strictly complied with.
2.1 Usage according to the regulations
· Protect the unit from dust. Use the unit on dry working places only.
· Qualified and trained persons must use the device only.
· Use the unit in perfect conditions only.
· Before putting the device into operation, the user has to read the op-
erating instructions and ask the manufacturer in case of questions.
· Connect the device to permissible sockets only.
· Please adhere to the accepted safety regulations.
· Before switching on the unit, make sure that the container is filled with
immersion wax, duplicating gel or adhesive wax (please also adhere to
the processing manual for each material to be worked with).
· Do not pull the mains plug out off the socket at the mains cable.
· Should the mains cable be damaged, it must be replaced at once. De-
fective mains cables must not be used.
· The device must be repaired by the manufacturer only.
· The unit must be switched off during service and maintenance opera-
tions (cleaning, replacing the immersion wax, duplicating gel or adhe-
sive wax). Pull the mains plug beforehand!
· Do not use any dissolvents when cleaning the device. Do not immerse
the unit in liquids.
· Children must be kept away from the unit.
In case of self-made repairs or use of other spare parts all guarantee and war-
ranty claims will become extinct!
