Package Contents

Installation

1. Screw in the three included 3dBi

antennas to the back of the router, and

use an Ethernet cable to connect the

router’s WAN port to your modem’s

LAN port.

2. Use an Ethernet cable to

connect any LAN port on the

router to the Ethernet port on

your computer.

BR-6675nD

QIG

Setup Wizard CD

Power Adapter

Ethernet Cable

3dBi Antenna x3

3.Plug the included power adapter

into the router’s 12v Power jack

and the other end into an electrical

socket, and push the ON/OFF

button on the front of the router to

switch on the router.

5.Insert the setup wizard CD into a CD-ROM

drive on your computer. When the wizard

begins, select your language.

4.Ensure that the Power LED, WAN LED and corresponding LAN LED on the

router are lit. If not, the router is not properly connected.

Power

LAN 1 - 4

WAN

Note: If the setup wizard doesn’t run

automatically, please browse your

CD drive and double click the

“Ezmax.exe” file to start the wizard.

6.The setup wizard will guide you through

the installation process. Click “Next” to

continue.

7.Click “Next” to continue.

8.Check that all cables are properly

connected and check the box labeled

“YES, I have connected the cables

correctly”before clicking “Next”.

9.Select your product type –in this case

“BR-6675nD”.

10.Enter the default password 1234 in

the field labeled “Current Password”

and then if you wish to change this

password, enter a new password in the

fields marked “New Password” and

“Confirm New Password”. Click

“Apply” and then “Ok”.

Note: This is the password to login to your router to configure the settings –not

the password to connect to the router’s Wi-Fi network(s). If you change this

password, please make a note of the new password.

If you forget, you can reset the password back to its default value of 1234 by

resetting the router back to factory defaults, see Troubleshooting.

11.Select your Internet connection type

and click “Next”. If you are a dynamic IP

user, then select “Cable Modem”. For

most users, “Cable Modem” is the

correct setting. If you are unsure, please

contact your Internet Service Provider

(ISP).

12. If you received a host name and MAC

address from your ISP, enter them here

and click “Apply”. If you are sure the

MAC address is the same as your

computer, you can click “Clone”to

clone your computer’s MAC address

and then click “Apply”to continue.

13.Please wait while the router connects

to the Internet.

14.When the router is connected your default web browser will open. Close the

browser, and you will see the following screen. Please do not select Exit. You still

need to configure the ESSID and Wireless Security –please select “ESSID”from

the top menu next.

15.Please enter separate ESSIDs for the

router’s 2.4GHz mode and 5GHz mode.

An ESSID is a name to identify the

wireless router. Later, when the router

is fully operational, you will need to

select this ESSID from your available

Wi-Fi networks to connect to the

wireless router. Click “Apply”.

16.Please wait while the router is setting

its new ESSID. When it is finished, click

“Complete!” and then click “Next” to

continue.

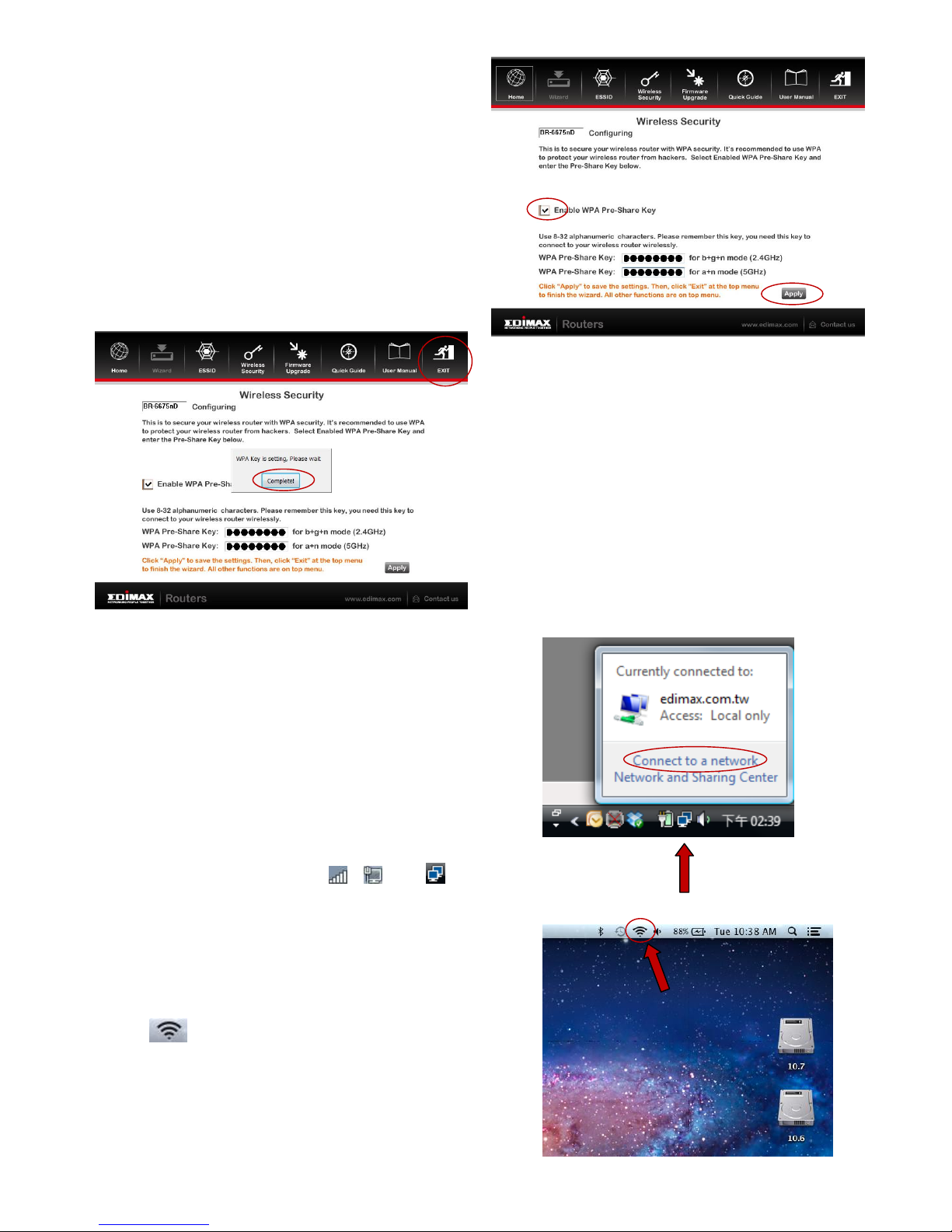

17.To configure your router’s wireless

security, check the box labeled “Enable

WPA Pre-Share Key”. Then enter a

password for each of the router’s

2.4GHz and 5GHz networks. This

password will be required when you

connect to the router wirelessly. Click

“Apply” to save the settings.

18.Please wait for the router to save the

new passwords. When it is finished,

click “Complete!” and then click “EXIT”

in the top right corner to exit the setup

wizard.

19. You can now open a web browser to

access the internet and check your

router’s connection. Then, to connect to

the BR-6675nD’s wireless networks, you

need to unplug the Ethernet cable

connecting the router and your

computer.

Windows

Click the network icon ( , or ) in

the system tray and select “Connect to a

network”.

Mac

View available Wi-Fi networks by clicking

the icon along the top right of your

screen.

20. Windows

Search for the ESSID you named your

Wi-Fi network and click it and then click

“Connect”. If you set a password for your

network, you will then be prompted to

enter it.

Mac

Click on the ESSID of your network.

If you set a password for your

network, you will then be prompted

to enter it.

21. After correctly entering your

password, you will be successfully

connected to your Wi-Fi network.

Alternatively, if your wireless device supports WPS, you can use the WPS

button (see next section).

If your wireless device supports WPS (Wi-Fi

Protected Setup) then you can use this method to

connect to the BR-6675nD’s Wi-Fi networks.

For Mac/Linux users –or those who can’t run the CD, you can setup the router

manually using the web based configuration interface.

WPS Setup

Web Based Configuration Interface

1.Press the WPS/Reset button on the router

once to activate WPS for 2.4GHz Wi-Fi, or press

twice (within 5 seconds) to activate WPS for

5GHz Wi-Fi.

2.Within two minutes, press and hold the WPS

button on the wireless device/client to activate

its WPS.

Note: Please check the instructions for your

wireless device for how long you need to hold

down its WPS button to activate WPS.

3.The devices will establish a connection. Repeat

for additional wireless devices.

1.Enter http://192.168.2.1 into the URL of a

web browser and enter the username

admin and password 1234.

2.Select “General Setup”from the top

menu and “WAN”from the submenu.

Choose your connection type –for

most users it is “Dynamic IP”. If you are

unsure, please contact your Internet

Service Provider (ISP). Click “Apply” and

then “CONTINUE”.
