Edimax HP-5102AC Manual de usuario

HP-5102AC

User Manual

02-2013 / v1.0

publication may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language, in any form or by

any means, electronic, mechanical, magnetic, optical, chemical, manual or

otherwise, without the prior written permission from Edimax Technology Co.,

Ltd.

Edimax Technology Co., Ltd. makes no representations or warranties, either

expressed or implied, with respect to the contents hereof and specifically

disclaims any warranties, merchantability, or fitness for any particular purpose.

Any software described in this manual is sold or licensed as is. Should the

programs prove defective following their purchase, the buyer (and not this

company, its distributor, or its dealer) assumes the entire cost of all necessary

servicing, repair, and any incidental or consequential damages resulting from

any defect in the software. Edimax Technology Co., Ltd. reserves the right to

revise this publication and to make changes from time to time in the contents

hereof without the obligation to notify any person of such revision or changes.

The product you have purchased and the setup screen may appear slightly

different from those shown in this QIG. For more information about this product,

please refer to the user manual on the CD-ROM. The software and specifications

are subject to change without notice. Please visit our website www.edimax.com

for updates. All brand and product names mentioned in this manual are

trademarks and/or registered trademarks of their respective holders.

Edimax Technology Co., Ltd.

Add: No. 3, Wu-Chuan 3rd Rd., Wu-Ku Industrial Park, New Taipei City, Taiwan

Tel: +886-2-77396888

Email: [email protected]

Contents

Chapter 1: Introduction .....................................................................................................................................3

1.1 Product Features..................................................................................................................................3

1.2 Application ...........................................................................................................................................3

1.3 Compatibility........................................................................................................................................4

1.4 System Requirements ..........................................................................................................................4

Chapter 2: About the Product............................................................................................................................5

2.1 LED Definitions.....................................................................................................................................5

2.2 Interface...............................................................................................................................................6

2.3 Fast Ethernet Port ................................................................................................................................6

Chapter 3:Utility Software Installation ..............................................................................................................7

3.1 Win 8 ....................................................................................................................................................7

3.2 Win XP/Vista / 7 .................................................................................................................................15

Chapter 4: Using the Utility Software ..............................................................................................................21

4.1 Main Tab ............................................................................................................................................21

4.2 Diagnostics Tab ..................................................................................................................................22

4.3 About Tab...........................................................................................................................................23

Chapter 5: Group Button .................................................................................................................................24

5.1 Forming a HomePlug AV Logical Network .........................................................................................24

5.2 Joining a Network ..............................................................................................................................25

5.3 Leaving a Network & Joining another Network.................................................................................26

Chapter 6: Troubleshooting .............................................................................................................................27

Chapter 1: Introduction

1.1 Product Features

Easy plug-n-play setup and 128-bit AES security

Max. powerline speed up to 500Mbps

Backward compatible with 200Mbps powerline adapters

Features energy saving mode to reduce power consumption

Utilizes existing electrical wires to transmit network data

Powerline transmission range up to 300 meters

1.2 Application

High-definition (HD) and standard-definition (SD) video distribution

Broadband Internet sharing

Internet Protocol Television (IPTV) and Voice over Internet Protocol (VoIP)

applications

1.3 Compatibility

500Mbps powerline devices (HomePlug AV standard) are incompatible and cannot be

used with 14Mbps and 85Mbps powerline devices (HomePlug 1.0 and 1.1 standards).

1.4 System Requirements

Operating System

Utility supports Windows XP/Vista/7/8

CPU

Intel Pentium III 1.0GHz (or above)

RAM

256MB (or above)

Free Disk Space

100MB (or above)

Network Interface

Ethernet port (100Mbps or above) and an Ethernet cable

Chapter 2: About the Product

2.1 LED Definitions

LED

Status

Description

LAN

Green

LAN port connected

Blinking

LAN activity (transferring data)

Off

LAN port not connected

PLC

Green/Yellow

The green indicator turns on and the yellow indicator

blinks slowly when the device is detecting a

powerline link.

The green indicator turns on and the yellow indicator

blinks quickly to indicate data is being transferred

over the powerline link.

Off

No other PLC device detected

PWR

Green

Powered on

Off

Powered off

Note: The device will enter standby mode, and all LEDs will extinguish, after

5 seconds without any data transfer, including when the Ethernet cable is

disconnected. The Power LED will flash once every 15 seconds.

2.2 Interface

Interface

Description

Integrated

Power Socket

The integrated electrical socket enables additional terminal

devices or multiple socket to be connected to the adapter, just

as a normal wall socket would.

Ethernet Port

This is a Fast Ethernet port for connecting to a computer or

other devices with a network port.

Group/Reset

Creates an encrypted powerline network group automatically

(press the button for less than 3 seconds).

Leaves an encrypted powerline network group

(press the button for 5~8 seconds).

Restores the powerline adapter to factory defaults (press the

button for 10~15 seconds).

2.3 Fast Ethernet Port

You can connect the powerline adapter to a router, a computer, or any network device

via this Fast Ethernet port.

Chapter 3:Utility Software Installation

3.1 Win 8

Step 1 Before installing the utility software, make sure that no other powerline utility is

installed on your computer. If any other utility software is installed, uninstall it and

reboot the computer.

Step 2 Insert the CD into your CD-ROM drive. When the following EZmax Wizard appears,

select your model.

Step 3 Then click “Setup Utility”.

Step 4 Click right button on WinPCap4.1.2 then click “Properties”.

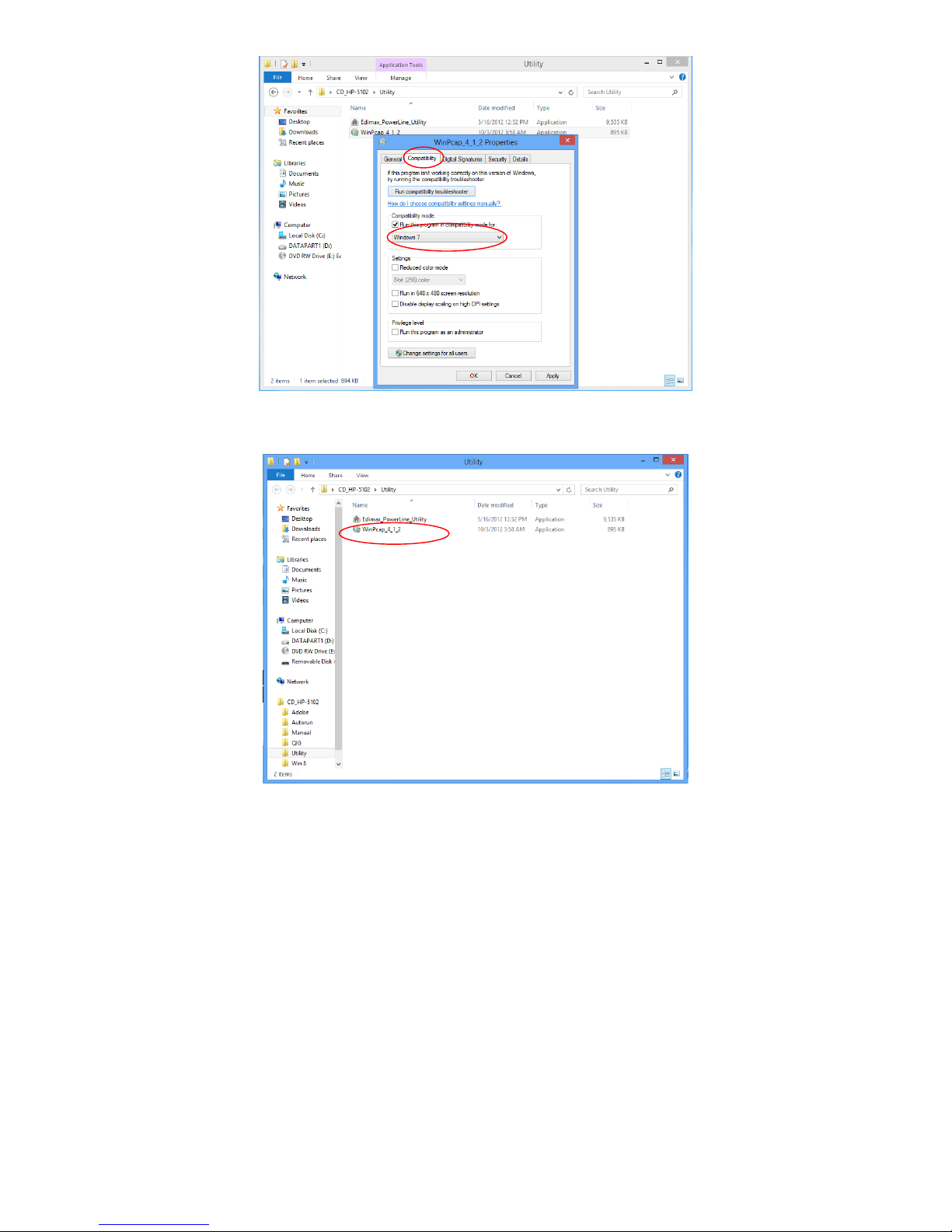

Step 5 Click Compatibility tab and check “Run this program in compatibility mode for:",

then select Windows 7, then click “Apply”.

Step 6 Then click “WinPcap_4_1_2”. The wizard will guide you through the setup process.

Step 7 When the following WinPcap Compatibility Assistant appears, select Run the

program without getting help.
