Edimax EW-7711UAn Manual de usuario

Multi-Languages QIG in Driver CD

================================================

Český: Českého průvodce rychlou instalací naleznete na

přiloženém CD s ovladači

Deutsch: Auf der beiliegend Treiber CD finden Sie deutsche

Anleitung zur

Schnellinstallation.

Español: Incluido en el CD el QIG en Español

Français: Veuillez trouver l’français QIG ci-joint dans le CD

Italiano: Incluso nel CD il QIG in Italiano

Magyar: A magyar telepítési útmutató megtalálható a mellékelt

CD-n

Nederlands: De nederlandse QIG treft u aan op de bijgesloten

Polski: Skrócona instrukcja instalacji w języku polskim znajduje

sięna załączonej płycie CD

Português: Incluído no CD o QIG em Portugues

Русский: Найдите QIG на pусскoмязыке на приложеном CD

Romana: Cd-ul cuprinde Ghid de instalare rapida in limba

romana

Slovensky: Anglického sprievodcu rýchlou inštaláciou nájdete na

priloženom CD s ovládačmi.

Türkçe: Ürün ile beraber gelen CD içinde Türkçe HızlıKurulum

Kılavuzu'nu bulabilirsiniz

简体中文: 产品包装 CD 光盘中含有简体中文版快速安装手冊

繁體中文: 產品包裝隨附 CD 中含有繁體中文版之快速安裝指南

Content

1. Product Information ..............................................................4

2. Package Contents .................................................................4

3. Network Card Installation .....................................................5

3.1 Hardware Installation ....................................................5

3.2 Software Installation .....................................................6

4. Connect to Wireless Access Point ....................................11

this publication may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical,

chemical, manual or otherwise, without the prior written permission of this

company.

This company makes no representations or warranties, either expressed or

implied, with respect to the contents hereof and specifically disclaims any

warranties, merchantability or fitness for any particular purpose. Any

software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not this

company, its distributor, or its dealer) assumes the entire cost of all

necessary servicing, repair, and any incidental or consequential damages

resulting from any defect in the software. Further, this company reserves

the right to revise this publication and to make changes from time to time in

the contents hereof without obligation to notify any person of such revision

or changes.

The product you have purchased and the setup screen may appear slightly

different from those shown in this QIG. For more detailed information about

this product, please refer to the User's Manual on the CD-ROM. The

software and specifications are subject to change without notice. Please

including all brand and product names mentioned in this manual are

trademarks and/or registered trademarks of their respective holders.

1. Product Information

Main Features

Complies with wireless 802.11b/g standards

Compatible with wireless 802.11n standard with data rate up to

150Mbps

Increases Wireless coverage 3 times further *

Includes multi-language EZmax setup wizard

Supports USB 2.0/1.1 interface

Supports WPS configuration function

Supports WMM, WMM-PS (IEEE 802.11e QoS standard)

Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x),WPA2 (AES

with IEEE 802.1x) for high security level

Supports operating system: Windows 2000/XP/Vista, MAC 10.4.x and

above & Linux

* Maximum performance may vary depending on network conditions and

environmental factors.

2. Package Contents

Before you starting to use this wireless network card, please check if

there's anything missing in the package, and contact your dealer of

purchase to claim for missing items:

Wireless USB Adapter x1

USB cable x1

Antenna x1 (For EW-7711USn only)

Quick Installation Guide x1

CD (EZmax Wizard / Utility, Multi-language Quick Installation Guide &

User Manual) x1

3. Network Card Installation

Please follow the following instructions to install your new USB wireless

network card:

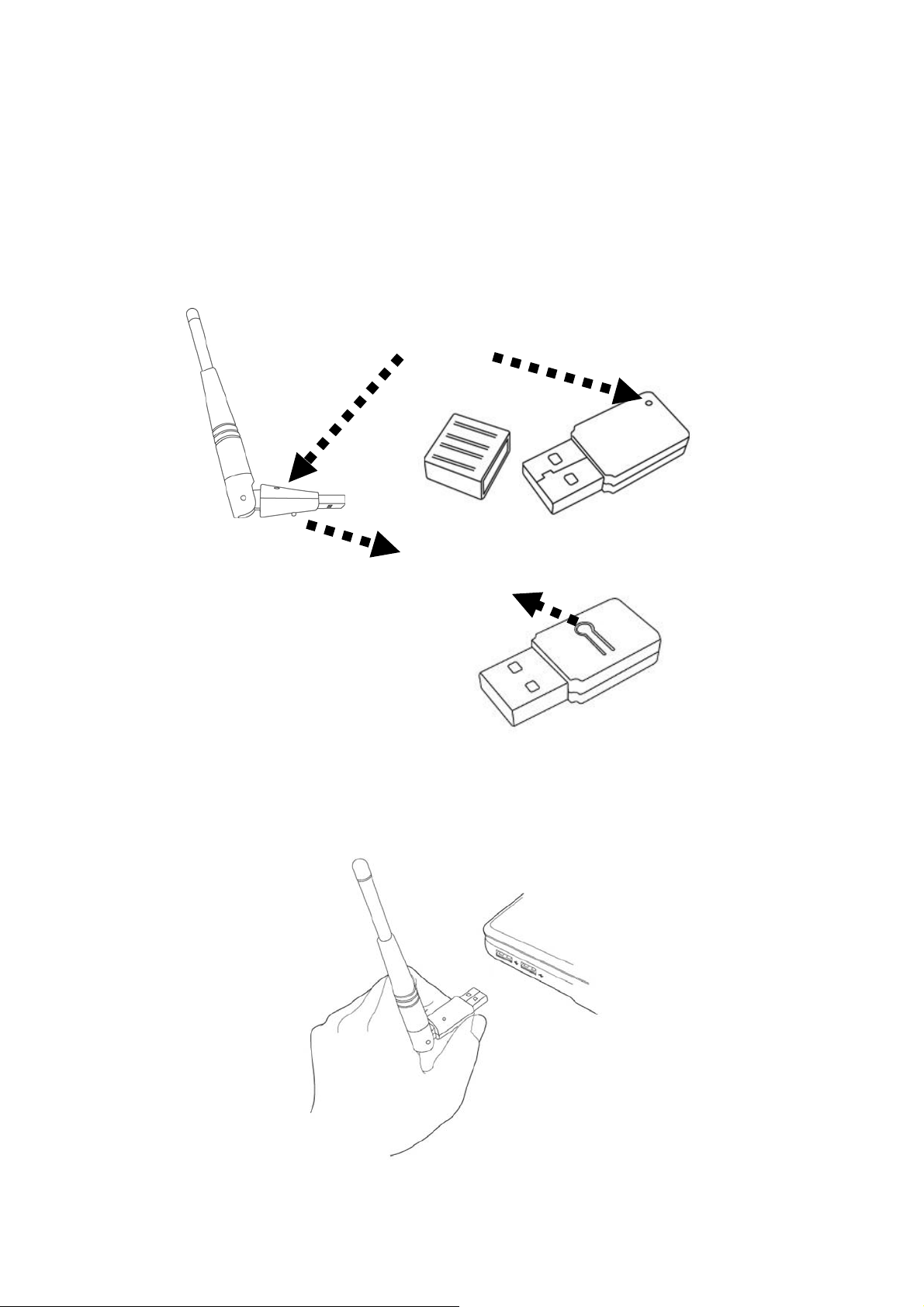

3.1 Hardware Installation

※Built-in Hardware WPS Button (For EW-7711UAn / EW-7711UMn , EW-7711UTn)

1. Insert the USB wireless network card into an empty USB 2.0 port of your

computer when computer is switched on.

WPS

LED

Never use force to insert the card, if you feel it’s stuck, flip the

card over and try again.

2. The following message will appear on your computer, click ‘Cancel’.

Software Installation

This wizard can be run in Windows 2000/XP/Vista. The following

procedures are operated in Windows XP.

You can install the Wireless Adapter by EZMAX Setup Wizard in the

CD-ROM including in the package. The wizard is an easy and quick

configuration tool for internet connection with series process. When you

start EZMAX Setup Wizard, you will get the following welcome screen.

Please choose the language to start the configuration. The wizard will guide

you to finish your network connection. We will not provide any instruction

for the EZMAX Setup Wizard here.

If you lose the CD ROM or you prefer the traditional setup procedure,

please follow the instruction as following step in this quick

installation guide.

3.2.1 Please execute ‘Edimax_xxxx_Setup.exe’ program to install your

wireless adapter. Please read the end user license agreement and

click ‘I accept the terms of the license agreement’ and ‘Next’ to accept

license agreement.

3.2.2 It is recommend installing driver and utility if the network card is

installing the first time. If you want to update the driver only,

choose ’Install driver only’. Click ‘Next’ to continue.

3.2.3 You can choose the configuration tool used to configure the wireless

network card here. It’s recommended to select ‘Edimax Configuration

Tool’, which provides fully access to all function of this wireless

network card. If you prefer to use the wireless configuration tool

provided by Windows XP or Vista, please select ‘Microsoft Zero

Configuration Tool’, and then click ‘Next’.

3.2.4 When you see this message, please click ‘Install’ to begin the

installation.
