Edge-Core ECWO5212-L Manual de usuario

ECWO5212-L

11ac dual band IP68 Access Point with external antenna

Quick Installation Guide

ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH

This document is protected by USA copyright laws and other laws. Besides, the

document is the property of Edgecore Networks Corporation. You may not copy,

reproduce, distribute, publish, display, perform, or modify any part of this publication in

any form or by any means without prior written permission from Edgecore Networks

Corporation. You may not alter or remove any copyright or other notice from copies of

the content. All other brand and product names are claimed or registered marks of their

respective companies or organizations.

Quick Installation Guide

ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH

FCC CAUTION

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with minimum distance 24cm between the radiator & your body.

Quick Installation Guide

ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH

iii

Taiwan NCC Statement

根據 NCC 低功率電波輻射性電機管理辦法規定:

第十二條

經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或

變更原設計之特性及功能。

第十四條

低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善

至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受

合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

使用此產品時應避免影響附近雷達系統之操作。

本器材須經專業工程人員安裝及設定，始得設置使用，且不得直接販售給一般消費者。

「本產品電磁波曝露量 MPE 標準值 1mW/cm2，送測產品實測值為 0.51996 mW/ cm2，建議使用時至少距離人體 24 cm」

減少電磁波影響，請妥適使用

Quick Installation Guide

ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH

Preface

Package Contents

Edgecore ECWO5212-L 11ac dual band IP68

Access Point with external antenna is an

enterprise-grade dual radio 802.11 a/b/g/n + ac

Access Point with the best performance for

business and industrial applications. Featuring two

2x2 MIMO radios, the ECWO5212-L can

simultaneously support up to 300 and 867 Mbps

data rates in the 2.4 and 5 GHz bands respectively.

ECWO5212-L is compliant with the latest industrial

wireless security standards such as 802.1X and

Wi-Fi Protected Access (WPA and WPA2) which are

required in the tightly secured enterprise network

environments. Furthermore, ECWO5212-L also

features multiple ESSIDs with VLAN tags and

multiple Virtual APs; great for enterprise

applications, such as separating traffic from different

departments using different ESSIDs.

As a 11ac dual band IP68 Access Point with

external antenna, ECWO5212-L supports wall

mounting and poll mounting for different deployment

environments. Besides ECWO5212-L’s PoE uplink

port is able to receive power from Power over

Ethernet (PoE) sourcing devices, its LAN port also

supports PoE with 802.11at standard which make

network deployment more convenient and easier.

This Quick Installation Guide provides instructions

and reference materials to get you started with

Edgecore ECWO5212-L.

1. Edgecore ECWO5212-L x 1

2. 5G Antenna x 2

3. Metal Strip x 2

4. Quick Installation Guide (QIG) x 1

It is recommended to keep the original

packing material for possible future shipment

when repair or maintenance is required. Any

returned product should be packed in its

original packaging to prevent damage during

delivery.

Quick Installation Guide

ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH

System Overview

ECWO5212-L Front ECWO5212-L Back

ECWO5212-L Downside

ECWO5212-L Upside

Quick Installation Guide

ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH

5G LED

5G Wi-Fi status (Blue). The 5G LED will always on when a VAP(SSID) is

enabled, and the 5G LED will blink when there is 5G traffic.

2.4G LED

2.4G Wi-Fi status (Blue). The 2.4G LED will always on when a VAP(SSID) is

enabled, and the 2.4G LED will blink when there is 2.4G traffic.

Status LED

ECWO5212-L status (Green). The Status LED will start blinking when the

ECWO5212-L is booting. After finishing booting, the Status LED will always

on.

Ventilation Valve

Due to extreme weather conditions, water vapor in the ECWO5212-L may

condense. The valve allows ventilation to prevent moisture buildup within the

ECWO5212-L.

Wall Mounting Holes

For hanging ECWO5212-L.

Pole Mounting Gap

For mounting ECWO5212-L.

LAN Port

The ports for connections with LAN side devices.

Uplink (PoE) Port

Offers uplink connection. This port can be used to connect to a controller,

gateway, or directly to the Internet. 802.3at PoE is also supported.

Restart / Reset Button

Press once to restart the system; hold for more than 5 seconds to reset the

system to factory default settings.

SMA connector

The SMA connectors are for 5G antennas.

Quick Installation Guide

ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH

Hardware Installation

Please follow the steps mentioned below to install the hardware of ECWO5212-L:

1. Attach 5G antennas on the ECWO5212-L

2. Place the ECWO5212-L at the best location.

The best location for ECWO5212-L is usually at the center of your intended wireless network.

Wall mount

1. Secure screws on the wall.

2. Hang ECWO5212-L on the wall by pole mounting holes.

Quick Installation Guide

ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH

Pole mount

1. Insert the metal strips through the pole mounting gap.

2. Join the two ends of the metal strips and adjust the length for tight fitting around the pole.

3. Connect the ECWO5212-L to your network device.

Connect one end of the Ethernet cable to the Uplink (PoE) port of ECWO5212-L and the other end of the

cable to a switch, a router, or a hub. ECWO5212-L is then connected to your existing wired LAN network.

4. Power on the ECWO5212-L.

ECWO5212-L Uplink (PoE) port is capable of receiving DC currents. Connect an IEEE 802.3at-compliant

PSE device (e.g. a PoE-switch) to the Uplink (PoE) port of ECWO5212-L with the Ethernet cable.

Now, the Hardware Installation is complete.

To verify the wired connection between ECWO5212-L and your switch / router / hub, please also

check the LED indicator of the respective network devices.

Quick Installation Guide

ECWO5212-L 11ac dual band IP68 Access Point with external antenna ENGLISH

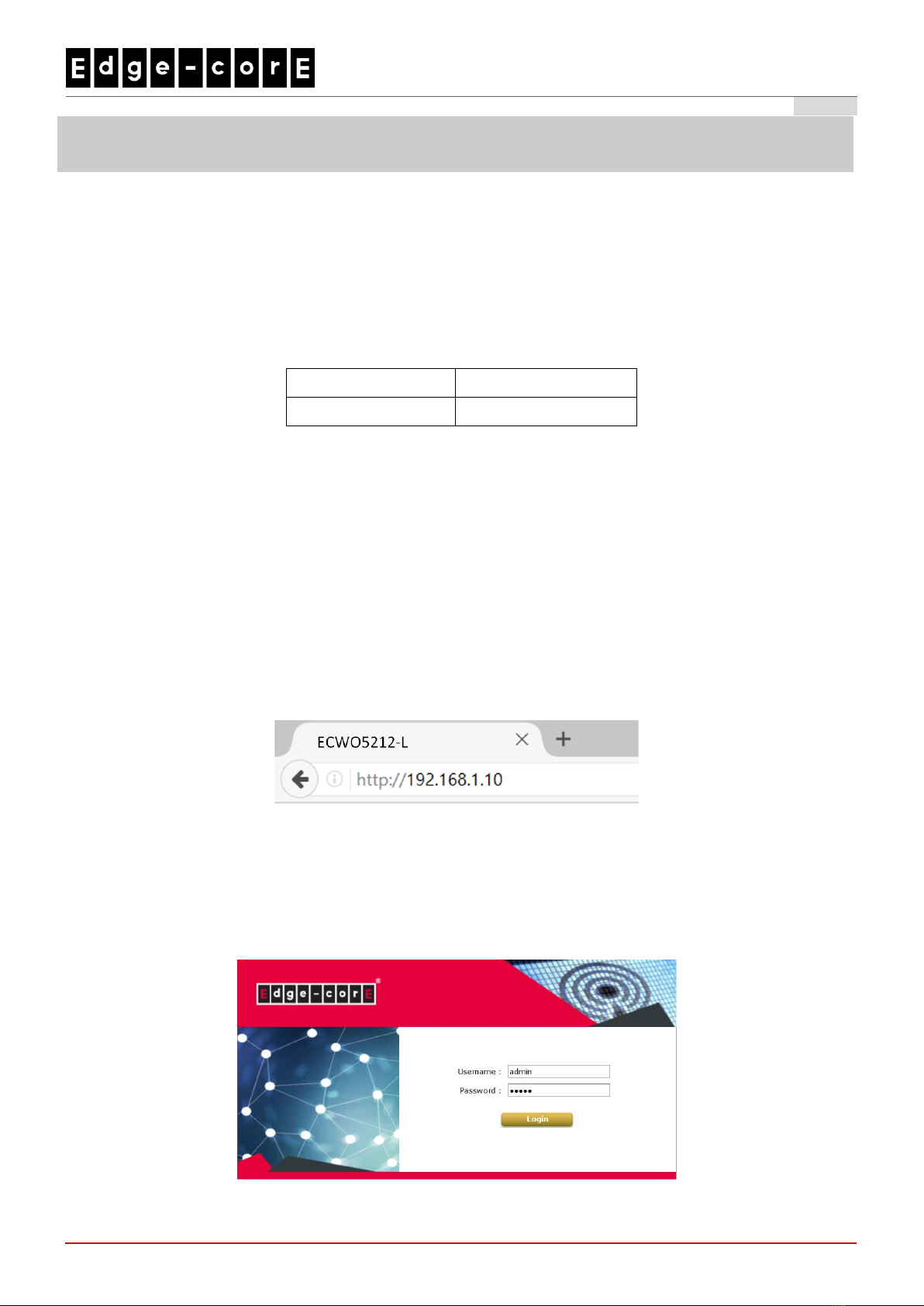

Getting Started

Edgecore ECWO5212-L supports web-based configuration. Upon the completion of hardware installation,

Access Point can be configured through a PC by using its web browser such as Mozilla Firefox 2.0 or Internet

Explorer version 6.0 and above.

The default values of LAN IP address and subnet mask of ECWO5212-L are:

IP Address

192.168.1.10

Subnet Mask

255.255.255.0

Steps:

1. To access the web management interface, connect the administrator PC to the LAN port of ECWO5212-L

via an Ethernet cable. Then, set a static IP address on the same subnet mask as ECWO5212-Lin TCP/IP

of your PC, such as the following example:

IP Address: 192.168.1.100

Subnet Mask: 255.255.255.0

2. Launch the web browser on your PC by entering the IP address of ECWO5212-L (http://192.168.1.10) at

the address field, and then press Enter.

Example of entering ECWO5212-L’s default IP Address via a web browser

3. The following Admin Login Page will appear. Enter “admin” for both the Username and Password fields,

and then click Login.

Administrator Login Page
