Owner’s Manual
Studio
Headphone/ Speaker Vacuum Tube Amplier
For another copy of this manual contact Eddie Current at cuthus@charter.net
Eddie Current, LLC
23658 Clover Trail
Calabasas, CA 91032
(818) 651-2734
www.eddiecurrent.com Step Into the Music
Congratulations on your purchase of the STUDIO,
Eddie Current’s top-of-the-line vacuum tube headphone/
speaker amplifer. The Studio is all about speed, resolution,
space, and accuracy. Eddie Current has sourced select
and exclusive components to create a rareed listening
experience which will bring pleasure for years to come.
Your amp was indivudally hand crafted and wired,
delviering exceptional musicality and design. The Studio
was designed to reect the the golden age of vacuum tube
audio design of the mid 20th century.
Studio Shipping Check
The Studio is shipped in 2 boxes, one for the main amp
and one for the power supply. Upon receiving both boxes,
check for shipping damage by:
1) Gently rock the amplier back and forth listening
for anything that may have come loose in shipping.
2) Make sure all the screws are tight.
If you feel somethig was loosened in shipping, please
contact Eddie Currect for further insturctions. Most issues
can be easily corrected.
Studio Setup/ Preparing the Amp:
The rectier tubes are inside the power supply. Please remove
the cover and grey packing foam.
Be sure the rectier tubes are rmly in their sockets, and the
white caps are in place on top.
Your amplier has been set to run on the requested voltage.
The umbilical cord that connects the power supply to the
main amplier is shipped in the power supply box. Check
to see that the proper voltage is identied with a silver dot
in the square.
Put the top cover back on the power supply, and attach the
umbilical cord. The cord is not directional, and can go on
either way. There is a large notch at 12 o’clock-- line this
up, and twist the ring to secure the cord.
The two 9 pin sockets in the front are wired for 5842/417A
tubes.
Your 2A3 tubes should have two large, and two small
pins. Be sure to align them to plug in correctly.

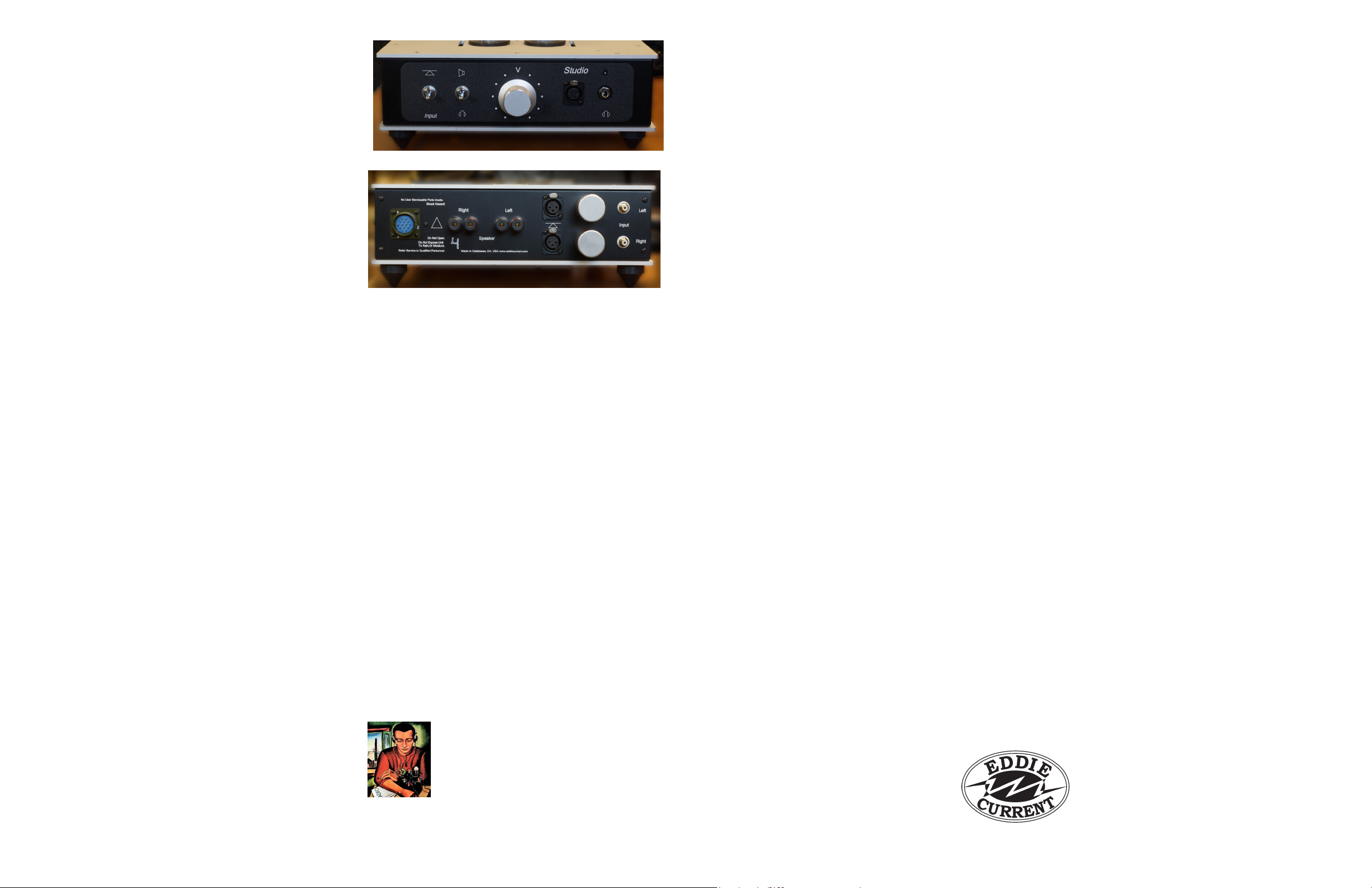

Operation
Hook up for the speakers--plus and minus-- are indicat-
ed on the speaker jacks as red for plus, black for minus.
Plug in your source, and power the amplier on. To lis-
ten to speakers, the front panel switch must be on the
speaker icon, for headphone listening the switch is on
headphone icon. (headphone switch turns off speakers.)
There are two headphone jacks, the four pin is a true
balanced output, and the ¼” unbalances the signal for
three conductor headphones. Note, when a ¼” headphone
is plugged in the balanced output will be single ended.
Turn the amplier on, the white front panel light should
come on, and the tube heaters light. You may hear a
low level shimmering sound from the output tubes for
about 10 seconds. This is normal, and varies with tube
manufactures. It takes about ve minutes for the amplier
to completely warm up, and sound its best.
You’re ready to listen!
Should you have any probelms with the process contact
me at cuthus@charter.net.
About Tube Rolling:
There are six signal, and two rectier
tubes used in the Studio amplier: two
5842Q/417A driver tubes under the port
hole glass; four 2A3 tubes on top; and two
6D22S rectier tubes in the power chassis.
Old stock American 2A3 tubes sound the
best, and you can mix brand names as long as they are
loosely matched in pairs. Example, a Kenrad in the left
and right, and a Sylvania in the left and right. There are
good sounding Chinese tubes as well. The amp ships with a
military, Raytheon brand 5842Q, but the Western Electric
417A, or the RCA gold pin 5842Q are also very good.
If you wish to change those tubes you must remove the
bottom cover. Disconnect the power, pull the 2A3 tubes
and lay the amp upside down on a soft cloth. Remove
12 mounting screws--before setting the rear panel aside
make a note of how to put it back the same way it came
off. Be careful when pulling the 5842Q tubes out--they are
in tight. Conversely, be extremely careful when inserting
in the new tubes. Make sure the pins are straight, and you
push the tubes in correctly, it is easy to bend a pin and
the tube will not insert. When replacing the bottom cover,
put all 12 screws in before tightening. The rectier tubes
should not need tube rolling, but the American EY500 is
a direct replacement for the Russian 6D22S, and you may
use those.
Eddie Current Warranty:
All Eddie Current-made products come with a 5-year
warranty for parts and labor. Warranty does not include
shipping costs. Warranties are only transferable on pre-
owned gear certied and sold though Eddie Current.
If the repair is due to customer damage or tubes not
supplied by Eddie Current, repairs will be charged
parts and labor, which will be quoted before work is
performed.
Your purchase also comes with ongoing customer
support to maximize your listening enjoyment anytime
you want professional advice on components, tubes and
headphones.
www.eddiecurrent.com
Studio Specications:
SET topology
CineMag output transformers with tertiary winding.
Nano Crystalline C core inter-stage transformers.
-- Single ended, or balanced headphone drive.
-- Two input selector switch, one pair XLR Balanced inputs, one pair RCA unbalanced inputs.
Headphone/ Speaker switch.
-- 100K high Alps blue Velvet volume control.
-- One pair speaker outputs.
-- 4-foot detachable umbilical cord.
-- Hand wired point to point signal circuit.
-- Vacuum tuber rectied dual power supplies.
-- Will drive 8 ohm speakers to 6 watts.
-- Recommended headphone load 8 ohms or higher.
-- Power into 32 ohms 2W.
-- Power bandwidth driving Sen 600’s -.5dB 12Hz to 48kHz.
-- Tubes included: 2 5842Q driver, 2 6D22S rectier (2A3 tubes extra).
-- Dimensions: 14” wide by 18” deep front control knob, to input transformer by 5.25” high W/O tubes 29 lbs.
