EchoStar DSB-1000 2Ci Manual de usuario

User Manual

DIGITAL SATELLITE RECEIVER

WITH COMMON INTERFACE

DIGITAL FREE TO AIR-DUAL COMMON INTERFACE

CONTENTS

3. Remote Control Unit (RCU) ---------------------------------------------------- 5

4. Getting started --------------------------------------------------------------------- 6

5. Operation and menu program ------------------------------------------------- 9

6. Specifications ---------------------------------------------------------------------- 19

Front & rear view ---------------------------------------------------------------- 4

1. Features ----------------------------------------------------------------------------- 2

AC power ON/OFF switch is on the rear panel of the IRD

Trade Mark of the DVB Digital Video Broadcasting Project (1700)

1. Features

1. MPEG-2 Video(MP@ML)

2. MPEG-1 Audio layer 1, layer 2

3. MPEG-2 Digital & fully DVB compliant

4. Capable of interfacing the CAMsof DVB Common Interface standard

5. Capable of scanning the frequency for SMATV system

6. Plug & Play installing program setup

7. Supported to PAL, SECAM, NTSC of TV standard

8. On-Screen display with 16-color full-resolution

9. LD quality video, CD quality audio

10. Variety of LNB polarity control, 13/18V, 0/22kHz tone, 0/12V,

Mechanical and magnetic polarizer and DiSEqC

11. RS232C port for additional information service and updating IRD control software

12. 4-digit 7-segment LED on front panel display channel information

13. Displays local time on the front panel, when it is on stand-by mode

14. Displays signal level to setup the satellite antenna with ease

15. Power recovery function

16. Loop through for VCR and AUX SCART

17. Volume control

18. Powerful editing facilities

(PIDs, TV or radio channel, channel name, satellite name/transponders)

19. Teletext function (your TV needs Teletext for this)

20. Favorite channel function (Up to 96 channels)

21. SCPC/MCPC receivable from C/Ku-band satellites

22. User friendly OSG menu with full function

23. IR remote control unit (RCU)

24. Last channel memory function

25. Variable aspect ratio (4:3, 16:9) with pan vector

26. EPG for on screen channel information

27. Parental lock / Installation lock / Receiver lock

28. Multi-Lingual function according to the satellite and program provider

29. Total 2,900 channels programmable (TV: 2,000 CH. & Radio : 900 CH.)

30. DiSEqC 1.0

31. Mechanical and magnetic polarizer (Skew) control for each satellite

32. Channel storing for multi-satellite

33. Satellites : up to 50 satellites, 999 transponders

34. Multi-lingual menu

FRONT PANEL

2. Front & Rear View

REAR PANEL

MENUOK

Selection /

confirmatio

Channel up/down

Volume up/down

AC Power

cord

RF output conn

ect to TV

TV Antenna i

nput LNB input

AC Power

switch

Loop through

Note) All cables used for connecting the receiver should be well-shielded.

2 slots for CA modu

le and smart card

Standby switch

ANTIN

TV OUT

VIDEO

AUDIO

AUX TV

VCR

0/12V(500mA Max.)

LNB IN

IF OUT

GND GND GND

+5V GND SKEW ON / OFF

AC90~240V

50Hz/60Hz

40W

SERIALPORT

CAUTION

DO NOT OPEN

RISK OF ELECTRIC SHOCK

DO NOT EXPOSE TO RAIN OR MOISTURE

MADE IN KOREA

for an audio/video

equipment like an

analog receiver

About the Smart Card and CA Module

To be able to receive pay-TV channels you will need a CA module and a smart card from the service provider of

your choice. (The service provider is the distributor of the programs). CA modules and smart cards are licensed

to service providers.

To watch pay-TV programs from a service provider you must use a CA module with a smart card.

If you are subscribing to services from more than one service provider, you might have to change between

different smart cards, or even between different CA modules.

If no CA module is inserted, you can only watch ”Free to Air”TV programs.

Note : 1)The main plug must not be plugged in before inserting the CA module.

2) Insert the CA module fully into the slot behind the lid in the front panel of the receiver

towards the arrow on the module faces upwards and inwards.

3) Insert your card fully into the slot on the CA module towards the arrow on the card faces

upwards and inwards.

4) The CA module and smart card may give special menus not described in this manual.

5) A smart card is connected to a single service provider due to a specific range of channels.

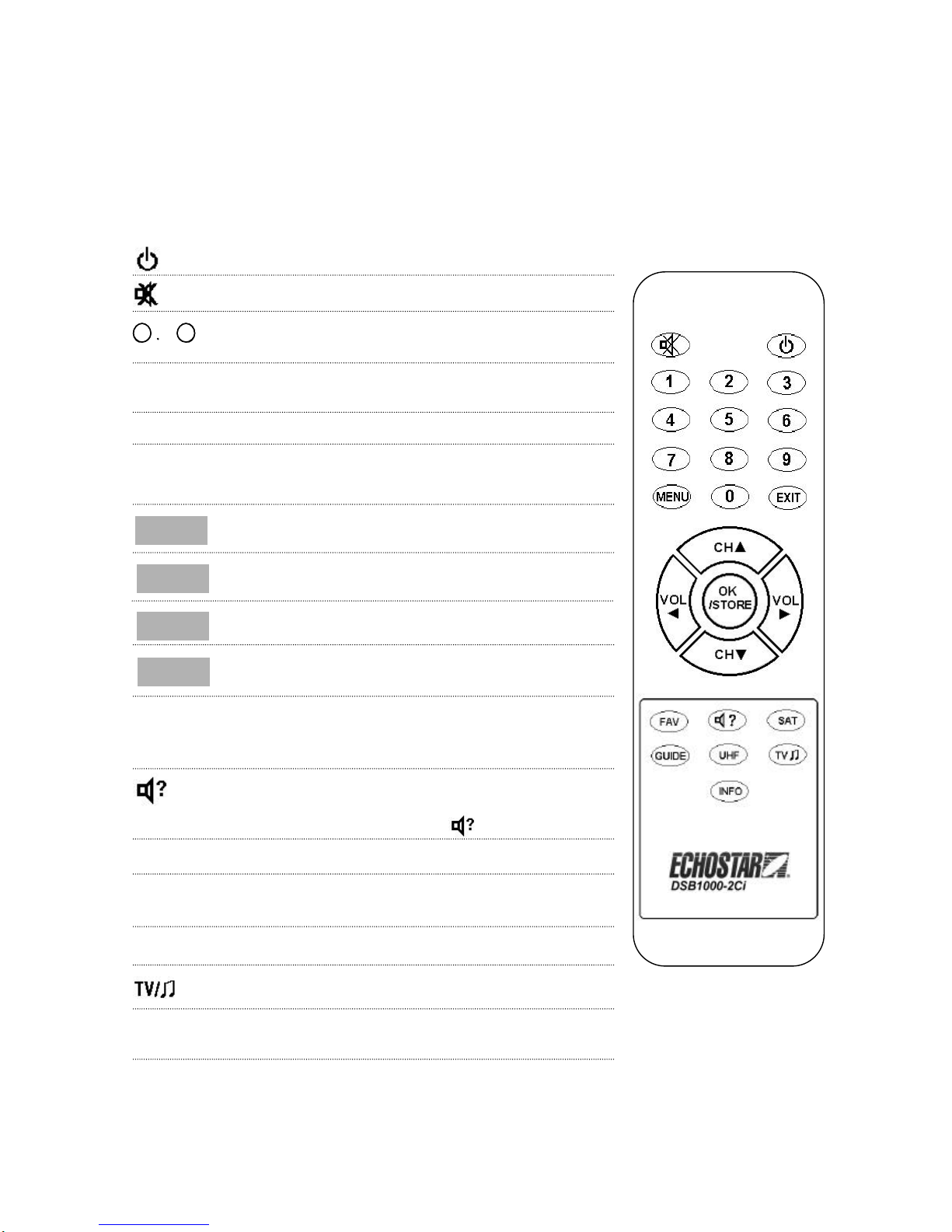

3. Remote Control Unit (RCU)

EXIT

UHF

SAT

Switches the receiver ON/OFF

Switches the sound ON/OFF.

Direct choice of TV / radio channel and other commands by

numeric keys.

When you want to see the main menu or

return to the previous menu.

Return to the current video viewing at any time

Selection of program, highlighted line or parameter value.

Also, you can see TV/radio channel list while watching TV or

listening to radio.

Channel up

Channel down

Volume up (page up )

Volume down (page down)

Switches between TV/radio mode.

Select TV or DBS program

Select the audio language or the sound track you want

among data to be transmitted from the satellite.

To return to current channel, press or EXIT.

Select another satellite that you want to watch .

FAV

GUIDE

Shows your favorite channels edited.

(Before the operation, FAV edition should be done

in “Edit TV channel”menu.)

Shows channels from selected network and info if available.

INFO Information about the current channel and program

(only available when provided by the broadcaster)

CH Ú

VOL Ø

VOL ×

CH Ù

4. Getting Started

Please do NOT PLUG the receiver into mains until you finish making all connections to the unit.

Receiver to mono TV with RF

Connect the the TV OUT of the DSB1000-2Ci to the RF IN of the TV set.

Receiver to TV with mono audio and video

Connect the TV OUT of the DSB1000-2Ci to the RF IN of TV set.

Connect the AUDIO and VIDEO RCA’s of the DSB1000-2Ci to the AUDIO and VIDEO RCA’s of the TV set.

AC90~240V

50Hz / 60Hz

40W

ANT IN

TV OUT

VIDEO

AUDIO

VCR

0/12 V(500mA Max.)

LNB IN

IF OUT

GND GND GND

+5 V GND SKEW

SERIAL PORT

DO NOT OPEN

RISK OF ELECTRIC SHOCK !

ON / OFF

AC90~240V

50Hz / 60Hz

40W

ANT IN

TV OUT

VIDEO

AUDIO

VCR

0/12 V(500mA Max.)

LNB IN

IF OUT

GND GND GND

+5 V GND SKEW

SERIAL PORT

DO NOT OPEN

RISK OF ELECTRIC SHOCK !

ON / OFF

AUX

1. Connect the coaxial cable from the satellite dish to the LNB IN socket of the DSB1000-2Ci.

(Connector should be adapted finger-tight.)

2. Connect the terrestrial (TV) antenna to the ANT IN socket of the DSB1000-2Ci .

Receiver to TV with stereo audio and video

Connect the TV OUT of the DSB1000-2Ci to the RF IN of the TV set.

Connect the LEFT / RIGHT AUDIO and VIDEO RCA’s of the DSB1000-2Ci to the LEFT / RIGHT AUDIO

and VIDEO RCA’s of the TV set.

Receiver to VCR, TV with RF

Connect the TV OUT of the DSB1000-2Ci to the RF IN of the VCR.

Connect the RF OUT of the VCR to the RF IN of the TV set.

AC90~240V

50Hz / 60Hz

40W

ANT IN

TV OUT

VIDEO

AUDIO

VCR

0/12 V(500mA Max.)

LNB IN

IF OUT

GND GND GND

+5 V GND SKEW

SERIAL PORT

DO NOT OPEN

RISK OF ELECTRIC SHOCK !

ON / OFF

AC90~240V

50Hz / 60Hz

40W

ANT IN

TV OUT

VIDEO

AUDIO

VCR

0/12 V(500mA Max.)

LNB IN

IF OUT

GND GND GND

+5 V GND SKEW

SERIAL PORT

DO NOT OPEN

RISK OF ELECTRIC SHOCK !

ON / OFF

AUX

Receiver to TV, VCR with stereo

Connect the TV OUT of the DSB1000-2Ci to the RF IN of VCR.

Connect the RF OUT of the VCR to the RF IN connector of the TV set.

Connect the VIDEO RCA of the DSB1000-2Ci to the VIDEO RCA of the VCR.

Connect the LEFT / RIGHT AUDIO RCA’s of the DSB1000-2Ci to the LEFT / RIGHT AUDIO RCA’s

of the TV set.

AC90~240V

50Hz / 60Hz

40W

ANT IN

TV OUT

VIDEO

AUDIO

VCR

0/12 V(500mA Max.)

LNB IN

IF OUT

GND GND GND

+5 V GND SKEW

SERIAL PORT

DO NOT OPEN

RISK OF ELECTRIC SHOCK !

ON / OFF

Receiver to TV with SCART input

Connect the “TV”SCART socket on the DSB1000-2Ci with the SCART socket of the TV set.

AC90~240V

50Hz / 60Hz

40W

ANT IN

TV OUT

VIDEO

AUDIO

VCR

0/12 V(500mA Max.)

LNB IN

IF OUT

GND GND GND

+5 V GND SKEW

SERIAL PORT

DO NOT OPEN

RISK OF ELECTRIC SHOCK !

ON / OFF

AUX

5. Operation and Menu Program

[0000]

Main Menu

Installation

1) LNB Setting

Main Menu

7. Common Interface

6. Select Satellite

5. Installation

1. TV Channels

2. Radio Channels

3. Parental Control

4. Edit & Erase

Main Menu

7. Common Interface

6. Select Satellite

5. Installation

1. TV Channels

2. Radio Channels

3. Parental Control

4. Edit & Erase

Installation Lock

Enter PIN code

[ ? ? ? ? ]

Installation

7. User’s Setting

6. A/V Output Setting

5. Local Time Setting

1. LNB Setting

2. Ant Setting/Auto Search

3. SMATV Configuration

4. Language Setting

LNB SETTING

LNB Freq. Low

LNB Freq. High Universal

Switch Type Disable

Switch Port Disable

Polarity Control Skew

LNB Freq. Band Control 13/18V

Ku/C Control 0/22kHz

0/22kHz Control Off

0/12V Control Off

To return to the previous Menu, press MENU

Universal

LNB Power On

Satellite ?ASTRA 1 ?

Press MENU to display the Main Menu on the screen.

Select a sub-menu using the ÙÚ keys or the numeric keys. Pl

ease note that OK is always a confirmation of your selection. T

o go back to the previous menu, press MENU.

The initial code is set as [0000]but you can change it (see change code on page 15).

The installation, enter your code Menu is displayed only when the Installation Lock is set as [ON].

Select the appropriate Satellite using the ×Ø

keysand press STORE.

As shown at the right,ASTRA1 is selected.

By default a Universal LNB has been chosen but

you can change this manually (by using the cursor

keys) to select from a range of 7 other DRO

Frequencies.

Other parameter values are changed

automatically according to your satellite

selection. Press OK to confirm your selection.

Select in the Installation Menu “LNB Settings”,

using the ÙÚ keys.

If you select “Global”in the “LNB Installation“parameter, values of the parameters in this menu are saved

for all other satellites as well.

If you have a mechanical polarizer on your LNB, you have to set the “Polarity Control”parameter in this

menu to [Skew].

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de EchoStar

EchoStar

EchoStar DSB-2200 2Ci Viaccess Manual de usuario

EchoStar

EchoStar DSB-770 FTA Manual de usuario

EchoStar

EchoStar AD-3600 IP Viaccess Manual de usuario

EchoStar

EchoStar DVR-5000 HDD Viaccess Manual

EchoStar

EchoStar DSB-1100 Manual de usuario

EchoStar

EchoStar DVR-7000 HDD Viaccess Manual de usuario

EchoStar

EchoStar DVR-7000 HDD Viaccess Guía de inicio rápido

EchoStar

EchoStar DVR-5000 HDD Viaccess Manual de usuario

EchoStar

EchoStar T-101 FTA Manual de usuario

EchoStar

EchoStar DSB-700 FTA Manual de usuario

EchoStar

EchoStar DVR-7000 HDD Viaccess Manual de usuario

EchoStar

EchoStar DSB-1220 FTA Manual de usuario

EchoStar

EchoStar T-333 MHP Manual de usuario

EchoStar

EchoStar T-101 FTA Guía de solución de problemas

EchoStar

EchoStar DSB-808 2Ci Viaccess Manual de usuario

EchoStar

EchoStar D-2510 IP Viaccess Manual de usuario

EchoStar

EchoStar D-2400 IP Manual de usuario

EchoStar

EchoStar DSB-2110 2Ci Viaccess Manual de usuario

EchoStar

EchoStar AD-3000 IP Viaccess Manual de usuario

EchoStar

EchoStar DVR-5000 HDD Viaccess Manual de usuario

EchoStar

EchoStar DSB-707 Viaccess Manual de usuario

EchoStar

EchoStar DSB-890 2Ci Manual de usuario

EchoStar

EchoStar DSB-707 FTA Manual de usuario

EchoStar

EchoStar DSB-2200 2Ci Viaccess Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
