Echomaster CAM-WLP Manual de usuario
Wireless
Back-up
Camera
User
Manual
~
ECH
□
MASTER
2

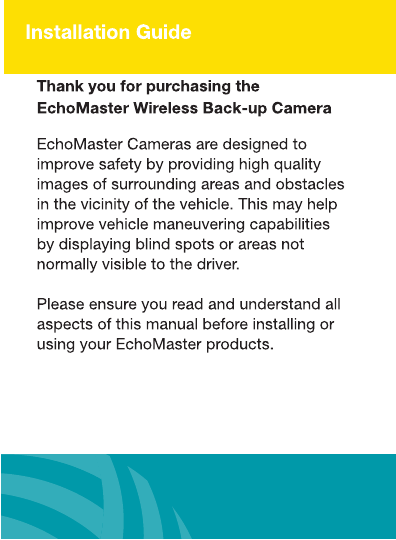

Thank you for purchasing the
EchoMaster Wireless Back-up Camera
EchoMaster Cameras are designed
to
improve safety by providing high quality
images
of
surrounding areas and obstacles
in the vicinity
of
the vehicle. This may help
improve vehicle maneuvering capabilities
by
displaying blind spots
or
areas
not
normally visible
to
the driver.
Please ensure you read and understand all
aspects
of
this manual before installing
or
using your EchoMaster products.
3
What's
Included:
►
Camera
►
Wireless
Receiver
►
Power
Harness
►
Mounting
Brackets
►
Installation
Hardware
►
User
Manual
Features:
►
1/3"
CMOS
sensor
►
Operates
at
0.1
LUX
►
140°
viewing
angle
►
Operation
frequency:
2.4GHz
►
Water/Debris-proof
rating:
IP67
email -support@aampglobal com
tel -866-931-8021
4

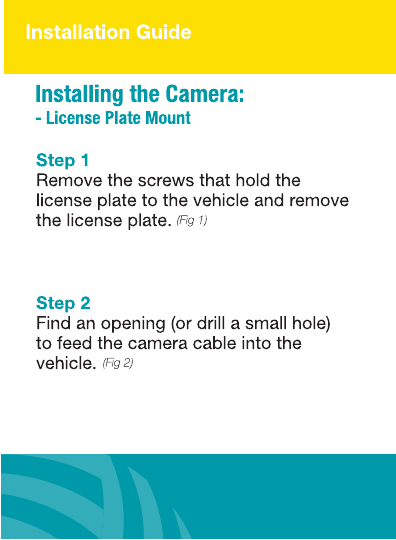

Installing
the
Camera:
-
License
Plate
Mount
Step 1
Remove the screws that hold the
license plate
to
the vehicle and remove
the license plate.
(Fig
1J
Step2
Find
an
opening (or drill a small hole)
to
feed the camera cable into the
vehicle.
!Rg
2J
5
email -support@aampglobal com
tel -866-931-8021
6
Camera ON
Trigger Output
+12V
input
Ground
input
Video
Output
Step3
Position the camera mounting bracket
behind the license plate.
Insert the screws to hold the camera
and license plate
in
place.
(Fig
3J
Step4
Secure the license plate to the vehicle
using the screws removed
in
Step
1.
Steps
Route the camera's power wires
to the vehicle's reverse lamp wires
and connect using supplied
T-Tap
connectors.
•
see
Camera Wiring Diagram
7
Camera ON
Trigger Output
+12V
input
Ground
input
Video
Output
Rg3
SAFETY
Camera
Wiring
Diagram:
Red
=+
12
v
(when
in
re
v
erse)
Black =Ground
Vehicle's
Reverse
Wire
Vehicle's
Ground Wire
(Found at reverse lamp)
email -support@aampglobal com
tel -866-931-8021
8
Installing
the
Camera:
-
Lip
Mount
Step 1
Find
an
opening (or drill a small hole)
to
feed the camera cable into the
vehicle.
(Fig
4!
Step2
Position the camera mounting bracket
on vehicle lip and screw into place.
(Rg5)
Step3
Connect to the monitor.
(see instructions on page
10)
9
Fig5
Mounts to vehicle lip
SAFETY
email -support@aampglobal com
tel -866-931-8021
10
Installing
the
Wireless
Receiver:
Step 1
Locate a suitable location to mount
the wireless receiver -make sure it is
mounted away from any moving parts.
Secure using double-sided tape
or
wire
ties.
Step2
Connect the Yellow RCA from the
wireless receiver to the camera input
of
the radio or monitor.
Step3
Connect the receiver's power wires
to
an
accessory 12V source. The Red wire
coming from the receiver's Yellow RCA
should only be used
to
trigger the radio
or
monitor
to
show the camera image.
