Echomaster CL-FTC Manual de usuario
Wiring Harness for Cargo Lighting
2017-2021 Ford Transit Connect
INSTALLATION MANUAL
CL-FTC
2email - [email protected]
tel - 866-931-8021
Thank you for purchasing the
CL-FTC
• Vehicle Specic Wire Harness (CL-FTC)
WHAT’S INCLUDED:
Table of Contents
Page 3 - Tools Required For Installing Additional Accessories
Page 8 - Wiring Diagram
• LED Dome Lamp (STL40489-2)
• 2570mm Roof Bow Harness (P-HARRB3)
• 3470mm Roof Bow Harness (P-HARRB4)
COMPATIBLE ACCESSORIES:
3
tel - 866-931-8021
TOOLS REQUIRED:
1. Diagonal Cutters
2. Phillips #2 Drill Bit
3. Drill
2.
1.
3.
4email - [email protected]
tel - 866-931-8021

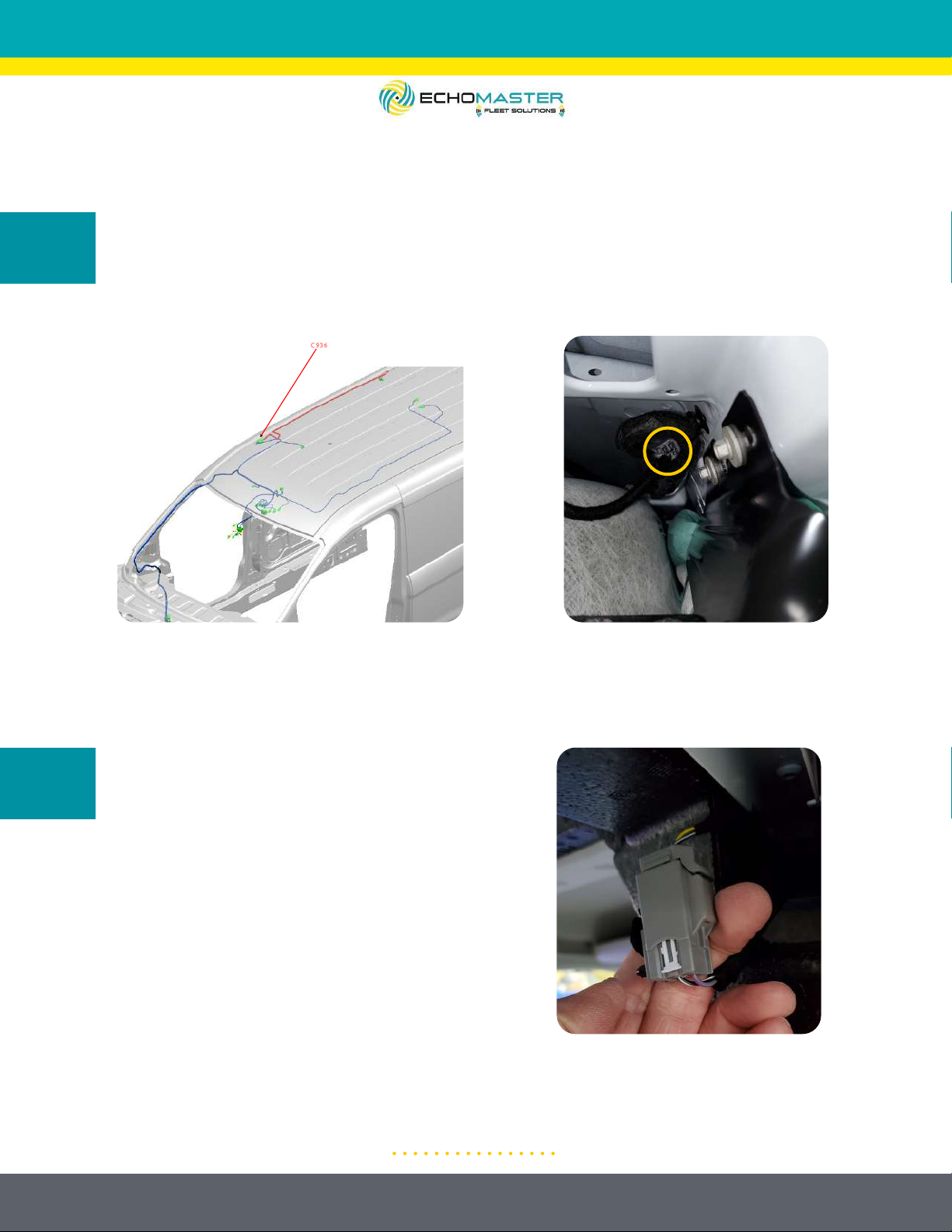

STEP 1:
Locate the OEM Cargo Lamp connection that is above the headliner on the passenger side of
the vehicle. Note: Easiest to access from back edge of headliner.
STEP 2:
Unplug the OEM Cargo Lamp connectors and
install the CL-FTC harness between the two
connectors.
C 936
5
tel - 866-931-8021
STEP 3:
Install the STL40489-2 lights onto the center of the vehicle’s roof bow; leave the light
connector exposed
• Peel the red adhesive liners off of the STL40489-2 and stick the light in place
• Use the provided 3/4” screws to secure the light to the roof rib
STEP 4:
Connect the appropriate P-HARRBx roof bow harness to each installed STL40489-2 light.
• Refer to the diagram on page 8 to conrm proper P-HARRBx for each roof bow
6email - [email protected]
tel - 866-931-8021
STEP 5:
Use the r tree cable ties that are packaged with each P-HARRBx to secure the harness to
the vehicle’s roof bow. Trim off excess cable tie material with diagonal cutters after harness is
secure. (Photo below is for reference only)
STEP 6:
Route all P-HARRBx roof bow harnesses inside the channel that runs along the passenger/
curbside roof line
• Trim off excess cable tie material with diagonal cutters
7
tel - 866-931-8021
STEP 7:
Plug all installed P-HARRBx harnesses into the mating connectors on the CL-FTC harness.
STEP 8:
Conrm all installed STL40489-2 lights are operational
8email - [email protected]
tel - 866-931-8021
VVeehhiicclleeRRooooffBBooww11RRooooffBBooww22
Transit Connect P-HARRB3 P-HARRB4
R
o
o
f
B
o
w
1
R
o
o
f
B
o
w
2
