Echo PPSR-2433 Manual de usuario

POWERPRUNER

MODEL PPSR-2433

TYPE 1E

SERIAL NUMBER 504000 & UP

ECHO, INCORPORATED

400 OAKWOOD ROAD

LAKE ZURICH, IL 60047

99922203160

07/03

PPSR-2433 TYPE 1E

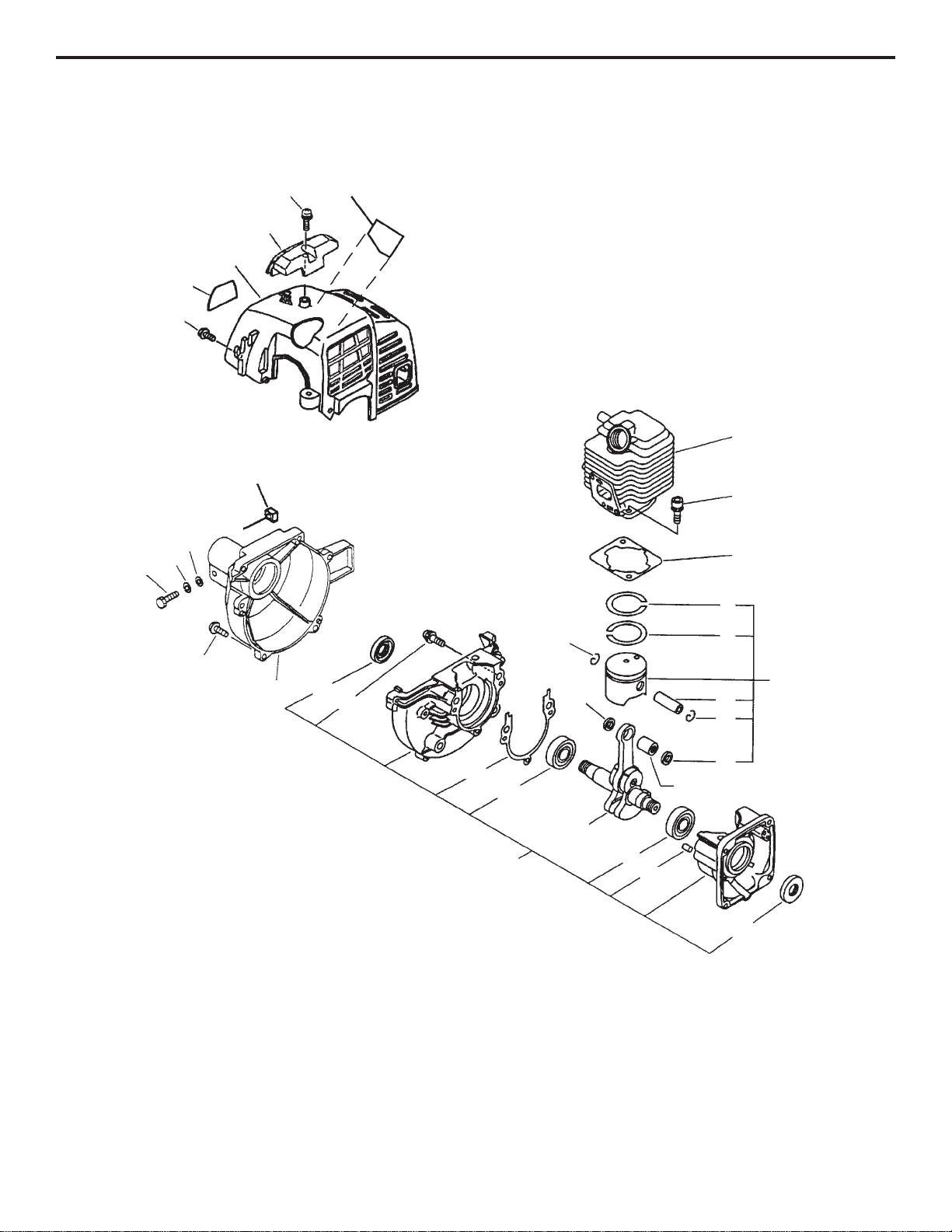

ENGINE\EXTERNAL, INTERNAL, CRANKCASE, FAN HOUSING, COVER

19 2021

12 16

PPSR-2433 TYPE 1E

KEY PARTNUMBER QTY DESCRIPTION REMARKS

1 10101108961 1 CYLINDER

2 90016205022 2 BOLT,H.S. 5X22

3 10101044332 1 GASKET,CYLINDERBASE INCLUDEDINKIT88900005960

4 10000009563 1 PISTONKIT INCLUDESITEMS5-8

5 10001109560 2 RING,PISTON

6 10001311520 1 PIN,PISTON

7 10001504630 2 CIRCLIP,PISTONPIN

8 10001411520 2 SPACER,PISTONPIN

9 ------------------ 1 CRANKCASEASY INCLUDESITEMS10-15(USESB1027)

10 10021242030 2 OILSEAL

11 10021503930 2 PIN,DOWEL

12 90081036201 2 BEARING, BALL 6201

13 ------------------ 1 GASKET,CRANKCASE INCLUDEDINKIT88900005960

14 90016205028 3 BOLT 5X28

15 ------------------ 1 CRANKSHAFTASY INCLUDESITEM16(USESB1027)

16 10001251230 1 BEARING,NEEDLE

17 10150744330 1 COVER,FAN

18 90016304018 4 BOLT 4X18

19 90014205028 2 BOLT 5X28

20 90060500005 2 WASHER, SPRING 5

21 90060000005 2 WASHER 5

22 90056550005 2 NUT, SQUARE 5

23 90025304012 2 SCREW

24 89011526360 1 LABEL,MODEL

25 10151444531 1 COVER,CYLINDER

26 15991244530 1 GUARD,TOP

27 90025305016 1 SCREW 5X16

28 89016022660 1 LABEL,CAUTIONI.S.O.

SB1027 1 SHORTBLOCK INCLUDESFACTORYASSEMBLED

CYLINDER,CRANKCASE,PISTON,

CRANKSHAFT,BEARINGS&SEALS

88900005960 1 GASKETKIT INCLUDESTHEFOLLOWING

10101044332 1 GASKET,CYLINDERBASE

14586642031 1 GASKET,MUFFLERLID

14551042031 2 GASKET,MUFFLER

------------------ 1 GASKET,CRANKCASE

13001042032 1 GASKET,INTAKE

13001642031 1 GASKET,INTAKE

13001005960 1 GASKET,INTAKE

61041401260 1 GASKET,GEARHOUSING

ENGINE\EXTERNAL, INTERNAL, CRANKCASE, FAN HOUSING, CYLINDER COVER

PPSR-2433 TYPE 1E

10 11

345

27 26 25

23 22

IGNITION, STARTER, CLUTCH, MUFFLER

PPSR-2433 TYPE 1E

KEY PARTNUMBER QTY DESCRIPTION REMARKS

IGNITION, STARTER, CLUTCH, MUFFLER

1 90016204022 2 BOLT 4X22

2 16201052830 1 LEAD

3 15901201620 1 CAP, SPARK PLUG

4 15901103432 1 COIL,SPARK PLUG CAP

5 99944500071 1 PLUG, SPARK BPM-7Y

5 15901010230 1 PLUG, SPARK BPMR-7A CANADIANMODELSONLY

6 15011244330 1 GROMMET,H.T.CORD

7 15662652730 1 MODULE, CDI W/O LEAD

8 17720244330 1 PAWL ASY, STARTER INCLUDES ITEMS 9 & 10

9 17723442030 1 SPRING,RETURN

10 17721844330 1 PAWL,STARTER

11 17720042033 1 STARTERASY INCLUDESITEMS12-18

12 17723644330 1 SCREW

13 17721544430 1 DRUM,STARTER

14 17722042030 1 SPRING,REWIND

15 17723242032 1 HOUSING,STARTER

16 ------------------ 1 ROPE,STARTER USEBULKROPE99944400040

DIA.3.0MM(.12")X1000MM(39.4")

17 17722742030 1 GUIDE, ROPE

18 17722806530 1 GRIP,STARTER

19 90016204016 4 BOLT 4X16

20 89011849130 1 LABEL,ECHO

21 15680109660 1 FLYWHEEL

22 17500056830 1 CLUTCHASY

23 17500544331 1 DRUM,CLUTCH

24 90070200032 1 CIRCLIP 32

25 90081406201 1 BEARING, BALL 6201

26 90070100012 1 CIRCLIP 12

27 17505304920 1 STOPPER

28 14580052630 1 MUFFLERASY INCLUDESITEMS29-35

29 14551042031 2 GASKET,MUFFLER INCLUDEDINKIT88900005960

30 14587144331 1 COVER,MUFFLER

31 14586240630 1 SCREEN,MUFFLER

32 14586642031 1 GASKET,MUFFLERLID INCLUDEDINKIT88900005960

33 14587642030 1 LID,MUFFLER

34 14581852130 1 GUIDE,EXHAUST

35 90023804010 3 SCREW4X10

36 90010505055 2 BOLTH.S.5X55

37 90060000005 2 WASHER 5

PPSR-2433 TYPE 1E

21 22

INTAKE, AIR FILTER, FUEL SYSTEM

PPSR-2433 TYPE 1E

KEY PARTNUMBER QTY DESCRIPTION REMARKS

INTAKE, AIR FILTER, FUEL SYSTEM

1 13001042032 1 GASKET,INTAKE INCLUDEDINKIT88900005960

2 90050000005 2 NUT 5MM

3 90023805020 2 SCREW 5X20

4 13030706761 1 CASE,AIRCLEANER

5 90024205065 2 SCREW 5X65

6 13031054130 1 FILTER,AIRH.D.

7 89012155230 1 LABEL,CHOKE

8 13031305863 1 COVER,AIRCLEANER

9 21041752730 1 BOLT,WING

10 89033552730 1 LABEL,METERING

11 12901106360 1 PLATE,PREVENT

12 12300052132 1 CARBURETOR WT-424B

13 13001005960 1 GASKET,INTAKE INCLUDEDINKIT88900005960

14 13001742031 1 INSULATOR

15 13130056430 1 VALVE, CHECK

16 13131239130 1 PIPE,VENT 3X5X70

17 13211546730 1 GROMMET,FUEL

18 13201309820 1 CLIP

19 13120507320 1 STRAINER,FUEL

20 13201056330 1 PIPE,RETURN

21 13201013930 1 PIPE, FUEL

22 13100546830 1 TANK,FUEL

23 90060300005 2 WASHER 5MM

24 90023805016 2 SCREW 5X16

25 30511042030 1 STAND

26 13100455830 1 CAP ASY, FUEL TANK INCLUDESITEM27

27 13101655830 1 GASKET, FUEL TANK CAP

REVISED02/00

PPSR-2433 TYPE 1E

HANDLES,THROTTLE,STOPSWITCH,DRIVESHAFT

10 11

22 23

PPSR-2433 TYPE 1E

KEY PARTNUMBER QTY DESCRIPTION REMARKS

1 35120121560 1 HANDLE ASY INCLUDESITEMS2-4

2 90016205030 2 BOLT 5X30

3 35161105360 1 PLATE, EYE

4 88995021560 4 SCREW

5 16340155630 1 SWITCH,IGNITION

6 17800352730 1 BRACKETSET,THROTTLE INCLUDESITEMS7-9

7 90050000005 2 NUT 5

8 90024205025 1 SCREW 5X25

9 90024205035 1 SCREW 5X35

10 17809052630 1 LOCKOUT,THROTTLECONTROL

11 17801352630 1 SPRING,THROTTLELOCKOUTCONTROL

12 35121352730 1 GRIP,HANDLETHROTTLE

13 30121252730 1 BAND INCLUDESITEM14

14 90024205014 1 SCREW 5X14

15 17801052130 1 CONTROL,THROTTLE

16 17804342230 1 SPRING,THROTTLERETURN

17 17801252730 1 LOCKOUT,THROTTLE

18 61027252730 1 BAND INCLUDESITEMS19&20

19 90024205028 1 SCREW 5X28

20 90050000005 1 NUT 5

21 61020626360 1 HOUSINGASY,DRIVESHAFT INCLUDESITEMS22&23

22 61021721560 1 LINER,FLEXIBLE

23 61024655330 2 FIXTURE,LINER

24 61001321560 1 SHAFT,FLEXIBLE

25 90050200006 2 NUT 6

26 17800151030 1 WIRE,THROTTLE

27 17812721360 1 TUBE

HANDLES,THROTTLE,STOPSWITCH,DRIVESHAFT

PPSR-2433 TYPE 1E

10 11

14 15

39 40

GEARCASE,GUIDEBAR,SAWCHAIN,AUTOOILER,TOOLS

43 44
