Echo Power Pruner PP-1200 Manual de usuario

Power PrunerTM

Operator's Manual

MODEL: 99946400023 4' EXTENSION

FOR MODELS PP-1200/1250/1260

PPT-2100/2400

PPT-230/231

PPT-260/261

PPT-265/265H/265S

PPT-266/266H

PPT-280

X767000212

04/12

X7672300102

ENGLISH

FRANCAIS

ESPAñOL

WARNING

Users of this equipment risk injury to themselves and others if the unit is used improp-

erly and/or safety precautions are not followed. ECHO provides an operator’s manual

and a safety manual. Both must be read and understood for proper and safe operation.

Failure to do so could result in serious injury.

4foot eXtension installation

Parts Required: 1220mm (4 Foot) Extension

WARNING

The Saw Chain is sharp! Always wear gloves when handling the

cutting attachment, otherwise serious personal injury may result.

1. Loosen the two (2) screws (A), and locator screw (B) on cutting

attachment, and remove the cutting attachment.

2. Loosen clamp knob (C) turning counter clockwise.

3. Pullaluminumhousing(D)outofberglasshousing610mm(24

in.),thenslide(D)backintoberglasshousingapproximately

305mm (12 in.) exposing inner drive shaft (E).

4. Loosen the extension clamp knob (F) turning counter clockwise.

5. Align inner drive shaft adapter (G) with extension shaft (H).

NOTE

Assure locator hole in extension shaft is oriented on same side as

locator hole in aluminum housing (D).

6. Alignridgesonaluminumhousing(D)withgroovesinextension

clamp.

7. Slide extension clamp onto aluminum housing (D) until

extension stops.

8. Tighten extension clamp knob (F) securely.

12 in.

4' ExtEnsion AttAchmEnt

opErAtor'smAnuAl 3

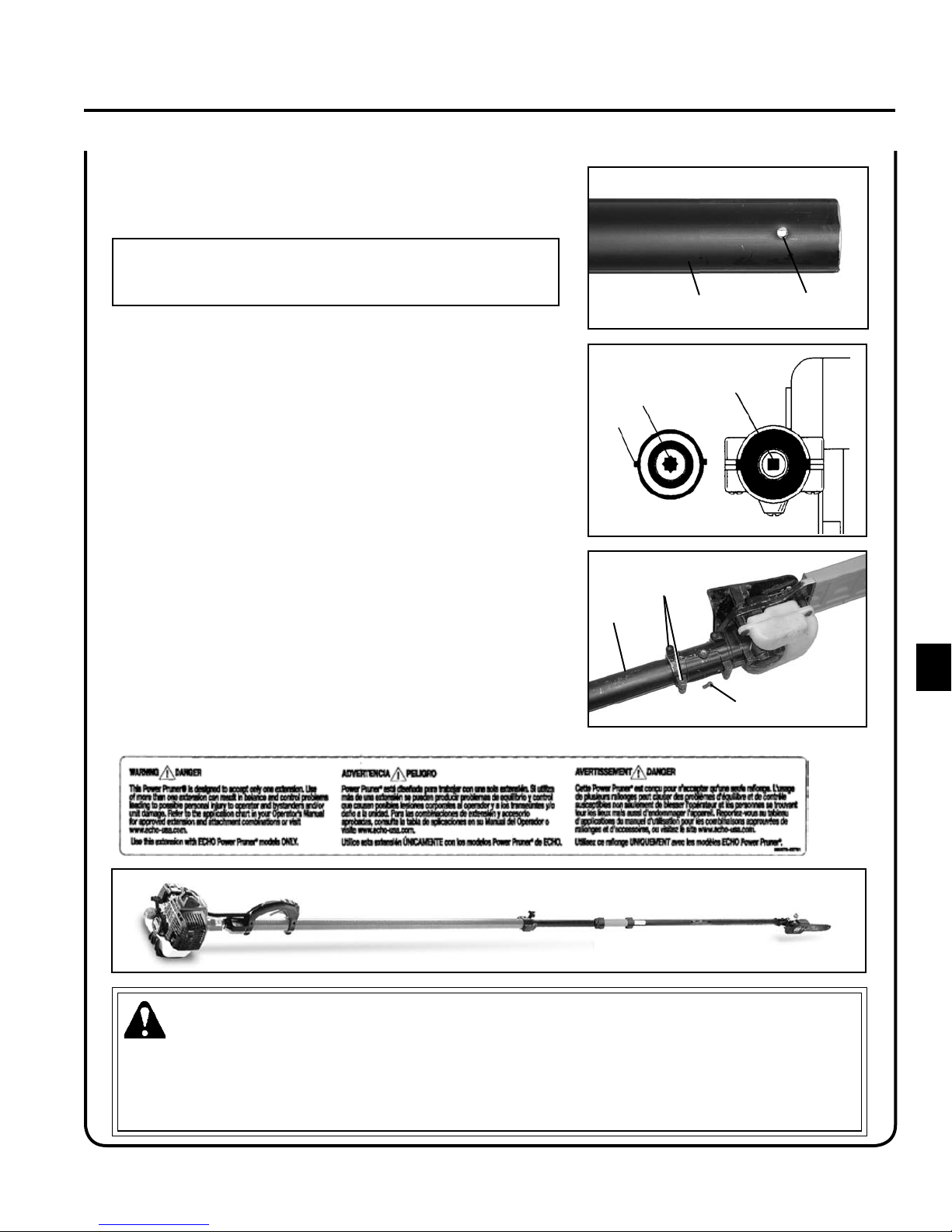

9. Align extension drive shaft adapter (J) with cutting attachment

shaft (K).

NOTE

Locator screw in cutting attachment must align with locator hole

(L) in extension housing (M).

10. Align ridges on aluminum extension housing (M) with seams in

cutting attachment and slide cutting attachment onto extension

housing. Remove locator screw (B) to align locating hole in cutting

attachment with locating hole (L) in aluminum extension housing.

11. Install and tighten locator screw (B). Tighten two (2) cutting at-

tachment screws (A).

WARNING

• ThePowerPrunerTM is designed to accept only one extension. Use of more than one extension or longer shafts can

result in balance and control problems leading to possible personal injury to operator and bystanders and/or unit

damage.

• UsethisextensionwithECHOPowerPrunerTMmodelsONLY.

4' Extension Safety Label

eCho ConsuMer proDuCt support

If you require assistance or have questions concerning the application, operation or maintenance of this product you may

calltheECHOConsumerProductSupportDepartmentat1-800-673-1558from8:30amto4:30pm(CentralStandardTime)

Monday through Friday. Before calling, please know the model and serial number of your unit to help your Consumer Prod-

uct Support Representative.

ECHO, Incorporated 400 oakwood road

lake Zurich, il 60047

www.echo-usa.com
