Echo CS-4200ES Manual de instrucciones

PARTS CATALOG

CHAIN SAW

CS-4200ES

1. クランク室・エンジンカバー

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 900238-05012 2

SCREW 5*12

5*12

2 130510-39932 1

ADAPTER, INTAKE

3 130016-39930 1

GASKET, INTAKE

4 P021-004131 1

CRANKCASE SET

5 + 900162-05022 4

BOLT, H.S. 5*22

5*22 W,SW

6 100000-59531 1

PISTON KIT

7 + 100011-37330 1

RING, PISTON

8 + 100013-35430 1

PIN, PISTON

6*9*27.8

9 + 100015-03931 2

CIRCLIP, PISTON PIN

10 + 100012-35430 1

BEARING, NEEDLE

9*12*12

11 100142-39130 1

KEY, WOODRUFF

12 P021-007240 1

CRANKSHAFT ASY

13 + V505-000010 2

SEAL,OIL 12

14 + 900888-36201 2

BEARING, BALL 6201

6201

15 + 437063-38330 1

GEAR, WORM

16 A235-000020 1

KNOB,CLEANER LID

17 A232-000022 1

LID,CLEANER

18 X503-006141 1

LABEL,MODEL

CSB4200 ES ST1

19 130338-32430 1

PLUG, COVER

20 101520-35430 1

COVER

21 890345-39230 1

LABEL,CAUTION

22 A160-000015 1

COVER,CYLINDER

23 163890-38330 3

BOLT, 5

24 890016-06411 1

LABEL, CAUTION

25 V135-000010 1

GROMMET,HT CORD

- 1 -

CS-4200ES

1. クランク室・エンジンカバー

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

26 433000-60930 1

CATCHER KIT, CHAIN

27 + 900253-05020 1

SCREW 5*20

5*20

28 100918-19830 2

CAP, CUSHION

29 100915-33930 2

SCREW

30 100910-60030 2

CUSHION

31 P021-007181 1

COVER, ENGINE

20 + 101520-35430 1

COVER

32 + 606416-60631 1

WIRE

33 + 900253-04008 1

SCREW 4*8

4*8

34 + 436114-13930 1

VALVE, CHECK

50 + 433011-19830 2

STUD, GUIDE BAR

35 436001-39232 1

CAP, OIL

36 + 900721-00025 1

O-RING 25

G-25

37 + A365-000050 1

CONNECTOR,CAP

38 900162-05030 4

BOLT, H.S. 5*30

5*30 W,SW

39 162011-60630 1

PLATE, GROUND

40 130020-60630 2

NUT 5

- 2 -

CS-4200ES

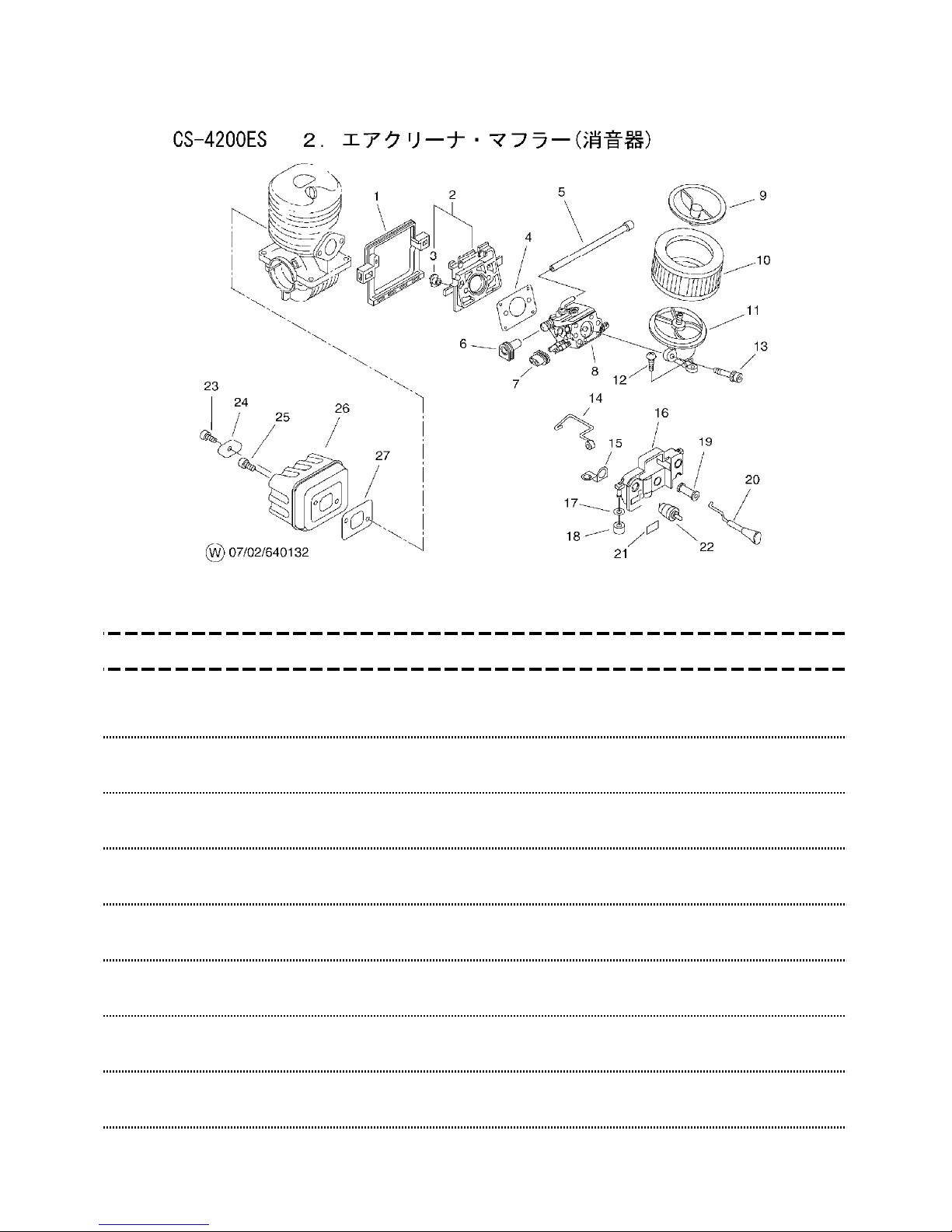

2. エアクリーナ・マフラ（消音器）

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 130366-39930 1

CUSHION

2 130007-39931 1

INSULATOR

3 + 130020-33330 2

NUT

4 130010-38330 1

GASKET, INTAKE

5 130110-54430 1

PIPE, IMPULSE

3*6*105 NBR

6 129023-39930 1

GROMMET, IDLE

7 129010-33330 1

GROMMET

8 A021-000080 1

CARBURETOR,DIAPHRAGM

WT-567

9 130405-38332 1

BRACKET, AIR CLEANER

10 130300-39730 1

CLEANER ASM., AIR

11 130301-39935 1

ADAPTER, INTAKE

ID #1230

12 900253-05016 1

SCREW

5*16

13 900162-05050 2

BOLT, H.S. 5*50

5*50 W,SW

14 C454-000012 1

ROD,THROTTLE

15 163413-59530 1

PLATE, CONTACT

16 163810-59535 1

BRACKET, SWITCH

17 900600-00005 2

WASHER 5

18 351134-39930 2

CUSHION

19 178810-14534 1

GROMMET

20 A241-000100 1

KNOB, CHOKE

21 890157-11130 1

LABEL, SWITCH

22 163400-35430 1

SWITCH, IGNITION

23 900105-04006 1

BOLT, H.S. 4*6

4*6

24 145711-60631 1

STAY, MUFFLER

25 900105-05014 2

BOLT, H.S. 5*14

5*14

26 145610-39930 1

MUFFLER

- 3 -

CS-4200ES

2. エアクリーナ・マフラ（消音器）

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

27 145510-35431 1

GASKET, MUFFLER

- 4 -

CS-4200ES

3. マグネト・リコイルスタータ

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 159010-10630 1

PLUG, SPARK (BPM-7A)

BPM-7A

2 A426-000010 1

TERMINAL,SPARKPLUG

3 A427-000012 1

CAP,SPARK PLUG

4 159118-39930 1

GUIDE, CORD

5 151112-04630 1

BUSHING

6 156626-60630 1

COIL, IGNITION

EMGｰ44

7 900162-05022 2

BOLT, H.S. 5*22

5*22 W,SW

8 156630-39930 1

LEAD, GROUND

9 900216-04006 1

SCREW

4*6

10 156801-60630 1

FLYWHEEL

EGM-44

11 900605-00008 1

WASHER, SPRING 8

12 900500-00008 1

NUT 8

8*P1.25

13 177234-35430 2

SPRING, RETURN

14 177247-04630 2

SPACER, RATCHET

5.2*8*2.1

15 177218-35430 2

PAWL, STARTER

16 900603-00005 2

WASHER 5

5.5*12*0.8

17 V203-000090 2

BOLT,5

M5*14

18 101535-39933 1

COVER, FAN

19 A051-000581 1

STARTER,RECOIL

20 + P022-004630 1

SCREW

21 + P022-008020 1

CATCHER,PAWL

22 + P022-006231 1

ROPE

23 + P022-006240 1

REEL COMP

24 + P022-006250 1

SPRING,SPIRAL

25 + 177246-11120 1

CLIP, STARTER ROPE

26 + P022-001320 1

GRIP, STARTER

- 5 -

CS-4200ES

3. マグネト・リコイルスタータ

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

27 + A500-000151 1

CASE,STARTER

28 900223-04016 4

SCREW

4*16

29 890118-49330 1

LABEL, ECHO

- 6 -

CS-4200ES

4. ハンドル

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 900253-04014 1

SCREW 4*14

4*14

2 351155-35430 1

COVER, HANDLE (BL)

3 178090-37930 1

LOCKOUT, T. CONTROL

4 C450-000000 1

TRIGGER,THROTTLE

5 178043-35430 1

SPRING, THR.RETURN

6 900345-40030 1

PIN, SPRING 4*30SUS

4*30SUS

7 100918-19830 2

CAP, CUSHION

8 900105-04020 2

BOLT, H.S. 4*20

4*20

9 100915-15131 2

SUPPORTER, CUSHION

10 100910-19730 2

CUSHION

11 100252-39930 2

CUSHION

12 351111-19830 1

GRIP, HANDLE

13 132115-04920 1

GROMMET

14 132010-00760 1

PIPE, FUEL

3*5*250L

15 132013-09820 1

CLIP

6MM

16 131205-19830 1

STRAINER, FUEL

17 V162-000040 1

PLUG

18 351103-39934 1

HANDLE, REAR

19 + 131300-56430 1

VALVE, CHECK

20 + 131328-40630 1

COVER, VENT

21 + 132013-26630 1

CLIP

6.5MM

22 + 132012-39930 1

PIPE, W/GROMMET

L65 NBR

23 131004-37932 1

CAP ASY, FUEL

24 + A365-000050 1

CONNECTOR,CAP

25 + 900720-00022 1

O-RING 22

P-22

26 C400-000190 1

HANDLE,FRONT

- 7 -

CS-4200ES

4. ハンドル

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

27 91145-05020 2

BOLT HS TAPPING

5*20

28 91145-05016 2

BOLT HS TAPPING

5*16

- 8 -

CS-4200ES

5. クラッチ・チェンブレーキ・ガイドバー

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

5 433105-60030 1

LEVER, BRAKE

6 + 900330-30240 1

PIN 3*24

3*23.8

7 + 433114-38331 1

SPRING

9 433167-39130 2

SPACER

10 900562-50005 1

LOCKNUT 5

11 91318-05032 1

SCREW

5*32

13 C309-000030 1

TENSIONER,CHAIN

14 V651-000011 1

GEAR,BEVEL

15 V355-000270 1

COLLAR,8

16 V651-000001 1

GEAR,BEVEL

19 900253-04008 1

SCREW 4*8

4*8

20 433012-39930 1

PLATE, GUIDE

24 433019-12330 2

NUT, FLANGE 8

M-8

33 175012-00831 1

BEARING, NEEDLE

34 A556-000171 1

DRUM,CLUTCH

36 175019-38330 1

PLATE, CLUTCH

38 900253-04010 2

SCREW 4*10

4*10

39 433122-35430 1

SPRING, BRAKE

40 433209-35430 1

STOPPER, BRAKE

41 900342-25012 1

PIN, SPRING 2.5*12

2.5*12

42 433208-35431 1

LEVER, BRAKE

43 900330-40088 1

ROLLER 4*8.8

4*8.8

44 433142-35430 1

ADJUSTER, BRAKE

45 C328-000060 1

BAND,BRAKE

46 433310-38330 1

COVER, BRAKE

51 P021-001315 1

GUARD,SPROCKET SET

- 9 -
