Echo CS-8000 Manual de instrucciones
80.7cc
©2005 ECHO, Incorporated. All Rights Reserved
PARTS CATALOG
99922202992
REVISED 08/01/05
AVAILABLE ATTACHMENTS & ACCESSORIES
727070 CHAIN - 20"
727081 CHAIN - 24"
727093 CHAIN - 27"
7270105 CHAIN - 32"
7270116 CHAIN - 36"
200387001 GUIDE BAR - 20"
240388101 GUIDE BAR - 24"
270389301 GUIDE BAR - 27"
320380501 GUIDE BAR - 32"
360381601 GUIDE BAR - 36"
CHAINSAW
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047
WWW.ECHO-USA.COM
CS-8000 Type 1E: 001001 & UP
MODEL: SERIAL NUMBERS
2
CS-8000 TYPE 1E ENGINE, CYLINDER, CRANKCASE, OIL CAP, CHAIN CATCHER
1
2
3
4
7
8
9
10
11
12
13
14 15
16
17
18
19
20
21
23
24
25
26
27
28
29
30 31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
5
6
S/N: 001001-002172 S/N: 002173-999999
22
3
CS-8000 TYPE 1E
ITEM PART NUMBER QTY DESCRIPTION REMARKS
ENGINE, CYLINDER, CRANKCASE, OIL CAP, CHAIN CATCHER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
10020438830 1 CRANKCASE KIT INCLUDES ITEMS 2-9
10021330830 1 OIL SEAL
90034550010 1 SPRING PIN 5
10021502830 2 DOWEL PIN
10025119830 1 CUSHION
43301119830 2 STUD, GUIDE BAR
90081036203 2 BEARING, BALL - 6203
10024230830 1 GASKET, CRANKCASE
10021219830 1 OIL SEAL
43611413930 1 VALVE, CHECK
43300019831 1 CHAIN CATCHER KIT INCLUDES ITEM 12
90016205020 1 BOLT 5X20
90060000005 1 WASHER 5
43301611031 1 SCREW, TENSIONER
43302811030 1 CLIP
43301402830 1 TENSIONER
10010030830 1 CRANKSHAFT ASY
10014230830 1 WOODRUFF KEY
10092130830 1 CUSHION
90023805014 1 BOLT 5X14
90016205014 1 BOLT 5X14
90016205035 4 BOLT 5X35
90016205020 1 BOLT 5X20
43600138830 1 OIL TANK CAP ASY INCLUDES ITEMS 25-28
13105119830 1 LINK
90024603008 1 SCREW 3X8
13105019830 1 RETAINER, LINK
90072100025 1 O-RING 25
90016206025 5 BOLT 6X25
13051630830 1 BAND
13051030830 1 ADAPTOR, INTAKE
10100130833 1 CYLINDER ASY INCLUDES ITEM 33
10101030830 1 GASKET, CYLINDER BASE
10000030832 1 PISTON KIT INCLUDES ITEMS 35-38
10001130831 2 RING, PISTON
10001530830 2 CIRCLIP, PISTON PIN
10001330830 1 PIN, PISTON
10001230830 1 BEARING, NEEDLE
P021005410 1 CYLINDER ASY INCLUDES ITEM 40
10101030830 1 GASKET, CYLINDER
P021005420 1 PISTON KIT INCLUDES ITEMS 42-45
10001130831 2 RING, PISTON
10001530830 2 CIRCLIP, PISTON PIN
V611000000 1 PIN, PISTON
10001230830 1 BEARING, NEEDLE
4
CS-8000 TYPE 1E
1
INTAKE, EXHAUST, AIR CLEANER
2
3
4
5
6
7
8
9
10
11
12
13
14
15 16 17
18
19 20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
21
42
43
44
45
46
48
47 49
50
51 52
40
41
37
38
39
5
CS-8000 TYPE 1E
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
89016131732 1 LABEL, MODEL
13030230830 1 AIR CLEANER COVER SET INCLUDES ITEMS 3-5
13040630830 1 THUMB NUT
90072000010 1 O-RING 10
90072000003 1 O-RING 3
10154130831 1 PLATE, GUIDE
10150138731 1 COVER, CYLINDER INCLUDES ITEM 8
10157830830 1 PLUG
12901038830 1 GROMMET, NEEDLE
12901307061 1 SCREW, IDLE ADJUST
10090519830 1 CUSHION
13033930830 1 PLUG
89016930130 1 DECAL
13000730830 1 INSULATOR INCLUDES ITEMS 15-16
13001230830 1 SEAL, DUST
13002019830 2 NUT
90016205025 4 BOLT 5X25
13011030830 1 PIPE, IMPULSE
12901119831 1 PLATE
90016205055 2 BOLT 5X55
90016205020 5 BOLT 5X20
13040530830 1 SUPPORTER, FILTER
12300038831 1 CARBURETOR -- HDA-153A
12300038832 1 CARBURETOR -- HDA-153B
17881011231 1 GROMMET
17851038730 1 ROD, CHOKE
17811419830 1 HOLDER, THROTTLE LEVER
17807819830 1 SPRING
17830730830 1 ROD, THROTTLE
16340030830 1 SWITCH, IGNITION
89015719830 1 LABEL, SWITCH
15611404920 2 GROMMET
16202130830 1 LEAD
90024204008 1 SCREW 4X8
90022004008 1 SCREW 4X8
10152930830 1 PLATE, GUIDE
13030638730 1 CASE, CARBURETOR
89019131731 1 LABEL, KICK BACK
89019231731 1 LABEL, BAR & CHAIN
89019130131 1 LABEL, KICK BACK
13030330831 1 FILTER, AIR W/SEAL INCLUDES ITEMS 41-42
13032030831 1 SEAL, CLEANER
13035619830 1 GROMMET
14551030830 1 GASKET, MUFFLER
14561030830 1 MUFFLER
90016206020 2 BOLT 6X20
14581331730 1 COVER, MUFFLER
90016205014 2 BOLT 5X14
14571130830 1 BRACKET, MUFFLER
14586231730 1 SCREEN, MUFFLER
14586331730 1 HOLDER, SCREEN
14587331730 1 LID, MUFFLER
90016204010 5 BOLT 4X10
INTAKE, EXHAUST, AIR CLEANER
6
CS-8000 TYPE 1E
1
2
3
45
6
7
89
10
11
12
13
14
15
16
17
18
19
20
13
21
22
23 24
25 26 27
28
29
30
31
IGNITION, STARTER ASY
7
CS-8000 TYPE 1E
ITEM PART NUMBER QTY DESCRIPTION REMARKS
IGNITION, STARTER ASY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
90016204020 2 BOLT 4X20
15660130831 1 COIL, IGNITION
15901716431 1 PLUG, SPARK — CJ-6Y
15901103432 1 TERMINAL, SPARK PLUG CAP
15901203433 1 CAP, SPARK PLUG
15061130830 1 TUBE
15211205730 1 BUSHING
43301912330 1 FLANGE NUT 8
10014319830 1 WASHER
10152130832 1 FAN, COOLING
15680032631 1 FLYWHEEL
10153438730 1 PLATE, GUIDE
90016205020 6 BOLT 5X20
17723430830 2 SPRING, RETURN
17724712331 2 SPACER, RATCHET
17721830830 2 PAWL, STARTER
90060300005 2 WASHER 5
90016205030 2 BOLT 5X30
10153538830 1 COVER, FAN
89011817930 1 LABEL, ECHO
17720038831 1 STARTER ASY INCLUDES 22 - 31
17722707060 1 GUIDE, ROPE
17722830830 1 GRIP, STARTER
17724230830 1 PLATE, STARTER
17720614330 1 DRUM, STARTER
17721402830 1 WASHER
90016205014 1 SCREW 5X14
17722607060 1 ROPE, STARTER - 4mmX900mm BULK OPTION: 99944450000
17721612330 1 COLLAR
17722002834 1 SPRING, REWIND
17722102830 1 PLATE, STARTER
8

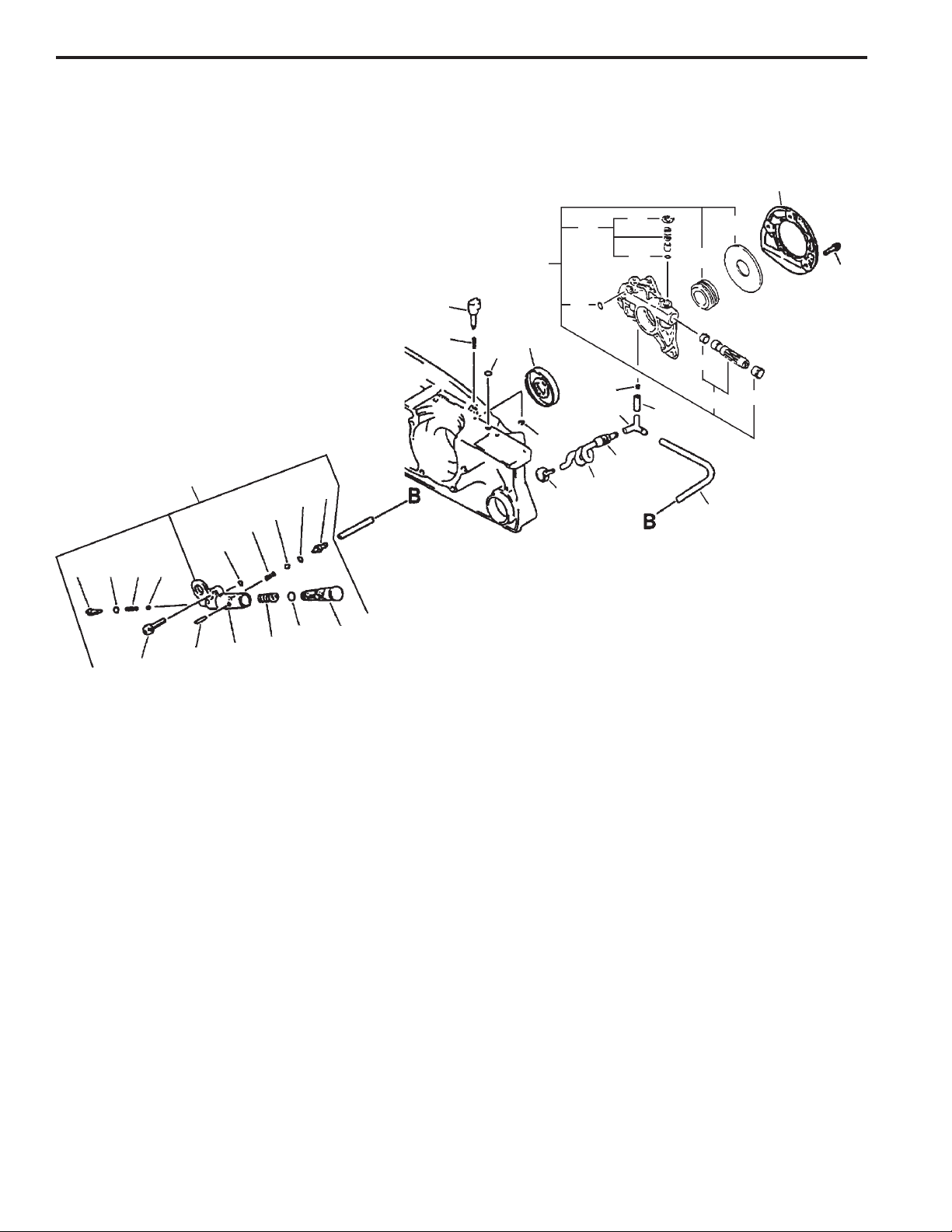

CS-8000 TYPE 1E AUTO-OILER ASY
1
2
3
4
5
6
7
8
13
14
15
19
9
10 11
12
16
18
20
21
22
23
24
25 26
27
28
29
30
31
32
33
34
35
36
37 27 29 28
17
9
CS-8000 TYPE 1E
ITEM PART NUMBER QTY DESCRIPTION REMARKS
AUTO-OILER ASY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
43760537630 1 COVER, OIL PUMP
90016204014 3 BOLT 4X14
43700237530 1 AUTO-OILER ASY INCLUDES ITEMS 4-12
90072000003 1 O-RING 3
43700419931 1 GEAR, WORM
43706630130 1 WASHER
43700632330 1 PLUNGER KIT INCLUDES ITEM 8
43702032430 1 V-RING
43706219830 1 CAP, PLUNGER
43700935430 1 CONTROL PIN ASY INCLUDES ITEMS 11-12
43706519830 1 CLIP
43703019830 1 O-RING
13201326630 1 CLIP
43721132430 1 PIPE
43721232430 1 CONNECTOR, OIL PIPE
13211512330 1 GROMMET
43721038330 1 PIPE, OIL (INNER)
43620514730 1 STRAINER, OIL
10021330830 1 OIL SEAL
90070000003 1 E-RING 3
90072000003 1 O-RING 3
43703938730 1 ADJUSTER, AUTO OILER
43701519830 1 SPRING
43721030830 1 PIPE, OIL
43710038832 1 OIL PUMP ASY INCLUDES ITEMS 26-37
43711819830 1 NIPPLE
43712203430 2 O-RING
43701200330 2 VALVE, BALL
V450000290 2 SPRING, VALVE
90072000003 1 O-RING 3
43711238731 1 PISTON, OIL PUMP
90072000007 1 O-RING 7
43711119830 1 SPRING
43711019831 1 BODY, OIL PUMP
90034520016 1 PIN, SPRING 2X6
90016205020 1 BOLT 5X20
43712110130 1 ADAPTOR, OIL PUMP
10
CS-8000 TYPE 1E HANDLES, THROTTLE CONTROL, FUEL SYSTEM
1234
56
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22 23
24
25
6
26
76
5
26
27
28
29
30
31
32 33
6
34
35
36
37
38
26
