Ebyte E15-USB-T2-V2.0 Manual de usuario

E15-USB-T2-V2.0 User Manual

CH340X USB to TTL adapter board

Content

DISCLAIMER................................................................................................................................................................................................................................2

1. MODULE INTRODUCTION ...............................................................................................................................................................................................3

2. PIN DEFINITION .................................................................................................................................................................................................................... 3

3. WORKING MODE.................................................................................................................................................................................................................. 4

4. VOLTAGE SELECTION ........................................................................................................................................................................................................6

5. PARAMETER CONFIGURATION.................................................................................................................................................................................... 6

6. ABOUT US.................................................................................................................................................................................................................................7

Chengdu Ebyte Electronic Technology Co.,Ltd. E15-USB-T2-V2.0 Datasheet

Disclaimer

EBYTE reserves all rights to this document and the information contained herein.

Products, names, logos and designs described herein may in whole or in part be

subject to intellectual property rights. Reproduction, use, modification or disclosure to

third parties of this document or any part thereof without the express permission of

EBYTE is strictly prohibited.

The information contained herein is provided “as is” and EBYTE assumes no

liability for the use of the information. No warranty, either express or implied, is given,

including but not limited, with respect to the accuracy, correctness, reliability and

fitness for a particular purpose of the information. This document may be revised by

EBYTE at any time. For most recent documents, visit www.ebyte.com.

Chengdu Ebyte Electronic Technology Co.,Ltd. E15-USB-T2-V2.0 Datasheet

1. Module Introduction

E15-USB-T2-V2.0 is a USB to UART interface conversion module

based on CH340X chip solution developed by Chengdu Yibai Special

Electronics Technology, mainly for our E22~E70 series wireless

communication module embedded applications, and is equipped with ESD

protection, support a variety of systems and a variety of baud rates, and the

module is generally used to connect with the MCU. Module provides UART

(TTL level) interface, this transparent transmission interface is greatly

convenient for customers to use.

1. with the serial debugging assistant on the computer side can directly

test the wireless serial communication.

2. with the parameter setting software software can be very convenient to configure the module parameters..

2. Pin Definition

Chengdu Ebyte Electronic Technology Co.,Ltd. E15-USB-T2-V2.0 Datasheet

3. Working mode

According to the characteristics of the product used to customize the working mode of the control module, the

following is an example of the four working modes of the E22 series products, explained by the pin M0, M1 settings,

detailed instructions are shown below.

Figure 1: Mode 0

Figure2: Mode1

Chengdu Ebyte Electronic Technology Co.,Ltd. E15-USB-T2-V2.0 Datasheet

Figure3: Mode2

Figure4: Mode3

Chengdu Ebyte Electronic Technology Co.,Ltd. E15-USB-T2-V2.0 Datasheet

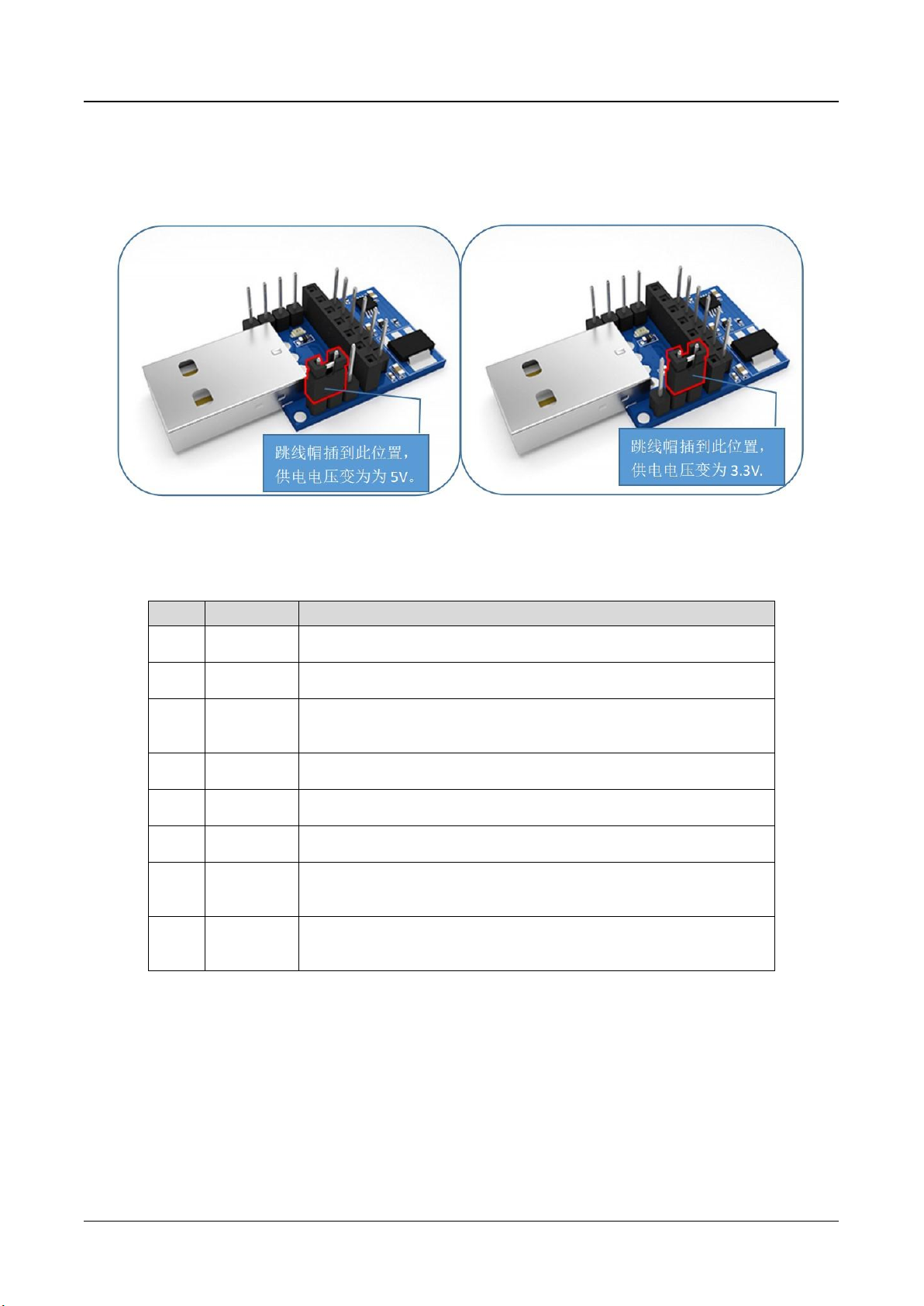

4. Voltage Selection

5. Parameter Configuration

Steps

Operation

Detailed description

Install the

driver

Please install the USB adapter driver (CH340X) in the package first.

Unplug the

jumper

Unplug the jumper caps at M0 and M1 on the USB adapter board as

shown below; choose either 3.3V or 5V for the power jumper caps.

Connect the

module

Insert the module into the 7PIN holder of the adapter board with the

antenna end outward; then plug the adapter board into the USB port of

the computer.

Open the

serial port

Open our parameter configuration software, select the corresponding

serial port number and click "Open serial port".

Enter the

interface

Click "Read module parameters", the interface is shown below.

Write

parameters

If the reading fails, please check whether the module is in mode 3, or

whether the adapter driver has been installed.

Complete

the

operation

If you need to change the corresponding configuration, please adjust the

parameters to be modified; click "Write" button to write the new

parameters to the module.

Command

configuratio

If you need to reconfigure the module, please click "Step 5"; if the

configuration is finished, please click "Close Serial Port" and then

remove the module.

Chengdu Ebyte Electronic Technology Co.,Ltd. E15-USB-T2-V2.0 Datasheet

6. About us

Technical support: suppo[email protected]

Documents and RF Setting download link:：https://www.cdebyte.com

Thank you for using Ebyte products! Please contact us with any questions or suggestions: info@cdebyte.com

-------------------------------------------------------------------------------------------------

Official hotline: 028-61399028 Sales Hotline ：4000-330-990

Web: https://www.cdebyte.com

Address: Building B5, No.199 West Avenue, High-tech West District, Chengdu, Sichuan Province
