Eaton 93PS Guía de configuración

FETY AND INSTALLATION

QUICK GUIDE

Eaton 93PS UPS

8-40 kW

Document ID

DOWNLOAD FULL USER’S AND INSTALLATION

GUIDE AT WWW.EATON.EU/93PS

P-164000576

FETY AND INSTALLATION

QUICK GUIDE

Eaton 93PS UPS

8-40 kW

Document ID

750 mm

480 mm

1750 mm

1300 mm

335 mm 750 mm

645 mm

335 mm 750 mm

100%0 % 20 % 40% 60% 80 %

95 %

0 ºC 10 ºC 20 ºC 30 ºC 40 ºC 50 ºC-10 ºC

≤ 40 ºC ≤ 40 ºC

4.1

4.2

6.1

5.1

5.2

6.2

1715

9 14 35 2 1

7 8 10 11 12 13 15 16

1516

BLUE BEADS IN

ARROW INDICATES

CONTAINERWA S

TIPPED OR

MISHANDLED

MADE IN U.S.A.

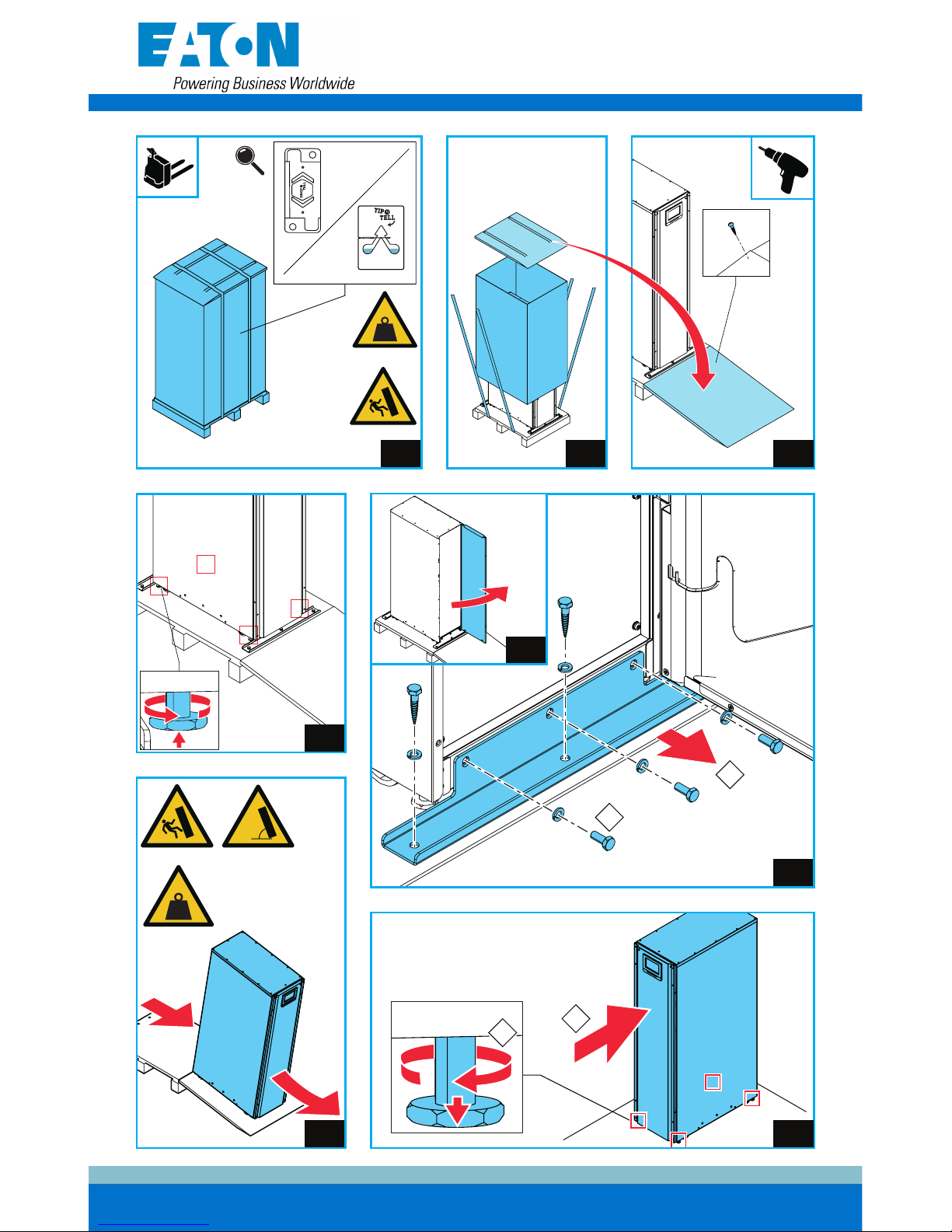

7.1

7.4

7.6

7.7 7.8

7.2

7.5

7.3

<80°

8.1

8.4 8.5

8.3

8.2

6.1/6.2

5.1/5.2

TB20

TB21

NO NC

1 2 3 4 1 2 3 4

NO NC

123

CONTENTS

EN Safety and Installation Quick Guide

DE Schnellanleitung für Sicherheit und Installation

FR Guide rapide de sécurité et d’installation

FI Turvallisuus- ja asennuspikaopas

SV Snabbguide för säkerhet och installation

NO Hurtigveiledning for sikkerhets or installasjon

DA Hurtig sikkerheds- of installationsvejledning

RU Kpatkoe руководство по технике безопасности и установке

NL Verkorte handleidingvoor veiligheid en installatie

ES Guía de seguridad y de instalación rápida

CS Rychlá bezpečnostní a instalační příručka

PL Skrócona instrukcja bezpieczeństwa i montażu

IT Guida rapida all’installazione e informazioni sulla sicurezza

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

. . . . . . . . . . . . . . 67

. . . . . . . . . . . . . . . . . . . . . . . . . . 87

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

. . . . . . . . . . . . . . . . 117

1 Safety

DANGER

Important safety instructions!

Save these instructions!

This document provides important safety instructions and a short instruction for how to

check the UPS delivery and how to install the UPS. This quick guide is only meant to be

used as an installation checklist on site.

The intended audience of this document is experienced professionals who plan and

perform the installation of the UPS.

DANGER

Before you start to perform work on the UPS, read the full installation instructions

provided in the Eaton 93PS UPS 8-40 kW User’s and Installation Guide.

The full instructions are available for download at www.eaton.eu/93ps.

Operations inside the UPS must be performed by an authorized Eaton Customer Service

Engineer or by qualified service personnel authorized by Eaton. There are no user-

serviceable parts inside the UPS.

The UPS operates with mains, battery or bypass power. It contains components that carry

high currents and voltage. A properly installed enclosure is earthed and IP20 rated against

electrical shock and foreign objects. However, the UPS is a sophisticated power system

and only qualified personnel are allowed to install and service it.

DANGER

This UPS carries lethal voltages.

Batteries present a risk of electrical shock or burn from high short circuit current. Observe

proper precautions.

Batteries may contain HIGH VOLTAGES, and CORROSIVE, TOXIC and EXPLOSIVE

substances. Because of the battery string the output receptacles may carry high voltage

even when the AC supply is not connected to the UPS. Read the shutdown instructions in

the User’s and Installation Guide.

WARNING

The UPS is powered by its own energy source (batteries). The output terminals may be

energized even when the UPS is disconnected from an AC source. To reduce the risk of

fire or electric shock, install this UPS in a temperature and humidity controlled, indoor

environment that is free of conductive contaminants.

Do not stack the UPS 93PS C-model cabinet on top of any other similar cabinet(s). Do

not stack anything on the top of the 93PS UPS cabinet. If the UPS 93PS C-model cabinet

is installed on a shelf, use necessary supports to prevent the UPS from tipping or

dropping.

WARNING

The ambient temperature must not exceed 40 °C (104 °F). Do not operate the UPS near

water or excessive humidity (95% maximum). The system is not intended for outdoor

use.

Before you start any installation or service work, make sure that all AC and DC power

sources are disconnected. Power may come from multiple sources. Also ensure system

grounding / PE continuity.

In a parallel system, the output terminals may be energized even when the UPS is turned

off.

Electric energy hazard. To avoid injury, do not attempt to alter any battery wiring or

connectors.

IMPORTANT: Make sure that you disconnect all battery strings before installation.

CAUTION

Only qualified service personnel knowledgeable of batteries and the required precautions

are allowed to perform installation or service work on batteries. Keep unauthorized

personnel away from the batteries. Before you install or replace batteries, consider all the

warnings, cautions, and notes concerning appropriate handling. Do not disconnect the

batteries when the UPS is in the Battery mode.

Make sure that your replacement batteries are of the same number and type as the

battery that was originally installed in the UPS. See more accurate instructions on the

UPS.

Before you connect or disconnect battery terminals, disconnect the charging source by

opening the corresponding battery circuit breaker.

Check if the battery is inadvertently grounded. If it is, remove the source of the ground.

Contacting any part of a grounded battery can cause a risk of electric shock.

Dispose of batteries according to your local disposal requirements.

Do not dispose of batteries in a fire. When exposed to flame, batteries may explode.

To reduce the risk of a fire, connect only to a circuit that is provided with maximum input

circuit breaker current ratings in accordance with the national and local installation rules.

To ensure proper cooling airflow and to protect personnel from dangerous voltages inside

the unit, keep the UPS door closed and the front panels installed.

Do not install or operate the UPS system close to gas or electric heat sources.

Keep the operating environment within the parameters stated in this document. Keep the

surroundings of the UPS uncluttered, clean, and free from excess moisture.

Observe all DANGER, CAUTION, and WARNING notices affixed to the inside and

outside of the equipment.
