Eaton EATS30N Manual de usuario

ENGLISH

EATON ATS 30

EATS30N

EATS30H

EATS30P

Installation

and user manual

Service and support:

Call your local service representative

ATS-00_EN

Page 2 ATS-00_EN

SAVE THESE INSTRUCTIONS. This manual contains important instructions

that should be followed during installation and maintenance of the ATS.

The EATON ATS models that are covered in this manual are intended for installation

in an environment within 40°C/104°F (EATS30H, EATS30P) and 35°C/95°F (EATS30N),

free of conductive contaminant.

Certication standards

• Safety: UL (US) (UL 60950) CE (EU) (IEC 60950) PSE (JP)

• EMI: CISPR 22 Class A and FCC Class A

• EMS:

- IEC 61000-4-2

- IEC 61000-4-3

- IEC 61000-4-4

- IEC 61000-4-5

- IEC 61000-4-6

- IEC 61000-4-8

- IEC 61000-4-11

Important safety notes

• Onlyqualiedpersonnelcanservicethisequipment.

• Follow the following precautions when working on this unit.

- Remove watches, rings, or other metal objects.

- Use tools with insulated handles.

- Examine the packing container. Notify the carrier immediately if any damage is present.

- Do not disassemble the unit.

- Do not operate the unit near water or in an area with excessive humidity.

- Keep liquid and foreign objects from getting inside the unit.

-Donotoperatetheunitclosetogasorre.

• Upstream circuit breaker must be added for each input.The recommended breaker is D curve 30A

for EATS30H - EATS30P and D curve 32A for EATS30N.

• Verify whether the branch circuit breaker or fuse on service feed is correct.

• Verify line voltage requirements and the supplied line voltage prior to installation.

Electrical warnings

• When servicing this equipment, you may need to remove its protective covers and connect utility power.

Please observe great caution during these procedures.

• Check that power cords, plugs, and outlets are in good condition.

SAFETY INSTRUCTIONS

Page 3

ATS-00_EN

ENGLISH

Contents

1. Introduction....................................................................................... 4

2. Presentation...................................................................................... 4

2.1 Weights and dimensions ...............................................................................................4

2.2 Front panel layout...........................................................................................................4

3. Installation for ATS ........................................................................... 5

3.1 Checking the accessory kit............................................................................................5

3.2 Storage ..........................................................................................................................5

3.3 Front installation for rack mounting ..............................................................................6

3.4 Rear installation for rack mounting ...............................................................................6

4. Power cables connection ................................................................. 7

4.1 Installation requirements ...............................................................................................7

4.2 Access to terminal blocks..............................................................................................8

4.3 Hardwired Input/Output connection (EU) ......................................................................8

4.4 Input/Output connection (US)........................................................................................8

5. Operation........................................................................................... 9

5.1 Front panel.....................................................................................................................9

5.2 Communication card.................................................................................................... 10

6.Troubleshooting ...............................................................................11

7. Specications .................................................................................. 12

Page 4 ATS-00_EN

1. Introduction

The EATON ATS 30 is designed to guarantee the uninterrupted operation of sensitive equipment. It is

theotherwhenthepowersupplyusedtopoweritsconnectedloadfails.ThisATSisdesignedtobeefcient

and reliable.

UserscanknowpowerowandtheEATONATS30'sstatusfromtheuser-friendlyfrontpanel.Besides,

the unit has a network interface for users to read and write parameters.The network interface can be

implemented via the Ethernet protocol through an RJ45 connector. All information is available on the front

panel and the LOCAL port on the front panel is available over the network through the RJ45 connector.

2. Presentation

2.1 Weights and dimensions

Rack installation

Description Weights

(lb/kg)

Dimensions H x W x D

(inch/mm)

EATS30N - EATS30H 10.6 / 4.8 1.7 x 17.4 x 15.4 / 43 x 440 x 390

EATS30P 17 / 7. 7 1.7 x 17.4 x 15.4 / 43 x 440 x 390

2.2 Front panel layout

There are two models. Please see the following pictures.

EATS30N - EATS30H (EU)

41 21 3 1Cable gland (input)

2Cable gland (output)

3User interface

4Communication card

EATS30P (US)

41 21 3 1L6-30P

2L6-30R

3User interface

4Communication card

Page 5

ATS-00_EN

ENGLISH

3. Installation for ATS

3.1 Checking the accessory kit

• Verify that the following additional items are included with the ATS:

EATS30N - EATS30H

1 3

1User manual

2Safety instructions

3Warranty sheet (EATS30H)

4ATS module

5Rack mounting bracket

EATS30P

1 3

1User manual

2Safety instructions

3Warranty sheet (EATS30H)

4ATS module

5Rack mounting bracket

3.2 Storage

• Please store the ATS in its original package and in a dry place.

Keep the storage temperature between -15°C and +50°C (5 to 122°F).

Page 6 ATS-00_EN

3. Installation for ATS

3.3 Front installation for rack mounting

Follow steps 1 to 3 for module mounting on the rails.

3.4 Rear installation for rack mounting

Follow steps 1 to 3 for module mounting on the rails.

Page 7

ATS-00_EN

ENGLISH

4. Power cables connection

4.1 Installation requirements

Recommended protective devices

Recommended protection

2 poles circuit breaker

UPS S1

ATS

UPS S2

2 poles circuit breaker

to the sensitive equipment

After power connection, the Eaton ATS will automatically perform power-on self-test. After the test, the

EatonATSwillstartsupplyingpowertoitsconnectedequipment.Youcanalsopressthe‘TestButton’to

force the Eaton ATS to execute self-test.

Page 8 ATS-00_EN

4. Power cables connection

4.2 Access to terminal blocks EATS30N - EATS30H

4.3 Hardwired Input/Output connection (EU) EATS30N - EATS30H

To loadTo UPS 2To UPS 1

1. Connect input power cables to two

UPSs (UPS1 (S1) is the preferred

source).

2. Connect output power cable to

load.

Cable cross sections

Terminal

position

Wire

function

Terminal wire

size rating

Minimum input

wire size

Tightening

torque

L1 / L2 Phase 32A 10 AWG 14Kgf-cm

N1 / N2 Neutral

Ground

4.4 Input/Output connection (US) EATS30P

To load

To UPS 2

To UPS 1

Page 9

ATS-00_EN

ENGLISH

5.1 User interface

The following table shows the indicator status and description:

N° Indicator Status Description

1Test button -Use this button to test the Eaton ATS. Press this button, the Eaton ATS

will transfer to the 2nd source for 1 minute and then transfer back to

original preferred source.

2Test LED Green If you press the test button, the Eaton ATS will be under test conditions

and theTest LED will flash (on: 0.5s; off: 0.5s). In normal operation, this

LED will be off.

3S1 LED Green This LED indicates the condition of input source 1. If the input source 1

is within acceptable range, this LED will light up as green. If the input

source 1 is out of acceptable range, this LED will be off.

4S2 LED Green This LED indicates the condition of input source 2. If the input source 2

is within acceptable range, this LED will light up as green. If the input

source 2 is out of acceptable range, this LED will be off.

5S1_ON LED Green If the Eaton ATS uses input source 1 to supply power to the output, this

LED will light up as green. If not, this LED will be off.

6S2_ON LED Green If the Eaton ATS uses input source 2 to supply power to the output, this

LED will light up as green. If not, this LED will be off.

7O/P LED Green This LED indicates the output condition (voltage is > 60Vac). If there is

output, this LED will light up as green. If not, this LED will be off.

8Fault LED Red If the Eaton ATS has any internal fault, this LED will light up as red. If

the Eaton ATS has any environmental fault, this LED will flash (ON: 0.5s;

OFF: 0.5s). Via the "NETWORK" port, fault messages will be sent to a

connected PC. From the PC, you can see error codes as follows in the

troubleshooting in page 11 .

5. Operation

Page 10 ATS-00_EN

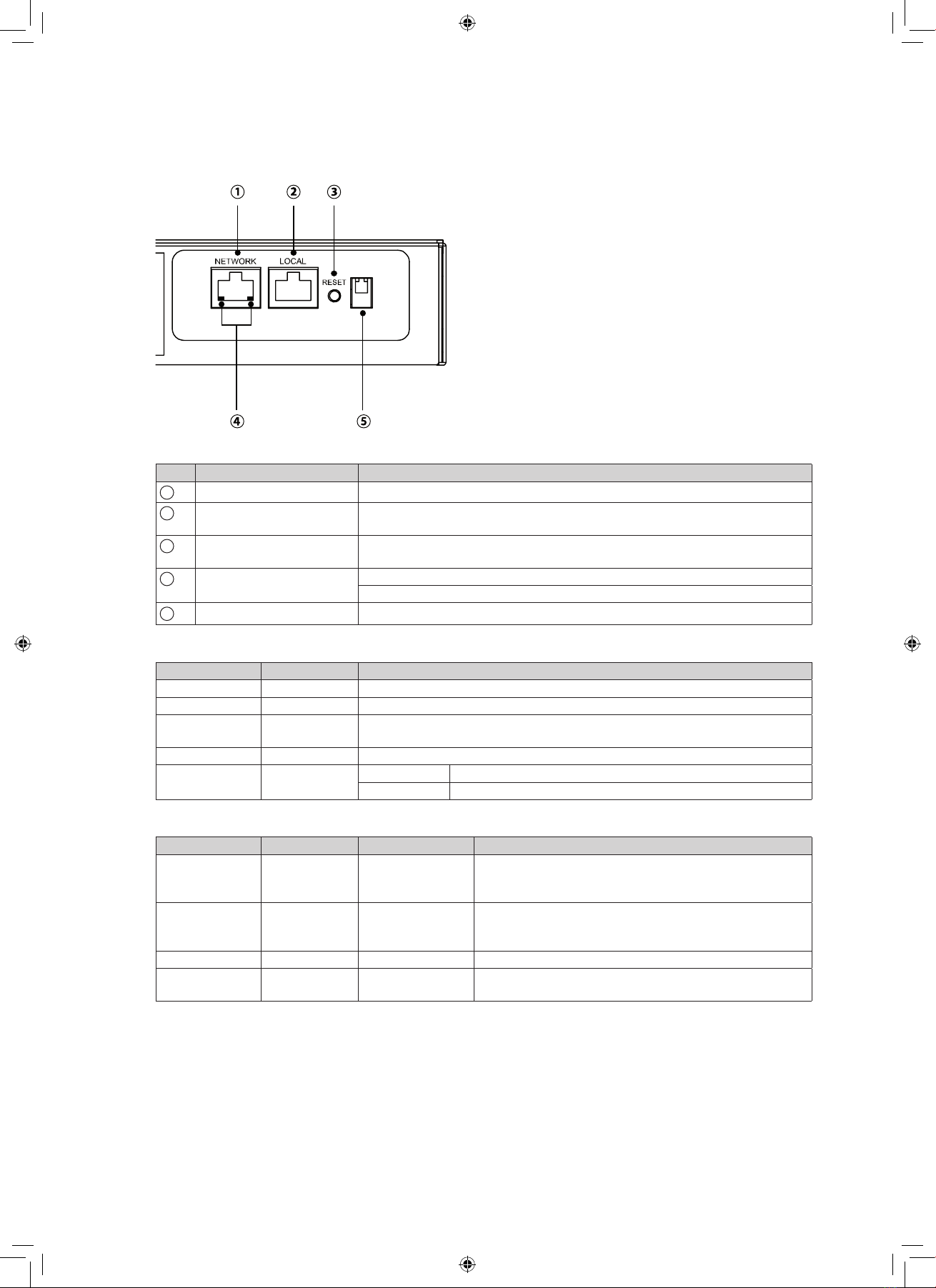

5.2 Communication card

N° Indicator Description

1NETWORK port Connects to the Ethernet Network

2LOCAL port ConnectstoaworkstationwithanRJ45toDB9cabletoconfigurethe

system.

3RESET button Resets InsightPower SNMP IPv6 for ATS (hereafter referred to as SNMP

IPv6).This does not affect the operation of the ATS

4LED indicators NET LED (green) indicates network communication status

ATSLED(yellow)indicatestheATS’scommunicationstatus.

5DIP switch Sets up operation mode

LED indicators

LED Condition Meaning

NET LED OFF Ethernet is unlinked.

NET LED Green Ethernet is linked.

ATS LED OFF 1. Initialization

2. SNMP IPv6 abnormality

ATS LED Amber SNMP IPv6 abnormality

ATS LED Blinking Every second Poor connection between the ATS and the SNMP IPv6

Every 50 ms Normal connection between the ATS and the SNMP IPv6

DIP switch

DIP 1 DIP 2 Operation mode Description

OFF OFF Normal mode Thebuilt-inSNMPIPv6providestheATS’sstatus

information and parameters through a network

system.

OFF ON Pass through

mode

The built-in SNMP IPv6 stops polling the ATS but

transfers the communication data between the

"LOCAL" port and the ATS.

ON OFF - Invalid state

ON ON Configuration

mode

In this mode, users can login through the "LOCAL"

portandconfigurethebuilt-inSNMPIPv6’ssettings.

5. Operation
