Introduction
This document provides the installation guide/mounting guide for the EasyIO FG-32 controller.
Do not mount the EasyIO FG-32:
-In an area where excessive moisture, corrosive fumes or explosion vapors are present.
-Where excessive vibration or shock is likely occur
-Location where excessive electrical noise such as large magnetic interference or variable
speed drive modules
Dimension
Below are the dimensions of the device.
Below are the dimensions for the EasyIO FG-32.
Top View. Width including connectors is approx 124mm
EasyIO FG-32 –Installation Guide v1.1
6
Side view and back view.
Improved DIN rail mounting for easy dismantling.
Alternate mounting option dimension
EasyIO FG-32 –Installation Guide v1.1
7
Physical Installation Instructions
Step 1
Securely fasten the DIN rail to the enclosure base plate. A standard DIN rail width 35mm.
Typical industrial DIN rail, 35mm
Step 2
Use a screwdriver to unlock the 2 numbers of locking clips. Eventually you may use your finger.
EasyIO FG-32 –Installation Guide v1.1
8
Step 3
Position the EasyIO FG-32 on the DIN rail mount till it hooks over the top edge of the DIN rail.
Push the controller towards the bottom part of the DIN rail
Step 4
Press/flatten the EasyIO FG-32 to make sure the bottom of the base cover touches the enclosure
base plate.
Step 5
Use a screwdriver to lock the locking clips to secure the EasyIO FG-32 to the DIN rail. Eventually you
may use your finger to press upwards and lock the clip to the DIN rail.
EasyIO FG-32 –Installation Guide v1.1
9
Step 6
To keep the assembly secures a DIN rail end clip can be use.
Image shows a typical “DIN rail end clip(end stopper)”
The EasyIO FG-32 comes with 2 mounting holes as optional mounting. Occasionally if DIN rail
mounting is not practical, you can use screws to mount the EasyIO FG-32 to an enclosure base plate.
EasyIO FG-32 –Installation Guide v1.1
10
Opening the Top Cover

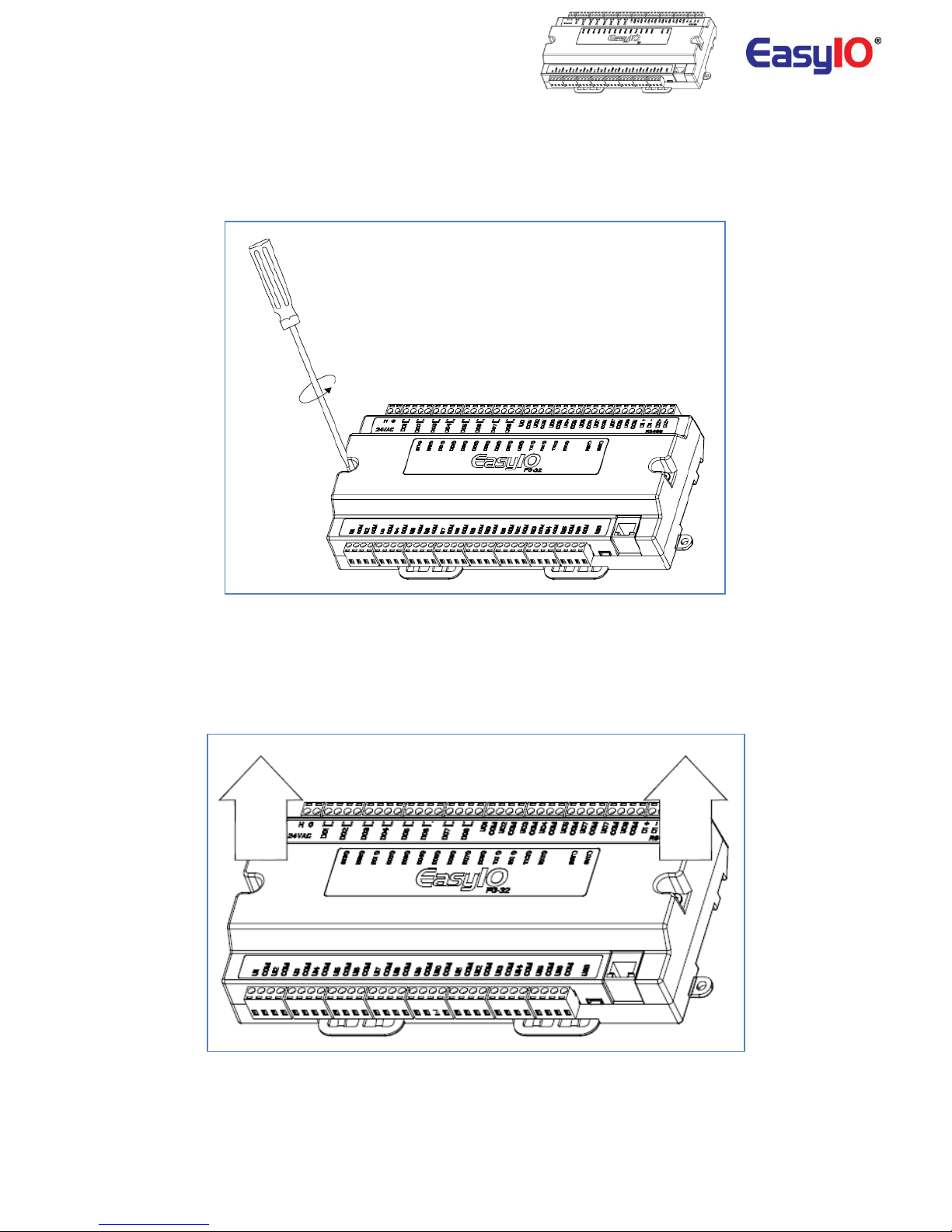

Step 1
Use a Philips screwdriver to unscrew the 2 Philips screw located on top the top cover.
Remove the 2 Button HeadPhilips screws
Step 2
Hold both end of the top cover to lift up the top cover. Occasionally a small flat head screw driver
might come handy in case the top cover stuck to the bottom cover.
Hold both sides and lift up the top cover
