E-Lins M100 Manual de usuario

M100 Cellular Modem Quick Start

E-Lins Technology Co.,Limited

Add:Bld22, Longxi Garden, Nonglin Road, Futian, Shenzhen, 518000, China

Tel: +86-755-83700465 E-mail: [email protected] www.szelins.com

E-Lins Cellular Modem QuickStart

E-Lins Technology Co.,Limited

Add:Bld22, Longxi Garden, Nonglin Road, Futian, Shenzhen, 518000, China

PHONE: +86-755-83700465

WEB: www.szelins.com

E-mail: [email protected]

M100 Cellular Modem Quick Start

E-Lins Technology Co.,Limited

Add:Bld22, Longxi Garden, Nonglin Road, Futian, Shenzhen, 518000, China

Tel: +86-755-83700465 E-mail: [email protected] www.szelins.com

CONTENTS

PROLOGUE···············································································································································2

VERSION············································································································································3

NOTICE·············································································································································· 3

GETTING STARTED ·······························································································································4

CONNECT TO PRODUCTS·····················································································································4

INSERT SIM CARD ·····························································································································4

NOTE:HYPER TERMINAL ··················································································································· 5

TESTAT COMMAND ··························································································································· 9

SMS······························································································································································9

CSD····························································································································································12

ABOUT CSD···································································································································· 12

GETTING STARTED ··························································································································· 12

MUTUALITY COMMAND ··················································································································· 12

Generally command································································································· 12

Set the auto answer in ringing··················································································12

TEST 13

DIAL-UP···················································································································································14

SET-UP MODEM································································································································14

CONFIGURE 19200 MODEM·············································································································· 17

CREATE A DIAL-UP NETWORK··········································································································· 21

LOGIN ON NETWORK ························································································································ 28

SETTINGAPN OR VPDN························································································································2

SETTING APN····································································································································2

SETTING VPDN································································································································· 4

Chapter1

Prologue

This document is suitable for the following products, it will show how to setup an E-Lins

Cellular Modem and helps you to use it.

M100 Cellular Modem Quick Start

E-Lins Technology Co.,Limited

Add:Bld22, Longxi Garden, Nonglin Road, Futian, Shenzhen, 518000, China

Tel: +86-755-83700465 E-mail: [email protected] www.szelins.com

Products type Description

M100gs GSM Modem

M100g - 201 GPRS Modem

M100g - 209 GPRS Modem

M100c-305 CDMA1x Modem

M100c-309 CDMA1x Modem

Version

ersion Date Description Author

2.50 2011-10-10 Changed once Jason. Z

Notice

E-Lins is a registered trademark of E-Lins Technology Co.,Limited.

The copyright of the document belongs to E-Lins Technology Co.,Limited. Copying of this

document and modifying it and the use or communication of the contents thereof, is

forbidden without express. Authority and Offenders are liable to the legal sanction

M100 Cellular Modem Quick Start

Chapter2

Getting Started

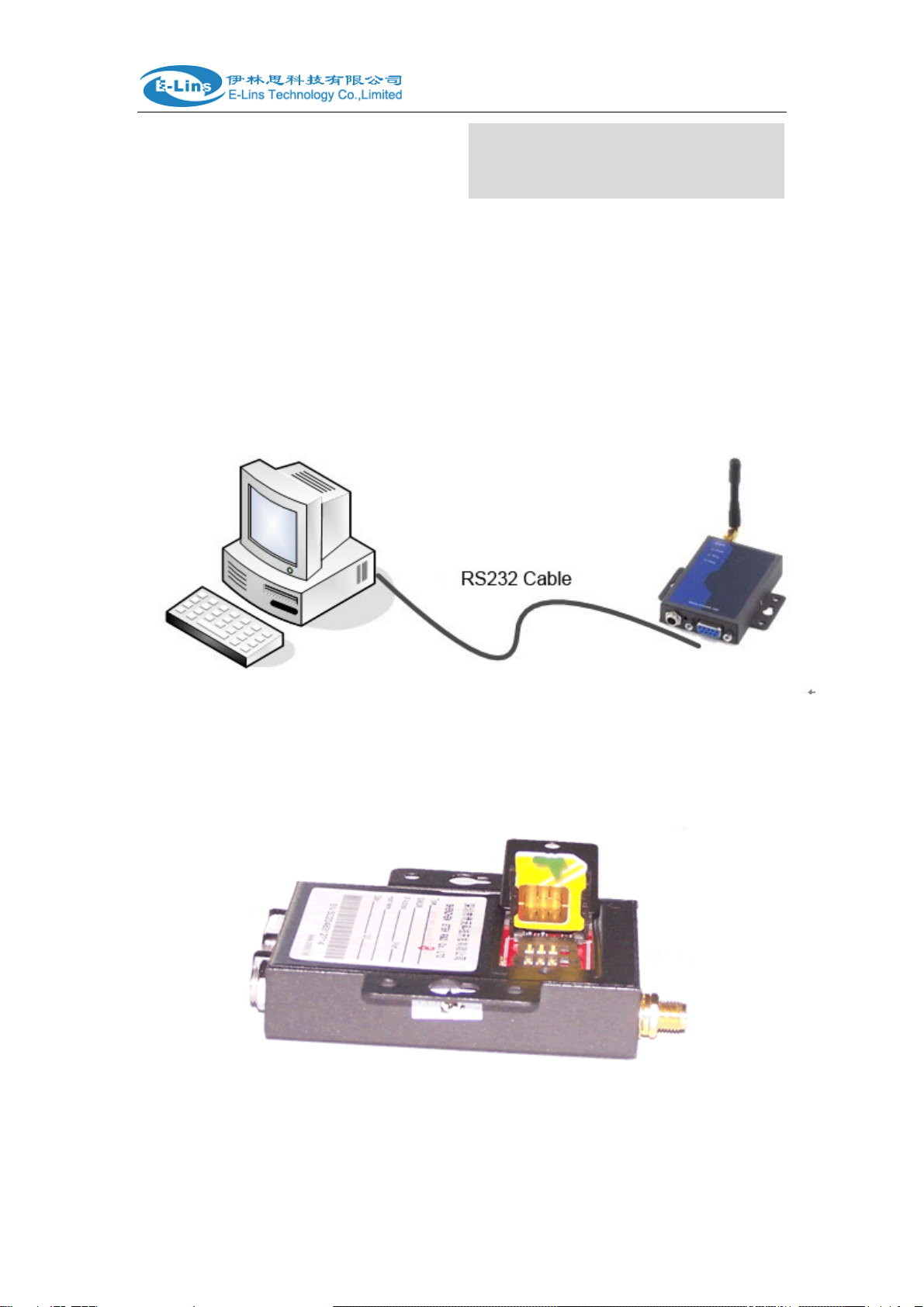

Connect to products

1. Please connect antenna and cable with our products, make sure

the port COM1 or COM2?

Insert SIM Card

2. Open the back cover. insert into SIM card as below

E-Lins Technology Co.,Limited

Add:Bld22, Longxi Garden, Nonglin Road, Futian, Shenzhen, 518000, China

Tel: +86-755-83700465 E-mail: [email protected] www.szelins.com

M100 Cellular Modem Quick Start

Note: Hyper Terminal

3. Open the HyperTerminal and input ***( any) as follows

4. Choose a right port

E-Lins Technology Co.,Limited

Add:Bld22, Longxi Garden, Nonglin Road, Futian, Shenzhen, 518000, China

Tel: +86-755-83700465 E-mail: [email protected] www.szelins.com

M100 Cellular Modem Quick Start

5. The right configuration as following

6. When your start-up Hyper Terminal, if it is not connected successfully, you can

see the red mark of follow picture without any number.

7. Please follow the following steps to make it work.

8. First, disconnect existing connection.

9. Second, click the “Properties button” or “attribute button”.

E-Lins Technology Co.,Limited

Add:Bld22, Longxi Garden, Nonglin Road, Futian, Shenzhen, 518000, China

Tel: +86-755-83700465 E-mail: [email protected] www.szelins.com

M100 Cellular Modem Quick Start

Second, click

“attribute” tab

First, disconnect

existing connection

No baud rate

10. click the “configure”, and make sure again of you modify configure

11. make sure your modify configure again, click “OK”

E-Lins Technology Co.,Limited

Add:Bld22, Longxi Garden, Nonglin Road, Futian, Shenzhen, 518000, China

Tel: +86-755-83700465 E-mail: [email protected] www.szelins.com

M100 Cellular Modem Quick Start

12. Then you can see it appeared baud rate on white label, then click the black label

to make call

If the button of the window show “9600

8-N-1”, click this button to make call for

connection

First, check if show

detected Baud rate

13. Power on the modem, then you had successfully configured the Hyper Terminal

14.

E-Lins Technology Co.,Limited

Add:Bld22, Longxi Garden, Nonglin Road, Futian, Shenzhen, 518000, China

Tel: +86-755-83700465 E-mail: [email protected] www.szelins.com

M100 Cellular Modem Quick Start

E-Lins Technology Co.,Limited

Add:Bld22, Longxi Garden, Nonglin Road, Futian, Shenzhen, 518000, China

Tel: +86-755-83700465 E-mail: [email protected] www.szelins.com

15. Do not care about the ERROR code, just care if you see “+++++++++++” on the

screen. If yes, the connection is successful.

Test AT command

Notes:

1. All <CF> means “enter”

2. The character and words in Green and Red is very important. Please study

carefully. Thanks!

AT<CF> //Test “at” command

I/OK //Response ok parameter if successfully connected, you can

make sure the module have no malfunction

AT+CSQ<CF> // to check the Signal quality

+CSQ: **, ## // ** Should be the number between 10 and 31, the signal

quality becomes better as the number grows.

## should be is 99, Or you should checking the equipment of

antenna or SIM card.

If you succeed in testing command, at now, you can begin to SMS

Chapter3

SMS

Refer to the related SMS manual.

Please contact E-Lins to get SMS manual or download from website.

The follow SMS Info is just for CDMA modem with ZTE module.

3.1 Select message server

AT+CSMS=1 //Select Message Service,the parameter is 0 or 1, default is 0

AT+CSMS? //Select currently Message Service

+CSMS: 0,1,1,1 // chosen service is 0,and returns the type of messages

supported by<mt>,< mo>,< bm>,

M100 Cellular Modem Quick Start

E-Lins Technology Co.,Limited

Add:Bld22, Longxi Garden, Nonglin Road, Futian, Shenzhen, 518000, China

Tel: +86-755-83700465 E-mail: [email protected] www.szelins.com

0 : Type not supported 1: type supported

3.2 Send SMS message

3.2.1 Send English message

at+zmsgl=1,2 //one-step,Set SMS Message format by ASCII coding

mode

at+cmgs="13632608834"<CR> //second-step, input aim telephone number,end as”

Enter” replace of <CR>

>helloyuhui // third-step, input content of message

+CMGS: 1 //Successful with send one message

OK //response

+CDS: 2, 1,"13632608834", 129,"07/01/15, 16:36:56 //response parameter about

content of message

Note: you have to set SMS Message format before sending message, English SMS Message format only

support ASCII code, and Chinese message format only support Unicode code, sending SMS Message

end as”ctrl-z”. Cancel it “ESC”

3.2.2 Send Chinese message

AT+ZMSGL=6, 4 //one-step, set SMS message format by Unicode code

41 54 2B 43 4D 47 53 3D 22 31 33 36 33 32 36 30 38 38 33 3422 //second-step, send

aim telephone and length of parameter by Unicode

>0D 501A592979D16280001A // content of message by Unicode code is “E-Lins

Technology”, end as (ctrl+z/Esc)

+CMGS: 1

+CDS:2,1,"13798257916",129,"07/01/15,17 :37 :08","07/01/15,17 :37 :13",32768

3.3 Receive SMS message

AT+CPMS="MT" //Preferred Message Storage; “Mt “is receive SMS Message

+CPMS: 3, 15,0,15

3.3.1 New SMS message indication

AT+CNMI=2,1,0,0,0 //value of format is<mode>,<mt>,<bm>,<ds>,<bfr>
