Dyson Micro 1.5kg Manual de usuario

User manual

SV12 JN.00000 PN.000000-00-00

00.00.00 VERSION NO.01

In the box

Getting started

Charging your machine

Caring for your floors

Emptying your bin

Cleaning your bin

Washing your filter

Washing your brush bar

Cleaning your tools

Clearing blockages

Looking after your machine

In the box

Vacuum cleaner

ChargerWand

Combi-crevice tool

Micro Fluffy™cleaner head

Charges your vacuum with

or without a dock.

Worktop tool

Engineered for cleaning kitchen

worktops, tables and hard surfaces.

Two tools in one – narrow nozzle and

brush, for quick switching between

cleaning and dusting tasks.

Light pipe crevice tool

Crevice tool with LED lights lets you

reach into dark, narrow spaces and

see where you’re cleaning.

Soft woven nylon and anti-static carbon

fibre filaments remove dust from hard

floors. Smaller than a standard Fluffy™

cleaner head - with a low profile to

reach under furniture.

Mini motorised tool

Motorised brush bar, concentrated

in a smaller head to remove

stubborn dirt from mattresses,

upholstery and stairs.

Wand clip

Some tools may not be included.

You can buy additional tools at www.dyson.com.

Clips to your vacuum's

wand to hold tools.

Power button

Press the Power button

once for comfortable,

continuous cleaning.

Getting started

Press the button to change

power modes.

Micro Fluffy™cleaner head

Power modes

Eco mode

Max mode

Soft woven nylon and anti-static carbon

fibre filaments remove dust from hard

floors. Smaller than a standard Fluffy™

cleaner head - with a low profile to

reach under furniture.

The optimum balance of

power and run time

Delivers maximum power.

For intensive cleaning of

ground-in dirt.

Charging your machine

For the best experience, we recommend fully charging your machine, and

any additional batteries, as soon as you open the box and after every clean.

The LED light on the end of the handle will flash when the power is running

low and you need to put your battery on to charge.

Connect the charger directly to the charging point on the base of the

handle of your machine. You can also connect to your dock as shown in the

installation instructions supplied with your dock.

The LED light on the end of the handle will pulse with a blue LED light when

charging, and the light will go out when fully charged.

It can take up to four hours to fully charge your battery. Your battery has

been designed to be left on charge.

Your machine won’t operate or charge if the ambient temperature is below

5°C (41°F). This is designed to protect both the motor and battery.

You can help prolong the battery life by leaving your machine to cool down

before recharging.

Caring for your floors

Check that the underside of the cleaner head or tool is clean and free from

any objects that may cause damage.

Before vacuuming your flooring, rugs, and carpets, check the manufacturer’s

recommended cleaning instructions.

This machine is designed for use on hard floors. The brush bar on your

machine can damage certain flooring. Some rug materials may fuzz if a

rotating brush bar is used when vacuuming. If this happens, we recommend

vacuuming without the motorised floor tool and consulting with your flooring

manufacturer.

Emptying your bin

Empty your bin as soon as the dirt reaches the MAX mark.

You may need to clean the filter more often if you use your machine with a full bin.

Cleaning your bin

Release the dirt

To remove the bin for emptying:

Minimise dust contact

Reassemble your machine

Remove your wand

Don’t put any part of your machine in a dishwasher or use detergents,

polishes or air fresheners.

Hold your vacuum over a bin.

Push the red bin release button, taking care not to press the power button.

The bottom of the bin will open and the shroud will slide down inside the bin,

wiping away any dirt.

If the bin doesn’t open, check the bin release button is pushed down fully.

If the bin doesn't empty fully, remove the bin and empty the dirt.

Press the red button located on the bin runner to release the bin and slide

your bin off the runner.

Cover your bin tightly in a dust proof bag while you empty. Remove the bin

carefully, seal the bag tightly and dispose.

If you have removed your bin, slide it back on to the runner. Make sure that

the bin and lid are both securely in position.

Push the bin base upwards until the bin and lid both click into place.

Reconnect the wand.

Press the red wand release button, on the top of the wand, and pull the wand

away from the bin.

clik

Replace your bin

Clean your bin

If it is necessary to clean your bin, empty it as shown in the ‘Emptying your

bin’ section.

Press the red button located on the bin runner to release the bin and slide

your bin off the runner.

Only clean your bin with a damp cloth.

Make sure that the bin and seals are completely dry before replacing.

Insert the spine on to the bin runner.

Close your bin by pushing the bin base upwards until the bin and bin base

click into place.

Washing your filter

Wash your filter at least once a month to maintain the best performance.

Make sure the filter is completely dry before refitting.

Twist off your filter

Wash your filter

Shake and dry

Refit your filter

Don’t put any part of your machine in a dishwasher or use detergents,

polishes or air fresheners.

Turn your filter anti-clockwise and pull it away from your machine.

Before washing your filter, tap it gently over a bin to remove any loose dust

and debris.

Wash the outside of the filter, rubbing with your fingers to remove the dirt.

Carefully rinse the inside filter, without allowing water to fill the filter.

Repeat these steps until the water runs clear.

Empty the filter and shake firmly to remove excess water.

Keep shaking until there’s no water coming from the filter.

Place your filter end up, as shown.

Leave your filter to dry for at least 24 hours in a well-ventilated, warm place.

Don’t dry your filter in a tumble dryer, microwave or near a naked flame.

Important: your filter must be completely dry before you put it back into the

machine. Your machine could be damaged if used with a damp filter.

To refit your filter, slide it onto the handle and turn it clockwise until it clicks

into place.

Your filter may need more frequent washing if you vacuum fine dust,

use Max mode frequently or use with the bin full.

To maintain optimum performance, check and wash the brush bar regularly.

Washing your brush bar

Remove brush bar

Wash and dry brush bar

Replace your brush bars

Don’t put any part of your machine in a dishwasher or use detergents,

polishes or air fresheners.

Press the cleaner head release button to remove it from the wand.

Pull the brush bar off the end cap and put the end cap to one side, don’t

wash it.

Hold your brush bar under cold tap water and gently rub to remove any lint

or dirt. Keep washing until the water runs clear.

Stand the brush bar upright and leave for at least 24 hours to dry.

Make sure your brush bar is completely dry before refitting.

Reattach the end cap to the brush bar and slide it back into the cleaner head.

Rotate the end cap until it clips securely back into position.

The cleaner head housing is not washable and should only be wiped over

with a damp lint-free cloth.

Cleaning your tools

Don’t put any part of your machine in a dishwasher or use detergents,

polishes or air fresheners.

Wipe with a damp, lint-free cloth, without touching the connector end.

Make sure your tools are completely dry before using.

Combi-crevice tool Worktop tool

Light pipe crevice tool Mini motorised tool

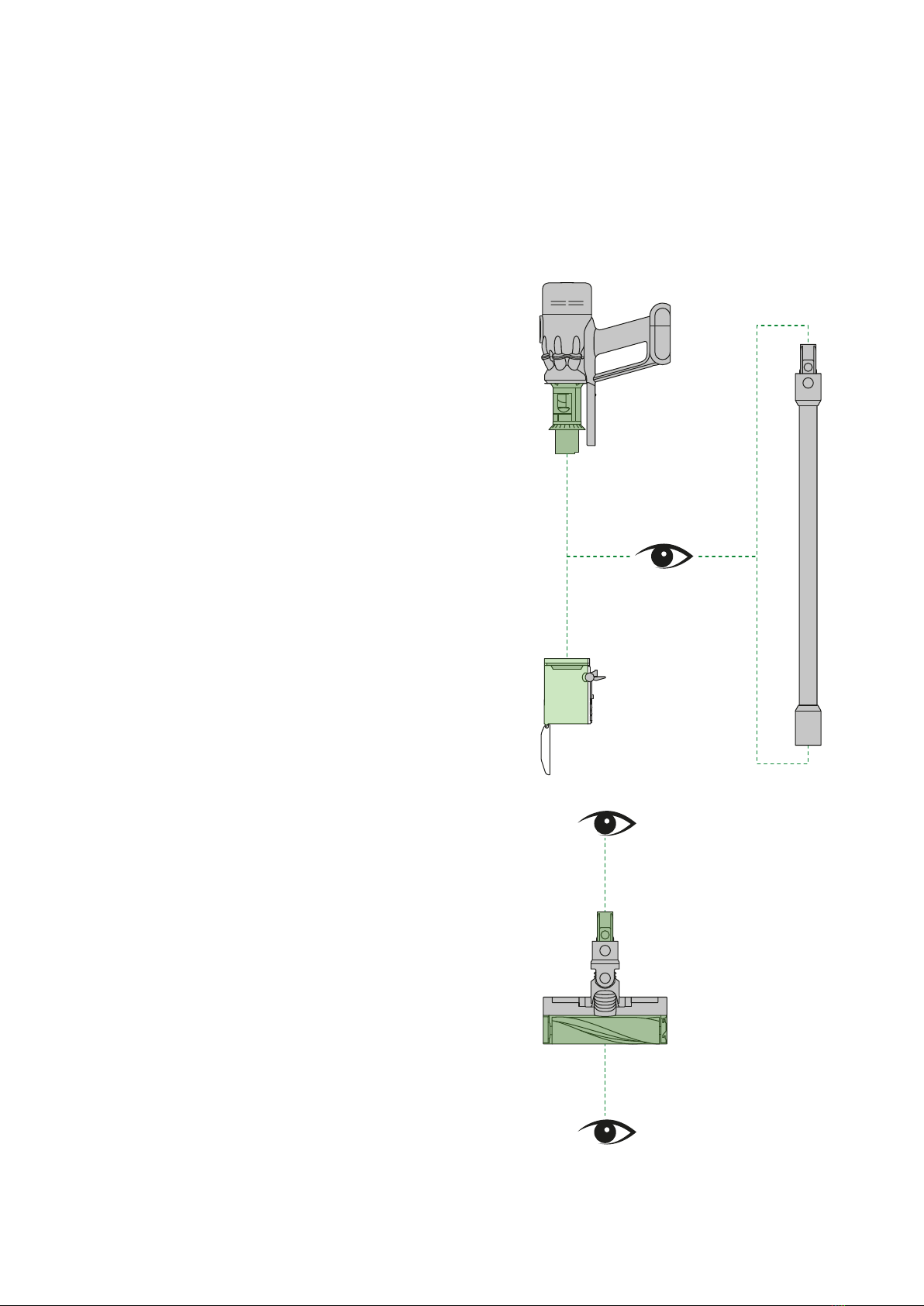

Clearing blockages

If your machine detects a blockage, the motor will pulse six times. You won’t

be able to use your machine until the blockage has been cleared.

If you try to use your machine when the motor is pulsing, it will automatically

cut out.

Leave your machine to cool down before looking for blockages and, for your

safety, take care not to touch the power button.

Disconnect your machine from the charger before looking for blockages.

Be careful not to touch the trigger and be aware of sharp objects.

Leave your machine to cool down before looking for blockages.

Don't use your machine when looking for blockages as this could cause injury.

Looking after your machine

To always get the best performance from your machine, it’s important to

clean it regularly and check for blockages.

Look after your machine

Look after your battery

Your serial numbers

You can register your machine using the serial number found on the bottom

of your machine.

If your machine is dusty, wipe with a damp lint-free cloth.

Check for blockages in the cleaner head, tools and main body of your machine.

Wash your filter regularly and leave to dry completely.

Don’t use detergents or polishes to clean your machine.

To get the best performance and life from your battery, use Eco mode.

Your machine won’t operate or charge if the ambient temperature is below

5°C(41°F). This is designed to protect both the motor and battery.

You can find your serial numbers on your machine, battery and charger.

Use your serial number to register.
