Dyness DL5.0C Manual de usuario

Battery Module

DL5.0C

51.2V/100Ah

DL5.0C

USER MANUAL

File version-20230330-V1-EN information might be subject to change without notice during product improving.

DL5.0C User Manual

©Dyness reserves the copyright of this document

Contents

Statement of Law..........................................................................................................................1

Revision History ........................................................................................................................1

Safety Precautions .......................................................................................................................2

Preface ............................................................................................................................................. 3

Manual declaration .................................................................................................................3

1 Introduction ................................................................................................................................ 4

Brief Introduction .................................................................................................................... 4

Product Properties ..................................................................................................................4

Product Identity Definition..................................................................................................5

2 Product Specification ..............................................................................................................6

Size and Weight .......................................................................................................................6

Performance Parameter........................................................................................................6

Interface Definition .................................................................................................................6

Battery Management System(BMS) ................................................................................ 11

3 Installation and Configuration .......................................................................................... 13

Preparation for installation ................................................................................................13

Equipment Installation ........................................................................................................ 16

4 Use, Maintenance and Troubleshooting...................................................................... 26

Battery system usage and operation instructions ................................................... 26

Alarm description and processing ................................................................................. 26

Analysis and treatment of common faults ..................................................................27

DL5.0C User Manual

©Dyness reserves the copyright of this document

Statement of Law

No part of this documentation maybe excerpted, reproduced, translated,

annotated or duplicated in any form or by any means without the prior

This product complies with the design requirements of environmental protection and

personal safety. The storage, use and disposal of the products shall be carried out in

accordance with the product manual, relevant contract or relevant laws and regulations.

Customer can check the related information on the website of Daqin New Energy Tech

(Taizhou) Co., Ltd when the product or technology is updated.

Web URL: http://www.dyness-tech.com/

Please note that the product can be modified without prior notice.

Revision History

Revision NO.

Revision Date

Revision Reason

1.0

2023.02.28

First Published

DL5.0C User Manual

©Dyness reserves the copyright of this document

Safety Precautions

WARNING

Please do not put the battery into water or fire, in case of explosion or any other situation

that might endanger your life.

Please connect wires properly while installation, do not reverse connect.

To avoid short circuit, please do not connect positive and negative poles with conductor

on the same device.

Please avoid any form of damage to battery, especially stab, hit, trample or strike.

Please shut off the power completely when removing the device or reconnecting wires

during the daily use or it could cause the danger of electric shock.

Please use dry powder extinguisher to put out the flame when encountering a fire hazard,

liquid extinguisher could result in the risk of explosion.

For your safety, please do not arbitrarily dismantle any component in any circumstances.

The maintenance must be implemented by authorized technical personnel or our

company’s technical support. Device breakdown due to unauthorized operation will not

be covered under warranty.

CAUTION

Our products have been strictly inspected before shipment. Please contact us if you find

any abnormal phenomena such as device outer case bulging.

The product shall be grounded properly before use in order to ensure your safety.

To assure the proper use please make sure parameters among the relevant device are

compatible and matched.

Please do not mixed-use batteries from different manufacturers, different types and

models, as well as old and new together.

Ambient and storage method could impact the product life span, please comply with the

operation environment instruction to ensure device works in proper condition.

For long-term storage, the battery should be recharged once every 6 months, and the

amount of electric charge shall exceed 80% of the rated capacity.

Please charge the battery in 18 hours after it fully discharged or over-discharging

protection mode is activated.

Formula of theoretical standby time: T=C/I (T is standby time, C is battery capacity, I is

total current of all loads).

DL5.0C User Manual

©Dyness reserves the copyright of this document

Preface

Manual declaration

DL5.0C lithium iron phosphate battery energy storage system can provide energy

storage for photovoltaic power generation users through parallel combination. Our

product can store extra electricity into battery from photovoltaic power generation

system in daytime and supply stable power to user’s equipment as power backup at

nighttime or any time when needed. It can improve the efficiency of photovoltaic power

generation and increase the electric power efficiency by peak load shifting.

This user manual details the basic structure, parameters, basic procedures and methods

of installation and operation and maintenance of the equipment.

DL5.0C User Manual

©Dyness reserves the copyright of this document

1 Introduction

Brief Introduction

DL5.0C lithium iron phosphate battery system is a standard battery system unit,

customers can choose a certain number of DL5.0C according to their needs, by

connecting parallel to form a larger capacity battery pack, to meet the user's long-term

power supply needs. The product is especially suitable for energy storage applications

with high operating temperatures, limited installation space, long power backup time and

long service life.

Product Properties

DL5.0C energy storage product’s positive electrode materials are lithium iron phosphate,

battery cells are managed effectively by BMS with better performance, the system’s

features as below:

Comply with European ROHS, Certified SGS, employ non-toxic, non-pollution

environment-friendly battery.

Anode materials are lithium iron phosphate (LiFePO4), safer with longer life span.

Carries battery management system with better performance, possesses protection

function like over-discharge, over-charge, over-current, abnormal temperature.

Self-management on charging and discharging, Single core balancing function.

Intelligent design configures integrated inspection module.

Flexible configurations allow parallel of multi battery for longer standby time.

Self-ventilation with lower system noise.

Less battery self-discharge, then recharging period can be up to 10 months during the

storage.

No memory effect so that battery can be charged and discharged shallowly.

With wide range of temperature for working environment, -20oC~ +55oC, circulation

span and discharging performance are well under high temperature.

Less volume, lighter weight.

DL5.0C User Manual

©Dyness reserves the copyright of this document

Product Identity Definition

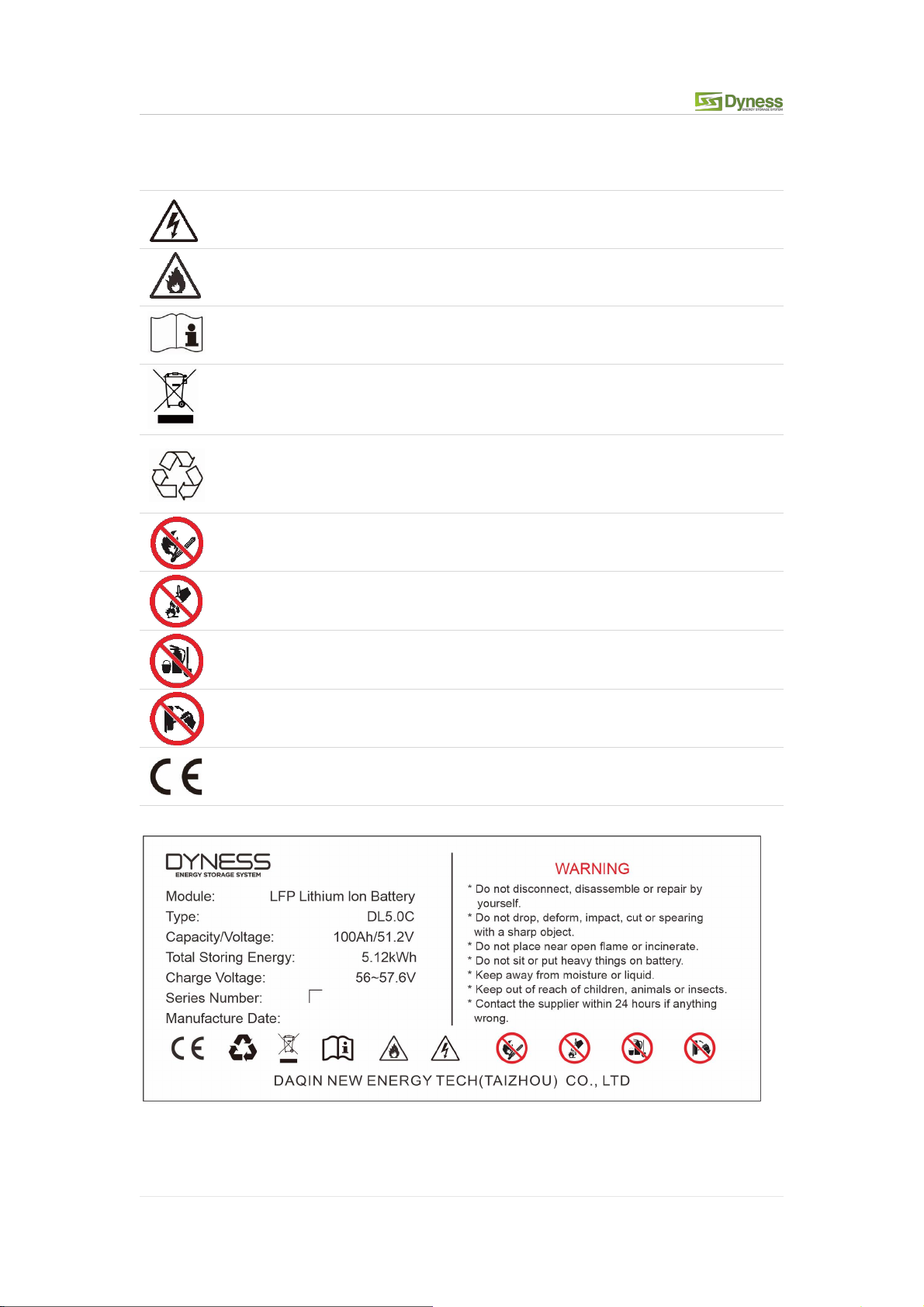

Table 1-1 Symbol Definition

Battery voltage is higher than safe voltage, direct contact

with electric shock hazard.

inflammable.

Read the user manual before using.

The scrapped battery cannot be put into the garbage can

and must be professionally recycled.

After the battery life is terminated, the battery can continue

to be used after it recycled by the professional recycling

organization and do not discard it at will.

Do not place near open flame or incinerate.

If catch fire, do not put out with water.

If catch fire, do not put out with dry powder fire

extinguisher.

Do not cut or spear with sharp objects.

This battery product meets European directive

requirements.

Figure 1-1 Battery Module Label

DL5.0C User Manual

©Dyness reserves the copyright of this document

2 Product Specification

Size and Weight

Table 2-1 DL5.0C Device size

Product

Nominal

Voltage

Nominal

Capacity

Dimension

Weight

DL5.0C

DC51.2V

100Ah

558×545×150mm

54kg

Performance Parameter

Table 2-2 DL5.0C performance parameter

Item

Parameter value

Nominal Voltage(V)

51.2

Work Voltage Range(V)

44.8~57.6

Nominal Capacity(Ah)

100

Nominal Energy(kWh)

5.12

Recommended Charge/Discharge Current (A)

Max. Power Charge/Discharge Current (A)

Peak Power Charge/Discharge Current (A)

100 (15S)

Recommend Charge Voltage (Vdc)

56.5

Interface Definition

This section elaborates the interface functions of the front interface of the device.

Figure 2-1 The Sketch of Interface

DL5.0C User Manual

©Dyness reserves the copyright of this document

Table 2-3 Interface Definition

Item

Name

Definition

Power switch

OFF/ON, must be in the "ON" state when in use

Positive socket

Battery output positive or parallel positive line

ADD

DIP switch

SW (battery

wake/sleep

switch)

When the "OFF/ON" switch button is in the ON state,

press and hold this button for 3 seconds to put the

battery into the power-on or off state.

SOC

The number of green lights shows the remaining power.

Table 2-3 for details.

ALM

Red light flashing when an alarm occurs, red light always

on during protection status. After the condition of trigger

protection is relieved, it can be automatically closed.

RUN

Green light flashing during standby and charging mode.

Green light always on when discharging.

COM

Communication cascade port, support RS232

CAN/485

Communication cascade port, support CAN/ RS485

communication (factory default CAN communication)

DRY CONTACT

Negative socket

Battery output negative or parallel negative line

Grounding

Shell ground connection

Table 2-4 DIP switch definition and description

DIP switch position (master communication protocol and baud rate selection)

Define different protocols；

Distinguish between master and slave

Baud rate selection

OFF：CAN: 500K,485: 9600

ON：CAN: 250K,485: 115200

DIP Switch Description

When the batteries are connected in parallel, the host communicates with the slaves

through the CAN interface. The host summarizes the information of the entire

battery system and communicates with the inverter through CAN or 485.

If the master is the latest DL5.0C battery with DIP switch:

1. The communication cable from the master CAN IN to the inverter comm port

should be the correct one.

DL5.0C User Manual

©Dyness reserves the copyright of this document

DIP Switch Description

2. When the battery works with GOODWE, Solis, LUX, Sofar, DEYE(Sunsynk),

VICTRON, IMEON, Sungrow, SMA, RENAC, DELIOS, SAJ(CAN Comm) before starting

the battery, you need to put the master DIP switch "# 3" to the "ON" position (to the

top), then turn on the batteries.

3. If the battery communicates with the Axpert-king/VMIII/MAX, Infinisolar, Growatt

SPH/SPA(CAN comm) GMDE, turn the master DIP switch "#2" to "ON" position.

4. If the battery communicates with the Growatt SPF HVM-P/ES/WPV by RS485

communication, turn the master DIP switch "#2" and "#3" to "ON".

5. If the battery communicates with the Schneider Conext Series, turn the master DIP

switch "#1" and "#3" to "ON".

6. When you setup the master DIP as setting 1~4, all the slaves keep the DIP 0000,no

need to change.

7. If the energy storage system has only one DL5.0C, it is the master itself, and still

follow the above steps.

Note: For more information of matching inverter brands, please subject to the latest

document

<The list of compatibility between Dyness ESS and Inverters >.

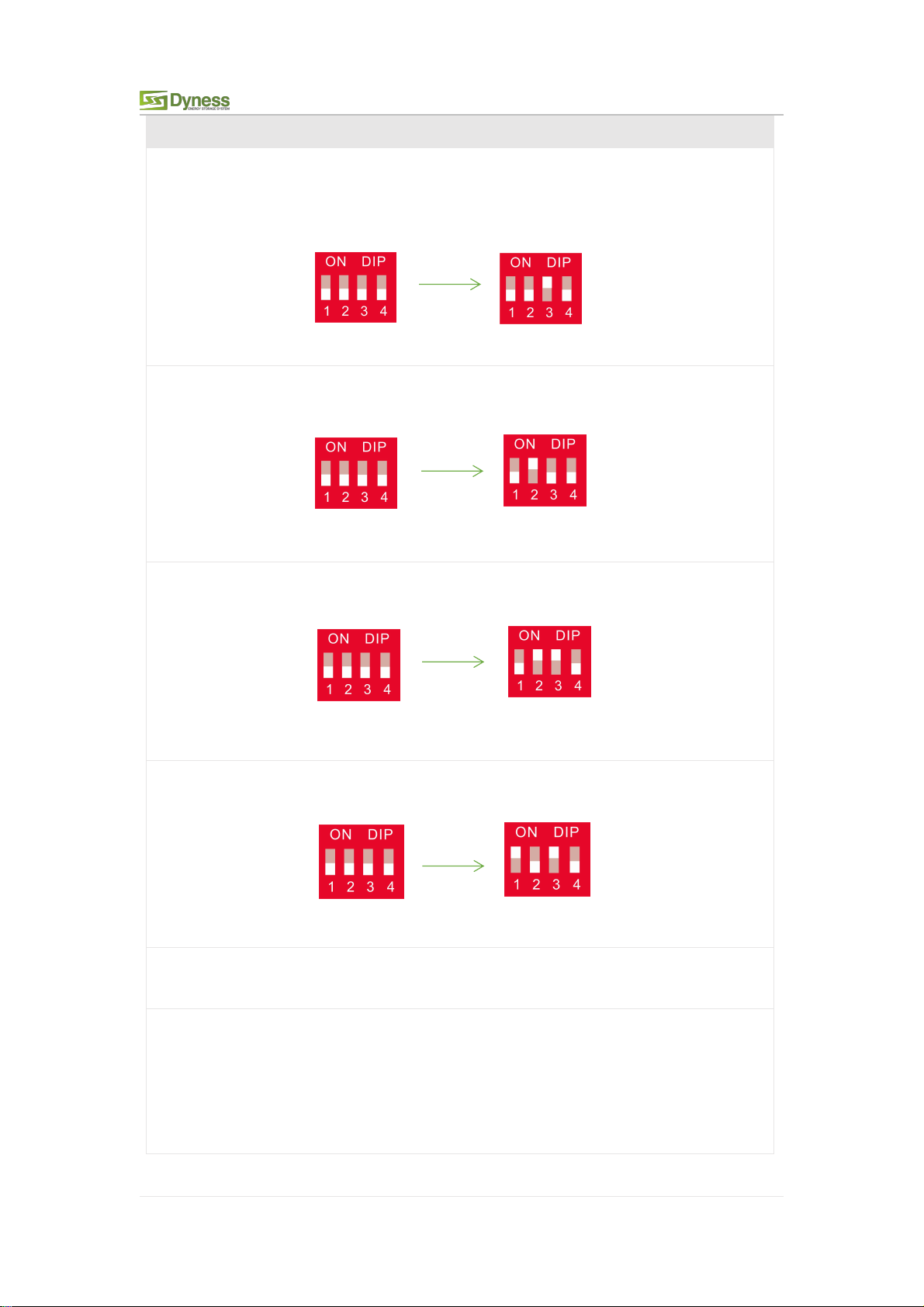

Master Setting 1

Master Setting 2

Master Setting 3

Master Setting 4

Tabla de contenidos

Otros manuales de Paquete de baterías de Dyness

Dyness

Dyness B48100 Manual de usuario

Dyness

Dyness Tower T Series Manual de usuario

Dyness

Dyness B3 Manual de usuario

Dyness

Dyness Junior Box Manual de usuario

Dyness

Dyness A48100 Manual de usuario

Dyness

Dyness DYN-B4850 Manual

Dyness

Dyness POWERBOX Pro Manual de usuario

Dyness

Dyness PowerDepot H5B Manual de usuario

Dyness

Dyness WIFI-M01 Manual de usuario

Dyness

Dyness B51100 Manual de usuario

Dyness

Dyness POWERCUBE Series Manual de usuario

Dyness

Dyness Tower ESS Manual de usuario

Dyness

Dyness RV12100 Manual de usuario

Dyness

Dyness B4850 Manual de usuario

Dyness

Dyness PowerRack HV4 Manual de usuario

Dyness

Dyness TowerESS Manual de usuario

Manuales populares de Paquete de baterías de otras marcas

Acumentrics

Acumentrics PACK-POWER SYSTEM Manual de usuario

ACDC Dynamics

ACDC Dynamics SPF12-50 Manual de usuario

Aegis

Aegis ABL-72020P Manual de usuario

Growatt

Growatt APX 5.0P-S0-US Manual de usuario

EGO

EGO BAX1300 Manual de usuario

CyberPower

CyberPower BCA Series Manual de usuario

Intermec

Intermec 700 Series Manual de usuario

Dometic

Dometic PLB40 Manual de usuario

V-TAC

V-TAC VT-48280-W2 Manual de usuario

Valence

Valence RT Manual de usuario

Nikon

Nikon MB-D14 Manual de usuario

IOGear

IOGear GBP24V Series Manual de usuario

Inventus Power

Inventus Power PROTRXion S-12V100-TRX-HD Manual de usuario

Clas Ohlson

Clas Ohlson PW-290A Manual de usuario

EINHELL

EINHELL MULTI-Ah Power X-Change Plus Manual de usuario

Samsung

Samsung EB-U3300 Manual de usuario

ECTIVE

ECTIVE LC Series Manual de usuario

Narada

Narada 12REXC70 Manual de usuario
