Dynamix UM-A Manual de usuario

M-

-A

Contents

I. PANEL DESCRIPTION----- 1 PORT ADSL ROUTER

II. CONNECTING YOUR ADSL ROUTER----- 1 PORT

III. SET UP TCP/IP IN WINDOWS

OPTION-A WINDOWS ME / 98

OPTION-B WINDOWS 2000

OPTION-C WINDOWS XP

IV. SET UP ADSL ROUTER

Dynamix UM-A

II.

Panel

Description -

Dynamix UM-A

ADSL

Router

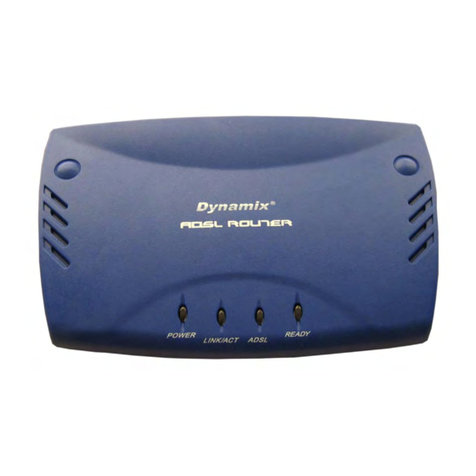

1. Front Panel

PWR

Steady

Green

light

indicates

the

Dynamix UM-A ADSL Router

powered

on.

LINK/ACT

Blinking

when

Dynamix UM-A ADSL

Router

actively

sending/receiving

data.

RxD

Blinking

when

data

communication

active.

ADSL

Lit

when

successful

ADSL

connection

established.

RDY

System

status

indicator.

Blinking

indicate

system

alive.

2. Back Panel

ADSL

Connect

ADSL

Line.

RESET

Restore

the

Dynamix UM-A

ADSL

Router’s

factory

default

setting.

LAN

Connect

network

device.

Support

auto

crossover

functionality.

AC JACK

Connect

Power

Adaptor.

ON/OFF

Power

ON/OFF

Switch.

Dynamix UM-A

IV.

Connecting

our

Dynamix UM-A

ADSL

Router-

1. Wired connection mechanism :

2. Wired Connection :

A. Make sure all your network hardware and PCs are powered off.

Connect

one

end

your

Ethernet

network

cable

(RJ45)

one

the

LAN

ports

on the 1 Port ADSL Router, and plug in the other end to an Ethernet port on

your PC.

C. Connect your ADSL Line from the Splitter or Microfilter to the ADSL port of the

Dynamix UM-A ADSL Router.

D. Connect theAC Power Adaptor to the Dynamix UM-AADSL Router and the other

end of the adaptor to the wallet.

E. Power on your Notebook/PCs and the Dynamix UM-AADSL Router.

Dynamix UM-A

Set

TCP/IP

Windows

Option-A Windows ME / 98

Dynamix UM-A

Option-B Windows 2000

Dynamix UM-A

Option-C Windows XP

Dynamix UM-A

VI.

Set

ADSL

Router

Launch

your

web

browser,

and

enter

the

ADSL

Router’s

Address

“10.0.0.2”

the

address field then press the Enter key to login.

2. Enter the default User Name “admin” and Password “epicrouter”. Then press

“OK” to login.

3. Click “Automatic Setup” and follow the following steps to help you install the

ADSL Router quickly and easily.

Dynamix UM-A

STEP

Select the presetting country form the list.

IP Mode : Click “Dynamic IP” or “Static IP” for the connection

mode. Check your ISP for the connection/setting details.

If “Static IP” mode is chosen, more terms need to be filled before

any Internet access is available. Check your ISP for the

setting/configuration details.

For some specific Encapsulation, you might need to fill in your “User

Name” and “Password”. Check your ISP for the

setting/configuration details.

Click and select “Manual Setup” if you can’t find any available

parameters from the country list. Check your ISP immediately for the

setting/configuration details.

Dynamix UM-A

STEP

Click “Save Setting” after your choice.

Dynamix UM-A ADSL Router system will reboot and activate your setting. Click

“Back To Home” after the reboot process. Connection to the Internet is

available after the above process.

Dynamix UM-A
